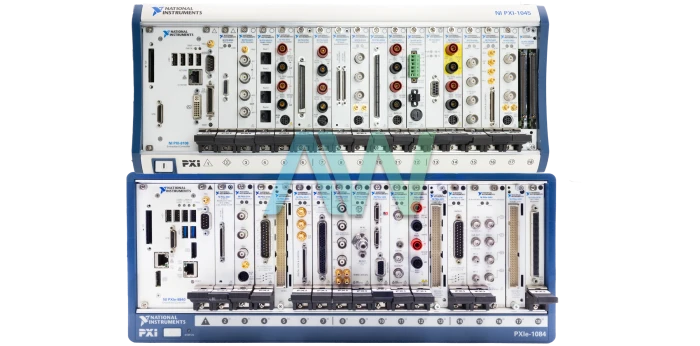

National Instruments 786939-01 PXI High Speed Instrument

Part number 786939-01 from National Instruments is the descriptive part number for the PXIe-6594 PXI High-Speed Serial Instrument. Equipped with 8 single-ended digital I/O channels, the 786939-01 offers diverse connectivity for a variety of test scenarios. Designed for applications where the user must test, verify, or interface with serial protocols- this instrument is easily programmable for application-specific customization. The powerful functionality of the 786939-01 is support by a Xilinx Kintex Ultrascale+ FPGA, which supports a wide range of high speed serial protocols.

The power requirements for the 786939-01 depend on what contents from the LabVIEW FPGA VI are used. In general, 3 A of power are required for a voltage of +3.3 V, while 4 A of power is required for a voltage of +12 V. The maximum total power required by the instrument is 58 W.

Designed for indoor use only, the 786939-01 has a pollution degree of 2 and can be used in altitudes up to 2,000m. During operation, the instrument can withstand a peak operating shock of 30 g. In addition, it can tolerate random vibrations ranging from 5 Hz to 500 Hz.

The 786939-01 should only be operated in environments where the temperatures range from 0 °C to 55 °C with a noncondensing humidity range of 10% to 90%. The instrument can be securely kept in storage conditions with temperatures ranging from -40 °C to 71 °C and a noncondensing relative humidity range of 5% to 95%. The 786939-01 measures 2.0 cm × 13.0 cm × 21.6 cm (0.8 in. × 5.1 in. × 8.5 in.) in dimensions and weighs 520 g (18.3 oz).
