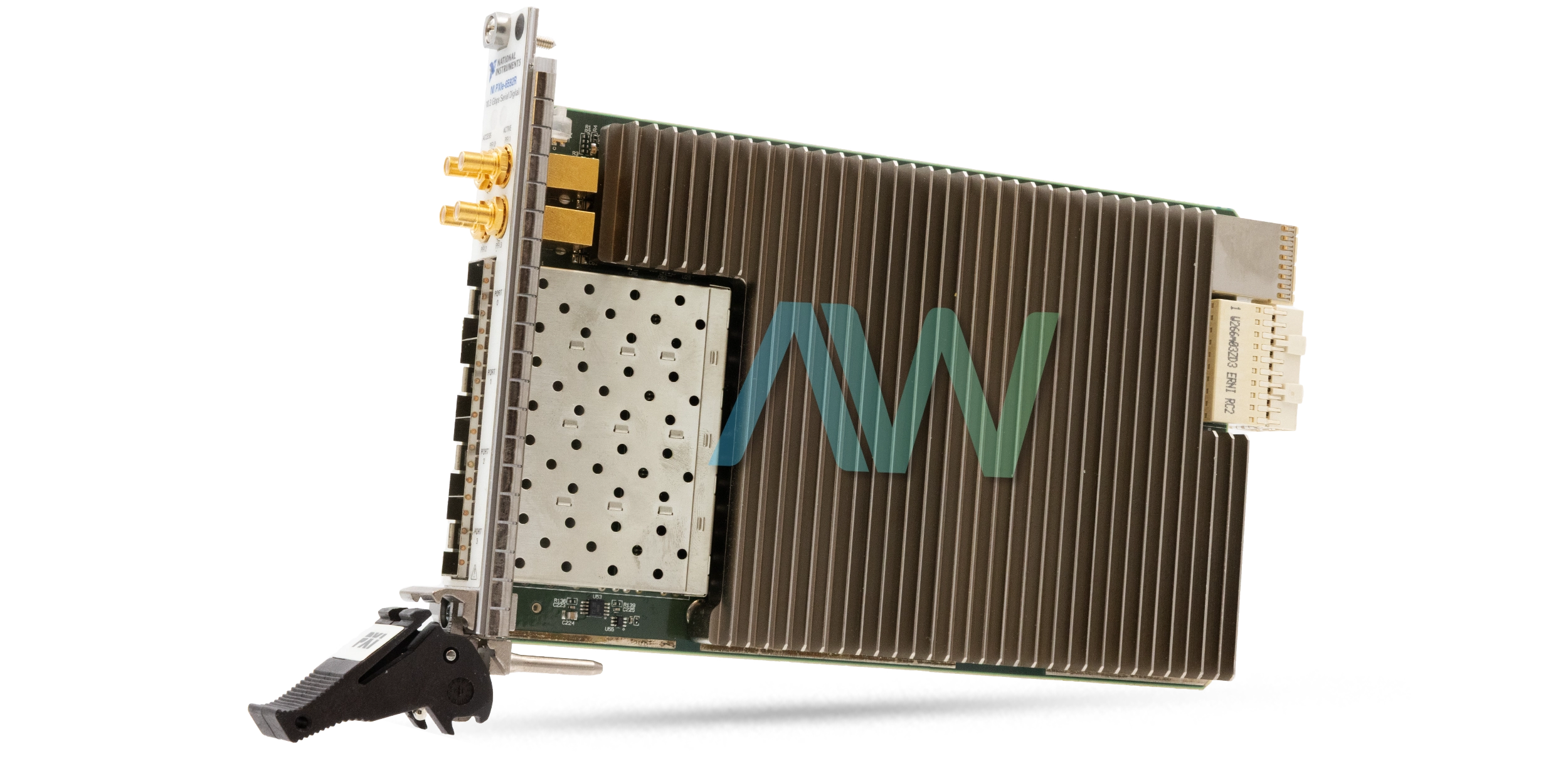

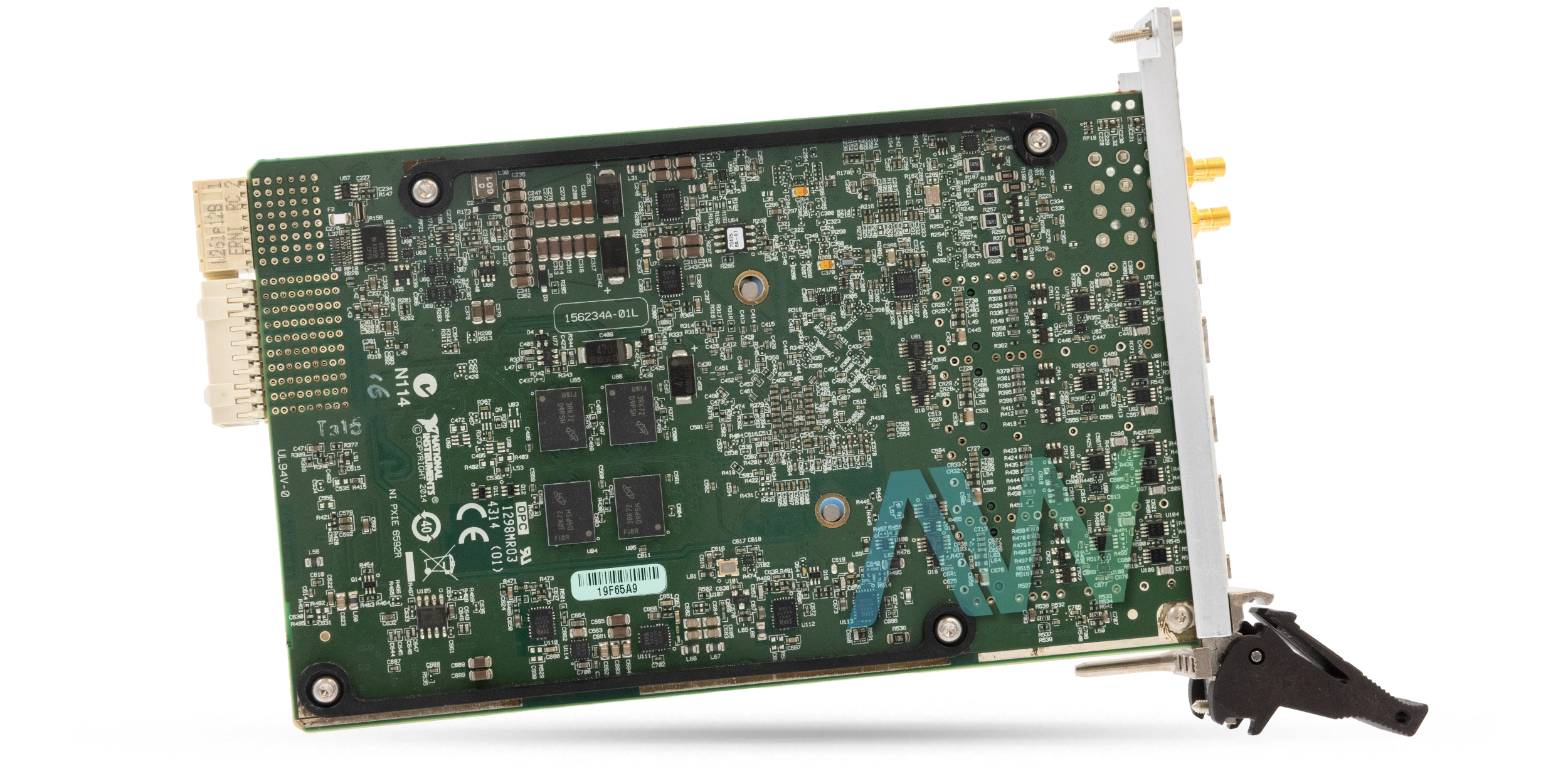

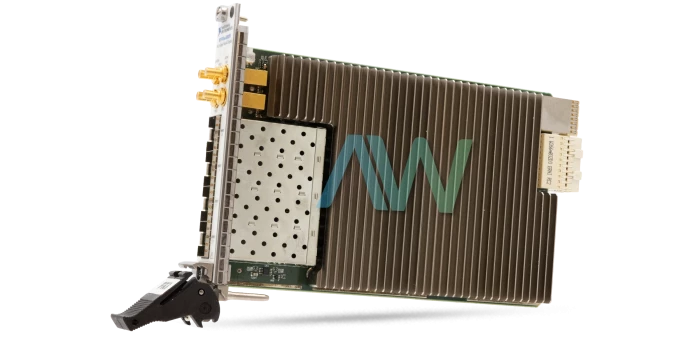

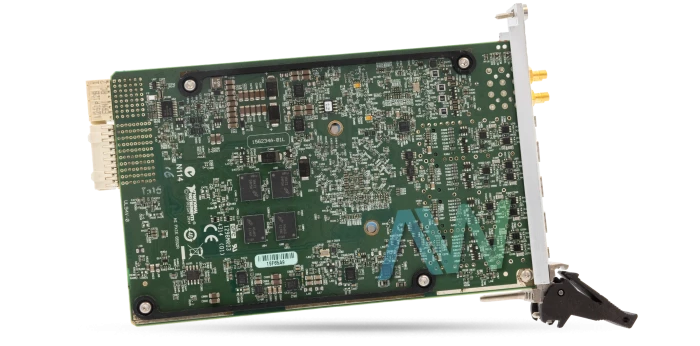

National Instruments PXIe-6592 PXI High-Speed Serial Instrument
The PXIe-6592 (Part Number: 783639-01) with 10 Gbps and 4 channels is a High-Speed Serial Instrument. The NI PXIe-6592 enables the user to completely redo their serial computerized protocol application. The fast serial interface utilizes Xilinx GTX transceiver innovation, so the user can reuse existing protocol IP that works with Xilinx GTX transceivers, or they can build up their own protocol IP. If the user builds up their own IP protocol, the IP must be created for a Xilinx Kintex-7 GTX transceiver.
The power management segment supplies control for every single other part of the framework and manages control utilization. The Rx and Tx nodes receive and transmit modulated radio signals. There are two bits of digital information sources for inputs and outputs on this module. The GPIO on this gadget is utilized for controlling the working modes and reading registers from the radio transceiver framework. A locally available processor is utilized to combine active waveforms and perform signal processing on incoming waveforms.
This High-Speed Serial Instrument is utilized to stream information to and gather information from the DUT. Information sent to the transceiver incorporates signal information for pulse and constant waveforms. Gained information contains radio signal data and is prepared to establish that the assembly is working appropriately. Practical testing that incorporates the full fast serial connection requires a more elevated amount of sophistication than testing just the physical and information interface layers. The capacity to actualize application-layer logic and norms on a test instrument is critical to checking the usefulness at the highest amount.
| Model | PXIe-6592 |
|---|---|
| Part Number | 783639-01 |
| Manufacturer | National Instruments |
| Type | PXI High-Speed Serial Instrument |
| Bidirectional Digital Channels | 4 |
| Maximum Data Rate | 10.31 Gbits/s |
| FPGA | Kintex-7 410T |
| Dimensions | 7.4 x 5.1 x 0.8 in. (without connectors) |
| Weight | 14.0 oz. |
| PXIe-6592 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for PXIe-6592:
National Instruments PXIe-6592 Frequently Asked Questions
Question: What is the slot compatibility for the PXIe-6592?
Answer: The PXIe-6592 is compatible with x1, x4, x8, and x16 PXI Express or PXI Express hybrid slots.
Question: How many flip-flops does the NI PXIe-6592 FPGA have?
Answer: The NI PXIe-6592 FPGA has 508,400 flip-flops.
Question: Which type of high speed cable is supported by the PXIe 6592?
Answer: The PXIe 6592 supports electrical/optical high speed cables.
Question: What is the input protection range for the NI PXIe-6592?
Answer: The NI PXIe-6592 has an input protection range from -1 V to 5 V.
