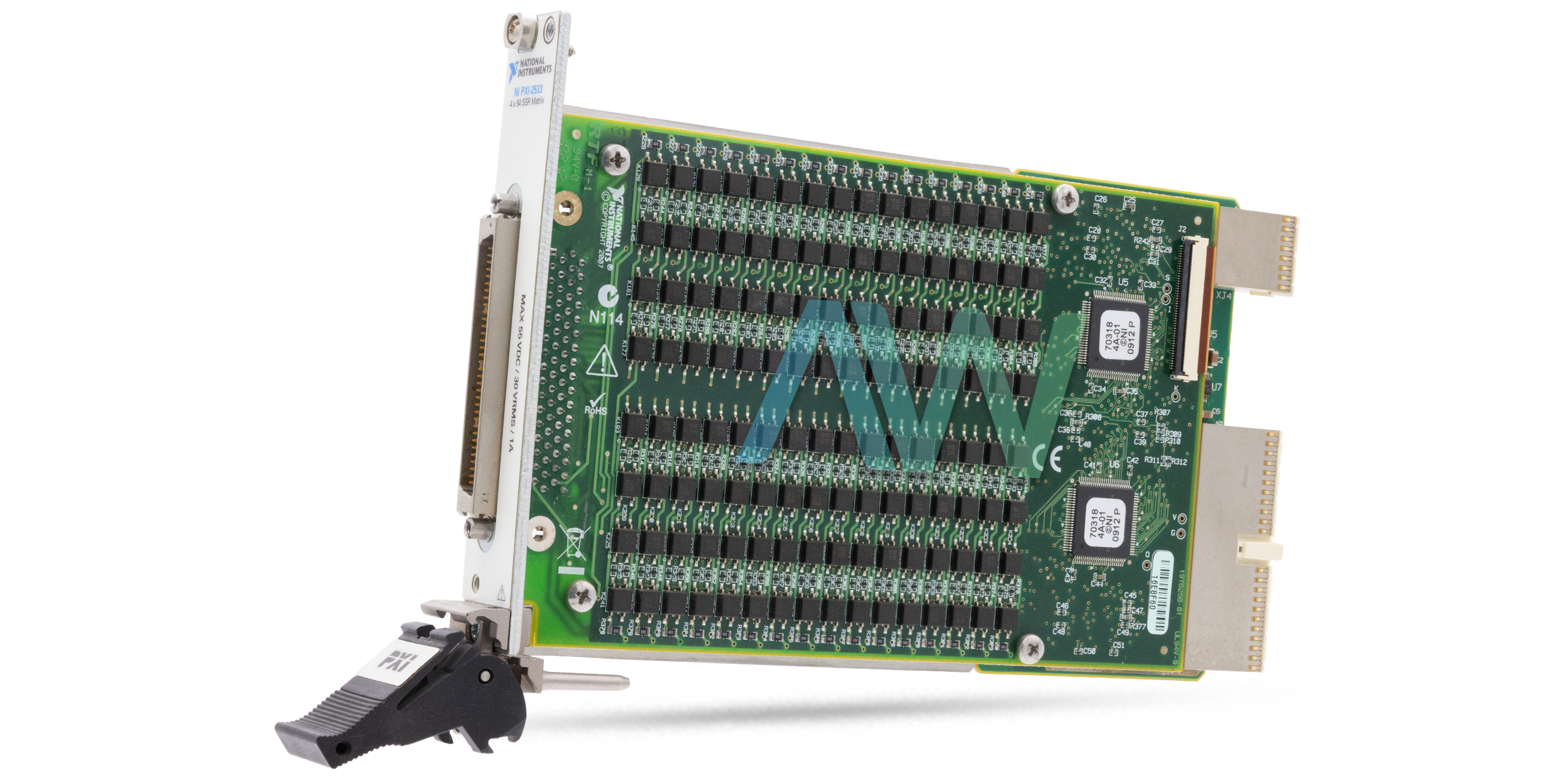

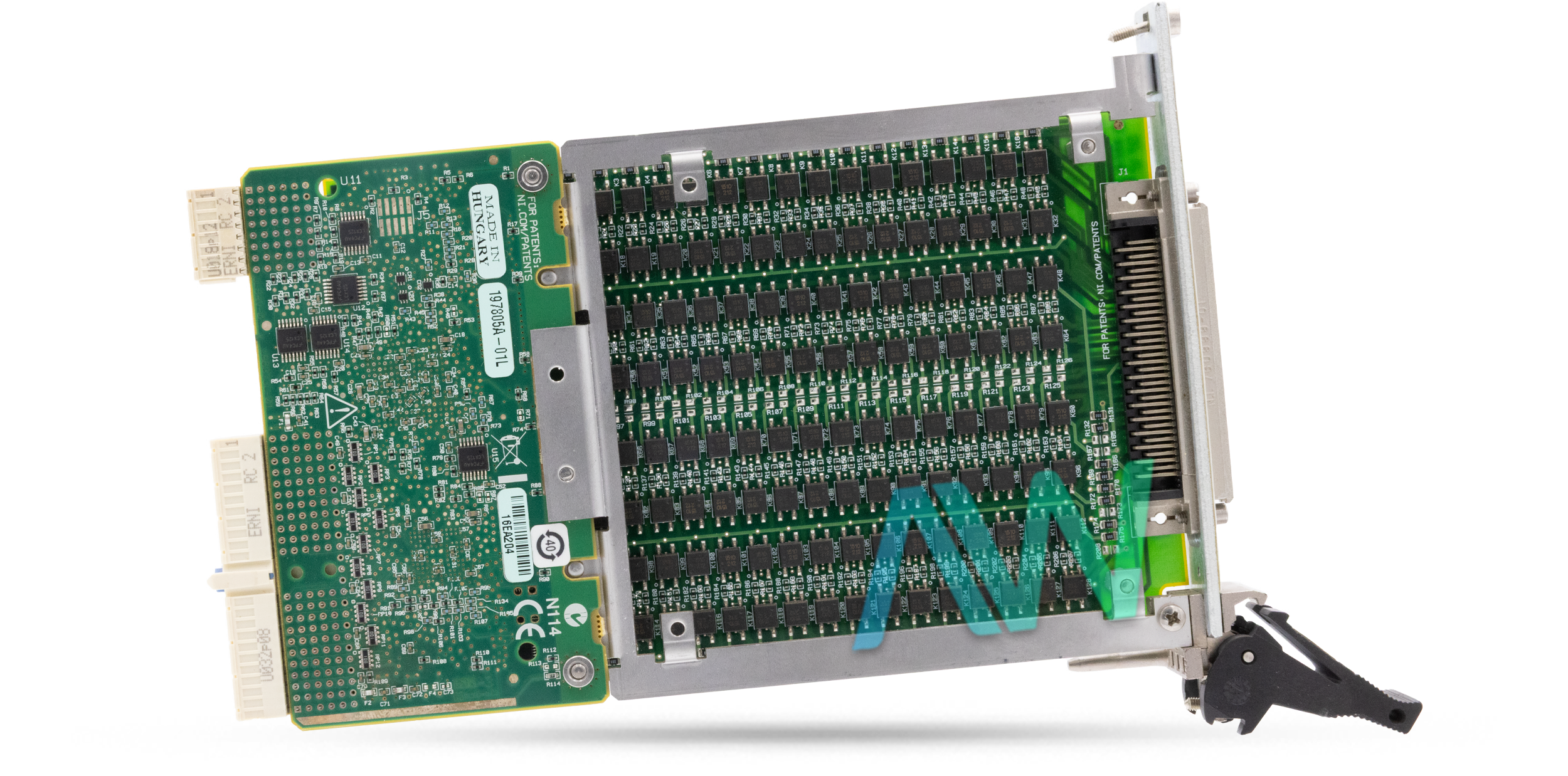

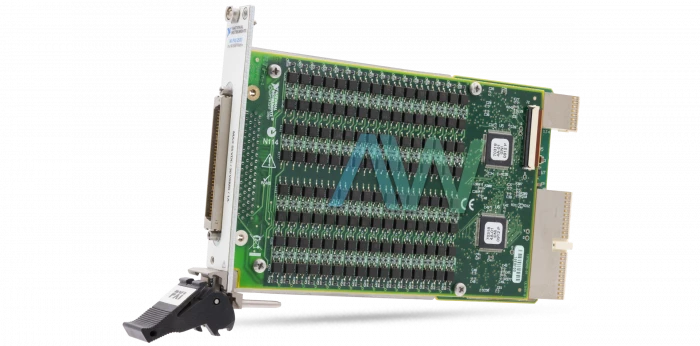

National Instruments 778572-33 PXI Matrix Switch Module
The National Instruments 778572-33 is a 1-Wire 4x64 PXI matrix switch module. It is also identified as PXI-2533 and is specially designed for high-channel-count automated test systems. This module features solid-state relays (SSRs) that offer an unlimited mechanical lifetime and the capacity to route 55 W simultaneously across all channels. The SSRs ensure rapid switching with an operate time of 724 µs, and a maximum scan rate of 400 crosspoints per second.
The 778572-33 module has top-notch input specifications that support a maximum switching voltage of ±55 VDC or 30 VACrms, with a maximum switching power of 55 W and a current capacity of up to 1 A. It offers a DC isolation resistance of greater than 2 GΩ, and a low offset voltage of 2 µV, which ensure minimal signal interference. The total path resistance from row to column is 1 Ω. The RF performance characteristics include a typical single crosspoint bandwidth of over 1.5 MHz in a 50 Ω system. The crosstalk levels are less than -40 dB at 10 kHz and less than -20 dB at 100 kHz. These features ensure high signal integrity and minimal interference which is important for precise testing and measurement applications.
The 778572-33 module’s triggering capabilities include input triggers from PXI trigger lines <0…7> with a minimum pulse width of 70 ns and output triggers to the same lines with a software-selectable pulse width ranging from 1 µs to 62 µs. These features enable synchronized and coordinated testing procedures. This is a compact module that occupies one slot in a 3U PXI/cPCI chassis with dimensions of 21.6 cm x 2.0 cm x 13.0 cm.
The part comes in a lightweight design the weighs only 238 g. This PXI matrix switch module features a 68-pin male SCSI I/O connector and has power requirements of 1 W at 3.3 V and 8 W at 5 V with all crosspoints closed. The module operates within a temperature range of 0 °C to 55 °C and can be stored between -40 °C and 70 °C. The allowable relative humidity level for this model is 5% to 85%.
| Model | 778572-33 |
|---|---|
| Model Name | PXI-2533 |
| Part Type | PXI Matrix Switch Module |
| Scan Rate | 400 cycles/s |
| Switch Bandwidth | 1.5 MHz |
| Maximum Switching Voltage DC | 55 VDC |
| Crosspoints | 256 |
| Dimensions (L x W x H) | 21.6 x 2.0 x 13.0 cm (8.5 x 0.8 x 5.1 in.) |
| Weight | 238 g (8.4 oz.) |
