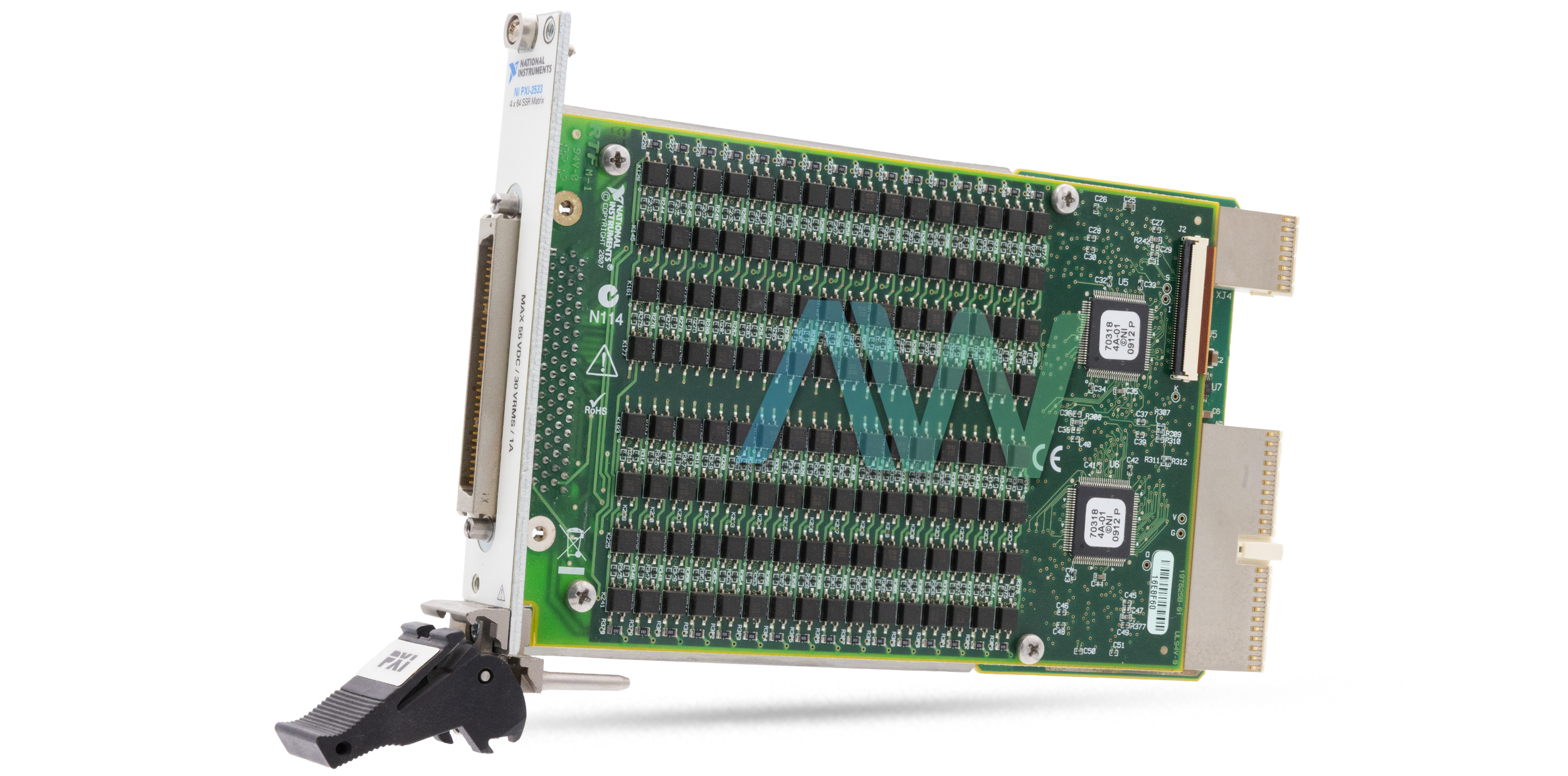

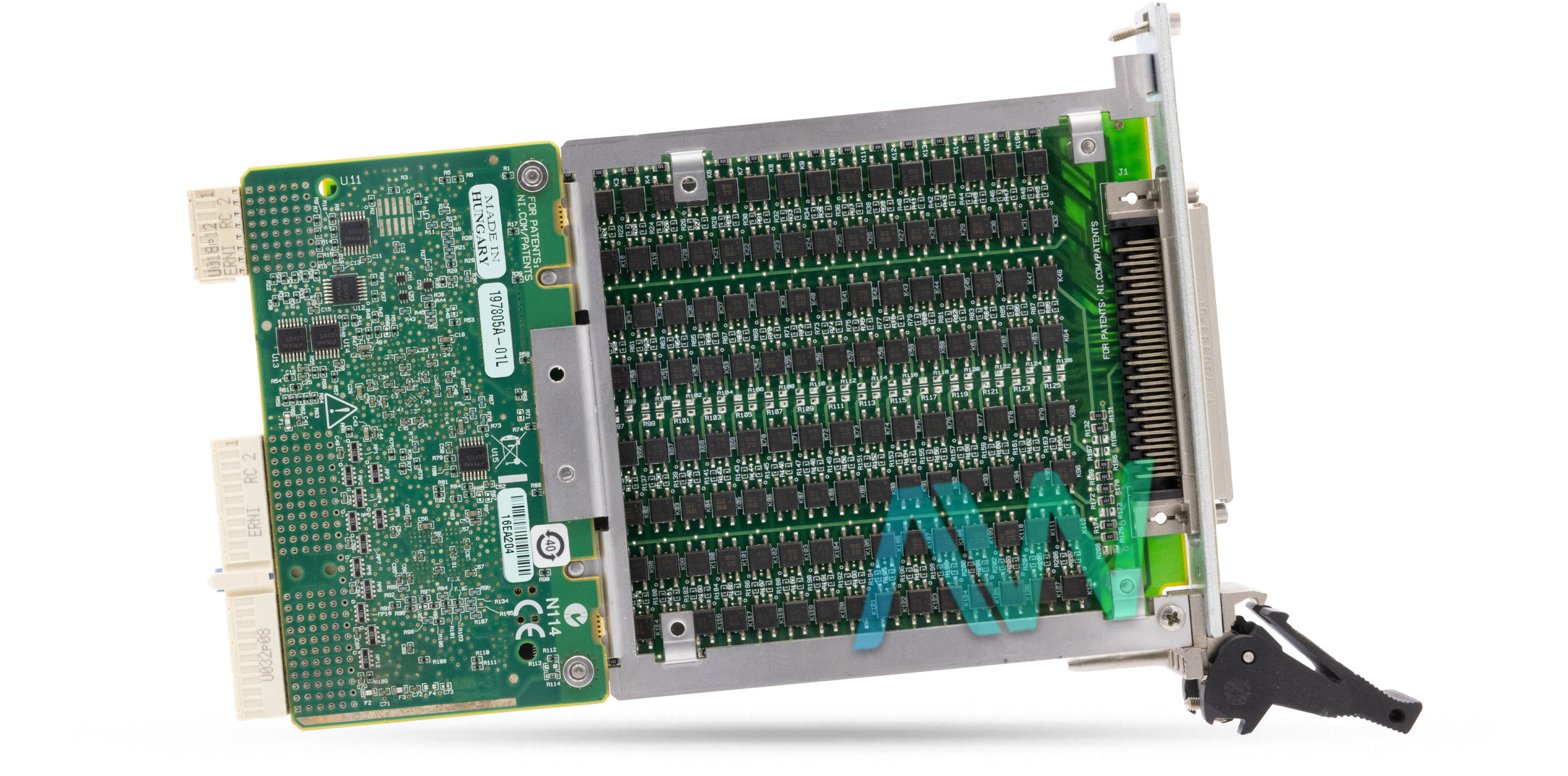

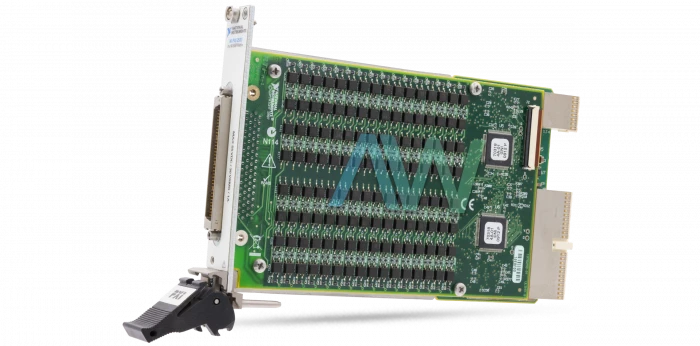

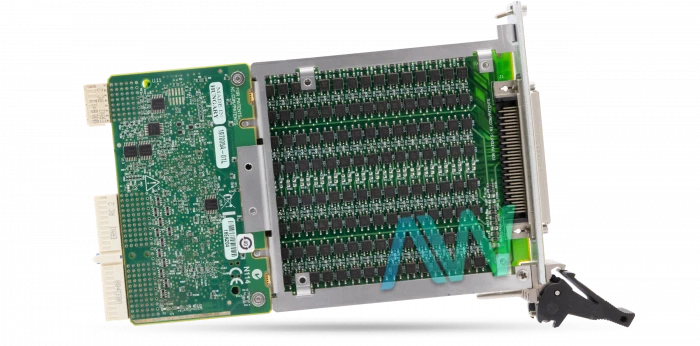

PXI-2533 National Instruments Matrix Switch Module | Apex Waves | Image PXI-2533 National Instruments Matrix Switch Module | Apex Waves | ImagePXI-2533 NewPXI-2533 | Legacy, Refurbished and New Surplus
PXI-2533 National Instruments Matrix Switch Module | Apex Waves | Image
PXI-2533 National Instruments Matrix Switch Module | Apex Waves | Image
PXI-2533 New
PXI-2533 | Legacy, Refurbished and New Surplus

PXI-2533

4.6/5 | 17 ratings

Modular Systems > National Instruments > PXI Matrix Switch Modules

Part Number PXI-2533
Manufacturer/Brand National Instruments
Description: PXI-2533, 1-Wire, PXI Matrix Switch Module
In Stock | Ships in 5-10 Days
Fast Quote
Quoted Price
Lowest Price Guarantee
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing
2 year warrantyRefurbished
*What is Refurbished?
Quoted Price
Fully tested
2yr warranty
  Get Pricing

Need an Official Quote?



Or speak to a sales representative for pricing & lead time:


National Instruments PXI-2533 PXI Matrix Switch Module

Featured with Solid-State Relays (SSRs), the National Instruments PXI-2533 (Part Number: 778572-33) is a 1-Wire, 256-Crosspoint PXI Matrix Switch Module. The PXI-2533 is known for its reliability since its relays have an unlimited mechanical lifetime. This model offers ±55 VDC, 30 VACrms maximum switching voltage, 55 W maximum switching power, and 1 A maximum switching current. The module is designed to provide >2 GΩ, typical DC isolation resistance, 2 µV, typical, and 1 Ω (typical) total row-to-column path resistance.

 In a one row to one column, 50 Ω system, the NI PXI 2533 can provide >1.5 MHz (typical) single crosspoint bandwidth. The SSRs incorporated in this switch module have 724 µs (typical) and 2.5 ms (maximum) operating time. The NI PXI-2533 can scan at the rate of 400 crosspoints/s when switching at 1 Ampere and <20 V, with a simultaneous drive limit of 256 relays. This Matrix Switch Module can be triggered through PXI trigger lines <0 to 7> at a minimum pulse width of 70 ns and can generate output trigger signals at a programmable pulse width within a range of 1 µs to 62 µs.

For I/O connections, this model comes equipped with a 68-pin male SCSI type connector. The NI PXI-2533 consumes 8 W at 5 V, 1 W at 3.3 V in typical conditions. It is a 3U type, one slot PXI module and has physical dimensions of 21.6 × 2.0 × 13.0 cm. This module can be configured in a 1-wire 4 × 64 matrix topology.

ModelPXI-2533 (778572-33)
ManufacturerNational Instruments
TypePXI Matrix Switch Module
Crosspoints256
Banks1
Rows4
Columns64
Dimensions8.5 x 0.8 x 5.1 in.
Weight8.4 oz.
WarrantyOne Year Warranty
PXI-2533 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PXI-2533 Frequently Asked Questions



Question: What is the minimum pulse width of the NI PXI-2533?



Answer: The minimum pulse width of the NI PXI-2533 is 70 ns.



Question: What type of I/O connector is on the PXI-2533?



Answer: The PXI-2533 has a 68-pin male SCSI I/O connector.



Question: What is the switch bandwidth of the PXI-2533?



Answer: The PXI-2533 has a 1.5 MHz switch bandwidth.



Question: What is the scan rate for the PXI-2533 PXI Matrix Switch Module?



Answer: The PXI-2533 PXI Matrix Switch Module has a scan rate of 400 cycles/s.
