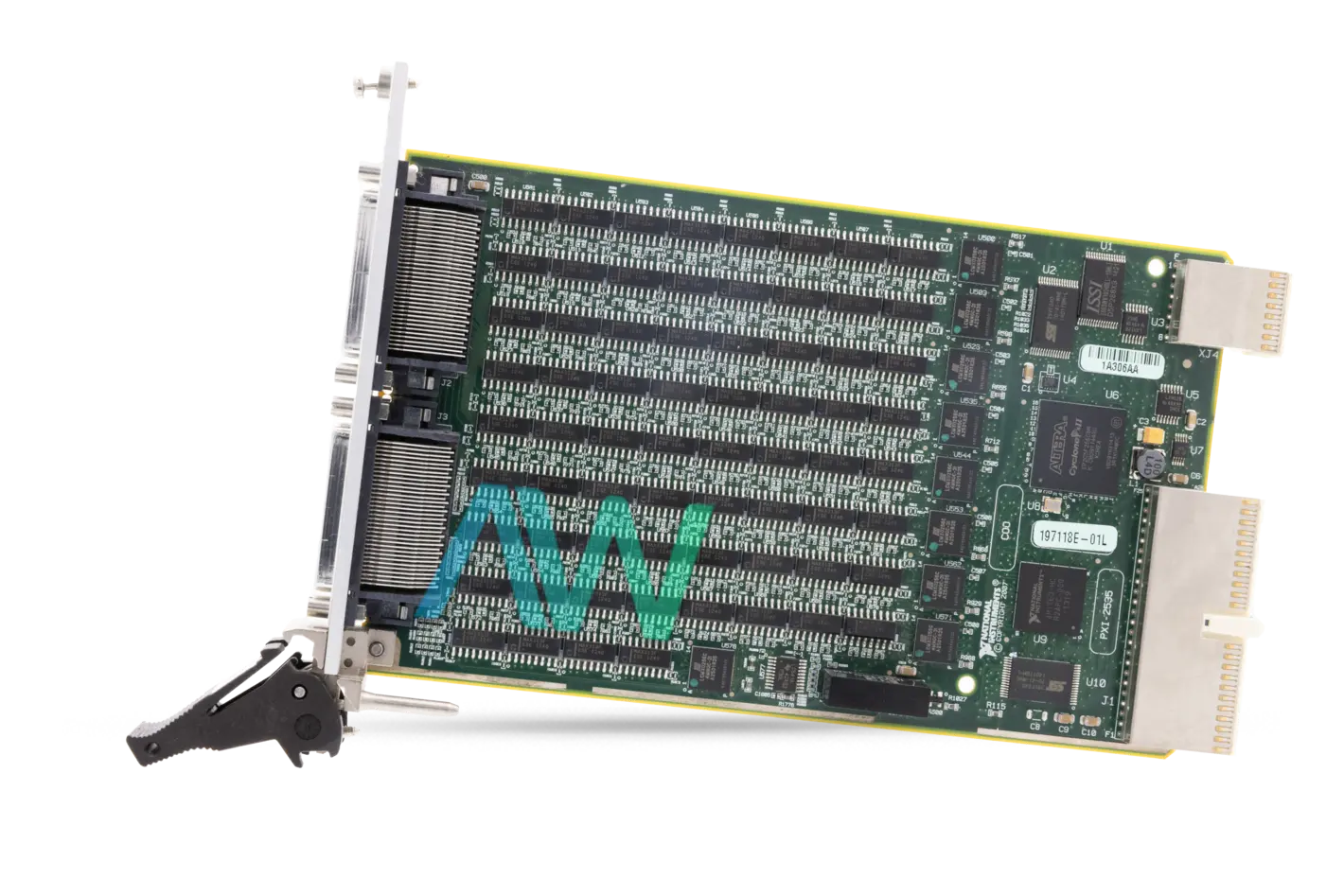

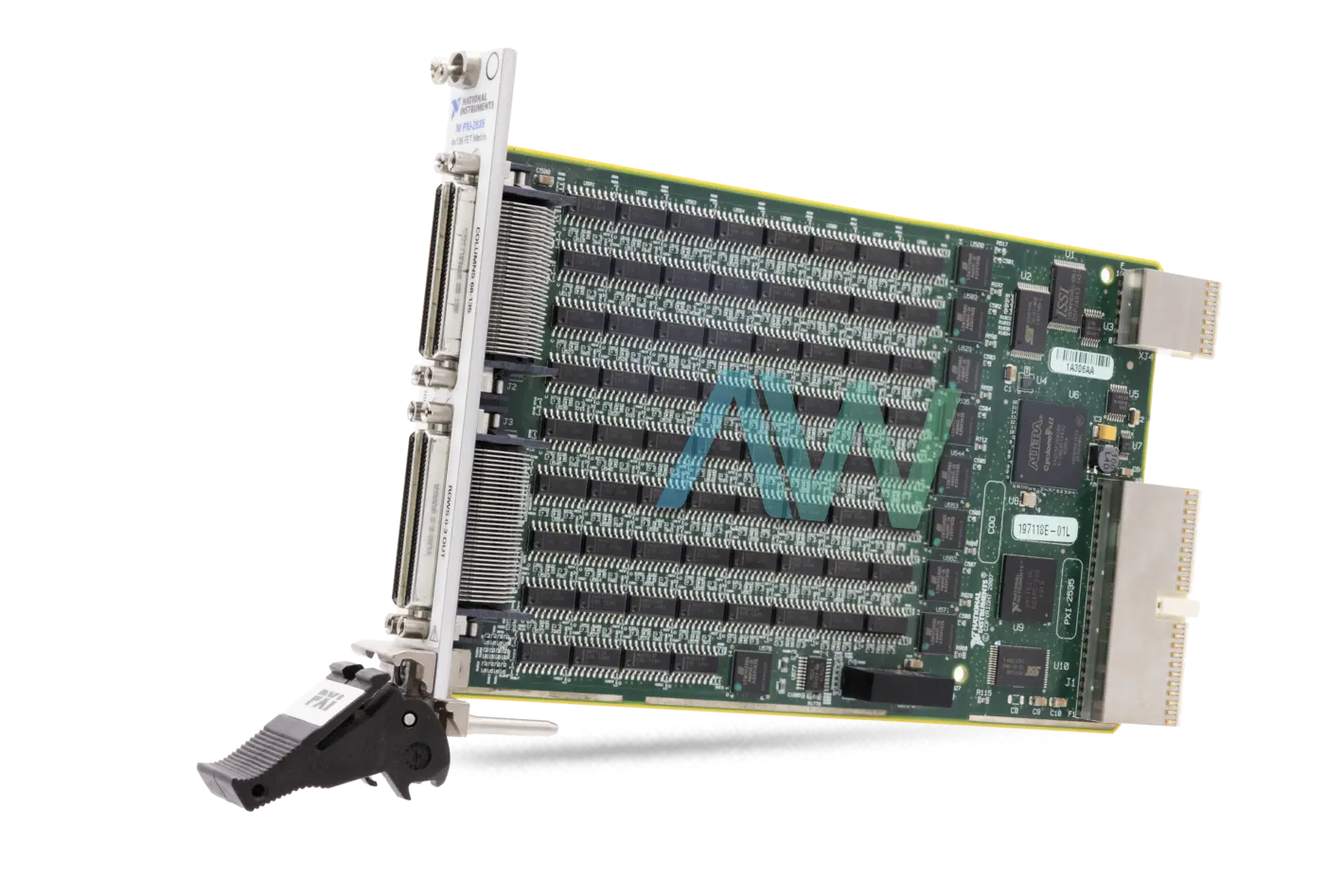

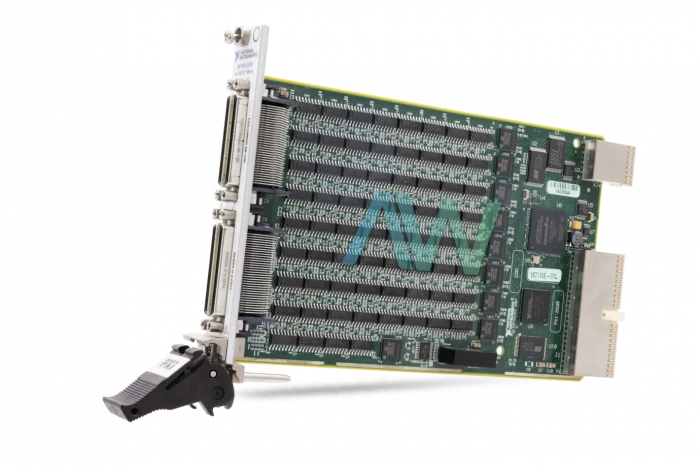

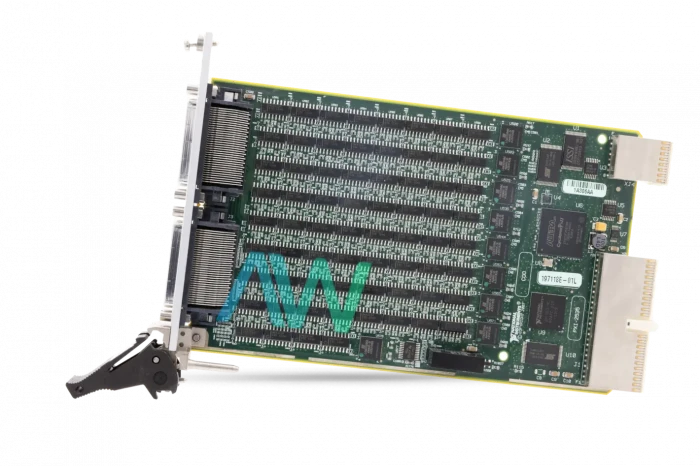

National Instruments PXI-2535 PXI Matrix Switch Module

The National Instruments PXI 2535 (Part Number: 778572-35) is a high density, 1-Wire, 544-Crosspoint PXI Matrix Switch Module. This model is perfect for the routing of DC signals (low power) in various applications just like validation test procedures of mass manufactured devices, including printed circuit boards (PCBs) and semiconductor chips. This module comes featured with field-effect transistor relays and has an onboard relay counting provision that can be utilized for deterministic and relay monitoring operation in conjunction with hardware triggers to enhance test throughput.

The relays constituting the NI PXI-2535 offer tremendous speeds up to 50,000 crosspoints/s and unlimited mechanical lifetime. This Matrix Switch Module is designed to provide ±12 VDC, 8 VAC maximum switching voltage (channel-to-ground), 1.2 W maximum switching power (resistive, per channel), and 100 mA maximum switching current. At 23 °C, the DC isolation resistance between open terminals of the PXI-2535 remains >1 GΩ, typical. This switch model comes with an integrated overvoltage protection circuitry, which actuates on ±36 VDC in the "powered on" state and ±40 VDC in the "powered off" state.

For a one row to one column based 50 Ω system, this module can serve >1 MHz single crosspoint bandwidth. This module incorporates high-quality FETs featuring 12 µs typical and 16 µs maximum operating time. Moreover, it has a simultaneous drive limit of up to 544 switches. By design, the National Instruments PXI-2535 is a 3U, one slot PXI module with four 68-pin receptacle VHDCI I/O connectors. While operating within the specified temperature range (i.e., 0 °C to 55 °C), this module consumes 1.7 Watts of power at 3.3 V.

ModelPXI-2535 (778572-35)
ManufacturerNational Instruments
TypePXI Matrix Switch Module
Crosspoints544
Banks1
Rows4
Columns136
Dimensions8.5 x 0.8 x 5.1 in.
Weight5.6 oz.
WarrantyOne Year Warranty
PXI-2535 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PXI-2535 Frequently Asked Questions



Question: What type of relays are on the PXI-2535?



Answer: FET relays are on the PXI-2535.



Question: What is the switch bandwidth of the NI PXI-2535?



Answer: The NI PXI-2535 has a switch bandwidth of 1 MHz.



Question: What is the maximum switching voltage DC of the PXI-2535?



Answer: The maximum switching voltage DC is 12 V on the PXI-2535.



Question: How many I/O connectors does the PXI-2535 have?



Answer: The PXI-2535 has four 68-pin receptacle VHDCI I/O connectors.



Question: How much does the PXI-2535 cost?



Answer: Call or email Apex Waves for pricing and availability for the PXI-2535!
