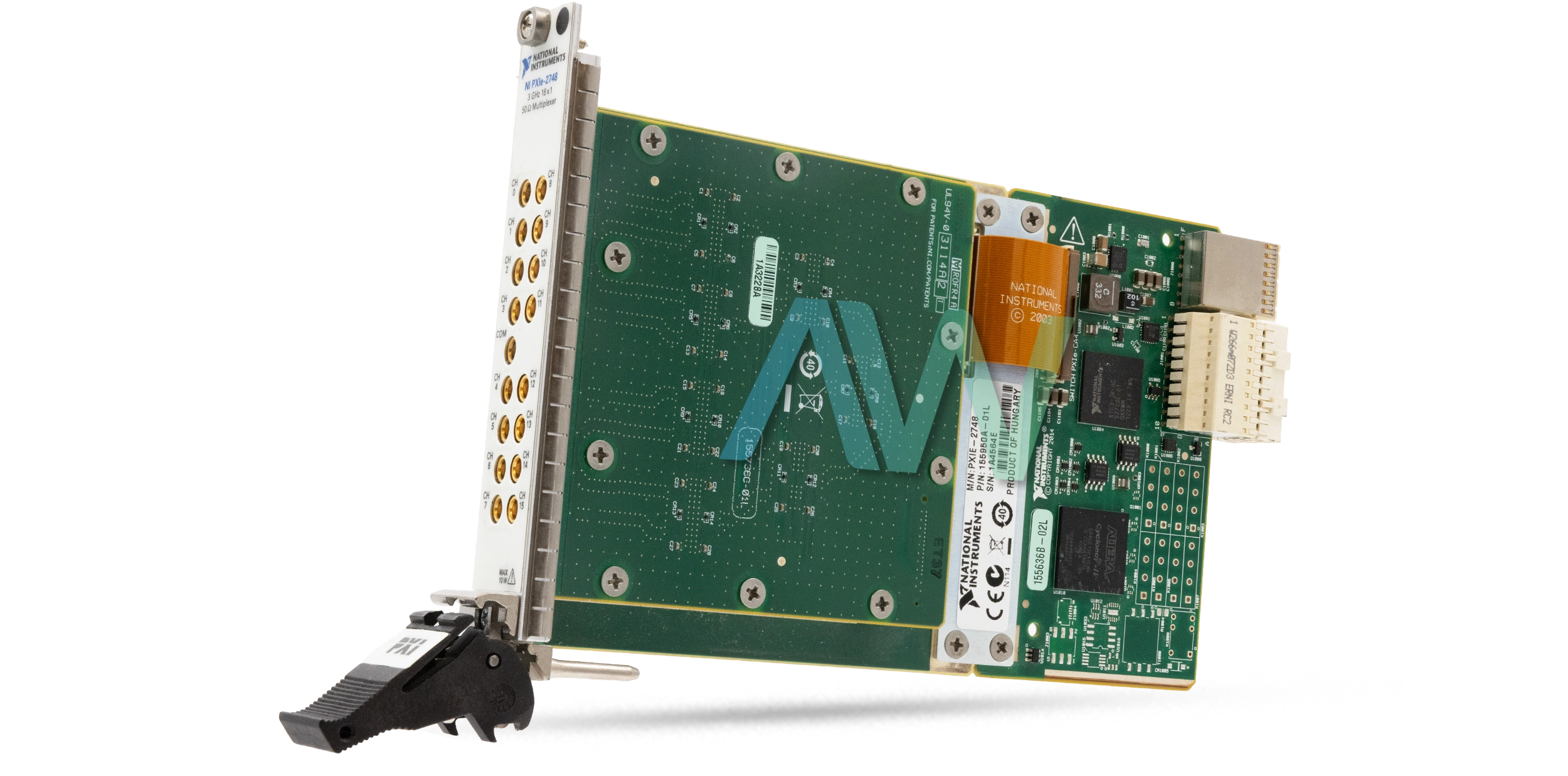

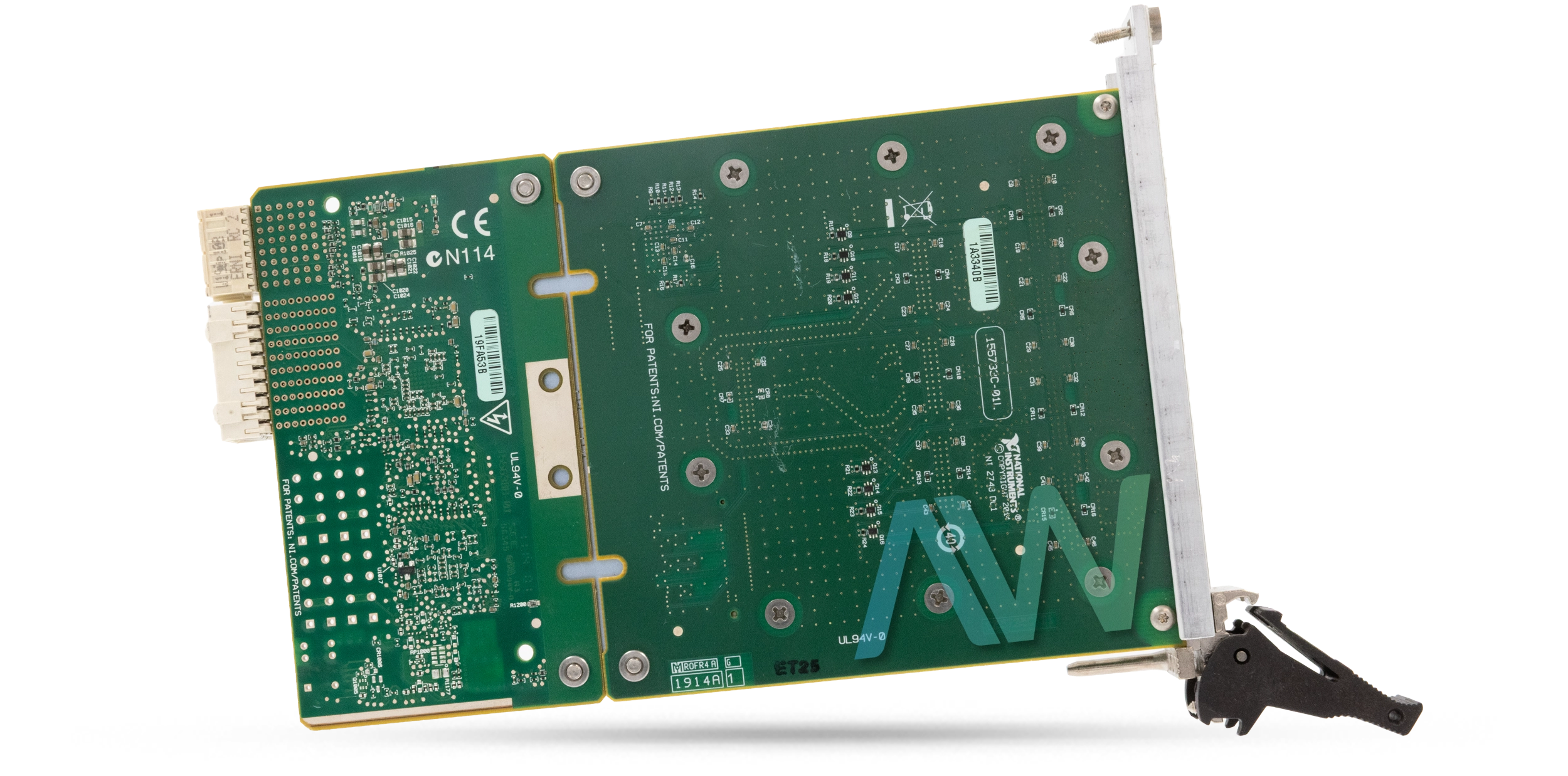

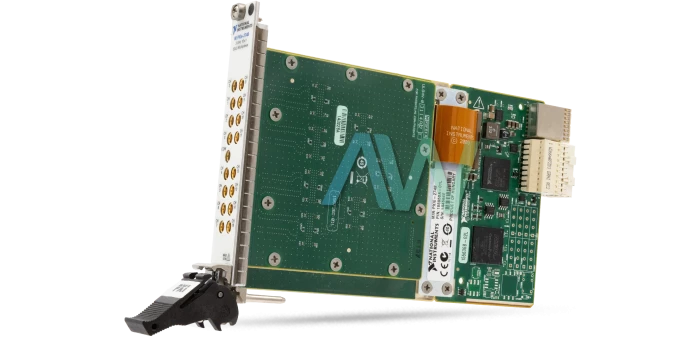

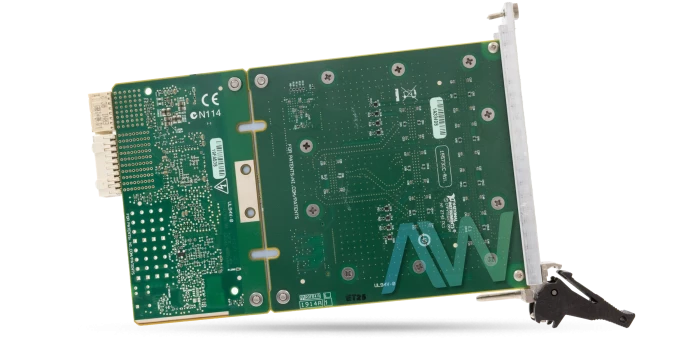

National Instruments 780587-48 PXI RF Multiplexer Switch Module
The National Instruments 780587-48 (or PXIe-2748) is a 16x1 PXI RF Multiplexer Switch Module. This unit is designed for high-frequency signal switching in production test applications. It supports switching RF signals up to 3 GHz that makes it ideal for systems requiring multiple RF signal management. This 780587-48 multiplexer switch module features 16 x channels and the maximum switching voltage of the unit is 30 V. The unit requires maximum switching current of 0.5 A per channel. The module’s initial typical DC path resistance is less than 1 Ω that increases to ≥2 Ω at end-of-life.
The NI 780587-48 offers a characteristic impedance of 50 Ω nominal. Its insertion loss is 1.5 dB for frequencies up to 1 GHz and 3 dB for frequencies up to 2.7 GHz. The voltage standing wave ratio (VSWR) remains low, with values of 1.4 up to 1 GHz, 1.6 up to 2.7 GHz, and 1.8 up to 3 GHz. The module provides typical isolation of over 60 dB for frequencies up to 1 GHz and over 40 dB for frequencies up to 2.7 GHz. This multiplexer switch unit employs electromechanical, latching relays with a maximum operate time of 10 ms and an expected mechanical relay life of 1 × 107 cycles. The module has 17 x gold-plated MCX jack connectors to maintain high signal integrity. It requires a PXI Express power of 3.96 W at 3.3 V and 0.2 W at 12 V. Its physical dimensions are 21.6 cm × 2.0 cm × 13.0 cm and it weighs 330 g.
Environmental specifications include an operating temperature range of 0 °C to 55 °C and a storage temperature range of -40 °C to 70 °C. The relative humidity range of the unit is 5% to 85% non-condensing. It is designed for indoor use along with a maximum altitude of 2,000 m. The NI 780587-48 complies with multiple electromagnetic compatibility (EMC) and safety standards such as EN 61326-1, EN 55011, FCC 47 CFR Part 15B, and IEC 61010-1. This compliance guarantees that the 780587-48 module operates safely and reliably within diverse industrial environments.
| Model | 780587-48 |
|---|---|
| Model Name | PXIe-2748 |
| Part Type | PXI RF Multiplexer Switch Module |
| Switch Bandwidth | 3 GHz |
| Maximum Switching Voltage | 30 VDC |
| Maximum Current Requirement | 0.5 A per channel |
| Max Insertion Loss | 3 dB |
| Dimensions | 21.6 cm × 2.0 cm × 13.0 cm (8.5 in. × 0.8 in. × 5.1 in.) |
| Weight | 330 g (11.30 oz.) |
