Part Number PXI-2520
Manufacturer/Brand National Instruments
Description: PXI-2520, 80-Channel, PXI Relay Module
Lowest Price Guarantee
Fast Quote
Quoted Price
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing
2 year warrantyRefurbished
*What is Refurbished?
Quoted Price
Fully tested
2yr warranty
  Get Pricing

Need an Official Quote?


*Most customers receive their price in about 15 minutes.

Or speak to a sales representative for pricing & lead time:

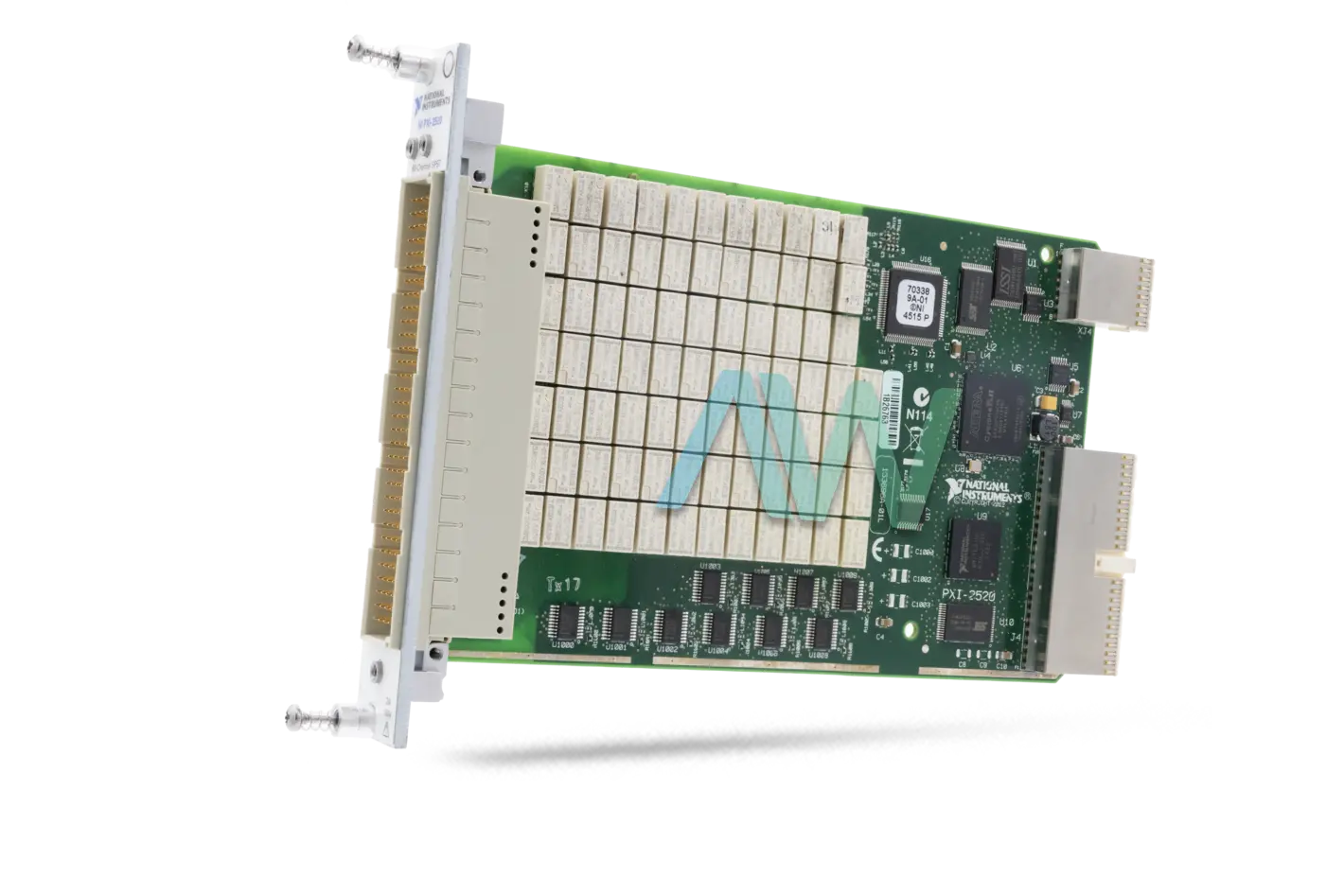

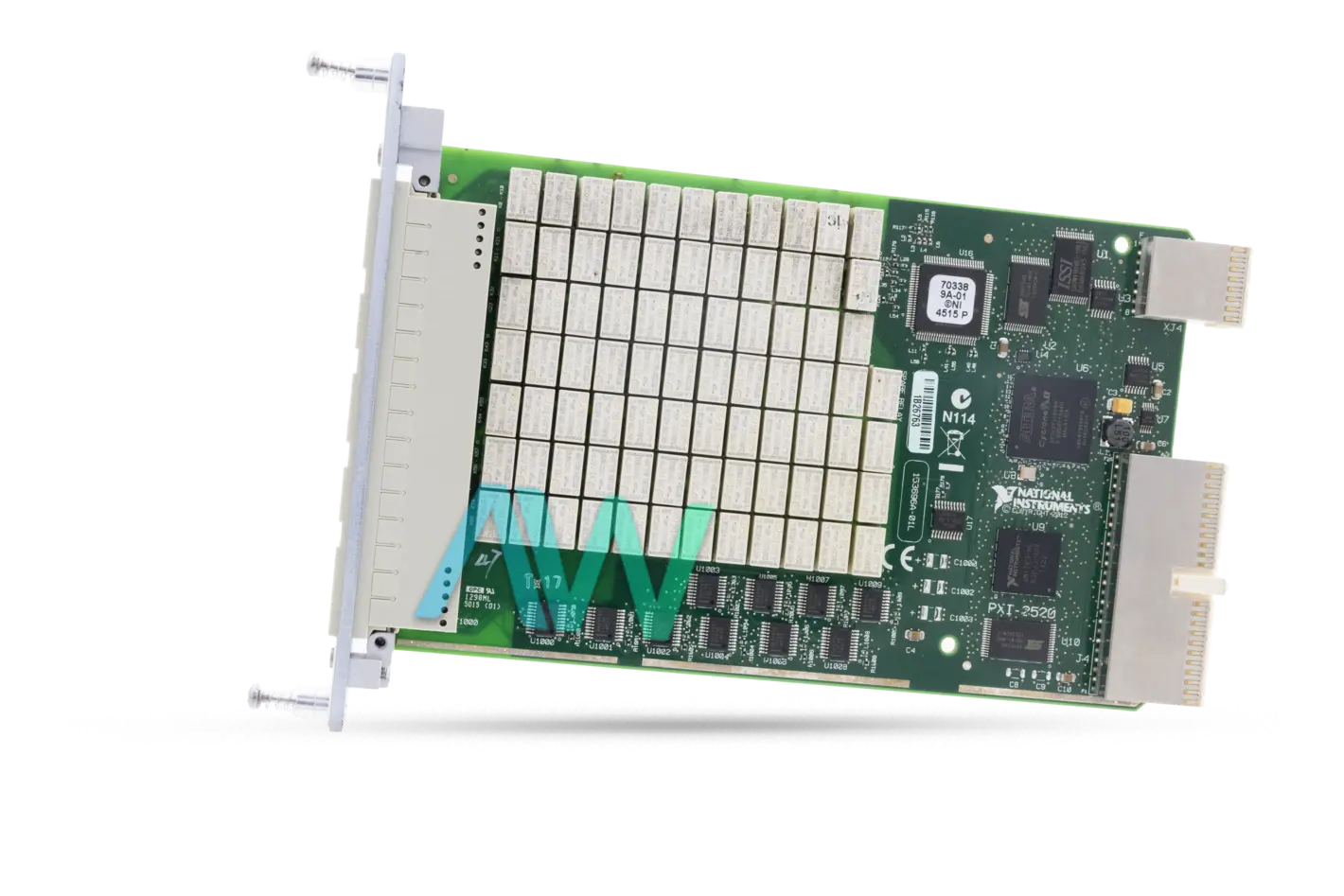

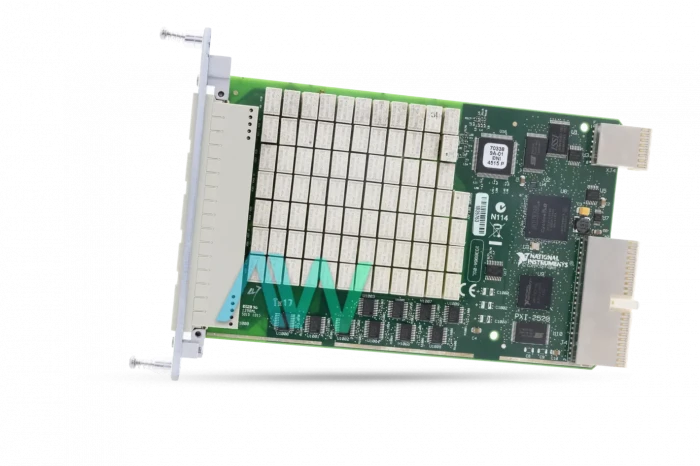

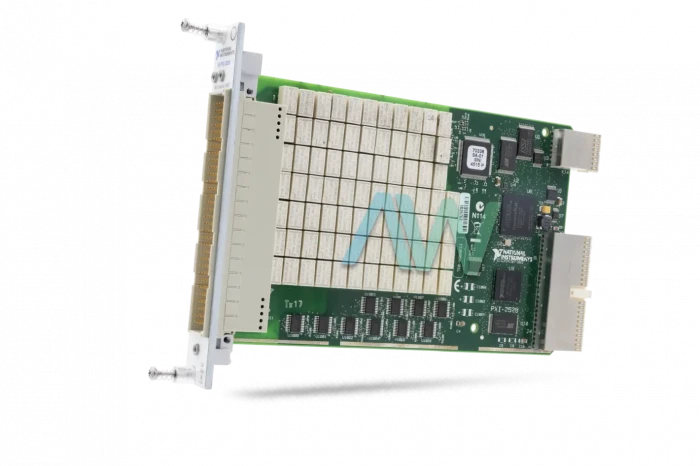

National Instruments PXI-2520 PXI PXI Relay Module

The National Instruments PXI-2520 (Part Number: 778572-20) is a General-Purpose Switching Module useful that has single-pole and single-throw (SPST) independent A-frame type relays.  Each relay does not engage in with very little resistance and low thermal mismatch. This model is completely programmable in software and supports internal relay account tracking. With an efficient coupling of voltage/current capacity and relay density, the PXI Relay Module is perfect for loads of automated test equipment (ATE) or to control heaters, lights, and fans.

The NI PXI-1520 incorporates switching inductive loads that can create high voltage transients more than the module's rated voltage. Without additional protection, these transients can interfere with module activity and impact relay life. DC path resistance commonly stays low for the life of the relay. Toward the finish of relay life, the path resistance rises rapidly above the predefined esteem. Load ratings apply to relays utilized inside the specification before the end of relay life.

The PXI-2520 PXI Relay Module includes a cycle power process, which consists of completely removing power from the gadget and its components and allowing it to adequate discharge. This procedure incorporates a total shutdown of the PC, as well as a chassis containing the gadget. A reboot is not enough for the completion of this procedure. This model’s memory requires energy to keep up the stored information. When power is removed from this memory, its contents are lost.

If you are interested in this model and you want to learn more about its options, special features, and specifications, you can read its manual, which is available on the ApexWaves.com website.

ModelPXI-2520 (778572-20)
ManufacturerNational Instruments
TypePXI Relay Module
Relays80
Switch Bandwidth35 MHz
Scan Rate145 cycles/s
Dimensions8.5 x 0.8 x 5.1 in.
Weight6.1 oz.
WarrantyOne Year Warranty
PXI-2520 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PXI-2520 Frequently Asked Questions



Question: What type of relays does the PXI-2520 have?



Answer: The PXI-2520 has SPST (open) electromechanical, non-latching relays.



Question: Which accessories are available for the NI PXI-2520?



Answer: The NI PXI-2520 can be used with the following accessories: the DIN160 to 50 Pin DSUB switch cable, 1 m (Part number: 782417-03), the DIN160 to DIN160 switch cable, 1 m (Part number: 782417-02), the DIN160 to bare wire switch cable, 1 m (Part number: 782417-01) and the relay replacement kit (Part number: 782460-10).



Question: What is the maximum switching power for the PXI-2520?



Answer: The PXI-2520 has a maximum switching power of 60 W, 62.5 VA (DC to 60 Hz) for each channel.



Question: What is the switch bandwidth for the PXI-2520?



Answer: The PXI-2520 has a switch bandwidth of 35 MHz.
