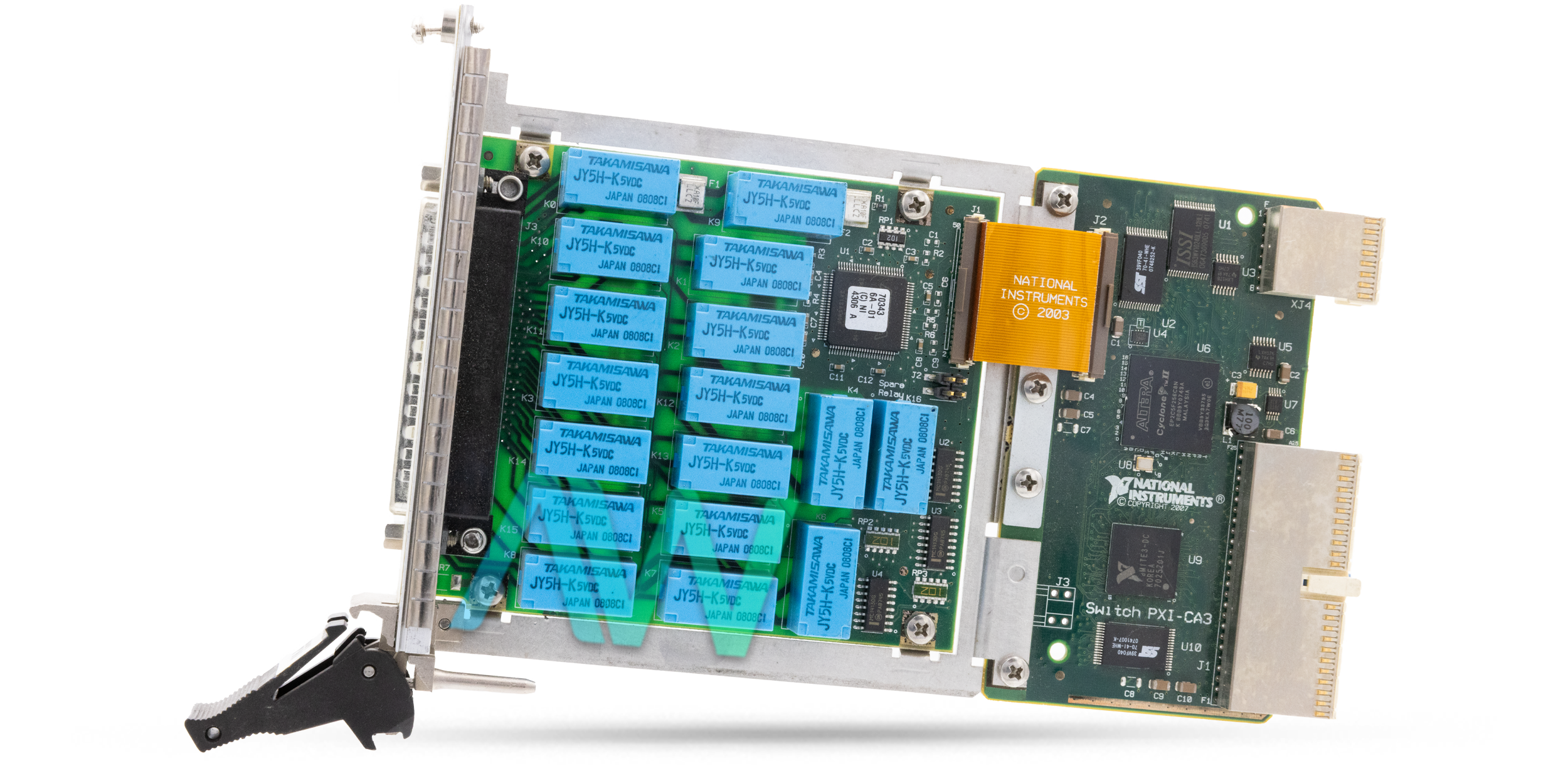

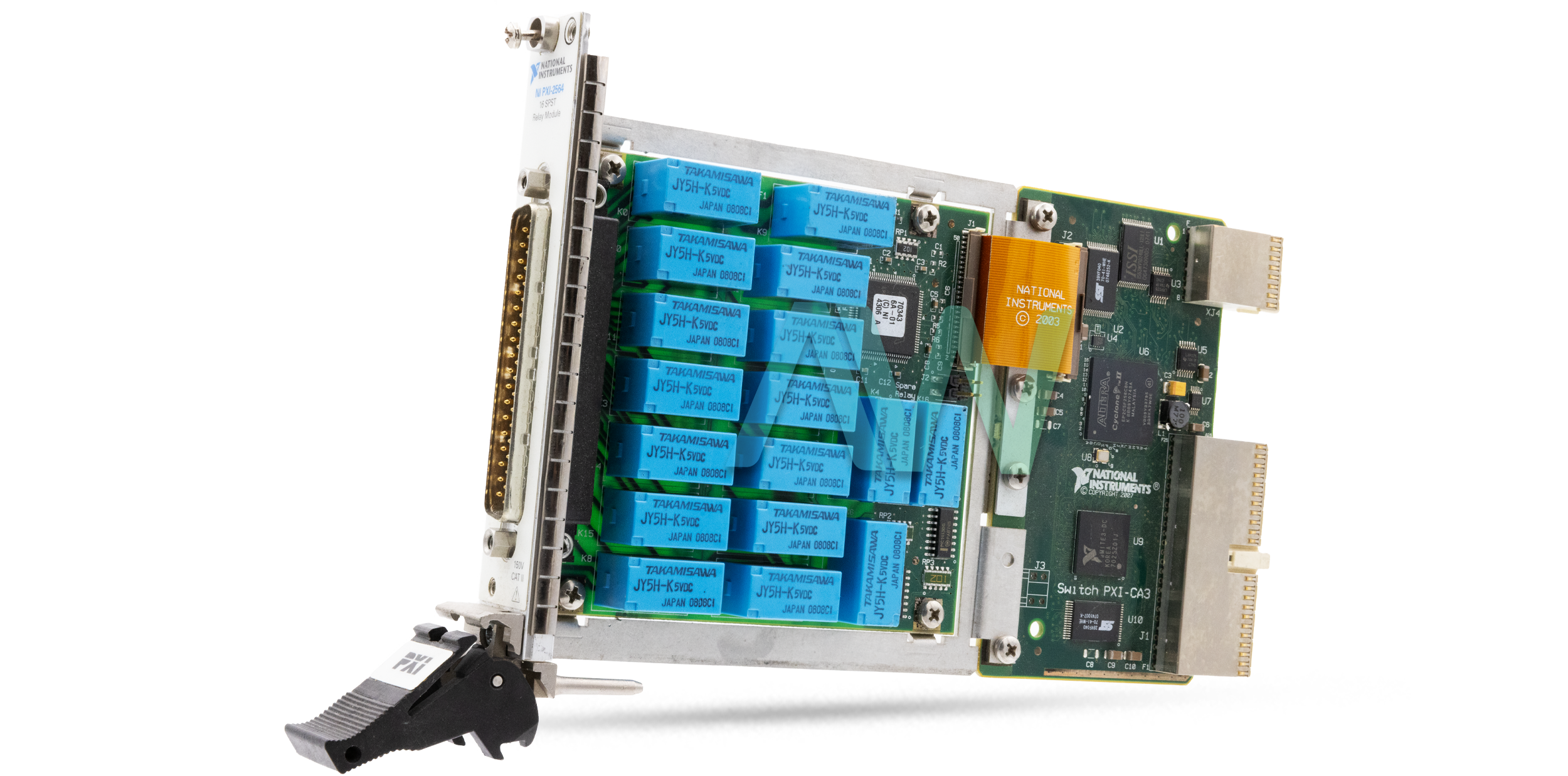

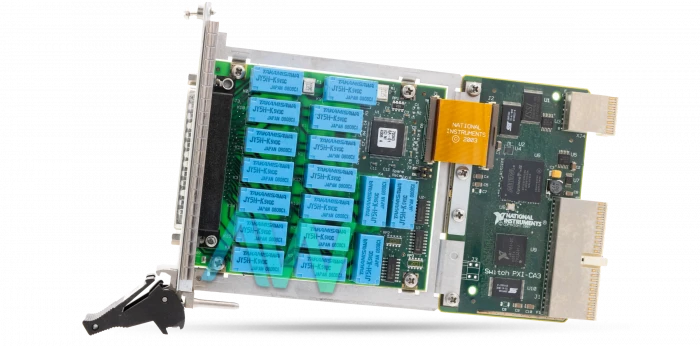

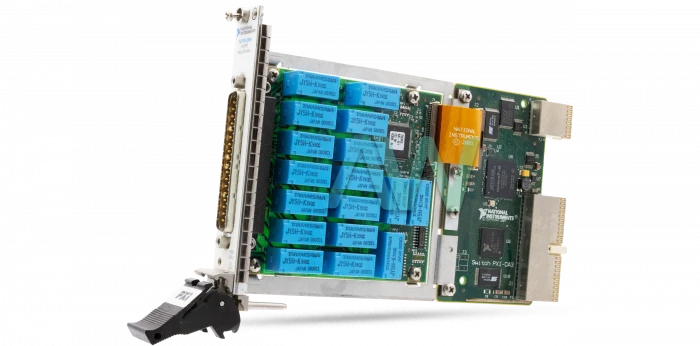

PXI-2564 National Instruments Relay Module | Apex Waves | Image PXI-2564 National Instruments Relay Module | Apex Waves | ImagePXI-2564PXI-2564 | Legacy, Refurbished and New Surplus
PXI-2564 National Instruments Relay Module | Apex Waves | Image
PXI-2564 National Instruments Relay Module | Apex Waves | Image
PXI-2564 New
PXI-2564 | Legacy, Refurbished and New Surplus

PXI-2564

4.8/5 | 14 ratings

Modular Systems > National Instruments > PXI Relay Modules

Part Number PXI-2564
Manufacturer/Brand National Instruments
Description: PXI-2564, 16-Channel, PXI Relay Module
In Stock | Ships Today
Fast Quote
Quoted Price
Lowest Price Guarantee
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing
2 year warrantyRefurbished
*What is Refurbished?
Quoted Price
Fully tested
2yr warranty
  Get Pricing

Need an Official Quote?


*Most customers receive their price in about 15 minutes.

Or speak to a sales representative for pricing & lead time:


National Instruments PXI-2564 PXI Relay Module

The National Instruments NI PXI-2564 (Part Number: 778572-64) is a 5 A, 16-Channel SPST PXI Relay Module. This Relay Module comes featured with independent SPST relays. All relays installed in this module are non-latching. These relays are known for their low thermal offsets and very low on-resistance. This model can easily be programmed through software. The NI PXI-2564 is considered an ideal choice for applications where switching medium-to-high power signals and loads is required, such as in automotive, military, or automated test applications.

This relay module is a 3U, one slot, PXI module, which comes equipped with a 37-pin D-SUB, male I/O connector. The relays used in the construction of this module have gold-plated relay contact material and are designed to operate within 10.4 ms (maximum). In addition, these relays are known for their reliability as they come with a mechanical relay life of 2 × 107 cycles and electrical relay life of 1 × 105 cycles.

As far as its trigger characteristics are concerned, the National Instruments PXI-2564 can receive signals through PXI trigger lines <0...7> at 150 ns minimum pulse width. This module can also generate trigger signals at 1 µs to 62 µs programmable pulse width. With this relay module, the user can acquire 750 VA maximum switching power and maximum 5 A carry or switching current per channel. This model allows the operation of 16 channels simultaneously at maximum current. The NI PXI-2564 consumes 5 Watts of power at 5V.

ModelPXI-2564 (778572-64)
ManufacturerNational Instruments
TypePXI Relay Module
Relays16
Switch Bandwidth10 MHz
Scan Rate45 cycles/s
Dimensions85 x 0.8 x 5.1 in.
Weight9.5 oz.
WarrantyOne Year Warranty
PXI-2564 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PXI-2564 Frequently Asked Questions



Question: What type of relay configuration does the NI PXI-2564 have?



Answer: The NI PXI-2564 has SPST (open) relays.



Question: What is the maximum switching current DC of the PXI-2564?



Answer: The maximum switching current DC of the PXI-2564 is 5 A.



Question: What type of I/O connector does the PXI-2564 Relay Module come with?



Answer: The PXI-2564 Relay Module comes with a 37-pin D-SUB, male I/O connector.



Question: What is the minimum switch load for the PXI-2564?



Answer: The minimum switch load for the PXI-2564 is 10 mA, 5 V DC.
