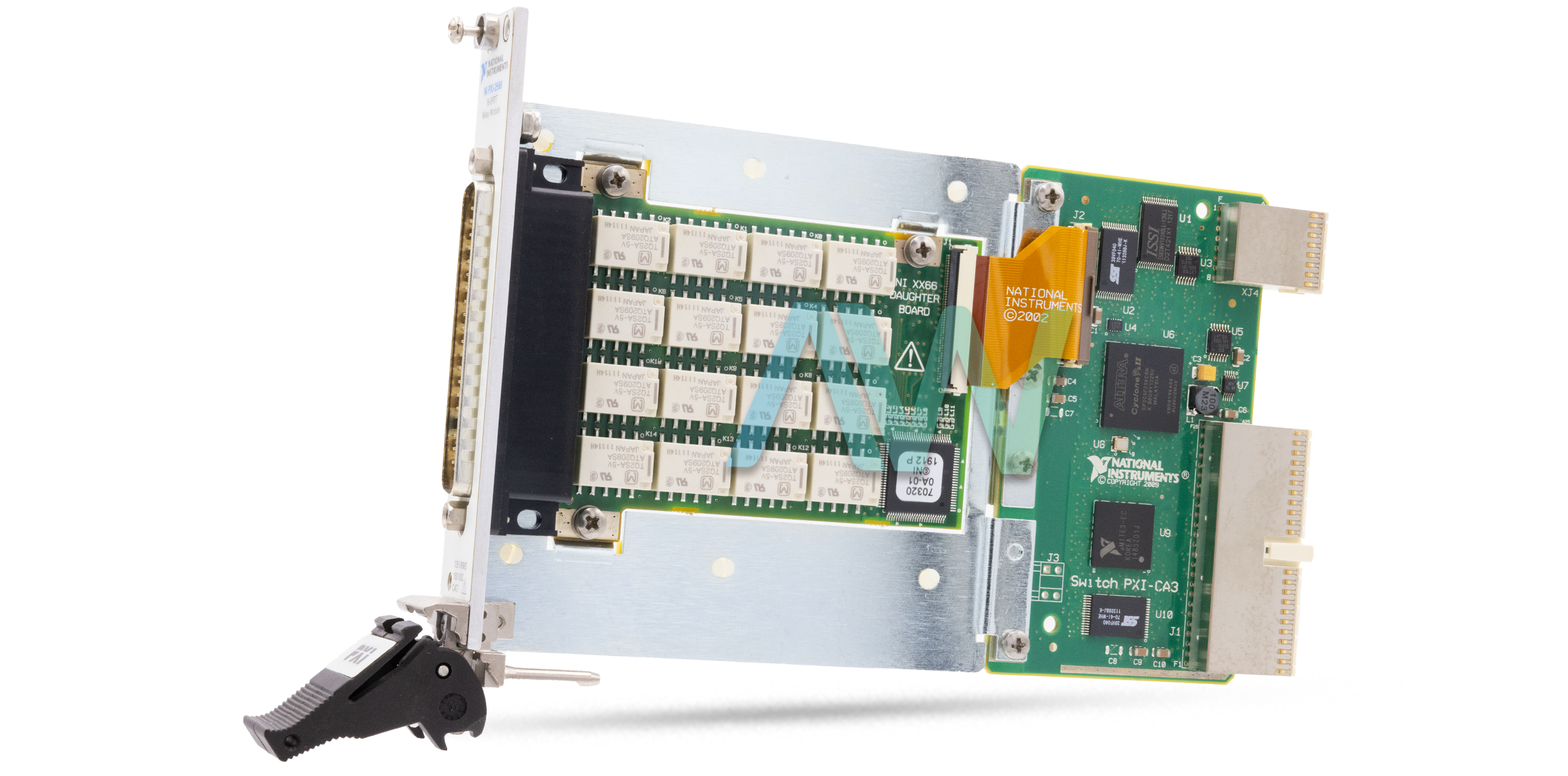

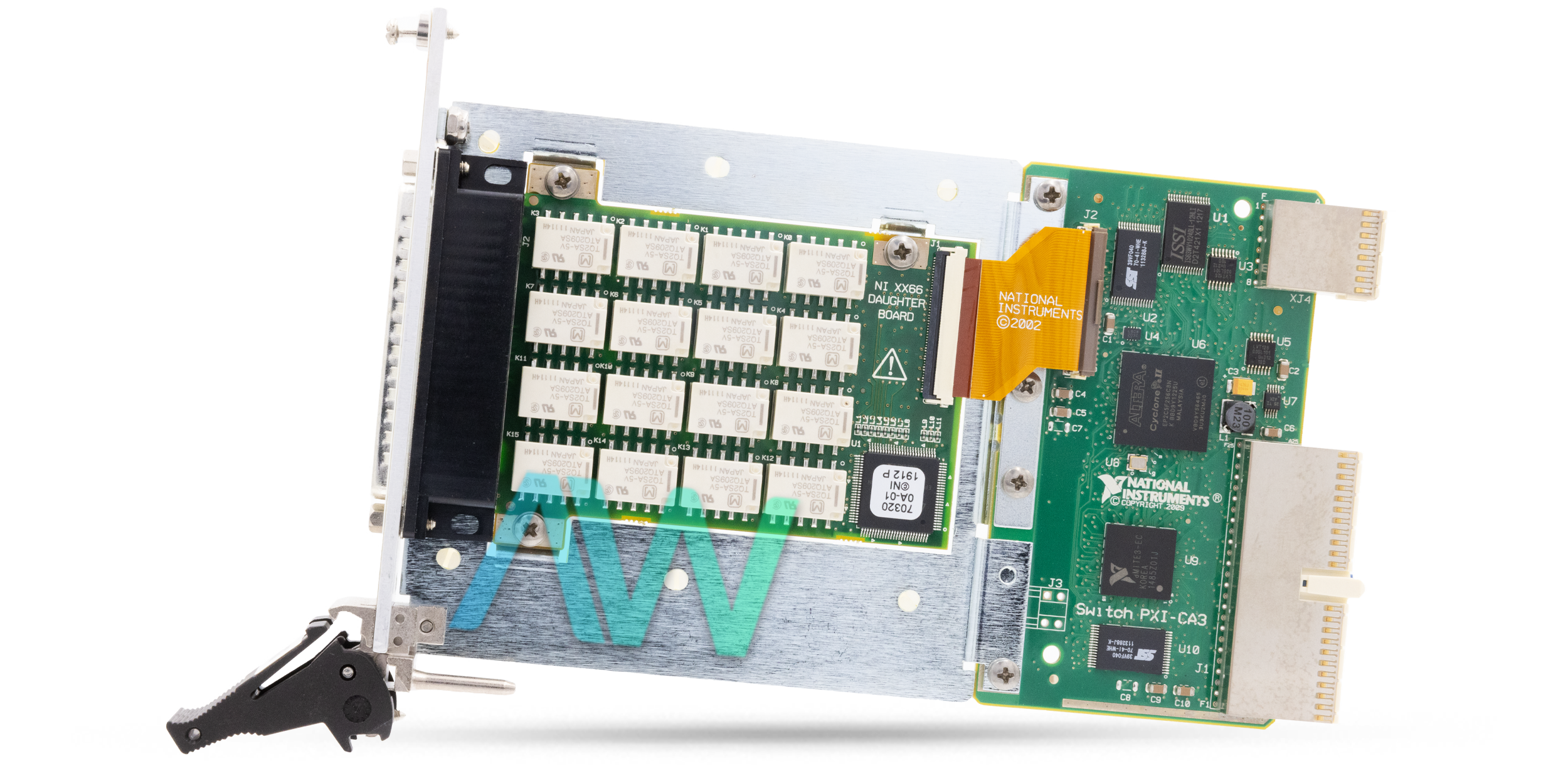

National Instruments PXI-2566 Relay Module
The National Instruments NI PXI-2566 (Part Number: 778572-66) is a 2 A, 16-Channel, SPDT based PXI Relay Module designed for general purpose applications. This module features SPDT Form C armature relays. The relays utilized in this module are non-latching with low thermal offsets and extremely low on-resistance. The NI PXI-2566 is considered an ideal module for the controlling, routing, and switching of high-current signals. Each relay channel comes with a normally open (NO), normally closed (NC), and common (COM) terminal.
With this module, the user can achieve either 16-SPDT (non-latching) or 8-DPDT topology. As far as its input characteristics are concerned, the National Instruments PXI-2566 offers 150 V DC, 125 V AC maximum switching voltage (channel-to-channel) and 150 V DC, 125 V AC, CAT I1 maximum switching voltage (channel-to-ground). Since it is a Measurement Category I rated module, the PXI-2566 is designed to carry signal voltages no more than 150 V. However, it has an integrated protection mechanism and can withstand safely up to 800 V impulse voltage.
This PXI Relay Module offers 60 W, 62.5 VA (DC to 60 Hz) maximum switching power, 2 A DC, 2 A AC maximum switching current, and allows the parallel operation of 16 channels while operating at maximum switching current. The relays used in the NI PXI-2566 module have 2 ms (typical), 4.4 ms (maximum) relay operate time, and 115 cycles/s maximum cycle speed. By design, this model is a 3U, one slot, PXI module that weighs around 250 g (9 oz.). It has a male, 62-pin D-SUB I/O connector and consumes 4.5 watts of power at 5 V.
| Model | PXI-2566 (778572-66) |
|---|---|
| Manufacturer | National Instruments |
| Type | PXI Relay Module |
| Relays | 16 |
| Switch Bandwidth | 70 MHz |
| Scan Rate | 115 cycles/s |
| Dimensions | 8.5 x 0.8 x 5.1 in. |
| Weight | 9 oz. |
| Warranty | One Year Warranty |
| PXI-2566 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
National Instruments PXI-2566 Frequently Asked Questions
Question: What is the front panel nominal voltage on the PXI-2566?
Answer: The PXI-2566 has a front panel nominal voltage of 3.3 V TTL, 8 mA.
Question: What type of relay configuration does the PXI-2566 module have?
Answer: The PXI-2566 module has an SPDT relay configuration.
Question: What is the maximum carry current for each channel on the PXI-2566?
Answer: The PXI-2566 has a maximum carry current of 5 A DC, 5 A AC for each channel.
Question: Can the relays in the PXI-2566 be replaced in the field?
Answer: Yes, the PXI-2566 relays are field replaceable.
PXI-2566 PDF Manuals
NI PXI-2566 SPECIFICATIONS.PDF
PXI-2566 LETTER OF VOLATILITY.PDF
PXI-2566 Diagrams
Why Buy From Apex Waves:
PXI-2566
PXI-2566, 16-Channel, SPDT Relay Module
Please fill out the form below to send in your quote request, a representative will contact you with a formal quote in generally about 15 minutes.
Text Your Quote
What is Surplus New?
New Surplus: New Surplus condition is a New Condition, Surplus Stock unit with standard accessories and documentation. The product may ship in the manufacturer’s or Apex Waves’ packaging. New Surplus units include a 3 year warranty.
What is Refurbished?
Refurbished - Lightly Used, Fully Tested Using NI Software, Includes Manual & NI Certificates (if available) Cleaned & Re-Packaged in Static Bag, Box & Label Similar to Manufacturer - Includes 2 Year Warranty by Apex Waves
1-800-915-6216
- Description
- Technical Specifications
- FAQ
- PDFs & Diagrams

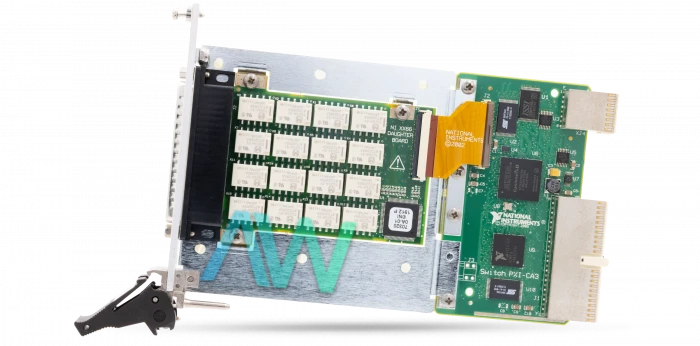

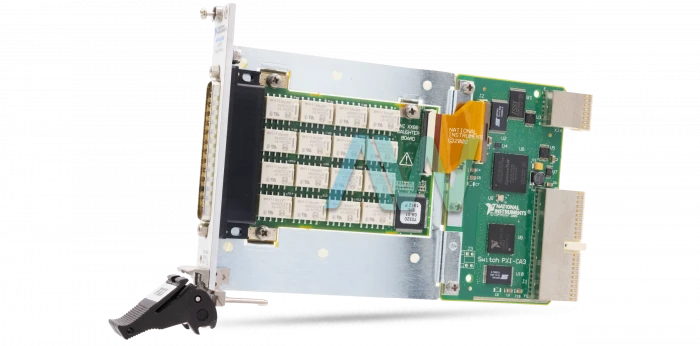

National Instruments PXI-2566 Relay Module
