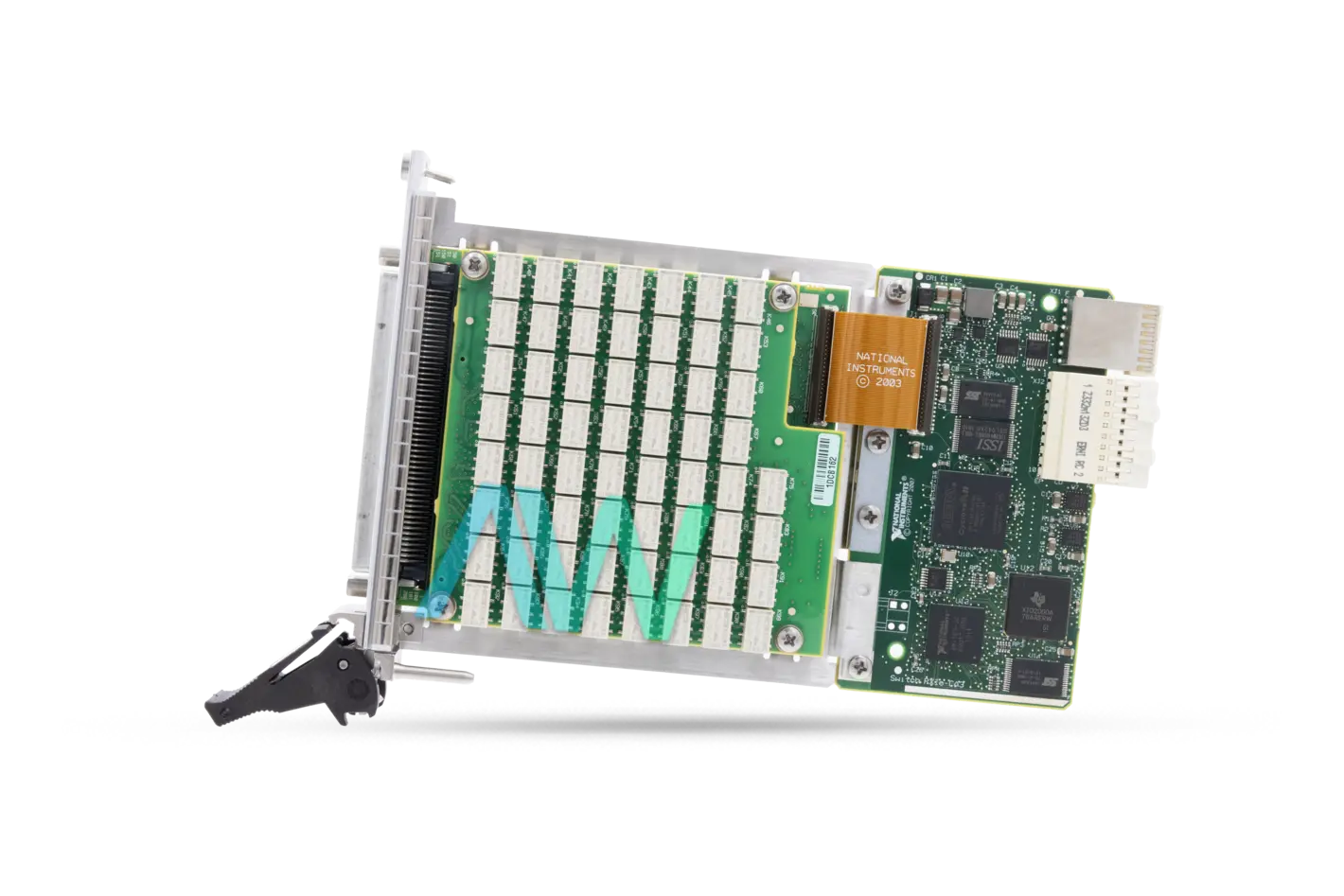

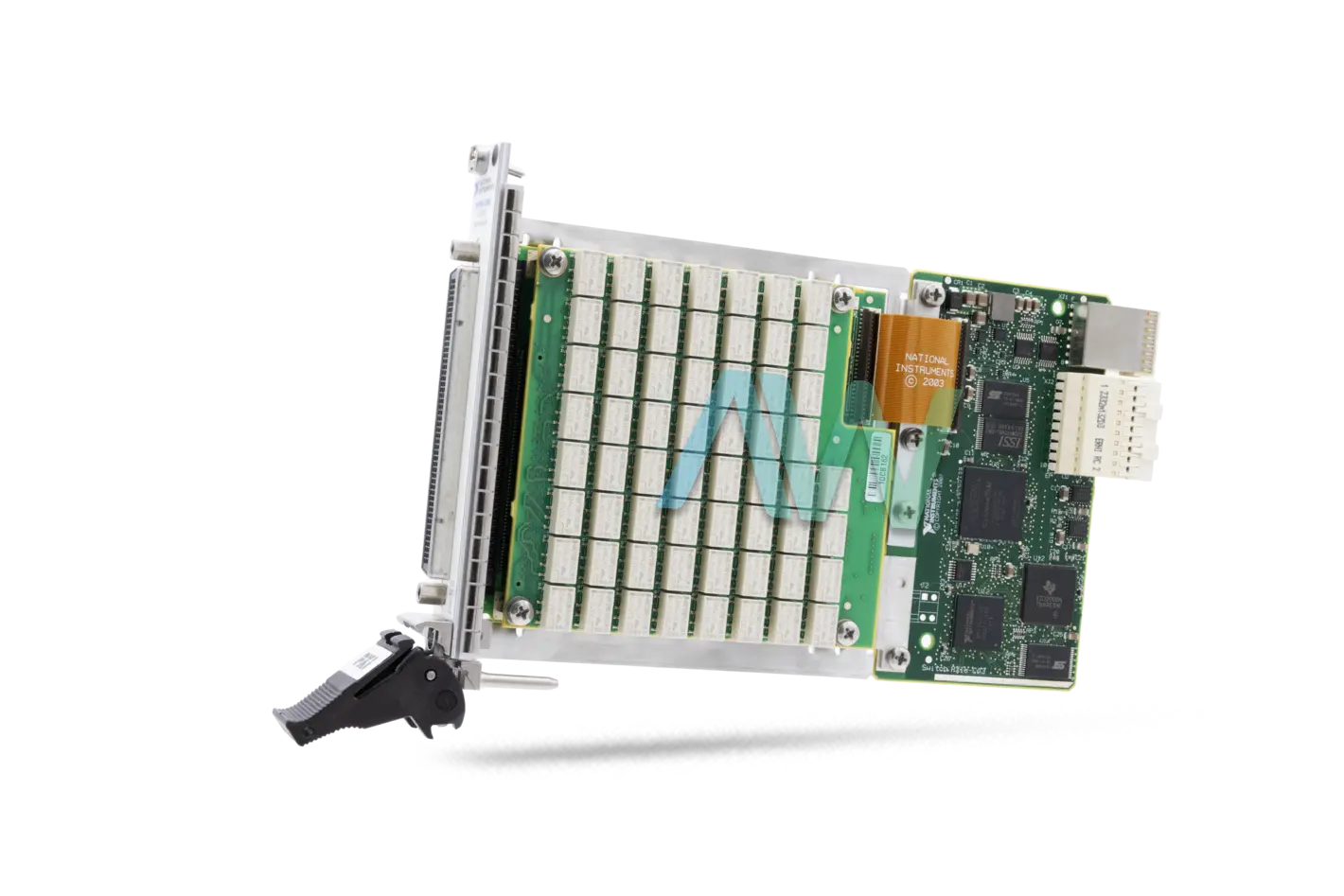

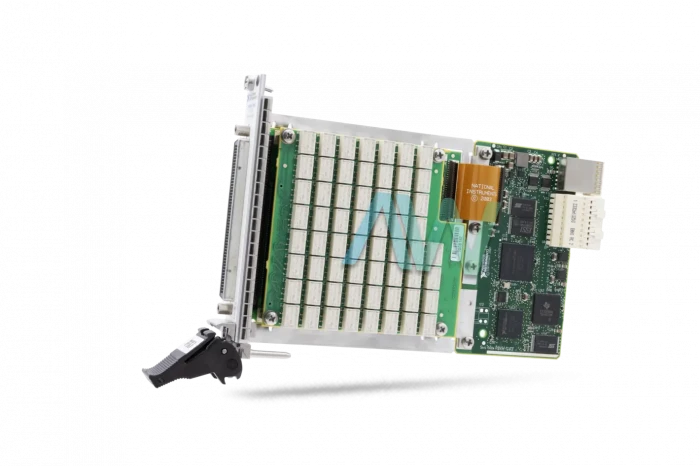

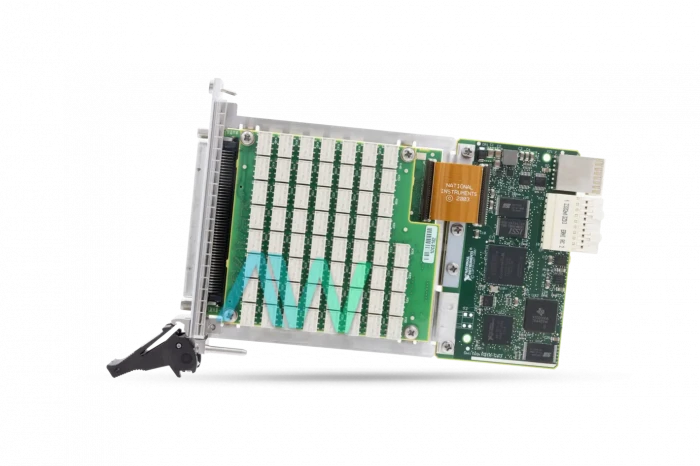

PXIe-2569 National Instruments PXI Relay Module | Apex Waves | Image PXIe-2569 National Instruments PXI Relay Module | Apex Waves | ImagePXIe-2569PXIe-2569 | Legacy, Refurbished and New Surplus
PXIe-2569 National Instruments PXI Relay Module | Apex Waves | Image
PXIe-2569 National Instruments PXI Relay Module | Apex Waves | Image
PXIe-2569 New
PXIe-2569 | Legacy, Refurbished and New Surplus

PXIe-2569

4.8/5 | 9 ratings

Modular Systems > National Instruments > PXI Relay Modules

Part Number PXIe-2569
Manufacturer/Brand National Instruments
Description: PXIe-2569, 100-Channel, PXI Relay Module
Lowest Price Guarantee
Fast Quote
Quoted Price
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing
2 year warrantyRefurbished
*What is Refurbished?
Quoted Price
Fully tested
2yr warranty
  Get Pricing

Need an Official Quote?


*Most customers receive their price in about 15 minutes.

Or speak to a sales representative for pricing & lead time:


National Instruments PXIe-2569 PXI Relay Module

The PXIe-2569 (Part Number: 780587-69) is a 100-Channel Relay Module from National Instruments, with a single-pole single-throw relay. The module also implements the mechanism for input and output triggers. The source and destination for the triggers are PXI trigger lines. The value of the minimum pulse width for the input triggers is 150 nanoseconds. It enables the user to program the output triggers. Their pulse width ranges from 1 microsecond to 62 microseconds. This module also offers a step scan capability. The NI PXIe-2569 Relay Module comes with a built-in step scan list of 32,000, which enables the user to utilize deterministic scanning.

The PXIe-2569 offers a maximum switching voltage of 100 volts. This value is for the channel-to-channel voltage. The value for the channel-to-ground switching voltage is also 100 volts. This module is specifically designed for Measurement Category 1. This module implements a feature for protection against impulse voltages. The instrument has the capability to withstand the impulse voltage of 800 volts. The NI PXIe-2569 Relay Module implements an additional protection feature to ensure smooth operation of the module against high voltage transients. These transients may occur due to switching inductive loads.

The PXIe-2569 Relay Module offers a value for minimum switch load of 20 mV or 10 mA. The initial value of DC path resistance for the instrument is less than 0.55 ohms. Its value at the end of the life of relay is one ohm. The typical bandwidth of the NI PXIe 2569 is greater than or equal to 20 MHz.

ModelPXIe-2569
Part Number780587-69
ManufacturerNational Instruments
TypePXI Relay Module
Relay ConfigurationSPST (open)
Relays100
Switch Bandwidth20 MHz
Dimensions8.5 x 0.8 x 5.1 in.
Weight10.2 oz.
WarrantyOne Year Warranty
PXIe-2569 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PXIe-2569 Frequently Asked Questions



Question: What is the scan rate of the PXIe-2569?



Answer: The scan rate of the PXIe-2569 is 145 cycles/s.



Question: What type of I/O connector is on the NI PXIe-2569?



Answer: The NI PXIe-2569 has 200 POS LFH Matrix 50, receptacle I/O connectors.



Question: What is the relay operating time for the PXIe-2569?



Answer: The PXIe-2569 has a relay operating time of 1 ms typical and 3.4 ms maximum.



Question: What is the maximum switching current DC for the NI PXIe-2569?



Answer: The maximum switching current DC for the NI PXIe-2569 is 1 A.

  PXIe-2569 PDF Manuals
