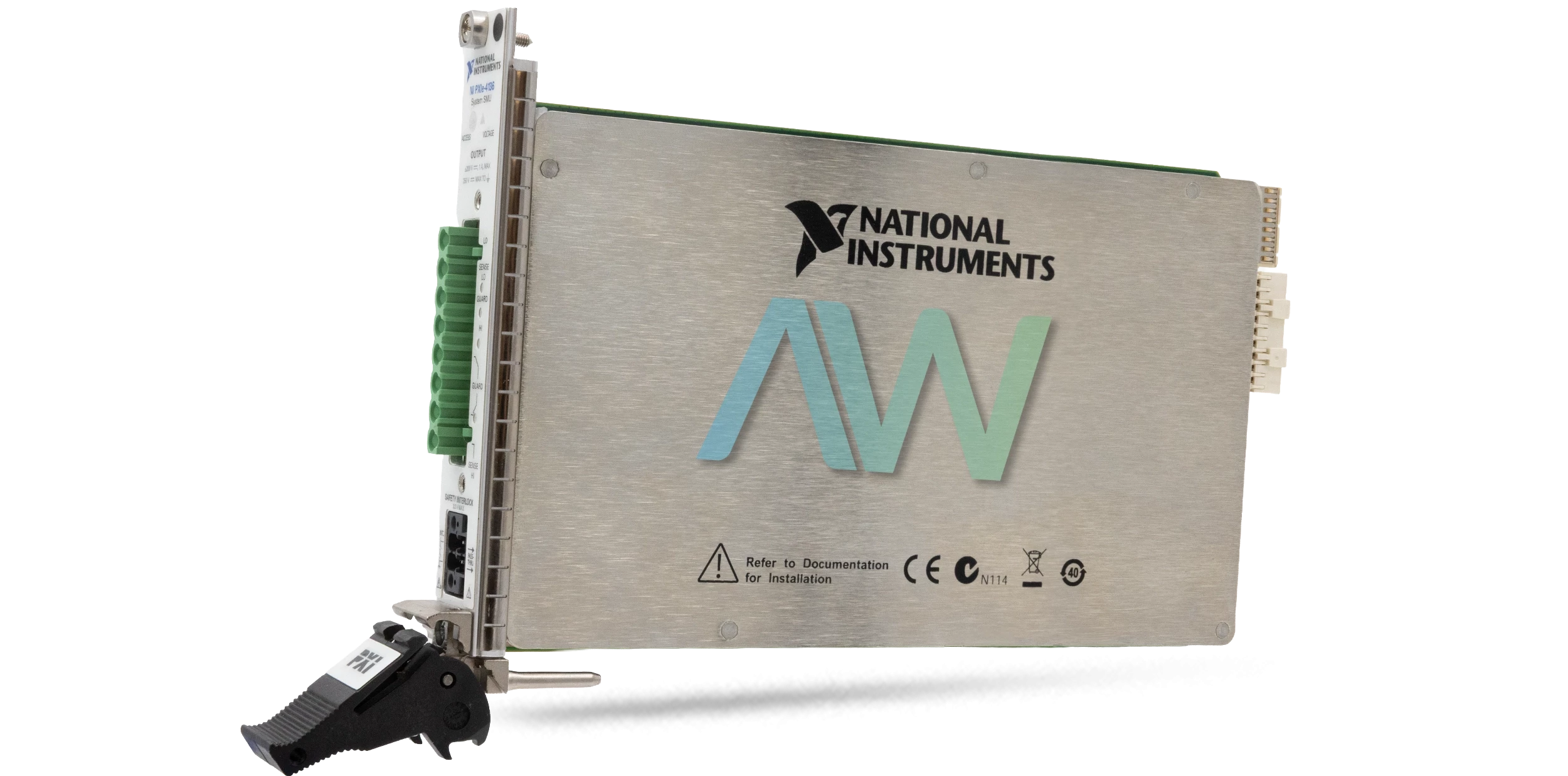

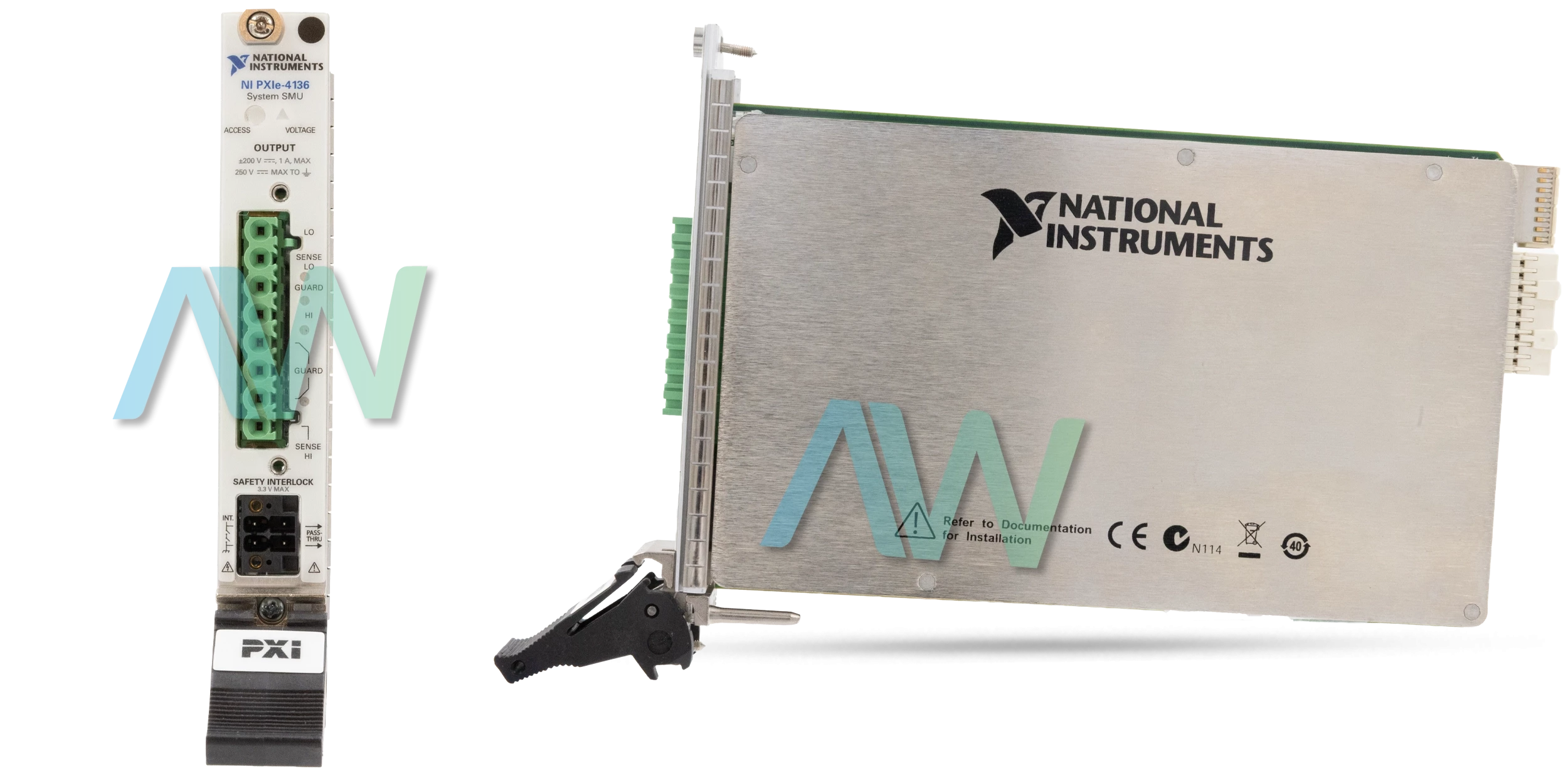

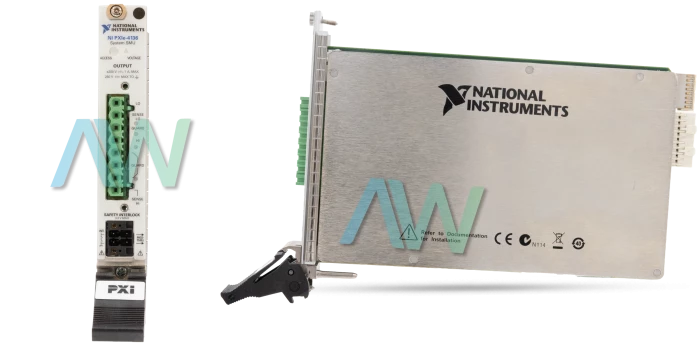

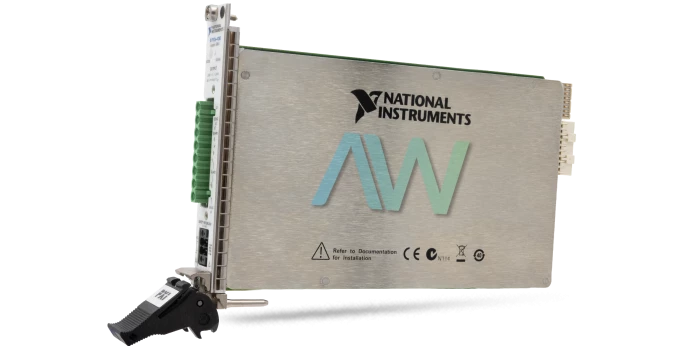

National Instruments PXIe-4136 PXI Source Measure Unit
The PXIe-4136 (Part Number: 783760-01) Source Measure Unit (SMU) delivers high power, accuracy, and speed. It is perfect for an expansive scope of uses, including manufacturing test, board-level test, lab characterization with gadgets, such as incorporated circuits (ICs), power management integrated circuits (PMICs), and radio frequency integrated circuits (RFICs), and discrete gadgets including LEDs and optical transceivers. The NI PXIe-4136 highlights 4-quadrant operation. The PXIe 4136 is a hardware planned instrument with a fast sequencing motor for synchronizing acquisitions between different SMUs. The module supports direct DMA streaming between the host PC and SMU, so the user can stream huge waveforms and estimation information at the full update rate and test rate of the instrument.
The NI PXIe 4136 allows a warm-up time of no less than 30 minutes after the chassis is powered on and NI-DC Power is loaded and recognizes the PXIe-4136. The warm-up time guarantees that the PXIe-4136 and test instrumentation are at a stable working temperature.
The execution check strategies accept that sufficient traceable vulnerabilities are accessible for the calibration references. The user should finish all verification methods in the predetermined request. It is not required to independently check both estimation and output. The architecture of the NI PXIe-4136 guarantees that if estimation is precise, then output is as well, and vice versa. If excess of one test point for every level range is specified, repeat the previous steps for each test point, from setting the level to the test point on the PXIe-4136 up to this step.
| Model | PXIe-4136 |
|---|---|
| Part Number | 783760-01 |
| Manufacturer | National Instruments |
| Type | PXI Source Measure Unit |
| SMU Channels | 1 |
| Voltage Range | -200 V to 200 V |
| Current Range | -1 A to 1 A |
| Dimensions | 0.8 x 5.1 x 8.5 in. |
| Weight | 14.8 oz. |
| PXIe-4136 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for PXIe-4136:
National Instruments PXIe-4136 Frequently Asked Questions
Question: Does the PXIe-4136 have SourceAdapt?
Answer: No, the PXIe-4136 does not have SourceAdapt.
Question: What is the current sensitivity of the NI PXIe-4136?
Answer: The current sensitivity of the NI PXIe-4136 is 1 pA.
Question: What is the maximum overvoltage protection limit value on the PXIe-4136?
Answer: On the PXIe-4136, the maximum overvoltage protection limit value is 210 V.
Question: What types of input triggers does the NI PXIe-4136 have?
Answer: The NI PXIe-4136 has these input triggers: Pulse, Start, Sequence Advance, Source, and Measure.
