National Instruments PXI-5670 PXI Vector Signal Generator

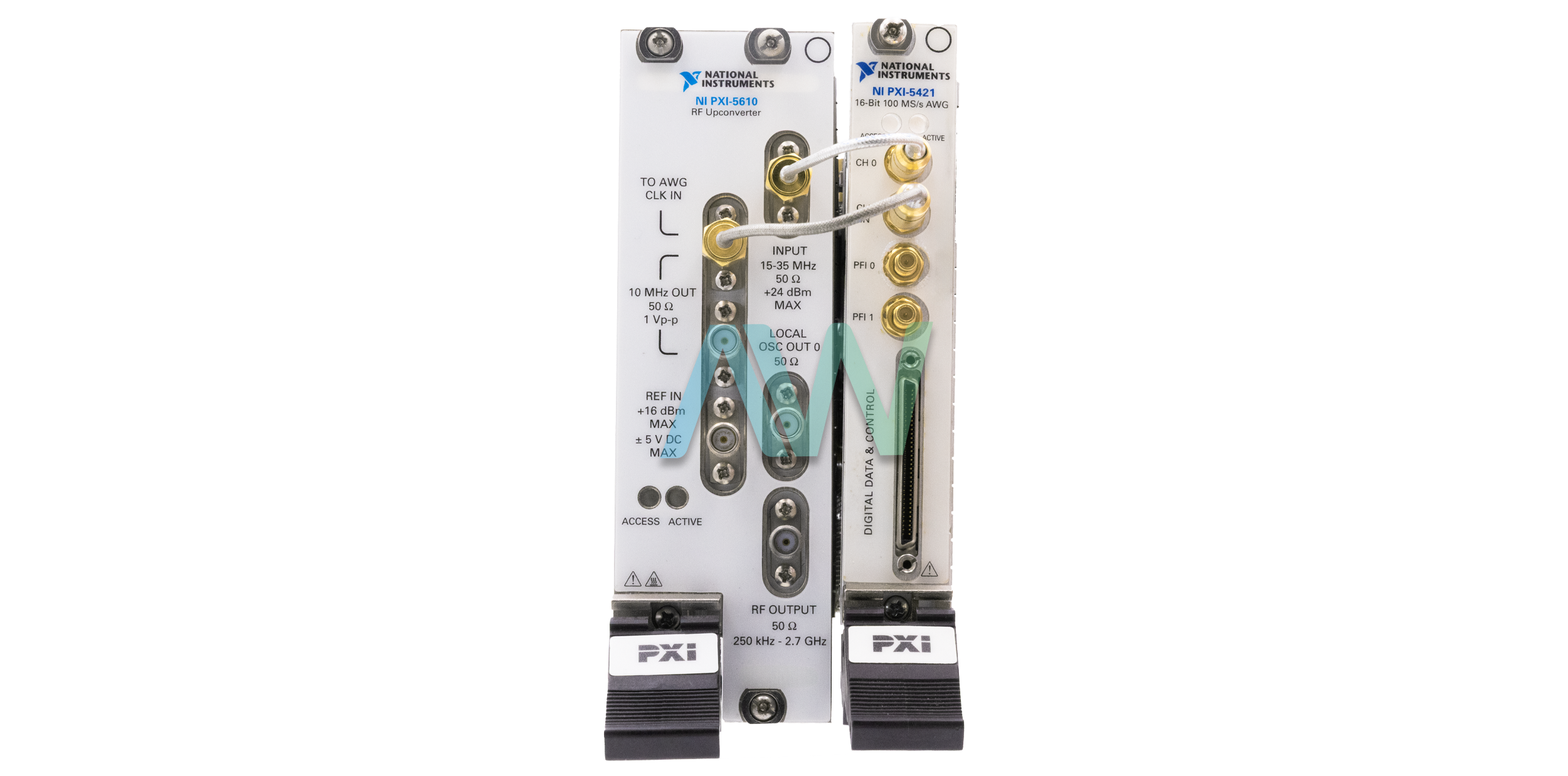

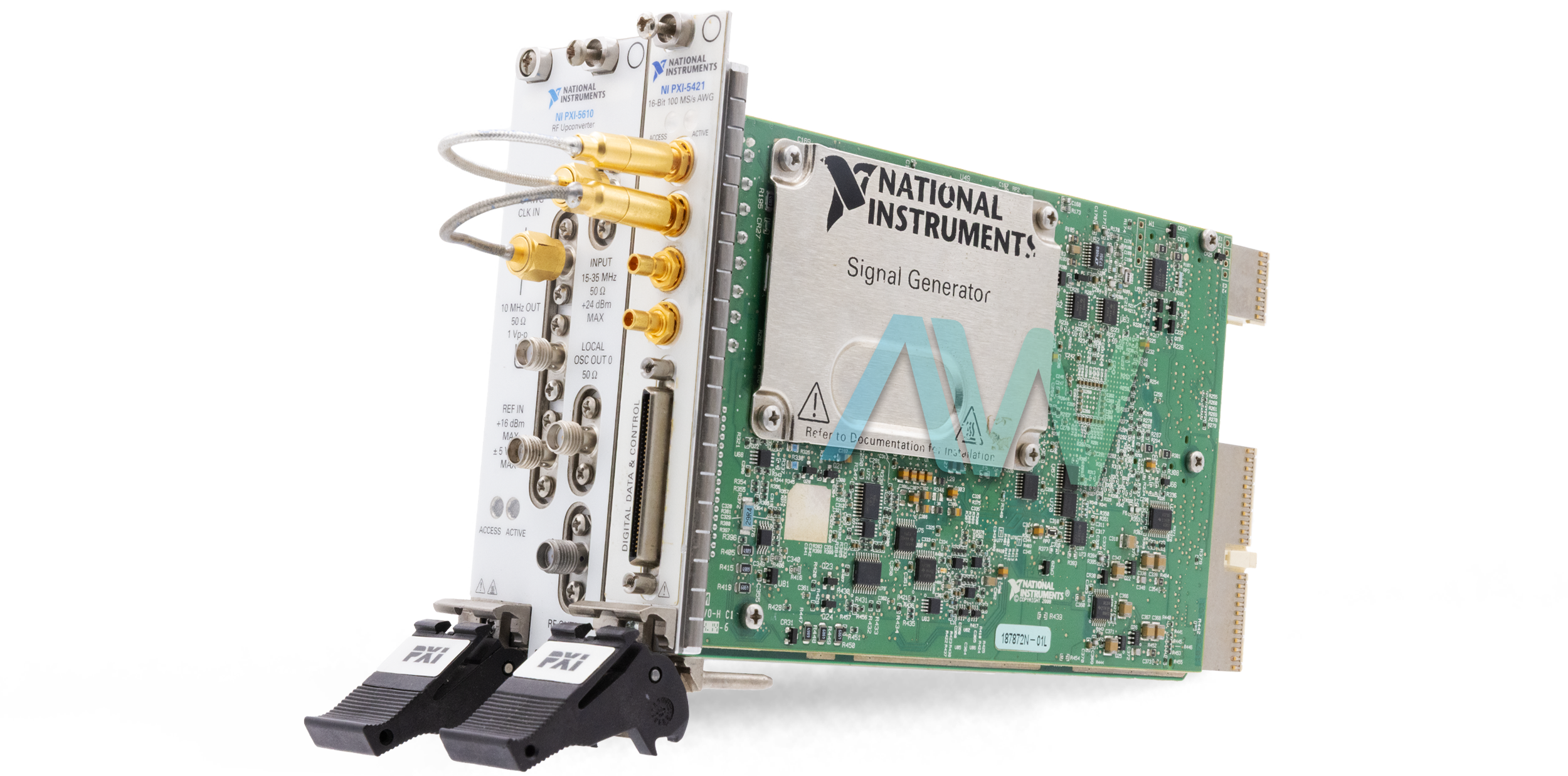

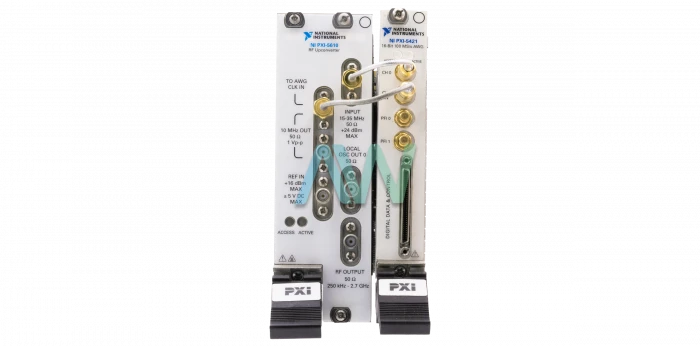

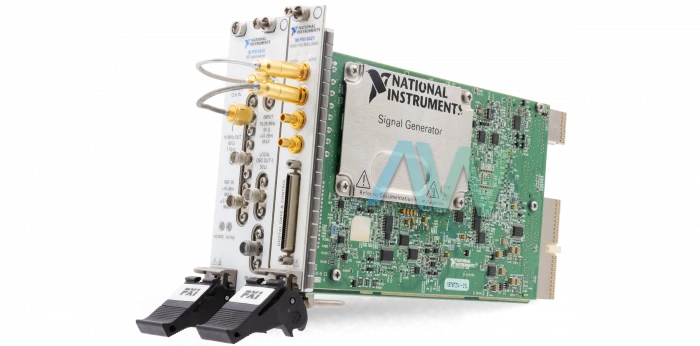

The National Instruments PXI-5670 (Part Numbers: 778768-01, 778768-02, 778768-03, and 778768-04) is a 2.7 GHz PXI Vector Signal Generator with the power and adaptability required for item improvement applications from design through manufacturing. This module is not a singular part, but is two specially connected modules. The model name PXI-5670 describes two NI modules that must be correctly connected with cabling and configured in NI LabVIEW to work together: the PXI-5610 RF Upconverter Module and the PXI-5421 Arbitrary Waveform Generator Module. When the digital upconverter is enabled, the NI PXI-5670 is equipped with a signal bandwidth of 6.6 MHz. In addition, the AWG module system clock rate for the device is typically 100 MHz. A replacement cable kit, which can be found under NI part number 190846B-01, is available for the Vector Signal Generator. This kit includes 2 SMA (m)-to-SMB Cables that are semi-flexible.
The part numbers of the signal generator differ depending on their memory size, with variations of either 8 MB (number 778768-01), 32 MB (number 778768-02), 256 MB (number 778768-03), or 512 MB (number 778768-04). The PXI-5670 can create custom and standard regulation configurations, which includes: AM, FM, PM, ASK, FSK, PSK, MSK, and QAM. Specialists now have a profoundly exact and adaptable Vector Signal Generator with the execution required for fast prototyping and automated test.
The Modulation Toolkit for LabVIEW goes with the NI PXI-5670, giving capacities and instruments to signal generation, examination, visualization, and processing of custom and standard digital and analog modulation arrangements. The combined usefulness of the PXI-5670 and the Modulation Toolkit deliver a highly flexible and capable answer for scientific research, consumer electronics, communications, aviation/defense, and semiconductor test applications, and for rising areas including software-defined radio, radio-frequency identification (RFID), and wireless sensor systems.
The NI PXI-5670 gives vector signal generation from 250 kHz to 2.7 GHz over an extensive variety of signal levels from -145 dBm to +13 dBm in a compact, 3-slot, 3U module. It follows industry-standard plug and play specifications for the PXI bus and can be consistently integrated with compliant systems.
The PXI-5670 highlights a locally available ultra-high-security oven-controlled crystal oscillator (OCXO), which gives a frequency steadiness of ±20 ppb and frequency exactness of ±50 ppb. These resolutions make it helpful for a scope of computerization applications.
| Model | PXI-5670 |
|---|---|
| Part Numbers | 778768-01, 778768-02, 778768-03, 778768-04 |
| Manufacturer | National Instruments |
| Type | PXI Vector Signal Generator |
| RF Generator Instantaneous Bandwidth | 20 MHz |
| Onboard Memory Size | 8, 32, 256, or 512 MB |
| Kit Cables | 2 SMA (m)-to-SMB Cables (part number: 190846B-01) |
| Output Channels | 1 |
| Dimensions | PXI-5610: 8.5 x 1.6 x 5.1 in.; PXI-5421: 8.5 x 0.8 x 5.1 in. |
| Weight | Combined Unit: 53.2 oz. |
| PXI-5670 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Request a quote |
Associated part numbers for PXI-5670:
National Instruments PXI-5670 Frequently Asked Questions
Question: What models comprise the NI PXI RFSG 5670?
Answer: The NI PXI RFSG 5670 is comprised of the PXI-5610 RF Upconverter Module and the PXI-5421 Arbitrary Waveform Generator Module.
Question: What are the differences between the four part numbers for the NI PXI-5670?
Answer: Part number 778768-01 has 8 MB onboard memory, while part number 778768-02 has 32 MB onboard memory. Part number 778768-03 has 256 MB onboard memory, and part number 778768-04 features 512 MB onboard memory.
Question: What is the calibration interval for the PXI-5670?
Answer: The calibration interval for the PXI-5670 is different for the two parts it is comprised of. The PXI-5610 has a calibration interval of one year, and the PXI-5421 has a 2-year calibration interval.
Question: Can the PXI-5670 be used with LabVIEW SignalExpress?
Answer: No, the PXI-5670 is not compatible with LabVIEW SignalExpress. The software options are LabVIEW, LabWindows/CVI, or C code.
| Part Number | Onboard Memory Size |
|---|---|
| 778768-01 | 8 MB of Onboard Memory |
| 778768-02 | 32 MB of Onboard Memory |
| 778768-03 | 256 MB of Onboard Memory |
| 778768-04 | 512 MB of Onboard Memory |
