National Instruments PXIe-5672 PXI Vector Signal Generator

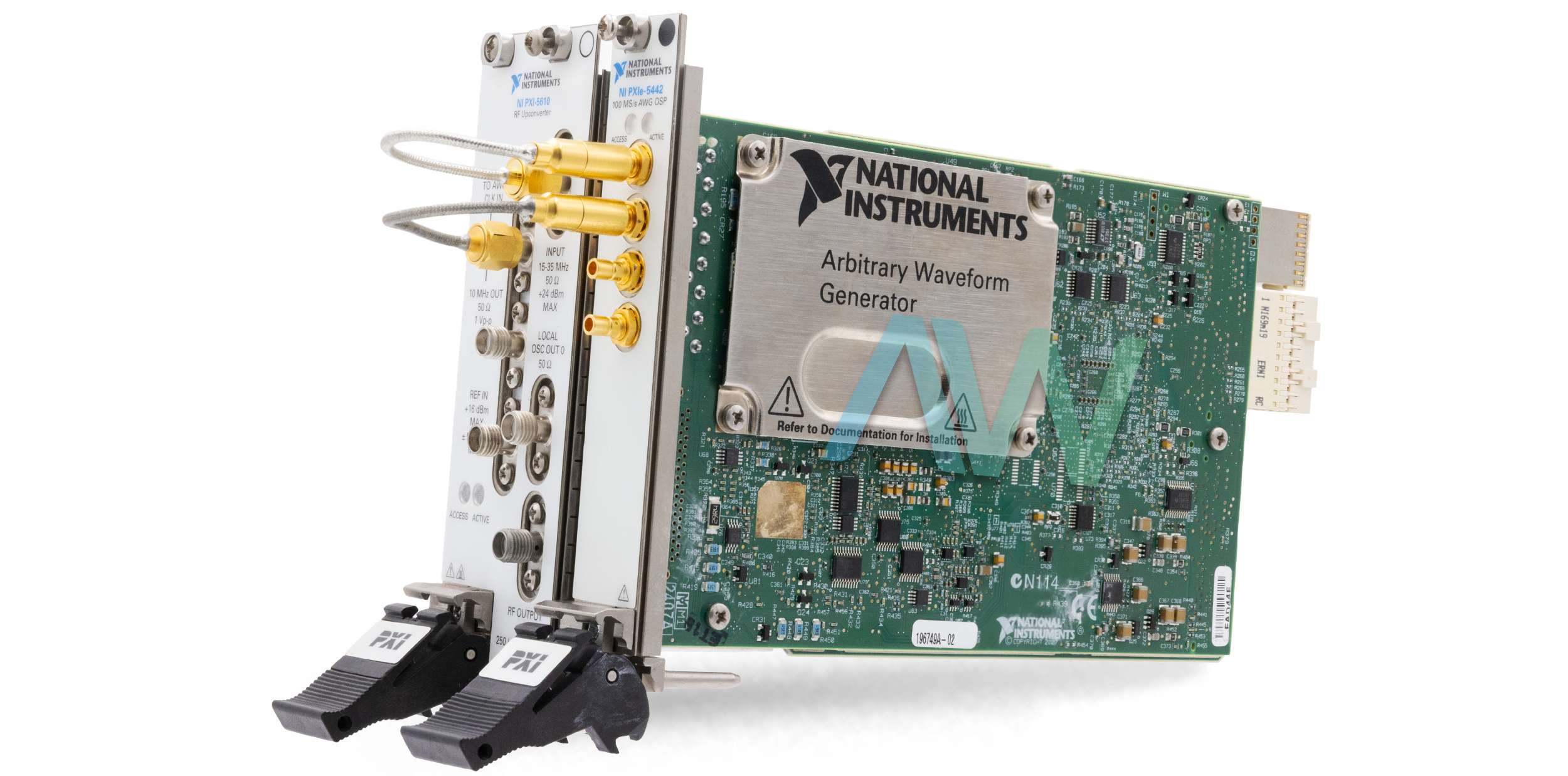

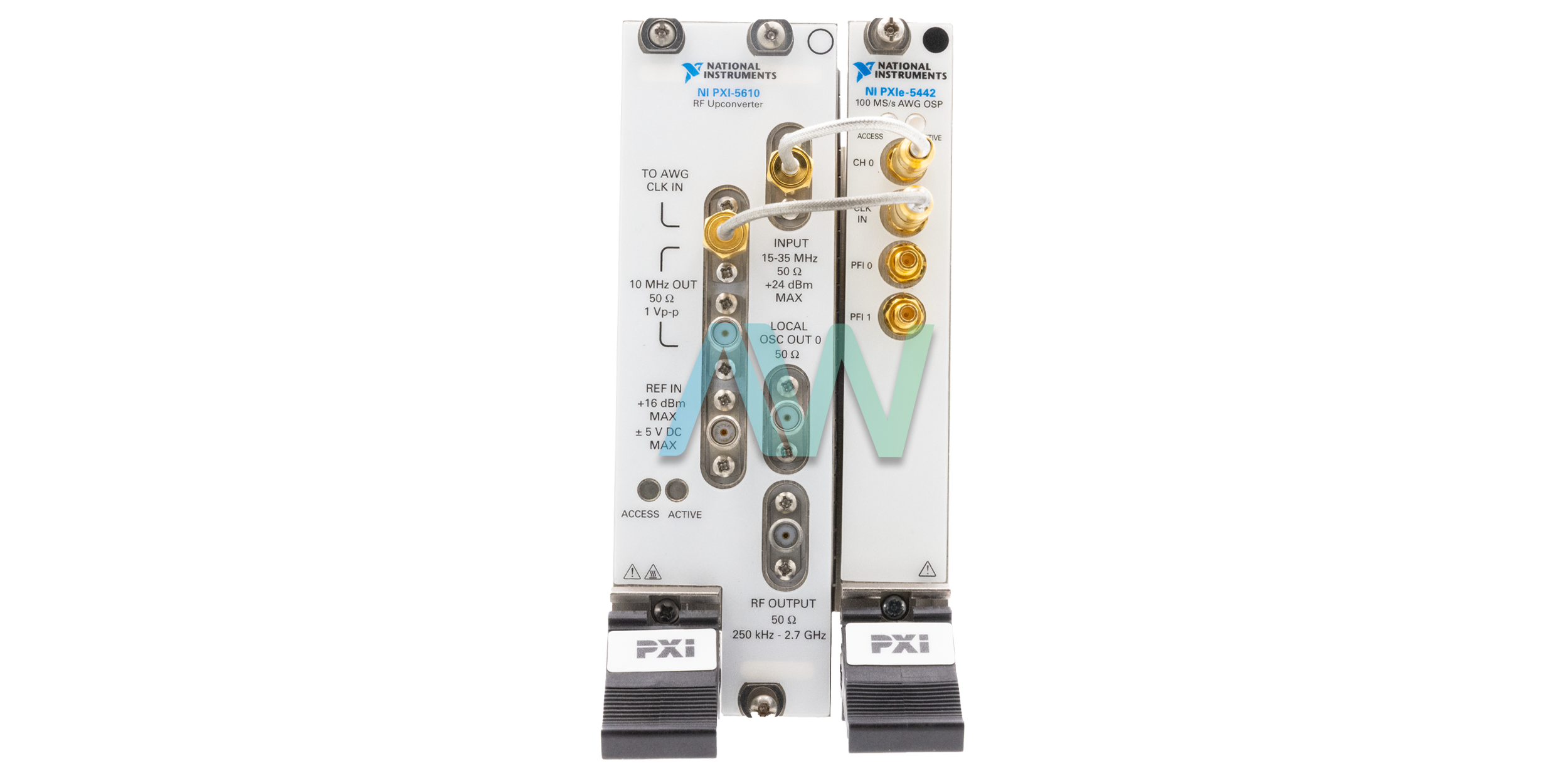

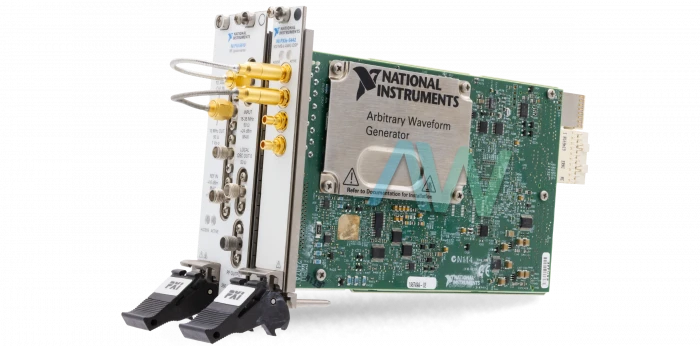

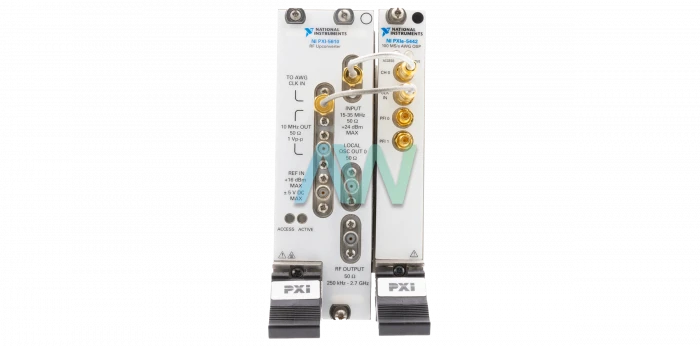

The PXIe-5672 (Part Numbers: 779900-01, 779900-02, 779900-03) is a Vector Signal Generator manufactured by National Instruments. This module comes with a 2.7 GHz, 20 MHz bandwidth digital upconverter, which helps reduce waveform download and time for the signal generation. It is important to note that the model name PXIe-5672 does not refer to a single physical module, but it is instead made up of two interconnected NI modules: the PXI-5610 RF Signal Upconverter and the PXIe-5442 Waveform Generator.

The NI PXIe-5672 can produce modulation formats like AM, FM, PM, QPSK, FSK, MSK, QAM, PSK, PAM, ASK, and GMSK- and it is availble in three onboard memory sizes. These memory size variations are 32 MB (part number 779900-01), 256 MB (part number 779900-02), and 512 MB (part number 779900-03). The PXIe-5672 Vector Signal Generator is a flexible and capable solution for scientific use and applications such as communication systems, aerospace, defense, and semiconductor test. The NI PXIe-5672 is also a great option for emerging areas i.e. radio frequency identification, software defined radio, and wireless sensor networks. This model has 5 slots, which enables the user to insert PXI Express modules in any of the slots.

The National Instruments PXIe-5672 PXI Vector SIgnal Generator can be used with the NI-RFSG instrument driver to program the device. It uses Measurement and Automation Explorer to configure the hardware and informs the user about which devices are connected to the module. MAX is installed automatically with NI-RFSG.

The NI PXIe-5672 has an Arbitrary Waveform Performance without resampling of 0.32 s. For resampling, it is 2.00 s, typical. The PXIe-5672 Vector Signal Generator has a 10 MHz frequency with maximum temperature stability at ±20 ppb. It can achieve accuracy up to ±50 ppb at the initial stage. This module can operate under temperature range from 0 °C up to 55 °C. It is workable from 0m to 2000m altitude. The NI PXIe-5672 also fulfills the needs of the lower EMC standards for electrical equipment, as well as all safety standards of measurement, control, and laboratory use.
