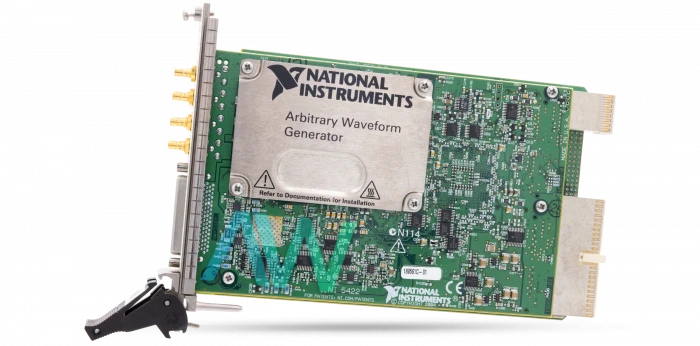

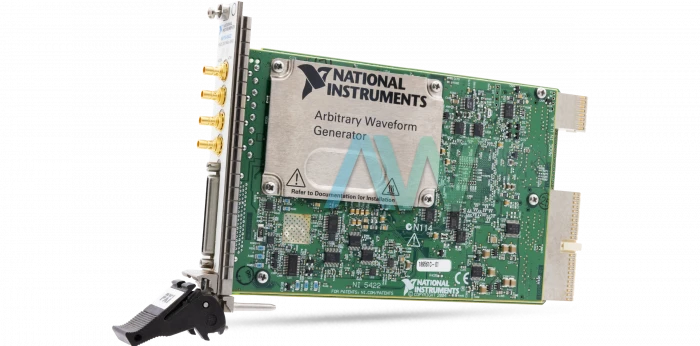

PXI-5422 National Instruments Waveform Generator | Apex Waves | Image
PXI-5422 National Instruments Waveform Generator | Apex Waves | Image
PXI-5422 New
PXI-5422 Refurbished

✔ 2 Year Warranty Included

✔ Free Domestic Ground Shipping

✔ NIST Calibration Available

Get Price & Availability for the PXI-5422

Fast response from an Apex Waves specialist.

Fast Response Avg. 15 min
ISO 9001 Quality 2 Year Warranty
In Stock Ships Today

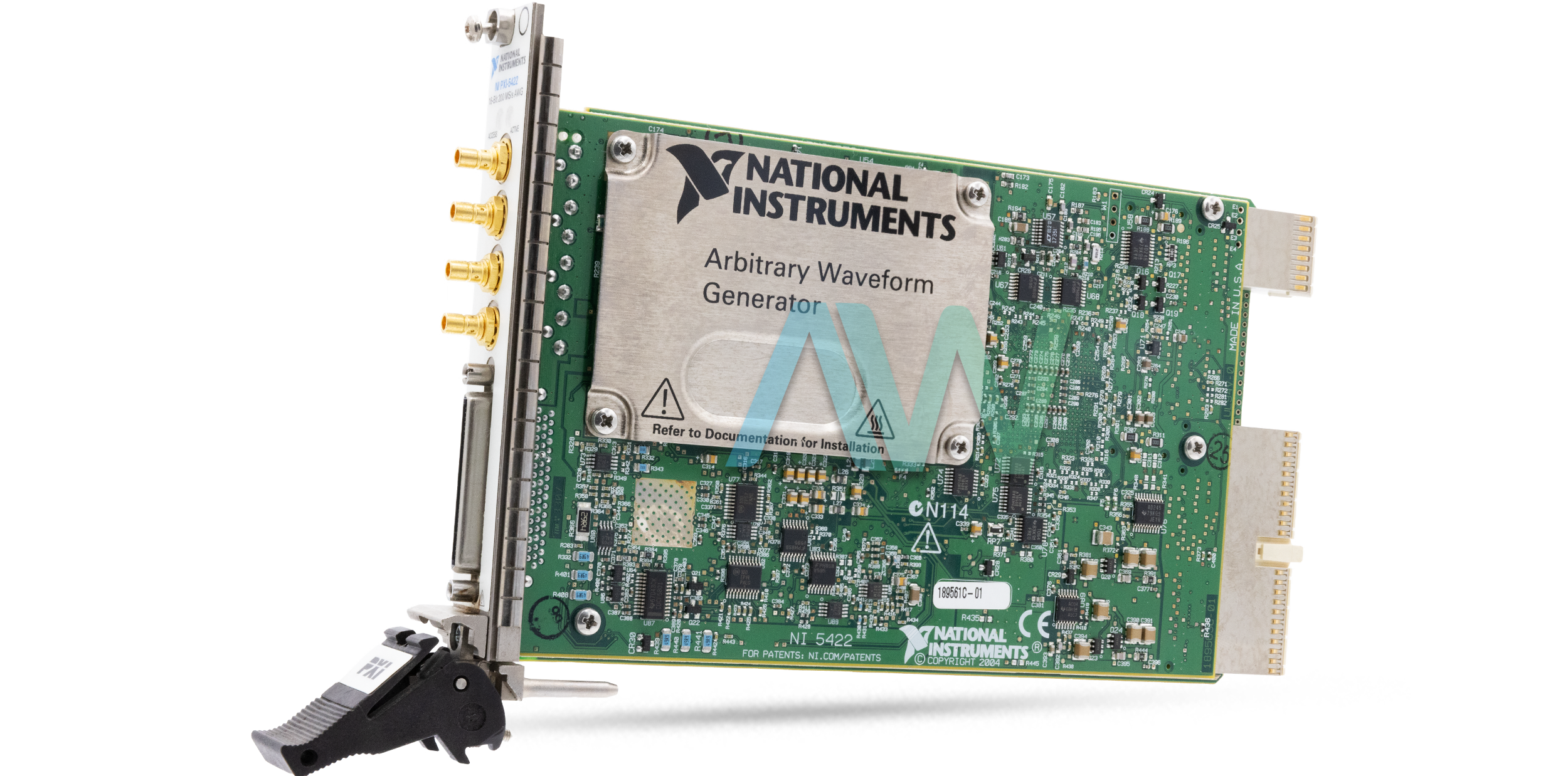

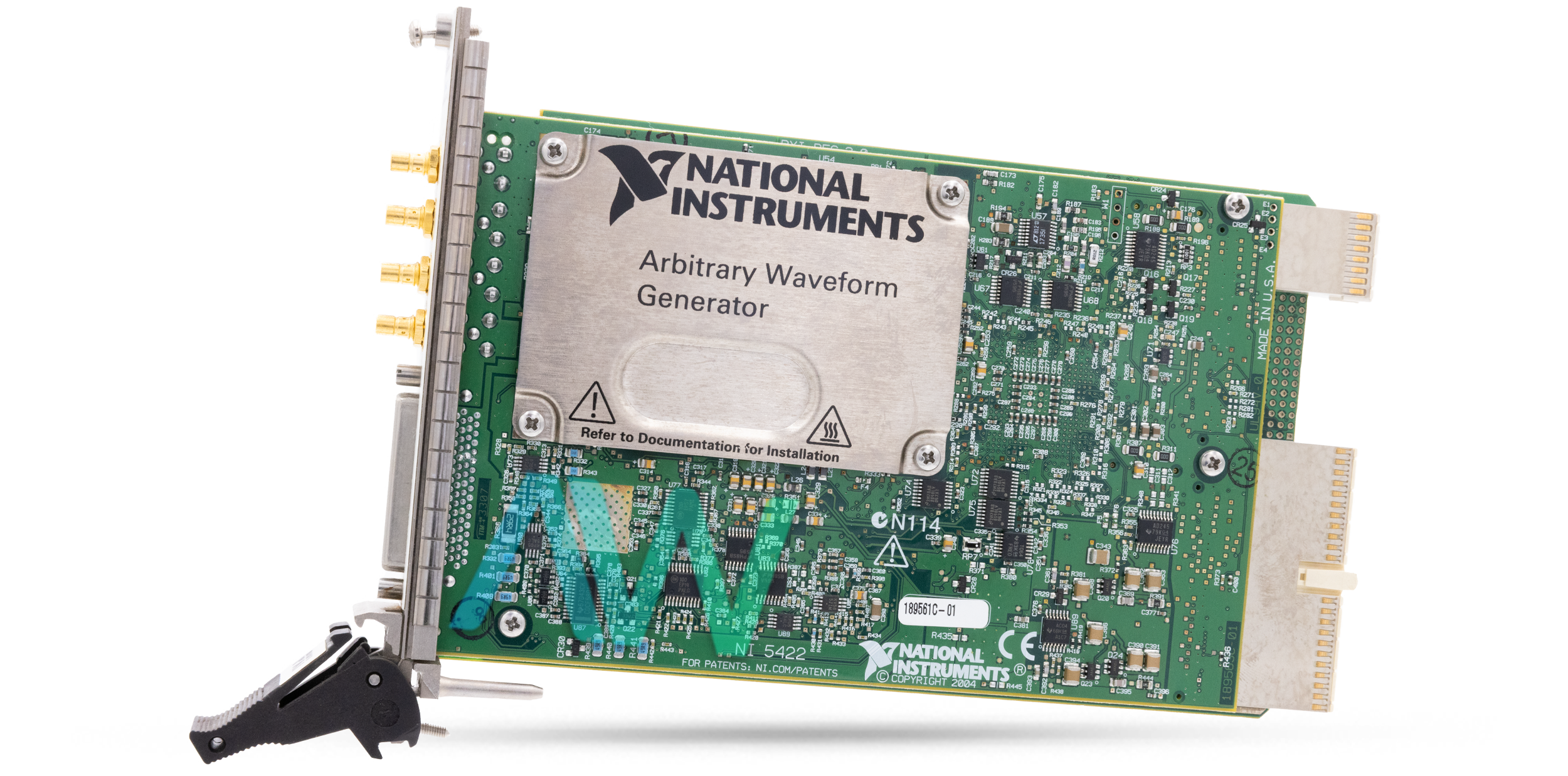

National Instruments PXI-5422 Waveform Generator

The NI PXI-5422 is equipped for performing self-calibration, which alters the gain and counterbalance of the fundamental and direct analog paths. Self-calibration only uses a locally available A/D converter (ADC) to quantify the output voltage. The user can execute self-calibration on the NI PXI-5422 by following strategies like verifying the DC gain and offset accuracy and adjusting the analog output systems. This model comes in four presentations: the PXI-5422 with 8 MB memory (part number: 779087-01), 32 MB memory (part number: 779087-02), 256 MB memory (part number: 779087-03), and 512 MB memory (part number: 779087-04). The device has a maximum bandwidth of 80 MHz, with a maximum update rate of 200 MS/s.

The instrument operates using the NI-FGEN driver software, which is installed from the NI-FGEN DVD. The DVD also contains the FGEN Soft Front Panel, which is essential to handling the signal generator. The software installation can begin automatically on insertion of the NI-FGEN DVD. However, in the event that the user is developing an application for the generator, an ADE such as LabVIEW or LabWindows/CVI is required. Also, configuration of the software can be carried out using the Measurement & Automation Explorer (MAX) tool.

The NI PXI-5422 has 5 I/O connectors: CH 0, CLK IN (SMB jack), PFI 0 (SMB jack), PFI 1 (SMB jack), and DIGITAL DATA & CONTROL connectors (68-pin VHDCI female receptacle).

This waveform generator acknowledges an outside PLL reference clock and can phase-lock the inside sample time-base clock to the outer reference clock. The signal on this connector can also be utilized as a sample clock source. This model acknowledges a trigger from an outside source and can begin or step through waveform generation or course signals from a few clock, event, and trigger sources. It routes the 16-bit digital pattern outputs, computerized pattern clock output, trigger outputs, trigger sources of inputs, and a clock input.

The PXI-5422 is no longer available from National Instruments, but the waveform generator will remain available for both purchase and repairs in perpetuity with Apex Waves!

Model PXI-5422
Manufacturer National Instruments
Part Numbers 779087-01, 779087-02, 779087-03, 779087-04, 191946B-01, 191946E-01L
HTS Code 8471804000
Type Waveform Generator
Maximum Bandwidth 80 MHz
Maximum Update Rate 200 MS/s
Supports Scripting? Yes
Onboard Memory Size 8, 32, 256, or 512 MB
Bus Connector PXI Hybrid
Output Channels 1
Analog Output Voltage Range -6 V to 6 V
Analog Output Resolution 16 Bits
Supports Arbitrary Waveforms? Yes
Digital Upconversion Support? No
RF Signal Generation? No
PXI-5422 Manual User Manual and Maintenance Manual Available for Download
Price Request a Quote

Associated part numbers for PXI-5422:

National Instruments PXI-5422 Frequently Asked Questions



Question: What is the difference between the part numbers of the PXI-5422?

Answer:  The part numbers differ in their memory sizes: 8 MB (779087-01), 32 MB (779087-02), 256 MB (779087-03), and 512 MB (779087-04).



Question: What is the rise time of the NI PXI-5422?

Answer: The Waveform Generator has a 1.8 ns rise time with less than 6% pulse aberration.



Question: Does the PXI-5422 have data streaming capabilities?

Answer: Yes, data streaming is available.



Question: How often should the PXI 5422 be calibrated?

Answer: It is recommended to calibrate the waveform generator every two years.



Question: Is self-calibration available?

Answer: The NI PXI-5422 can perform self-calibration using an onboard A/D converter (ADC) to measure the output voltage.

Part Number Memory Size
779087-01 8 MB
779087-02 32 MB
779087-03 256 MB
779087-04 512 MB
