779362-01, R Series, 160 Digital I/O, PXI-7813R Digital Reconfigurable I/O Module

Rated 4.5/5 | 13 ratings

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

National Instruments 779362-01 PXI Digital Reconfigurable I/O Module

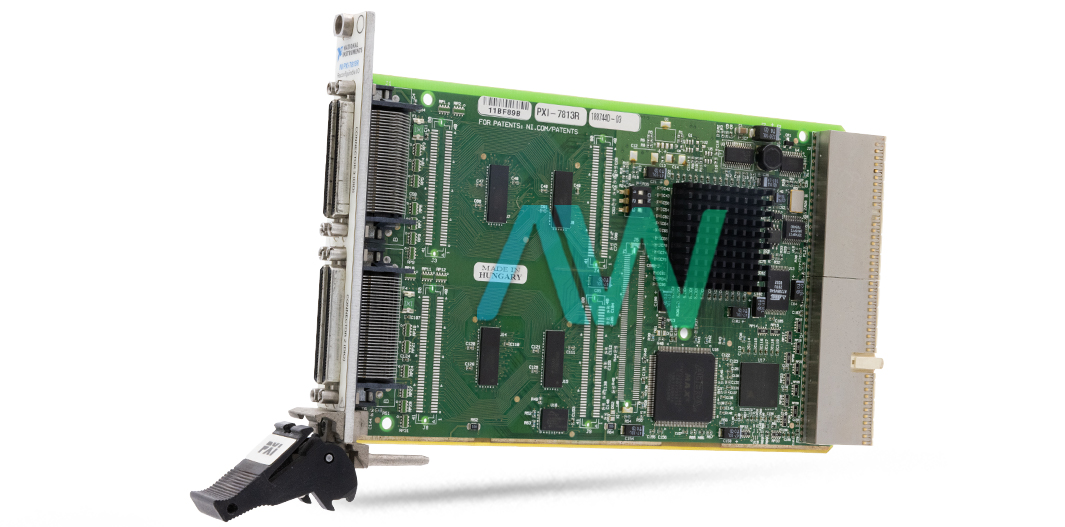

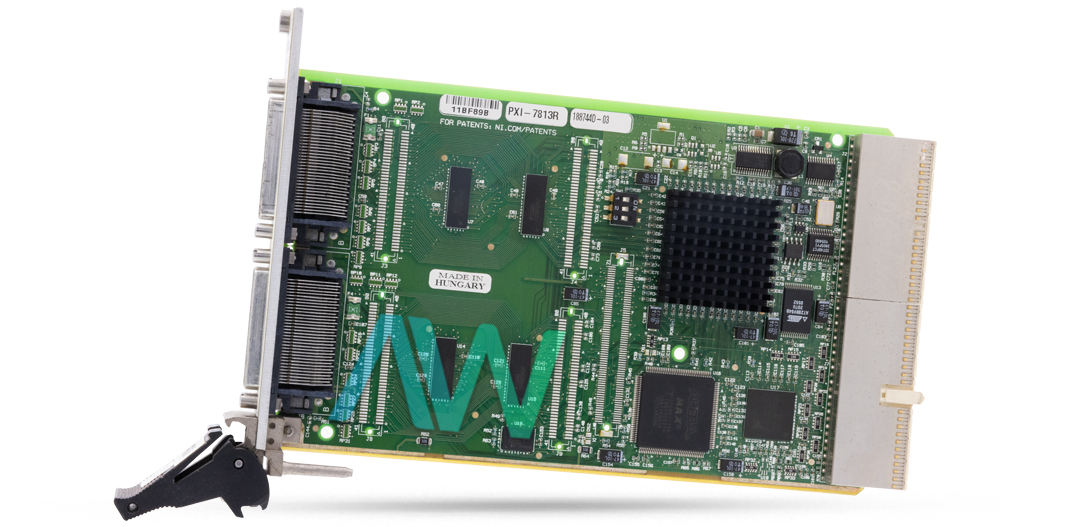

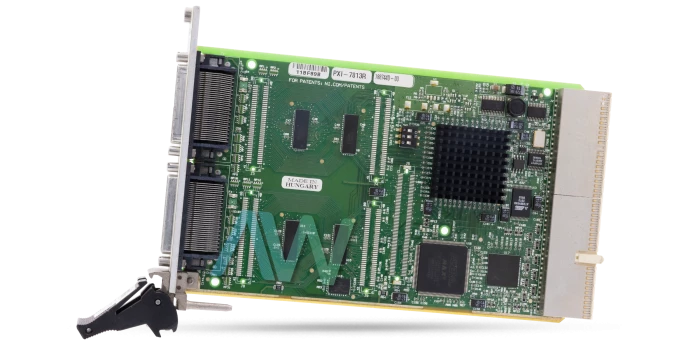

The National Instruments 779362-01, an identifying number of the PXI‑7813- a versatile Digital Reconfigurable I/O (RIO) Module designed for high-performance digital processing and flexible I/O operations. This module features a Virtex-II 3M Gate FPGA, which allows users to program custom onboard decision-making processes that execute with hardware-timed speed and reliability. This FPGA enables precise control over synchronization and timing of all signals and operations, making the 779362-01 well-suited for a variety of complex applications.

Each of the 160 digital lines on the 779362-01 can be configured differently to function as an input, an output, a counter/timer, PWM signal, an encoder input, or a specialized communication protocol. It is perfect for jobs like bit error rate testing, hardware-in-the-loop (HIL) testing, sensor simulation, and high-speed waveform synthesis because of its versatility. With a 4 mA output current and TTL compatibility, each digital I/O channel may support bidirectional logic levels of 3.3 and 5 volts. With a range of -0.5 volts to 7 volts, the module's input overvoltage protection ensures reliable operation in a variety of settings.

The LabVIEW FPGA Module and NI LabVIEW can be used to program the 779362-01. With the help of this graphical programming environment, users may design block diagrams that are immediately executed in the hardware, giving them instant control over all I/O signals. As a result, a highly responsive and configurable system with the ability to handle complex communication protocols and carry out unique onboard processing is produced.

The PXI bus connector on the 779362-01 module makes it easier to integrate it with PXI-based systems. It also has three DMA channels for effective data transport. It also has four 68-pin connectors, so a variety of devices and sensors can have plenty of connecting possibilities. Precise timing and synchronization are essential for applications requiring high-speed data acquisition and control, and an onboard clock with a maximum frequency of 40 MHz provides this capability.

Part Number779362-01
Model NamePXI‑7813 Series
Part TypeDigital Reconfigurable I/O Module
FPGAVirtex-II 3M Gate
Digital I/O Lines160, individually configurable
Logic Levels3.3V and 5V TTL compatible
Output Current4 mA
Input Overvoltage Protection-0.5V to 7V
Onboard Clock Frequency40 MHz
DMA Channels3
