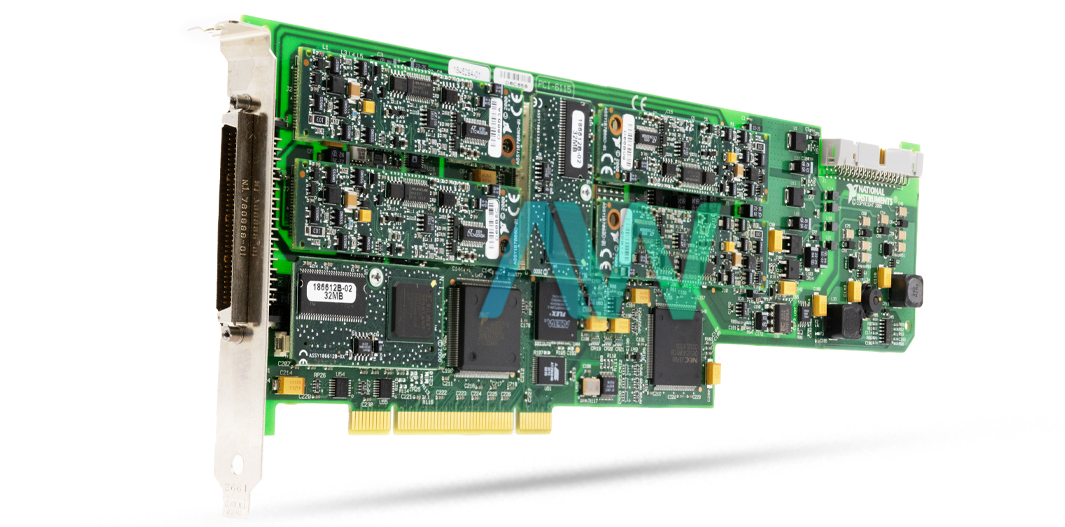

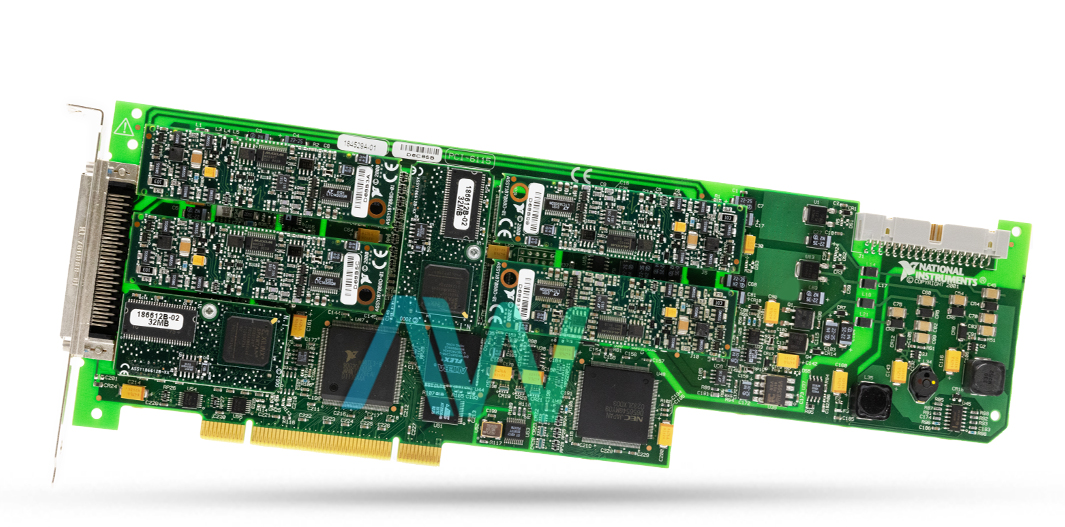

National Instruments 778534-01 Multifunction I/O Device
The Multifunction DAQ, National Instruments 778534-01, is a crucial part of the PCI-6115 Model series. This versatile tool offers a wide range of features designed for various industrial uses. Its synchronized analog input (AI), analog output (AO), and digital I/O capabilities are guaranteed by its simultaneous-sampling design, which makes it perfect for stimulus/response applications and a variety of industrial settings.
The timing, digital, and analog I/O functions of this multifunction DAQ provide unmatched versatility. Four 12-bit channels with a maximum sampling rate of 10 MS/s each make up its analog input portion. Voltage outputs are provided via its two 12-bit analog output channels in the interim. It also includes two 24-bit counter/timers and eight lines of correlated digital I/O that are TTL-compatible.
Easy installation and configuration are guaranteed by the 778534-01's smooth integration with PCI bus computers. It makes use of the NI data acquisition system timing controller (DAQ-STC) to enable accurate timing control, which opens up applications like equivalent time sampling and buffered pulse generation. Furthermore, smooth synchronization between several measuring devices is made possible via the Real-Time System Integration (RTSI) bus.
Its switchless and jumperless design simplifies the operations of calibration and configuration and does away with the necessity for manual adjustments. Incorporating the NI-DAQmx driver and configuration utility streamlines setup and operation even further, allowing users to concentrate on their unique application needs.
Apart from its exceptional technological capabilities, the 778534-01 is widely recognized for its dependability and robustness in rigorous industrial settings. Because of its sturdy design and commitment to strict quality standards, industrial automation engineers all over the world trust it for reliable performance and long lifespan.
| Part Number | 778275-01 |
|---|---|
| Model Name | PCI‑4070 |
| Part Type | Digital Multimeter Device |
| DC System Speeds | Range or function change: 100/s, Auto range time, DC V: 5 ms, Auto range time, DC I: 5 ms |
| AC System Speeds | Range or function change: 10/s, Auto range time, AC V and AC I: 250 ms |
| Acquisition System | Minimum record duration: 8.89 μs, Maximum record duration: 149 s |
| Input Trigger | Latency: 1.8 μs, Jitter: <600 ns |
| Warm-up | Warm-up: 1 hour |
| Self-calibration | External calibration interval: 2 years |
| Measurement Category | I (up to 300 V) and II (up to 250 VACrms, 220 VDC) |
| Manufacturer | National Instruments |
