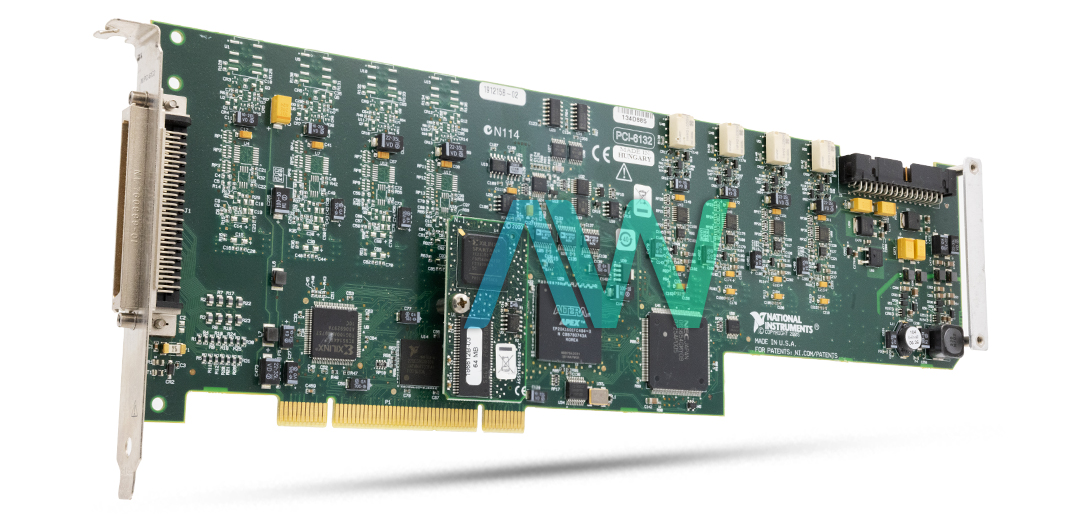

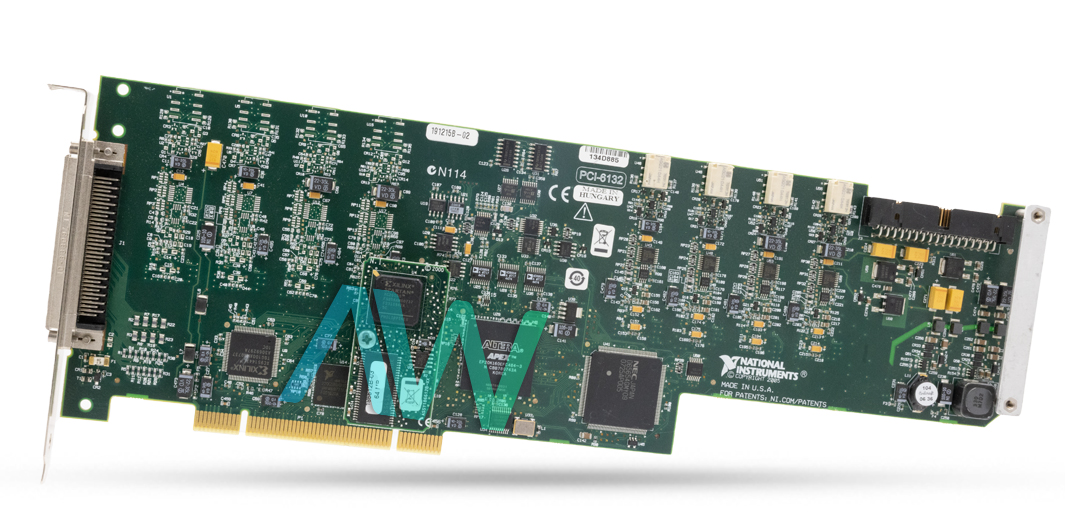

National Instruments PCI-6132 Multifunction I/O Device

The PCI-6132 is a Multifunction I/O Device from National Instruments. It serves multifunctional requirements to compete various testing procedures. The NI PI-6132 device has the capability to offer a high sampling rate with the value of 2.5 MS per second. This value is based on each channel separately. The instrument features both analog and digital channels. These channels allow the user to input the signal and output the measurement data. The instrument incorporates four analog and eight digital channels to address these requirements. The NI PCI-6132 comes with a 68-pin, male SCSI-II connector.

The PCI 6132 National Instruments comes with built-in counters. These counters offer high frequency and resolution capabilities. Their values are 20 MHz and 24 bits respectively. The instrument implements various advanced mechanisms, such as simultaneous sampling schemes for the input signals. This device has several important accessories available, which help extend the operational capabilities of the device, such as connecting cables. The NI PCI 6132 also offers trigger capabilities to the users.

This device can be used in the manufacturing industry for telecom equipment. This application demands a high level of accuracy and performance efficiency. The NI PCI-6132 Multifunction I/O Device has applications in testing requirements. It includes high energy physics, sonar testing, and other relevant requirements. The NI PCI-6132 also incorporates software utility, which allows the user to quickly set up the instrument for many types of testing requirements. The NI PCI-6132 Multifunction I/O Device adheres to various safety standards.

ModelPCI-6132
ManufacturerNational Instruments
Part Number779422-01
SeriesS Series
TypeMultifunction DAQ
Analog Input Channels4 (14-Bit, 3 MS/s)
Digital Input/Output8 (5 V/TTL Compatibility, 10 Mwords/s)
Timing I/O2 Counter/Timer I/O (24 bits, 20 MHz )
I/O Connector68-pin male SCSI II type
Power Requirements+5 VDC, +3.3 V, –12 V -- 2.2 A, 1.0 A, 45 mA
Dimensions12.3 × 4.2 in.
SoftwareNI-DAQmx
Measurement & Automation Explorer configuration utility
VI Logger Lite data-logging software
WarrantyOne Year Warranty
PCI-6132 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PCI-6132 Frequently Asked Questions



Question: What does the 50400 error mean for the PCI 6132 National Instruments?



Answer: For the PCI 6132 National Instruments, the 50400 error means that the board cannot communicate with the FPGA that is on board.



Question: What is the NI PCI 6132 driver?



Answer: The NI PCI 6132 driver is NI-DAQmx.



Question: Which operating systems are compatible with the NI PCI 6132?



Answer: Windows 2000/NT/XP operating systems are compatible with the NI PCI 6132.



Question: When should the PCI 6132 be calibrated?



Answer: The PCI 6132 should be calibrated every two years.

  PCI-6132 PDF Manuals
