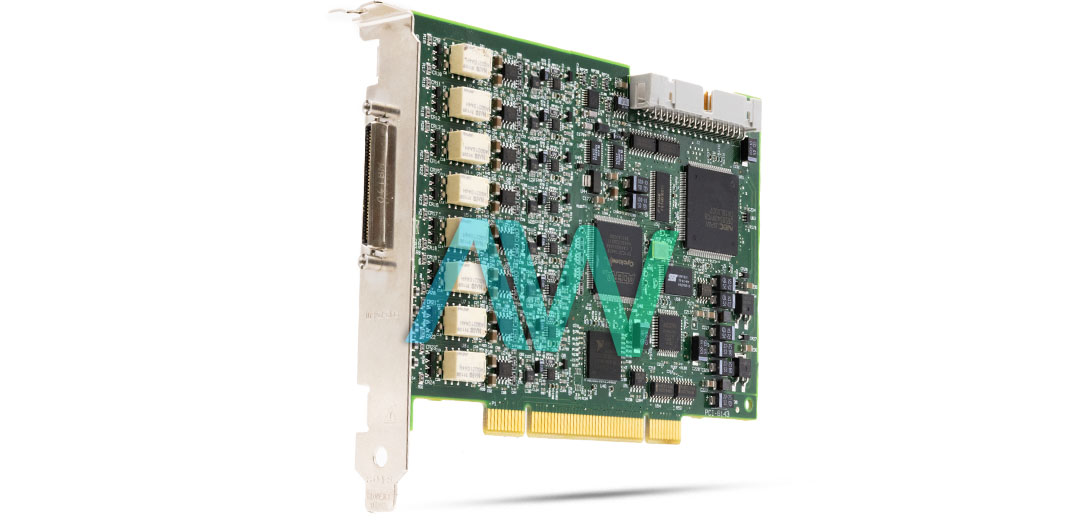

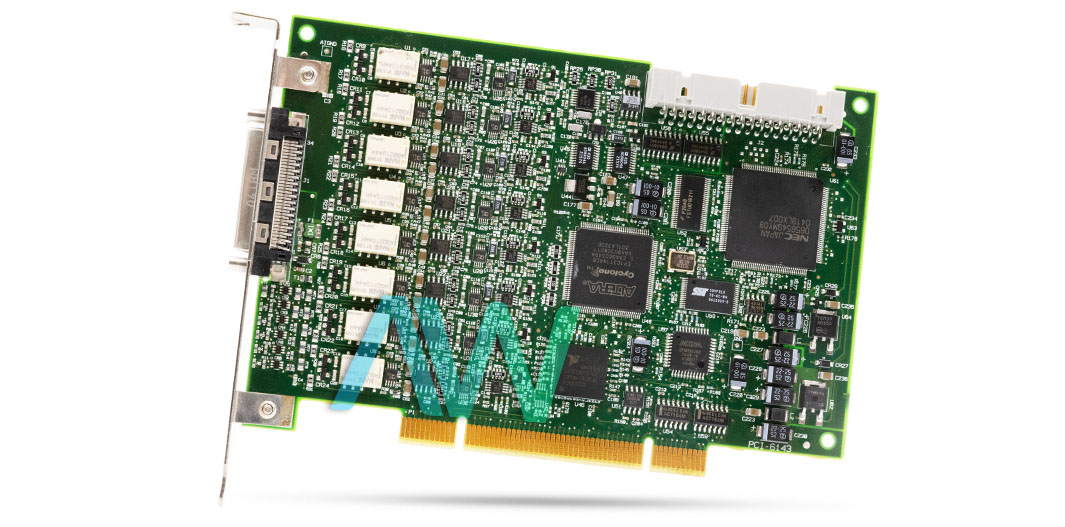

National Instruments PCI-6143 Multifunction I/O Device

Featured with 8, 16-Bit Analog Inputs, and 8 DIO, the National Instruments PCI-6143 (Part Number: 778913-01) is a Multifunction I/O Device with simultaneous-sampling capabilities. This device offers two 24-bit counters, digital I/O, as well as digital triggering. The NI PCI-6143 is widely considered in challenging applications, such as ultrasonic testing, high energy physics, multi-axis control, ballistics, and testing around highly transient signals.

With this module, the user will be able to achieve up to 250 kS/s per channel sample rate and an input range of ±5 V. Each of the 8 differential channels incorporated in this device have a dedicated, 16 bit resolution ADC. This architecture provides a much better transfer rate in comparison to the traditional DAQ devices where the sampling rate is shared among active channels and the net data throughput remains the same. In the PCI 6143 NI, the overall throughput reciprocates the number of channels in service. For applications where multichannel simultaneous controlling is required, the NI PCI-6143 can be used in conjunction with the NI 6733. This arrangement results in the construction of a high-performance yet low-cost control solution.

This Multifunction I/O Device features a 2,046 samples analog input FIFO buffer size and supports DC input coupling. The Digital I/O channels available on the National Instruments PCI 6143 are TTL/CMOS compatible and they resume "Input (high-impedance)" state when powered-on. This device has a PCI Bus Connector, Bus Powered Supported Power Input, and does not have analog input isolation as a feature.

ModelPCI-6143
ManufacturerNational Instruments
Part Number778913-01
SeriesS Series
TypeMultifunction I/O Device
Analog Input Channels8 (16-Bit, 250 kS/s) differential
Digital Input/Output8 TTL/CMOS Compatibility
Timing I/O2 Counter/Timer I/O (24 bits, 20 MHz)
I/O Connector68-pin VHDCI
Power Requirements+5 V, +3.3 V, +12 V, -12 V -- 40 mA, 140 mA, 150 mA, 80 mA
Dimensions6.10 in. by 4.17 in.
Driver SoftwareNI-DAQ, NI-DAQmx
WarrantyOne Year Warranty
PCI-6143 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PCI-6143 Frequently Asked Questions



Question: If I want to utilize multiple PCI 6143 NI cards and sample 32 analog channels simultaneously, what do I need to accomplish this task?



Answer: To utilize multiple PCI 6143 NI cards and sample channels simultaneously, the cards need to be placed in the same computer and an RTSI cable is required to share signals between the cards.



Question: The NI PCI 6143 belongs to the National Instruments S Series. What does this mean?



Answer: The S in S Series stands for simultaneous sampling. There is also a higher sampling rate for each channel for the NI PCI 6143 and other S Series Multifunction DAQ, as well as a dedicated ADC, precise dynamic measurements, and an affordable price.



Question: Which type of I/O connector is on the PCI-6143?



Answer: The PCI-6143 has a 68-pin VHDCI I/O connector.



Question: What is the input FIFO size of the NI PCI-6143?



Answer: The input FIFO size of the NI PCI-6143 is 2,046 samples.
