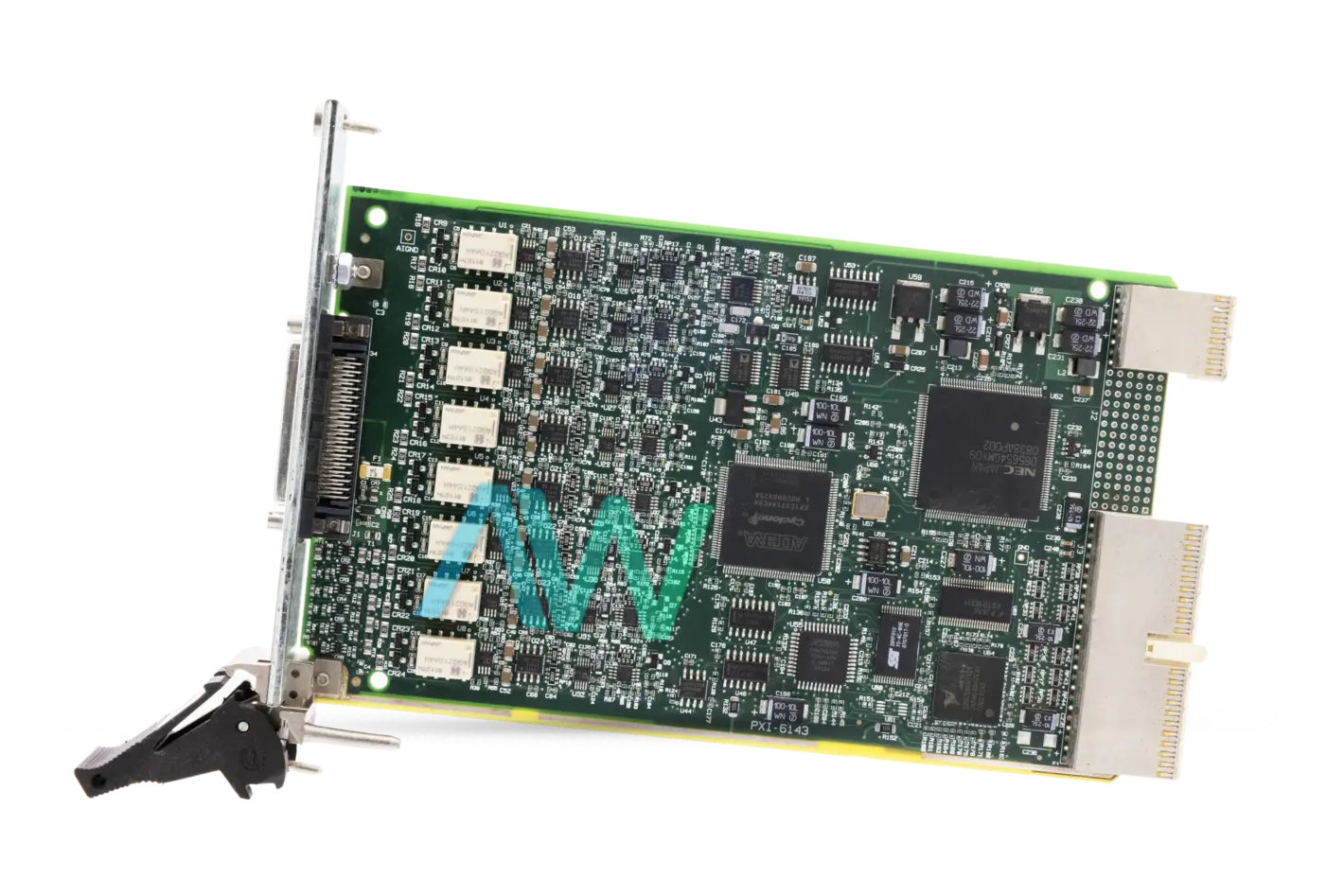

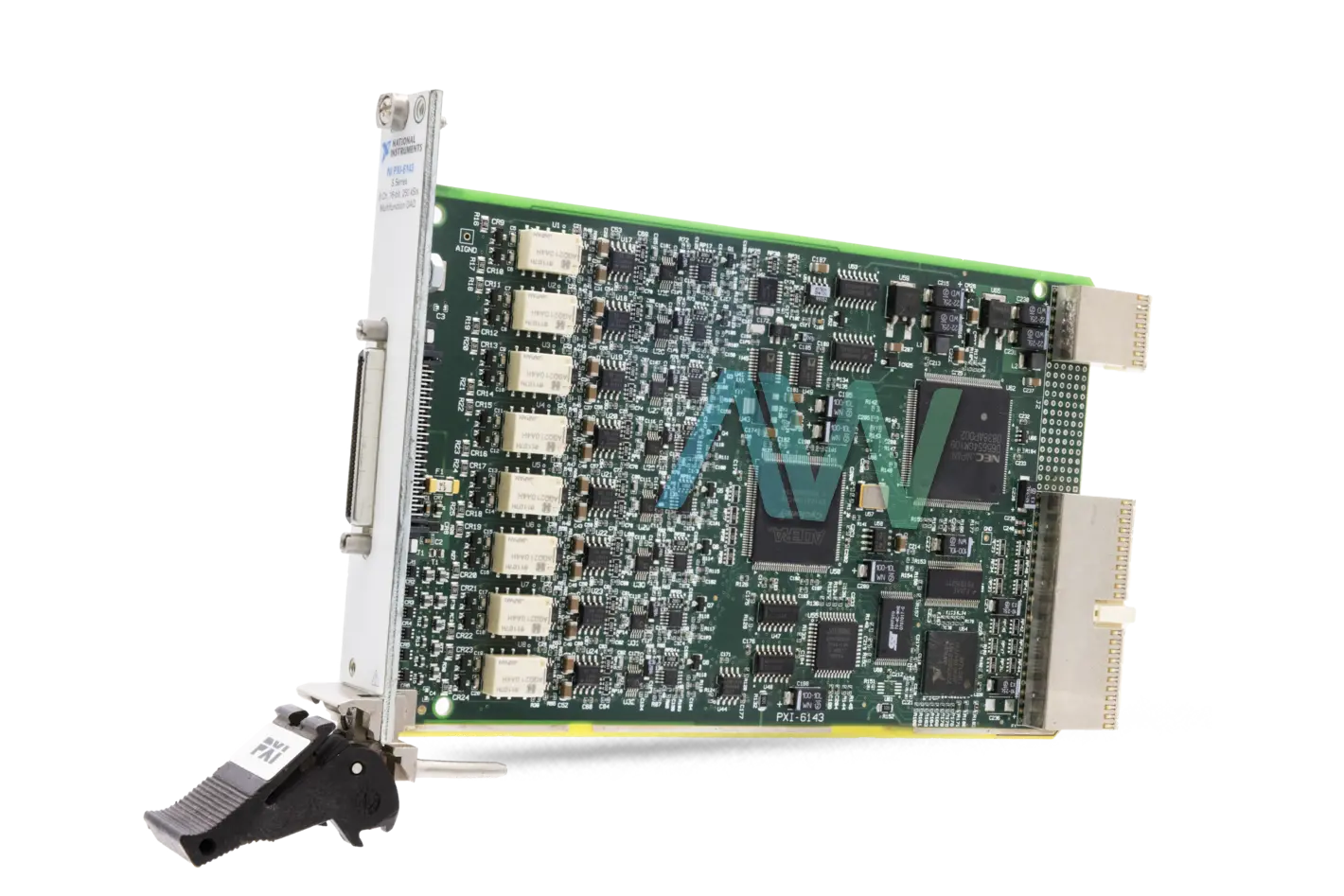

PXI-6143 National Instruments Multifunction IO Module | Apex Waves | Image PXI-6143 National Instruments Multifunction IO Module | Apex Waves | ImagePXI-6143PXI-6143 | Legacy, Refurbished and New Surplus

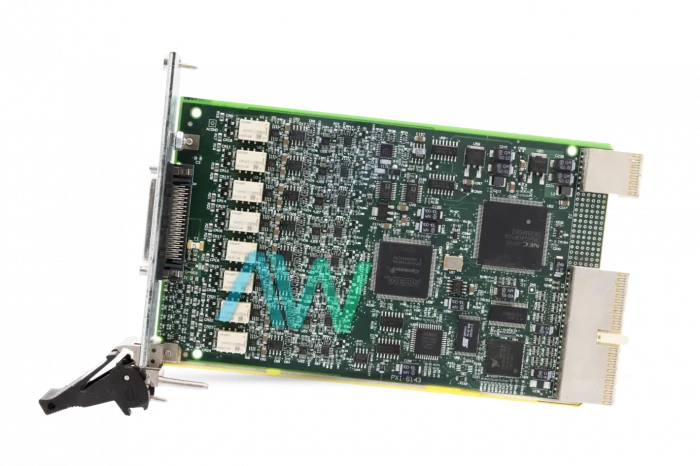

PXI-6143 National Instruments Multifunction IO Module | Apex Waves | Image

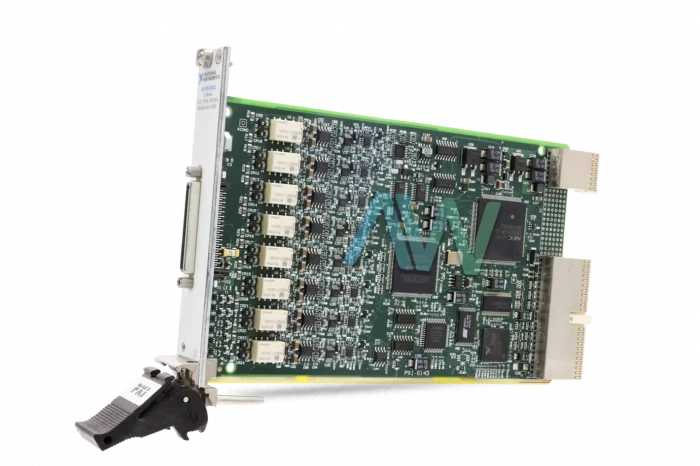

PXI-6143 National Instruments Multifunction IO Module | Apex Waves | Image
PXI-6143 New
PXI-6143 | Legacy, Refurbished and New Surplus

PXI-6143

4.7/5 | 8 ratings

Modular Systems > National Instruments > S Series

Part Number PXI-6143
Manufacturer/Brand National Instruments
Description: PXI-6143, 250 kS/s, Multifunction IO Module
Available | 1-2 Week Lead Time
Fast Quote
Quoted Price
Lowest Price Guarantee
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing
2 year warrantyRefurbished
*What is Refurbished?
Quoted Price
Fully tested
2yr warranty
  Get Pricing

Need an Official Quote?


*Most customers receive their price in about 15 minutes.

Or speak to a sales representative for pricing & lead time:


National Instruments PXI-6143 Multifunction I/O Module

The PXI-6143 Multifunction I/O Module (Part Number: 779063-01) has 8 AI, 16 bits analog input resolution, 250 kS/s maximum sample rate per channel, and 8 DIO. This Multifunction I/O Module is a simultaneous sampling multifunction data acquisition gadget, which comes equipped with features, such as a 68-pin VHDCI I/O connector, two 24-bit counter/timers, and digital triggering. The NI PXI-6143 is perfect for an assortment of utilizations, such as high-energy physics, ultrasonic and sonar testing, profoundly transient and ballistic signals, and multi-axis control. The NI-DAQmx driver and the included configuration utility simplify setup and estimations.

The PXI-6143 is part of the NI S Series family. The S Series modules have a simultaneous sampling feature, which is the most obvious advantage of the dedicated analog-to-digital converter (ADC) per channel architecture. In addition, the architecture has a couple of subtler, however essential, advantages. Since each channel has a dedicated ADC, there is less worry about settling time and the noise and error caused by switching input channels. The user can tune the analog input path for both precise DC and dynamic estimations. Traditional data acquisition gadgets are perfect for DC estimations, yet are not generally the best answer for dynamic estimations.

The NI PXI-6143 Multifunction I/O Module offers a substantially higher examining rate per channel. Conventional information procurement gadgets share the examining rate among the quantity of dynamic channels. The general information throughput remains the same. With S Series gadgets, the total throughput increments with the quantity of dynamic channels.

ModelPXI-6143 (779063-01)
ManufacturerNational Instruments
SeriesS Series
TypePXI Multifunction I/O Module
Differential Analog Input Channels8
Maximum Sample Rate250 kS/s per channel
Dimensions6.10 x 4.17 in.
I/O Connector68-pin VHDCI
WarrantyOne Year Warranty
PXI-6143 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PXI-6143 Frequently Asked Questions



Question: What is the analog input absolute accuracy of the PXI-6143?



Answer: The analog input absolute accuracy of the PXI-6143 is 3,613 uV.



Question: What is the analog input FIFO buffer size of the NI PXI-6143?



Answer: The NI PXI-6143 has an analog input FIFO buffer size of 2,046 samples.



Question: What type of input coupling does the PXI-6143 have?



Answer: The PXI-6143 has DC input coupling.



Question: What is the pulse width of the PXI-6143?



Answer: The PXI-6143 has a pulse width of 10 ns minimum.
