SC-2060
Modular Systems > National Instruments > SC Series
Description: | SC-2060, 8 Optically Isolated Inputs, Digital Input Module |
Need an Official Quote?
Or speak to a sales representative for additional information:

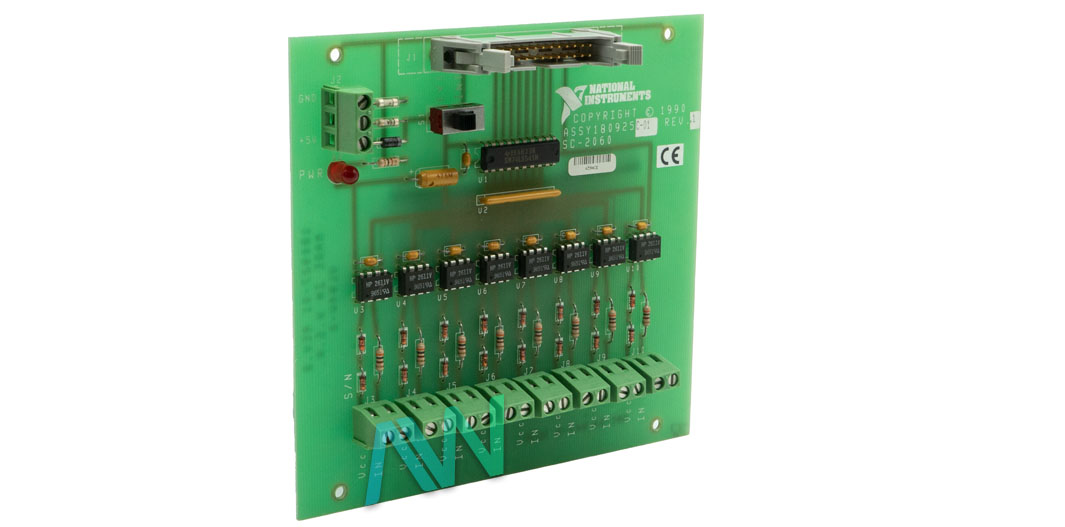

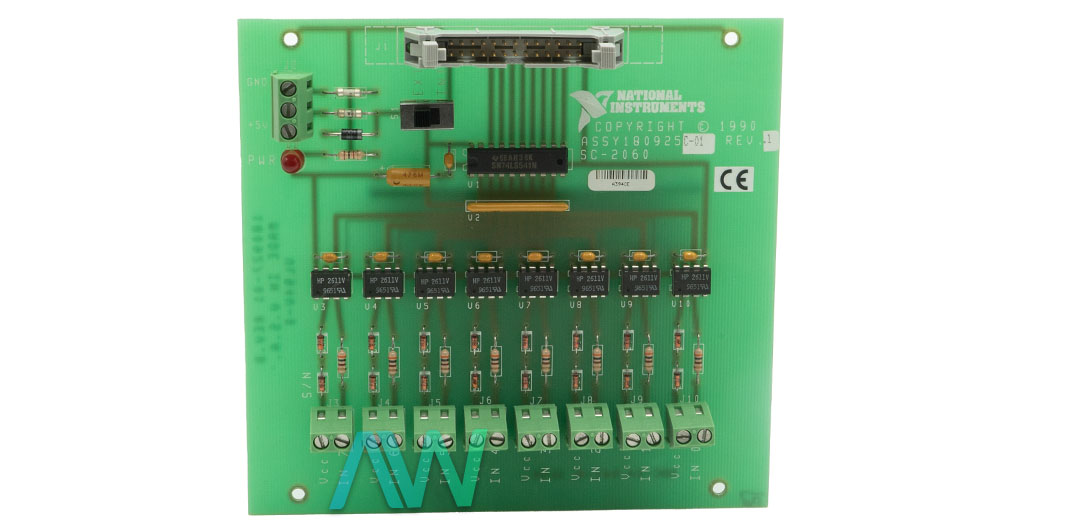

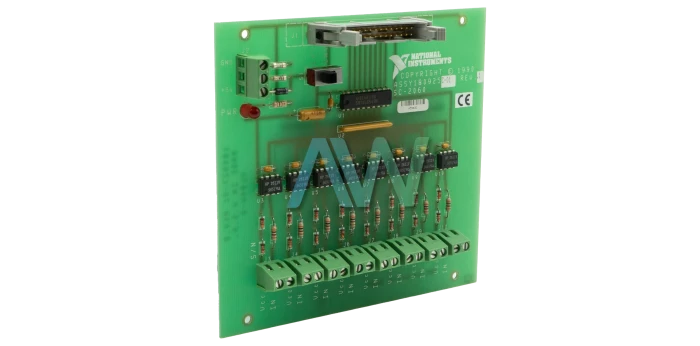

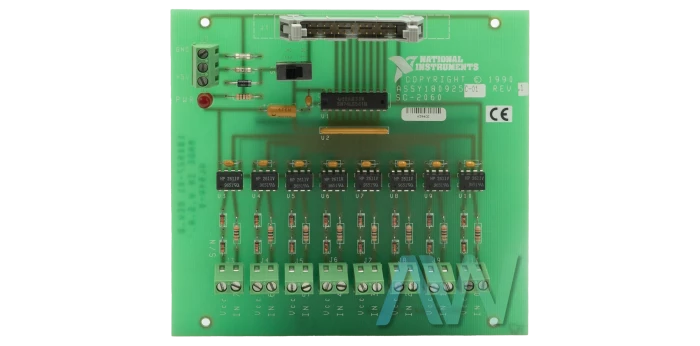

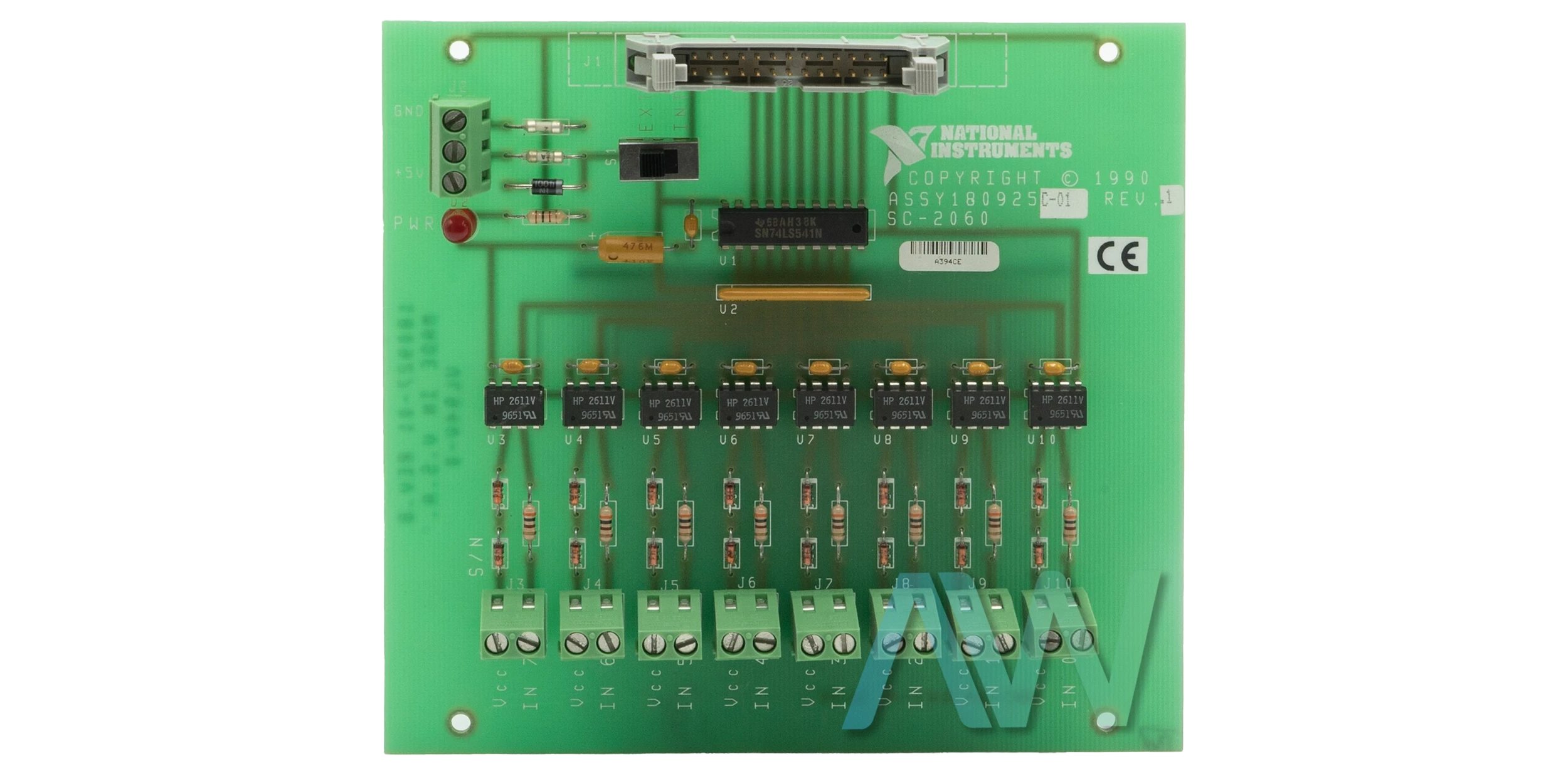

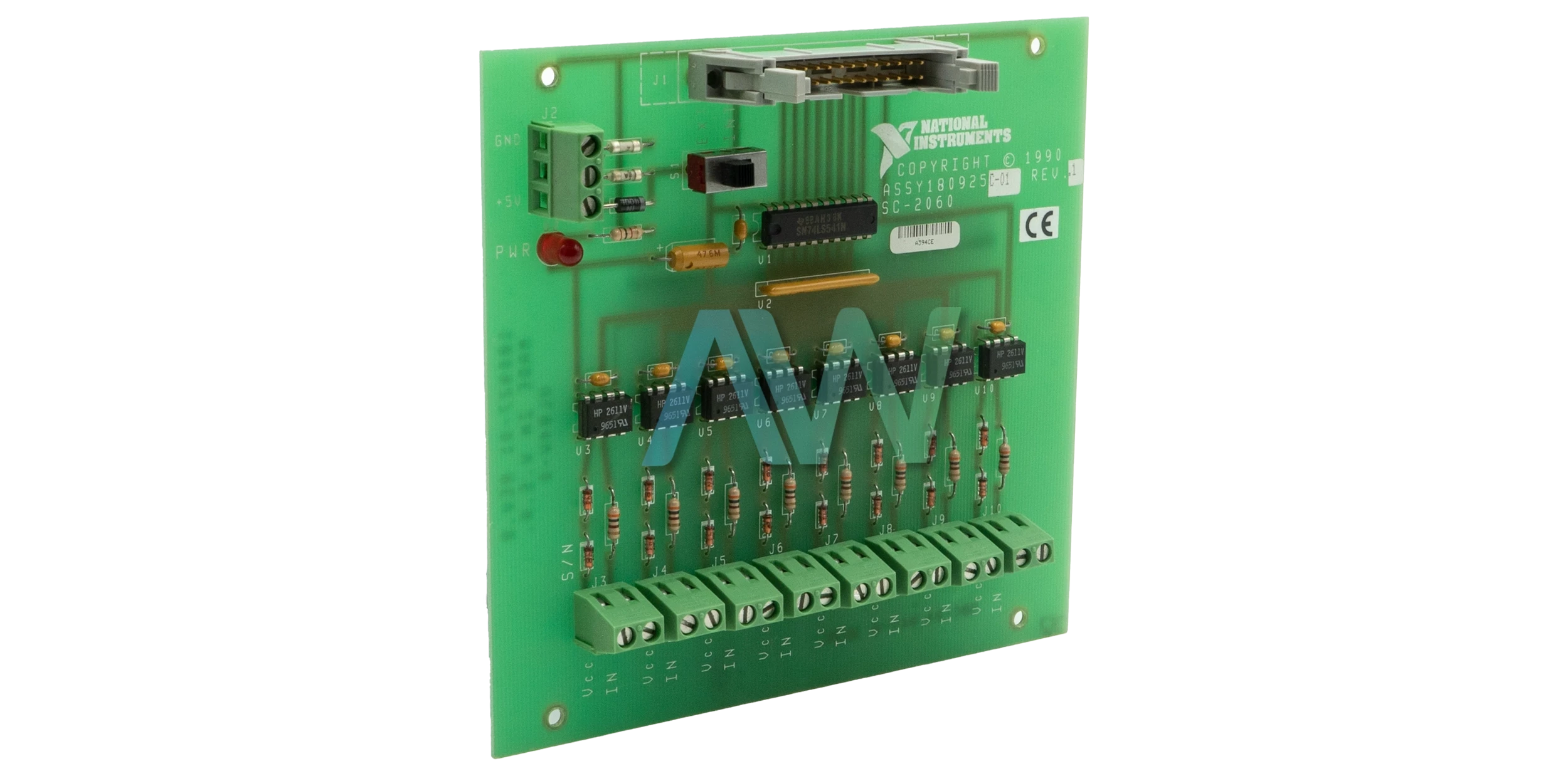

National Instruments SC-2060 Digital Input Module
The SC-2060 (Part Numbers: 776336-00 and 776336-10) is an optically isolated 8-channel Digital Input Module. The SC-2060 is manufactured by National Instruments. The NI SC-2060 is a part of the SC-206x Series of boards. The SC-2060 module is prepared with 8 digital input channels that are optically isolated. This module can be routed back to NI DAQ devices. The SC-2060 module can be connected to the 8-bit digital DAQ ports of many National Instruments’ devices by using the SC-205x Series bus adapter modules.
The NI SC-2060 contains inputs with independent voltage connections. The SC-2060 module is capable of sensing digital signals with a maximum of 400 Vrms by utilizing the optocouplers. A reference is created for low-level and high-level logic. For example, a 9 V digital signal below the reference is taken as low logic, while a high-level logic is based on a 3 V digital signal below the reference. This Digital Input Module has a maximum current rating of 20 mA for each input. A resistor is used for handling the current limits in applications with higher currents. The device has a maximum power consumption of +5 VDC at 210 mA. It does not need any additional software for operation; only that used for the DAQ board.
The NI SC-2060 can be placed on a workbench near a host PC. Another option is to place the SC-2060 in a rack-mounted chassis. The National Instruments SC-2060 module is used with the SC-2050 Series modules; a 19-inch single rackmount is shared between both modules. The SC-2060 Digital Input Module can be grounded by the standoffs with the chassis. The device is equipped with 1 26-pin male ribbon-cable I/O connector. Additionally, it has 18 screw terminals. The NI device measures 5.2 x 4.9 x 1.8 in. in physical dimensions. It has a recommended operating temperature range of 0° to 70° C, a storage temperature range of -55° to 125° C, and a non-condensing operating and storage humidity range of 5% to 90% and 5% to 90% respectively.
SC-2060 Obsolete Status has been announced by National Instruments, but the module will still be available for purchase and repairs by Apex Waves.
Model | SC-2060 |
---|---|
Manufacturer | National Instruments |
Part Numbers | 776336-00 and 776336-10 |
Type | Digital Input Module |
Digital Input Channels | 8 |
Field Connections | Two screw terminals per channel |
Maximum Power Consumption | +5 VDC: 210 mA |
Screw Terminals | 18 |
I/O Connector | One 26-pin male ribbon-cable connector |
Dimensions | 5.2 by 4.9 by 1.8 in. |
Warranty | Three Year Warranty |
SC-2060 Manual | User Manual and Maintenance Manual Available for Download |
Price | Contact a sales representative for a quote. |
Associated part numbers for the SC-2060:
180925-01, 180925-01B, 180925C-01, 776336-00, 776336-10
Associated NSNs for the SC-2060:
5998-01-645-9499 (5998016459499)
National Instruments SC-2060 Digital Input Module Frequently Asked Questions
Question: Can the SC-2060 be mounted?
Answer: Yes, the SC-2060 can be mounted with an optional rack-mount chassis. It also has metal standoffs so that the board can be placed on a workbench near to the host computer.
Question: What field connections does the SC-2060 have?
Answer: The SC-2060 has 2 screw terminals per channel.
Question: What is the data rate of the SC-2060?
Answer: The data rate of the SC-2060 depends on the max speed of the host board ( up to 500 kHz)
SC-2060 PDF Manuals
ARCHIVED AT DIO 32F USER MANUAL.PDF
ARCHIVED AT MIO 16D USER MANUAL.PDF
ARCHIVED AT MIO 64F 5 USER MANUAL.PDF
ARCHIVED BNC 208X SERIES USER MANUAL.PDF
ARCHIVED CB 27T TBX 68T AND CB 68T ISOTHERMAL TERMINAL BLOCKS INSTALLATION GUIDE.PDF
ARCHIVED NB MIO 16X USER MANUAL.PDF
NOTE TO USERS SC 206X SERIES BOARDS REQUIRE UL RECOGNIZED COMPONENT STYLE NO. 1569 WIRING.PDF
SC 205X SERIES USER MANUAL.PDF
SC 206X SERIES USER MANUAL.PDF
SC 207X SERIES USER MANUAL.PDF
USING MODULES AND ACCESSORIES WITH THE SC 2056.PDF
