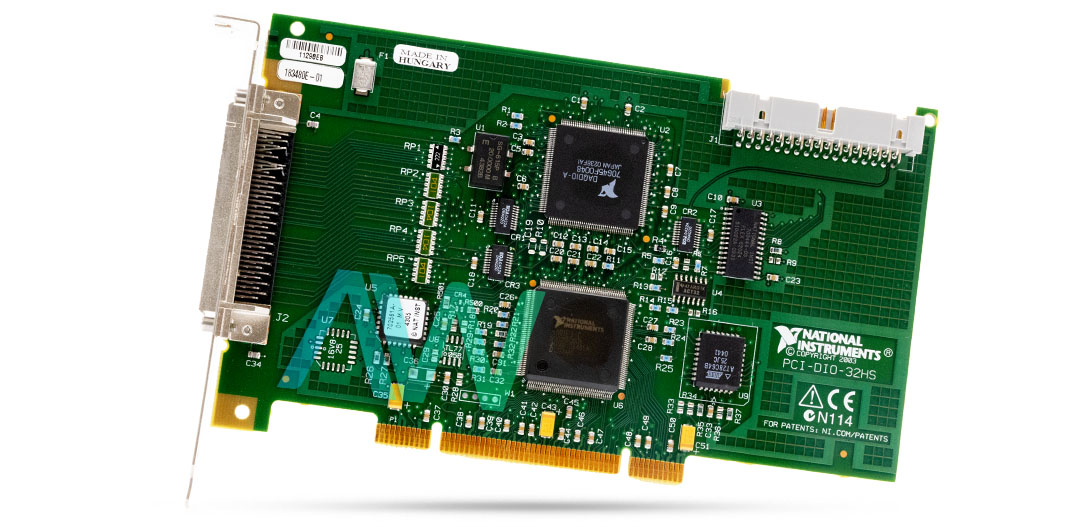

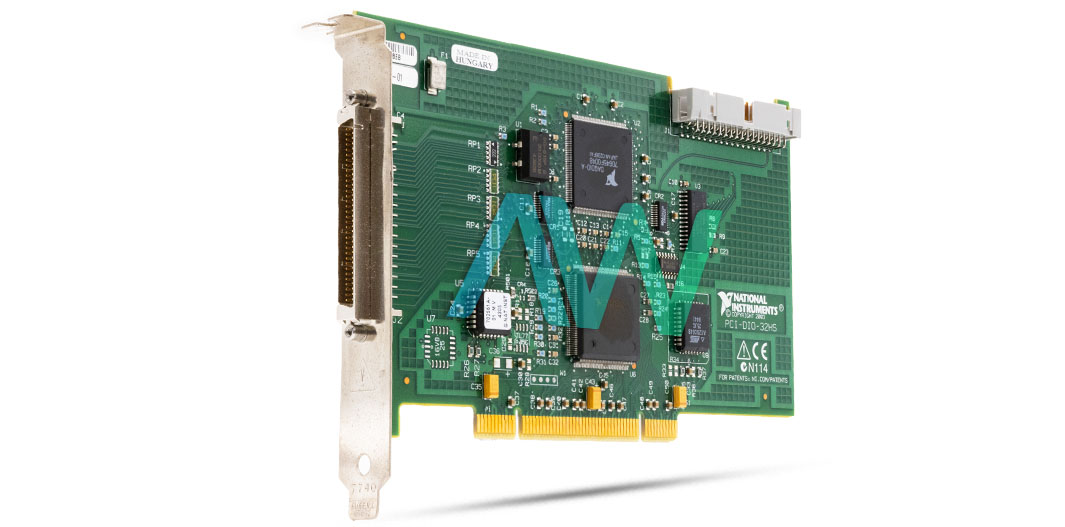

National Instruments PCI-DIO-32HS Digital I/O Device

The PCI-DIO-32HS, also known as the PCI-6533, (Part Number: 777314-01) is a completely jumperless, switchless Digital I/O Device from National Instruments. This model is designed for CompactPCI or PXI chassis and PCI busses. Powered with the NI proprietary MITE PCI interface, the PCI-DIO-32HS offers bus-master operation, burst PCI transfers, and high-speed DMA (Direct memory access) controllers.

This Digital I/O Device comes equipped with the NI DAQ-DIO chip. The National Instruments DAQ-DIO chip comes equipped with handshaking, pattern generation, and two separate channels of digital input and digital output. Each channel offers a selectable data path width, 16 and 32-bit counters, a handshaking controller with six timing protocols, 24 mA outputs, star /stop trigger detection, and more. The Pattern I/O and Handshaking I/O functions of the PCI-DIO-32HS allow the user to input or output patterns with timing control.

The 32 digital input/output lines offered by this device are divided as four 8-bit ports. For handshaking or pattern I/O, these ports can be used in configurations of two 8-bits or two 16-bit groups or one 32-bit group. The digital transmission on PCI-DIO-32HS is managed by a single 68-pin cable connector. Moreover, this Digital I/O Device enables the users to select power-on states for the data and control lines independently.

This device utilizes the RTSI bus or the PXI trigger bus for receiving and sending trigger and clock signals to and from other connected devices. Thus, the PCI-DIO-32HS can also be utilized for the construction of synchronized systems with a massive number of digital input and output lines.

PCI-DIO-32HS Obsolete Status has been declared by National Instruments, but this device will still be available for purchase and repairs at Apex Waves.

ModelPCI-DIO-32HS
ManufacturerNational Instruments
Part Number777314-01
TypeDigital I/O Device
Channels32
Maximum RateUp to 2 MHz (pattern I/O)
Voltage Levels5 V TTL/CMOS
Dimensions6.9 by 4.2 in.
I/O Connector68-pin male SCSI-II type
WarrantyOne Year Warranty
PCI-DIO-32HS ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PCI-DIO-32HS Frequently Asked Questions



Question: Which trigger types does the PCI-DIO-32HS National Instruments support?



Answer: The PCI-DIO-32HS National Instruments supports rising or falling edge and digital pattern triggers.



Question: What is the memory size of the NI PCI-DIO-32HS?



Answer: The memory size of the NI PCI-DIO-32HS is 16 S.



Question: Why does the PCI-DIO-32HS have multiple names?



Answer: National Instruments changed the name to PCI-6533.



Question: How much power is available at the I/O connector for the PCI DIO 32HS?



Answer: There is +4.65 to +5.25 VDC at 1 A power available at the I/O connector for the PCI DIO 32HS.


PCI-DIO-32HS Technical Specifications:

Manufacturer:National Instruments
Model:PCI-DIO-32HS
Part Numbers:PCI-6533 and 777314-01
Type:Digital I/O Device
Repair Evaluation:$150
