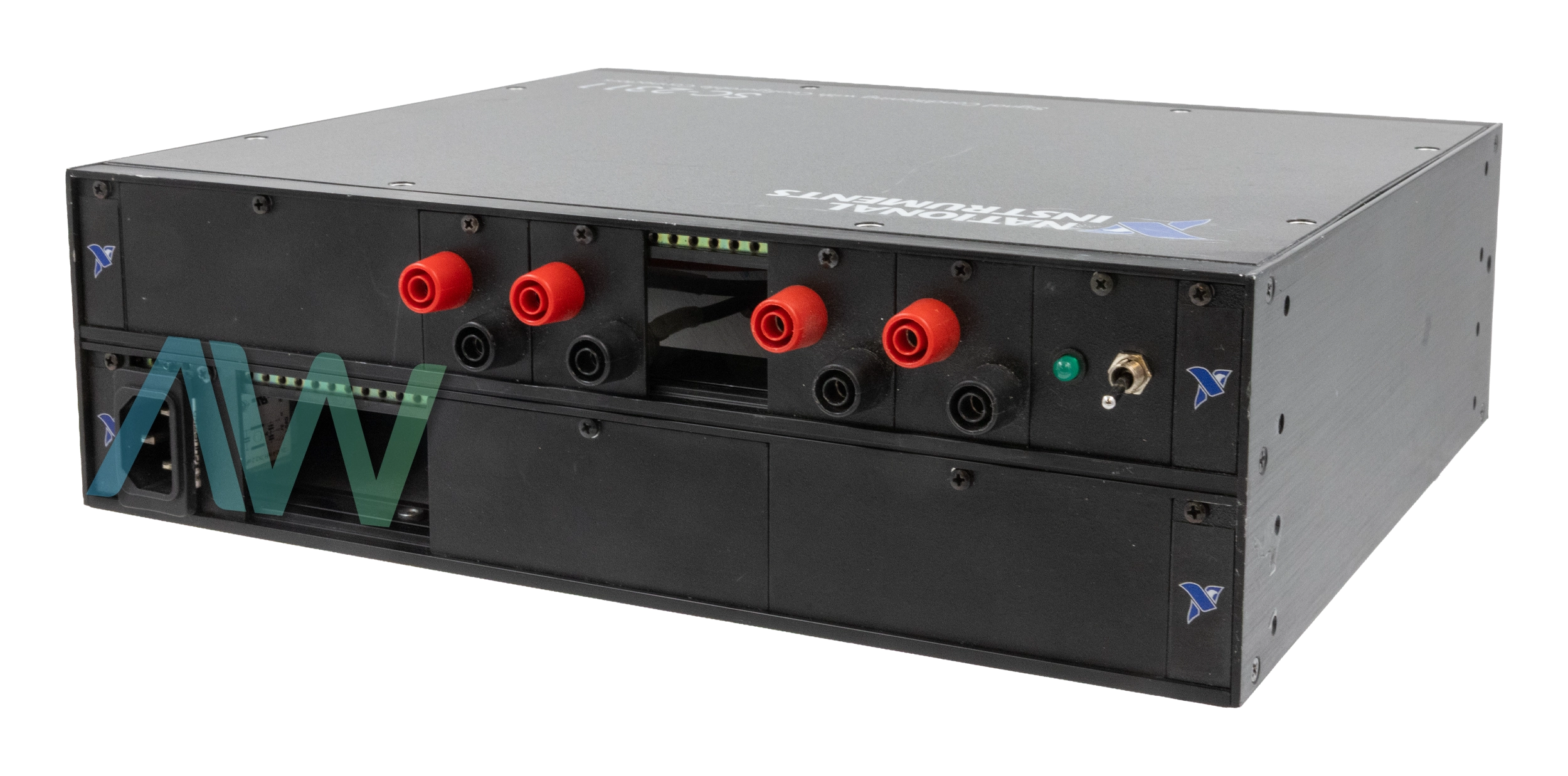

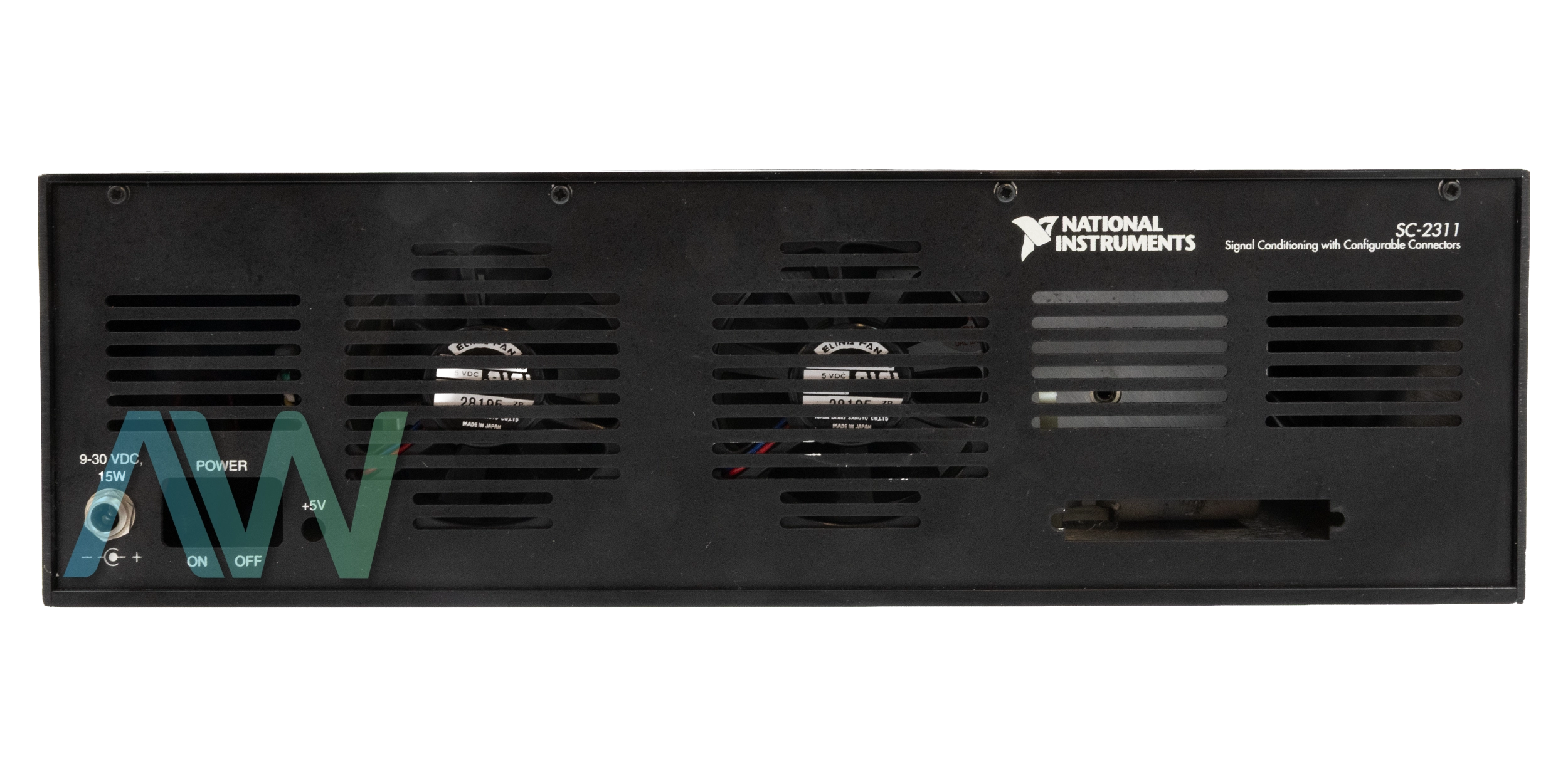

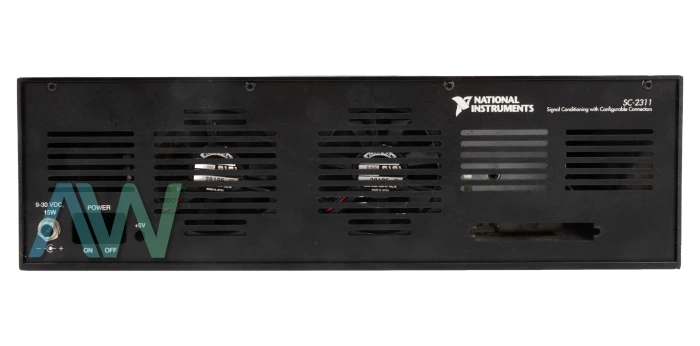

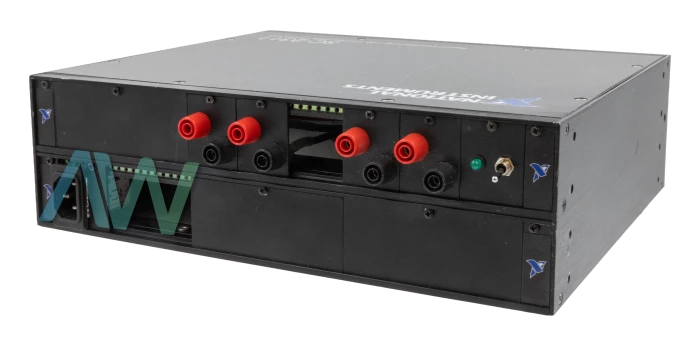

National Instruments SC-2311 Signal Conditioning Accessory
The SC-2311 (Part Numbers: 778192-01, 778192-04, 778192-06, and 778192-07) Shielded Carrier is an accessory used for signal conditioning. The NI SC-2311 is ideally suitable for laptop as well as for desktop applications. The SC-2311 can interface to eight 5B Series modules and eight SSR Series modules at the same time. The SC-2311 provides an easy to use and clean solution for analog/digital signal conditioning when used with the 5B Series modules, SSR Series modules, and a shielded 68-pin E Series cable, that portable and as well as rugged too.
For non-isolated measurements, the SC-2311 has 50 terminal block connections. These connections enable users to have direct access to E Series DAQ devices, I/O signals. The SC-2311 contains an internal terminal block, which is used for connecting to 5B Series modules also it can be used for connecting SSR Series modules. By using panelettes, the SC-2311 permits user for optimized connectivity to the terminal blocks.
For high performance and low-cost analog signal conditioning, the SC-2311 is used with 5B Series modules. The SC-2311 combined with a 5B Series module provides a solution to measure analog input signal measurements like voltage, resistance, current, frequency, and temperature. When used with an SSR Series module, the NI SC-2311 provides a means for controlling / sensing digitally from field devices. The SC-2311 can indicate status of each SSR module through light emitting diodes (LEDs). To set up the SC-2311 shielded carrier, NI-DAQ 6.9 or later driver software is required.
SC-2311 Obsolete Status has been announced by National Instruments, but the accessory will still be available for purchase and repairs by Apex Waves.
| Model | SC-2311 |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 778192-01, 778192-04, 778192-06, and 778192-07 |
| Type | Signal Conditioning Accessory |
| Analog Input Channels | Eight 5B Series modules (NRSE) inputs,Eight unconditioned differential inputs,16 unconditioned single-ended inputs |
| Digital I/O Channels | 8 SSR Series modules or8 unconditioned DIO lines |
| Compatible Modules | SSR Series and 5B Series modules |
| Dimensions | 12.1 by 10 by 3.4 in. |
| Weight | 4.3 pounds (without modules or panelettes) |
| SC-2311 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
