SCXI-1000
Modular Systems > National Instruments > SCXI
| Description: | SCXI-1000, Low-Noise, 4-Slot, AC Chassis |
Need an Official Quote?
Or speak to a sales representative for additional information:
Phone:1-800-915-6216
Email:sales@apexwaves.com

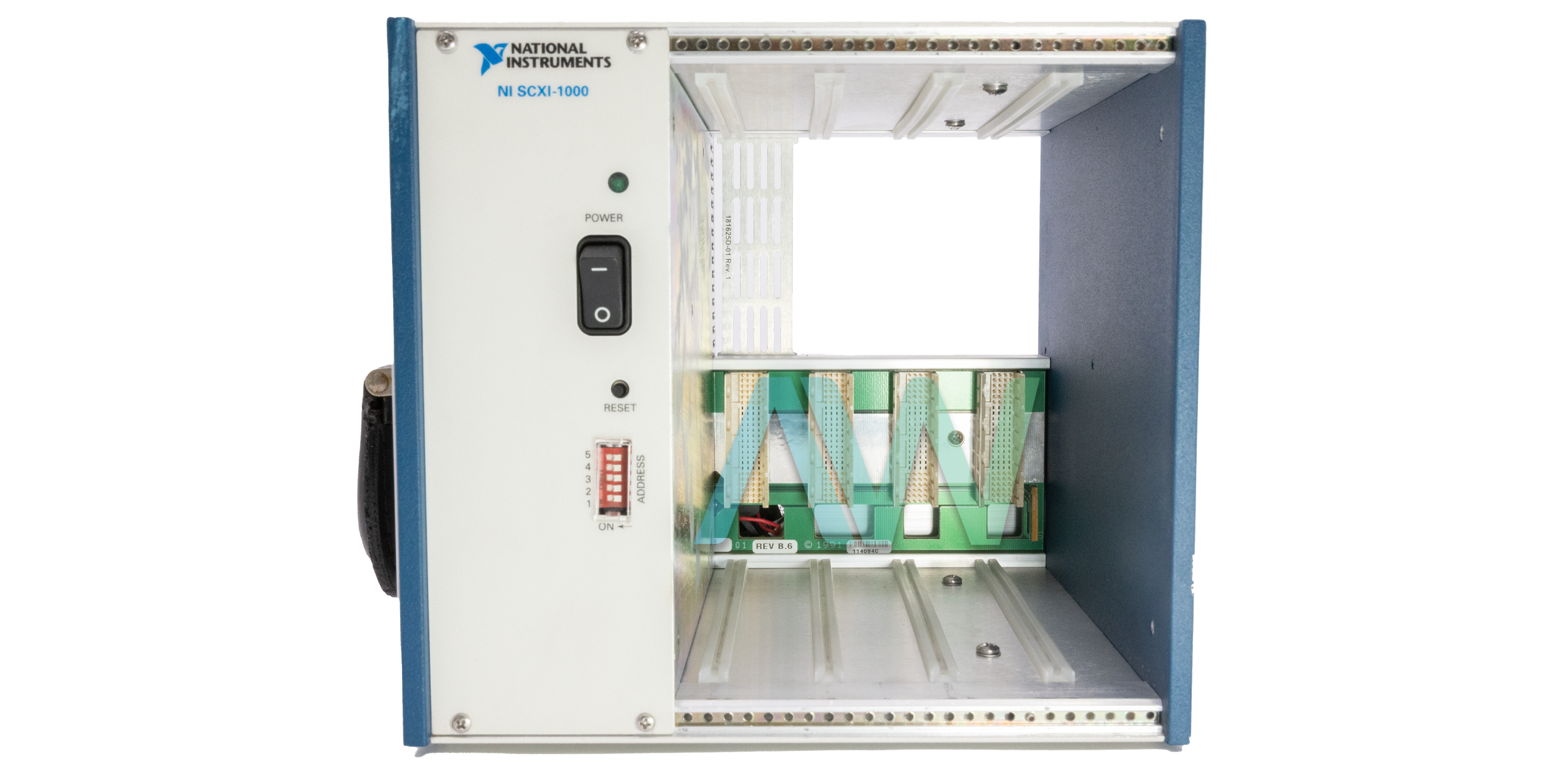

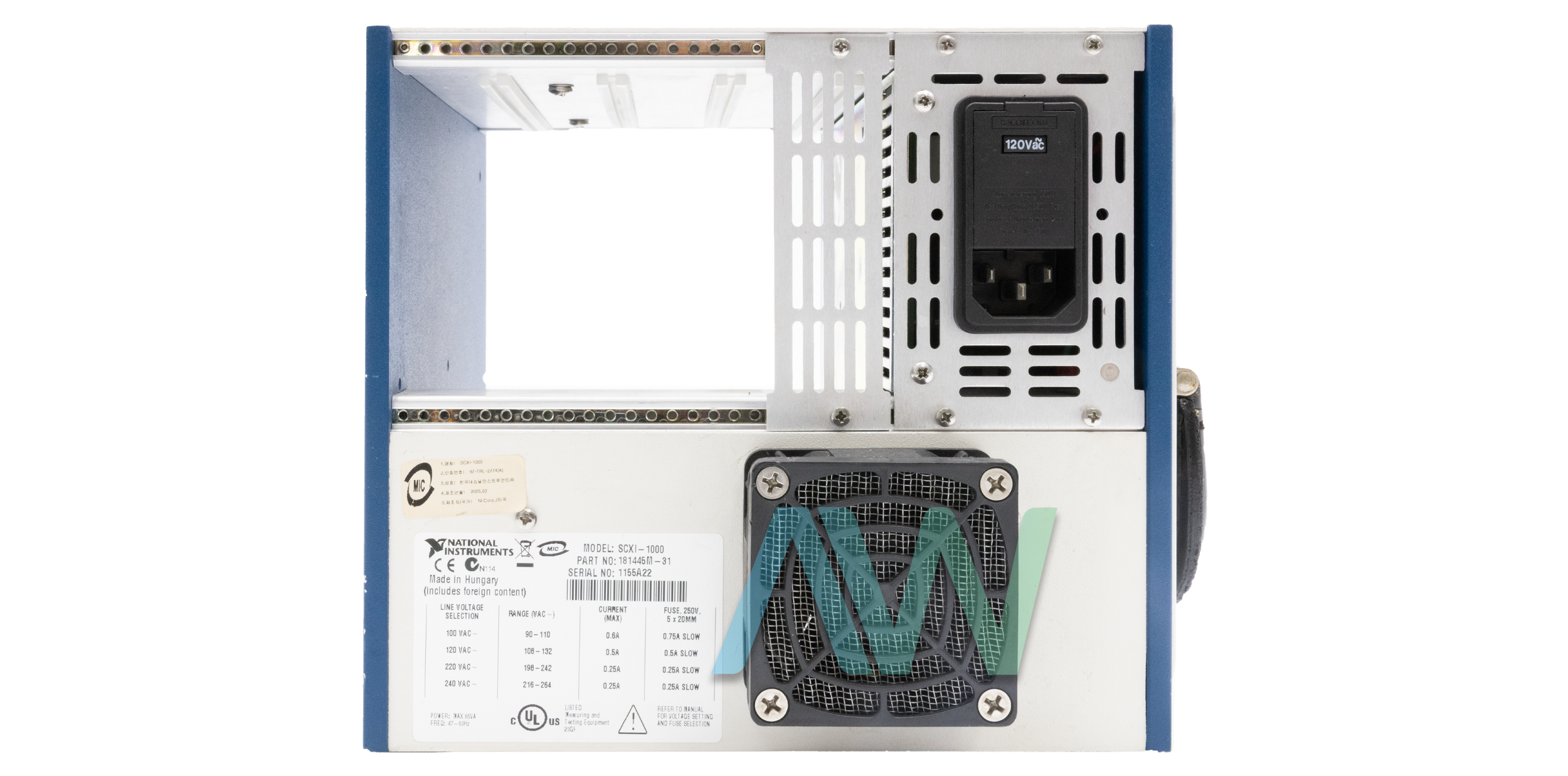

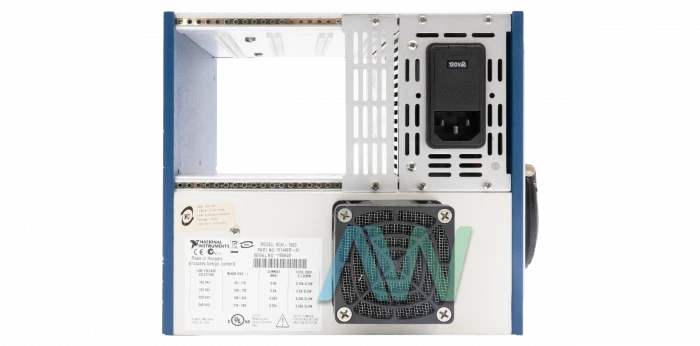

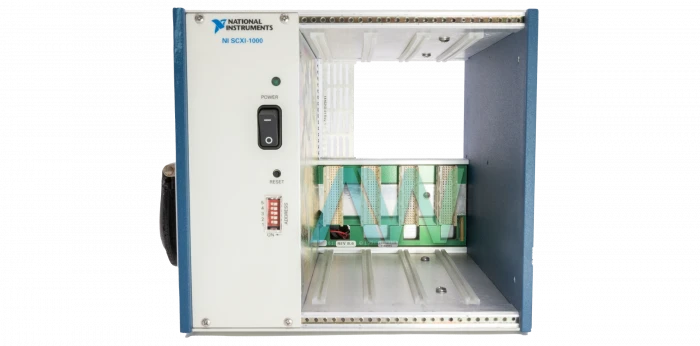

National Instruments SCXI-1000 Chassis
The NI SCXI 1000 (Part Numbers: 776570-01, 776570-02, 776570-03, 776570-04, 776570-05, 776570-06, 776570-07, 778570-01, 778570-04, 776570-09, 776570-10 ) is a durable, low-noise chassis for SCXI modules, which deals with all the planning, initiation, and routing of signals between different modules and the SCXI modules. For bigger frameworks or future developments, the user can interface a maximum of eight SCXI 1000 chassis with a solitary gadget or multi-function I/O modules for multi-channel applications. The SCXI 1000 offers seven diverse power alternatives that adjust to each country’s electricity requirements and can be reconfigured for use in different countries. The SCXI 1000 National Instruments can work with line voltages of 100, 120, 220, and 240 VAC. The voltage tumbler in the power passage module decides the voltage for which the chassis is arranged.
In multiplexed mode, Analog Input (AI) channels are multiplexed into one module output, so the cabled E/M Series DAQ gadget approaches the multiplexed output of the module and the outputs of all other multiplexed modules in the case. In parallel mode, the user requires a different E/M Series DAQ gadget for every module to send each of its output channels specifically to a different AI channel of the E/M Series DAQ gadget associated with the module.
The user can arrange the SCXI 1000 for one of 32 distinct addresses. Therefore, several NI SCXI 1000 can be associated to the same control source (the five switches on the front board of Slot 0 decide the frame address). Switches one through five represent values 1, 2, 4, 8, and 16 when set to the ON position. When it is set to the OFF position, their esteem is zero. The chassis address is the whole of the switch esteems. The NI device weighs 10 oz, and measures 9.8 x 7.7 x 7.0 in. in physical dimensions. It dissipates power at 7 W per slot, has a recommended operating temperature range of 0 to 50 °C, and a storage temperature range of –20 to 70 °C.
SCXI-1000 Obsolete Status has been announced by National Instruments, but the chassis will still be available for purchase and repairs by Apex Waves.
| Model | SCXI-1000 |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 776570-01, 776570-02, 776570-03, 776570-04, |
| Series | SCXI Series |
| Type | Chassis |
| Slots | 4 |
| Power Dissipation | 7 W per slot |
| Dimensions | 9.8 by 7.7 by 7.0 in. |
| Weight | 8 lb, 10 oz. |
| Warranty | Three Year Warranty |
| SCXI-1000 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for the SCXI-1000:
1.81445E-26, 1.81445E-27, 151550A-CM, 151560A-CM, 1813.87, 181325-01B, 181325C-01L, 181430F-01, 181430G-01, 181430H-01, 181430J-01, 181430K-01, 181430L-01L, 18144.5, 181445-01, 181445-01C, 181445-31, 181445-31C, 181445-32, 181445D-01, 181445D-31, 181445D-32, 181445D-33, 181445F-01, 181445F-31, 181445F-32, 181445F-33, 181445G-01, 181445G-31, 181445H-01, 181445H-31, 181445H-32, 181445H-33, 181445J-01, 181445J-31, 181445J-32, 181445J-33, 181445K-01, 181445K-31, 181445K-32, 181445K-33, 181445L-01, 181445L-31, 181445L-32, 181445L-33, 181445M-01, 181445M-31, 181445M-32, 181445M-33, 181445N-01L, 181445N-31L, 181445N-32L, 181445N-33L, 18173.5, 18256.4, 182564B-01, 182564D-01, 182564F-01, 182564G-01, 182564H-01, 182564J-01, 182564K-01L, 192500A-01, 192947-01, 192947A-01, 192947A-04, 720046-01, 776570-01, 776570-02, 776570-03, 776570-04, 776570-05, 776570-06, 776570-07, 776570-09, 776570-10, 778570-01, 778570-04, 781568-CM
Associated NSNs for the SCXI-1000:
5998-01-537-8902 (5998015378902), 5975-01-553-6861 (5975015536861)
National Instruments SCXI-1000 Frequently Asked Questions
Question: What is the difference between the part numbers for the SCXI 1000?
Answer: The SCXI 1000 has part numbers with different power options: part number 776570-01 with U.S. 120 VAC, part number 776570-02 with Swiss 220 VAC, part number 776570-03 with Australian 240 VAC, part number 776570-04 with Universal Euro 240 VAC, part number 776570-05 with North American 240 VAC, part number 776570-06 with United Kingdom 240 VAC, part number 776570-07 with Japanese 100 VAC, part number 776570-09 - with Korea 220V, part number 776570-10 with China 220V, part number 778570-01 with a USB HVAB option, and 120V, and part number 778570-04 with a USB HVAB option and EURO 240V.
Question: What are the NI SCXI-1000 drivers called?
Answer: The NI SCXI-1000 drivers are NI-SWITCH and NI-DAQ 7.
Question: What is the maximum operating current of the SCXI-1000 National Instruments?
Answer: The maximum operating current of the SCXI-1000 National Instruments is 0.6 A at 100 VAC, 0.5 A at 120 VAC, or 0.25 A at 220 or 240 VAC.
Question: What happens if I remove a module while the NI SCXI 1000 Chassis is powered on?
Answer: If a module is removed while the NI SCXI 1000 Chassis is powered on, it may result in blowing a fuse because the SCXI modules are not hot swappable.
SCXI-1000 PDF Manuals
ARCHIVED AT MIO 64F 5 USER MANUAL.PDF
ARCHIVED GUIDESCXI 1350 MULTI CHASSIS ADAPTER INSTALLATION.PDF
ARCHIVED LABVIEW DATA ACQUISITION BASICS MANUAL.PDF
ARCHIVED LOOKOUT 3.7 ADDENDUM.PDF
ARCHIVED LOOKOUT OBJECT REFERENCE MANUAL.PDF
ARCHIVED LOOKOUT REFERENCE MANUAL.PDF
ARCHIVED NI DAQ SOFTWARE REFERENCE MANUAL FOR MACINTOSH.PDF
ARCHIVED NI DAQ USER MANUAL FOR PC COMPATIBLES.PDF
ARCHIVED SCXI MS100 TEMPERATURE MEASUREMENT SYSTEM INSTALLATION GUIDE.PDF
ARCHIVED SCXI 1140 USER MANUAL.PDF
ARCHIVED SCXI 1200 USER MANUAL AND SPECIFICATIONS.PDF
ARCHIVED SCXI 1354 CABLE ASSEMBLY FOR THE DAQCARD 1200 INSTALLATION GUIDE AND SPECIFICATIONS.PDF
ARCHIVED SCXI 2400 USER MANUAL AND SPECIFICATIONS.PDF
ARCHIVED SCXIBUS SYSTEM SPECIFICATION.PDF
ARCHIVED TRADITIONAL NI DAQ USER MANUAL.PDF
Driver Downloads for SCXI-1000
OS Compatibility:
Win XP 32-bit, Win 7 32-bit, Win 10 32-bit
