PCI-8433-4

Modular Systems > National Instruments > Serial Interface Devices

Part Number PCI-8433-4
Manufacturer/Brand National Instruments
Description PCI-8433/4 4-Port Serial Interface Device
In Stock - Ships Today
In Stock | Ships 3-5 Days

Speak to a sales representative for pricing & lead time:


National Instruments PCI-8433/4 Serial Interface Device

The PCI-8433/4 (Part Number: 779146-01) is a 4-Port National Instruments Serial Interface Device. The maximum baud rate of this device is 3000 kbaud. However, this NI Serial Interface Device supports any baud rate from 2 baud to 3000 kbaud. The NI PCI-8433/4 has 128 bytes FIFO size and a 10P10C connector. The PCI-8433/4 device is compatible with LabVIEW Real-Time and Windows OS. This device can be utilized with RJ-50 male to DSUB 9-pin male cables. This device supports RS-485 and RS-422 serial protocols. As determined in the EIA-485 Standard, Standard for Electrical Characteristics of Generators and Receivers for Use in Balanced Digital Multipoint Systems, RS-485 develops the RS-422 included standard by expanding the quantity of gadgets that can be used from 10 to 32 and by working with half-duplex transport models. Dissimilar to the RS-422 standard, RS-485 solves the issue of utilizing various transmitters on a similar line.

The NI PCI-8433/4 Serial Interface Device comes with a Duplex mode that alludes to the methods for transfer speed used in a serial framework. The two normal methods for bi-directional serial correspondence are full duplex and half duplex. Half-duplex correspondence includes a transmitter and a beneficiary associated with each finish of a similar wire or match of wires. Since a similar transmission line both sends and receives information, gadgets cannot send information in the two bearings in the meantime. Initially, one gadget transmits over the wire(s) to the collector of the second gadget.  When the main gadget completes the process of transmitting, the two gadgets change the associations from their transmitter to their recipient, or the other way around. The gadget that was accepting information would then be able to transmit over the line. In full-duplex communication, the gadgets utilize a different wire (or match of wires) for concurrent transmission toward every path.

ModelPCI-8433/4
ManufacturerNational Instruments
Part Number779146-01
TypeSerial Interface Device
Serial Channels4
Supported Serial ProtocolsRS-422, RS-485
Isolation TypePort-Port Isolation
Dimensions4.2 × 6.9 in.
Weight106 g.
WarrantyOne Year Warranty
PCI-8433/4 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PCI-8433/4 Frequently Asked Questions



Question: Does the NI PCI-8433/4 have a supported power input?



Answer: No, the NI PCI-8433/4 does not have a supported power input.



Question: What is the maximum cable length for the PCI-8433/4?



Answer: The maximum cable length for the PCI-8433/4 is 30 m.



Question: What is the power requirement for the NI PCI-8433/4?



Answer: The power requirement for the NI PCI-8433/4 is +5 VDC, 785 mA typical and 1.2 A maximum.

PCI-8433-4 Technical Specifications:


Manufacturer:National Instruments
Model:PCI-8433/4
Part Number:779146-01
Type:Serial Interface
Repair Evaluation:$150

Why Buy From Apex Waves

Delivery: UPS, FedEX and DHL – Free UPS Ground on all orders
Overnight, Next Day Air or Expedited shipping options available
International delivery available
Same day shipping for in-stock on location
Warranty: All parts new, new surplus, used or reconditioned are covered by Apex Waves 1 Year Warranty
Returns: No hassle return policy.
Dedicated customer service team.
Payment:
Quick Quotes: Receive Price & Availability Today!
Calibration: Ask About Our Tiered Calibration Levels
Option & Modules: Confirm Your Requirements or Versions
Repair: Cost & Lead Time Available Upon Request for Service
Share this page:

PCI-8433-4

PCI-8433/4 National Instruments Serial Interface | Apex Waves | Image

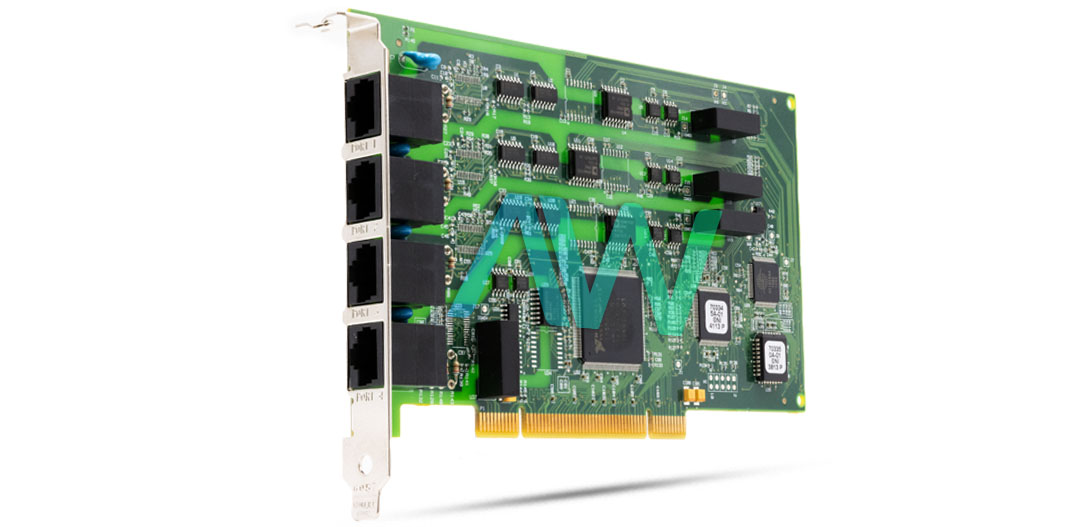

Main Image
PCI-8433/4 National Instruments Serial Interface | Apex Waves | Image

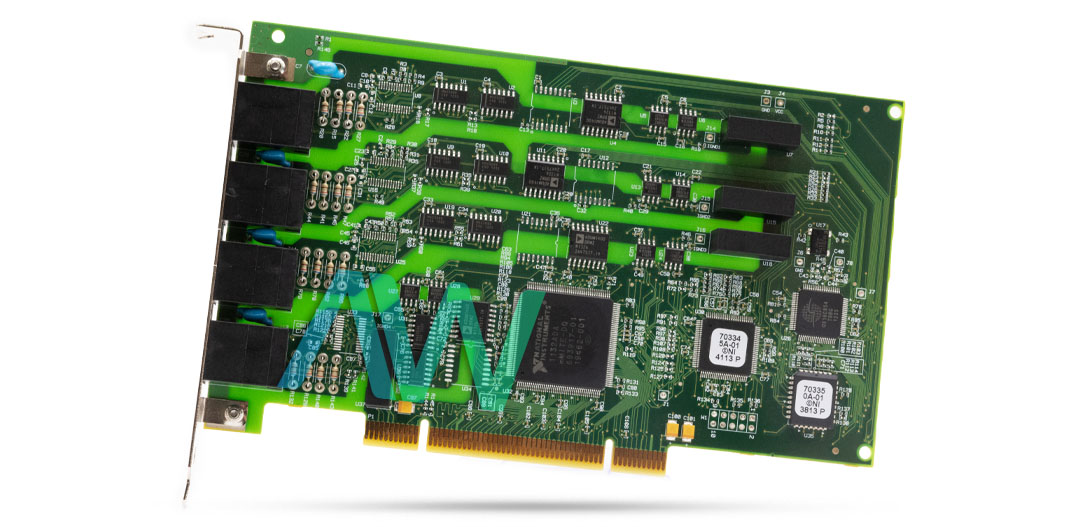

Secondary Image
