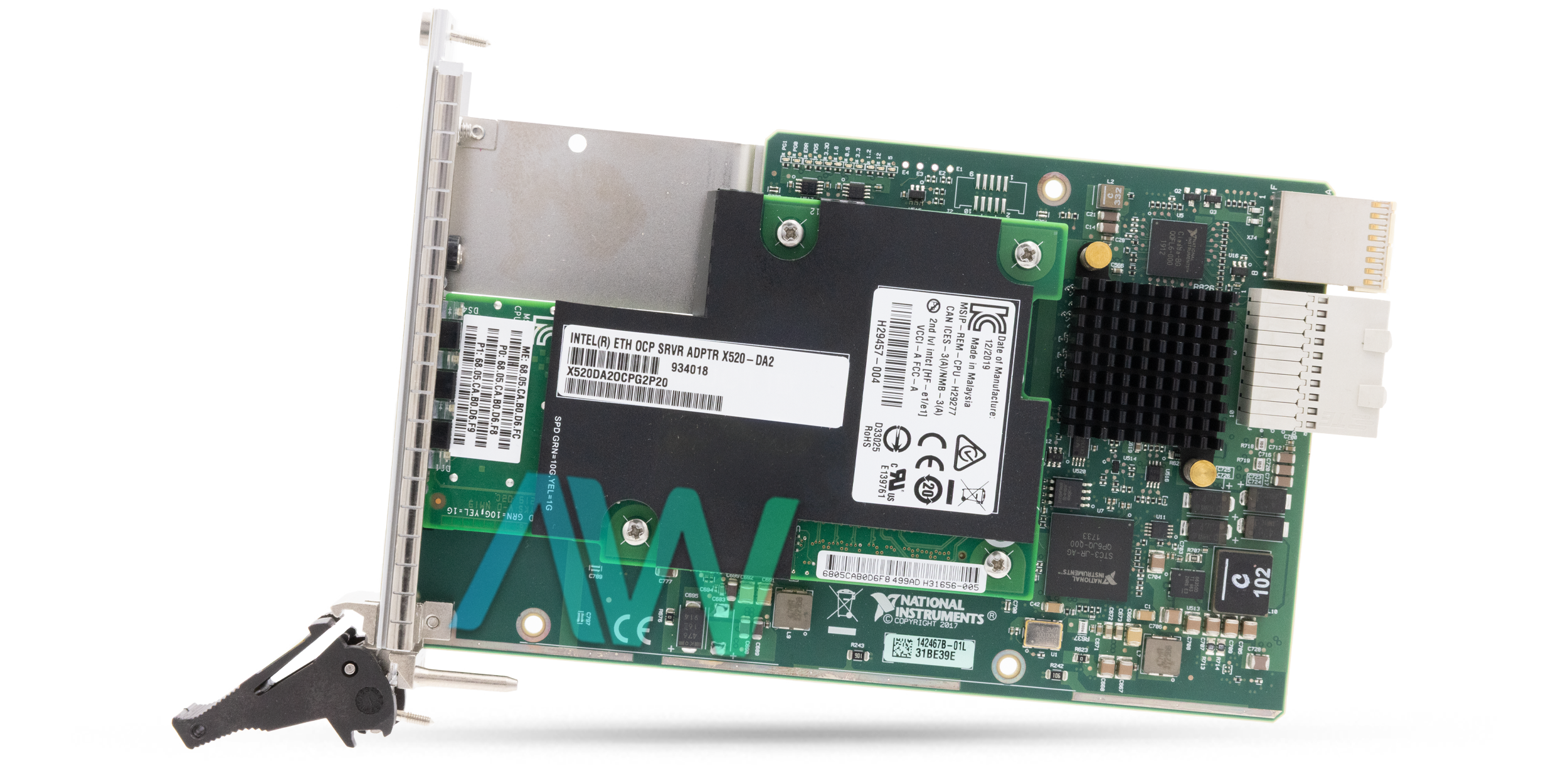

PXIe-8238 National Instruments PXI Ethernet Interface Module | Apex Waves | Image PXIe-8238 National Instruments PXI Ethernet Interface Module | Apex Waves - Wiring Diagram Image

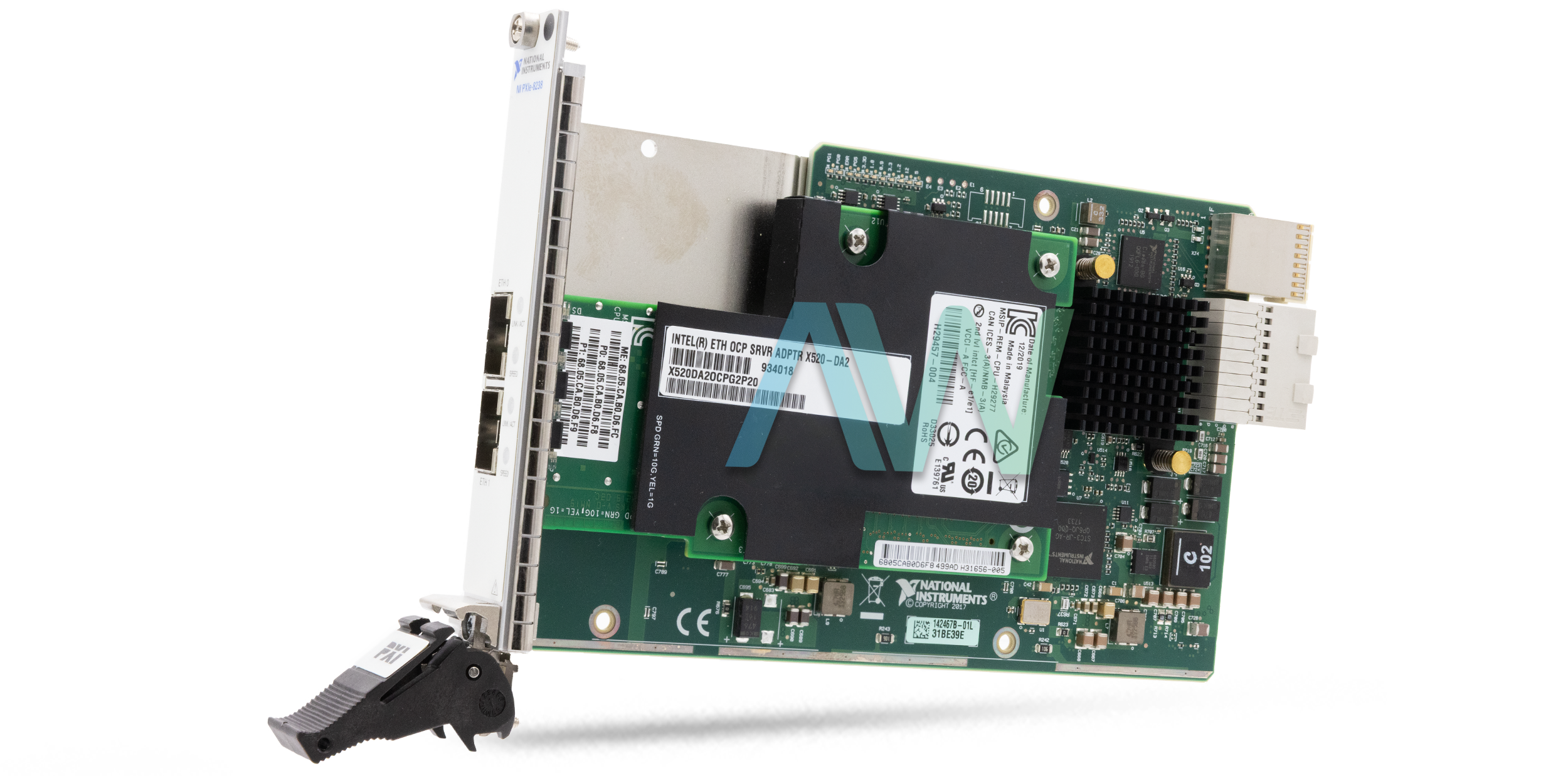

PXIe-8238 National Instruments PXI Ethernet Interface Module | Apex Waves | Image
PXIe-8238 National Instruments PXI Ethernet Interface Module | Apex Waves - Wiring Diagram Image
Rate the PXIe-8238
Rated 4.9/5 based on 14 ratings.

PXIe-8238

Modular Systems > National Instruments > Serial Interface Devices

Part Number PXIe-8238
Manufacturer/Brand National Instruments
Description PXIe-8238 10 Gigabit PXI Ethernet Interface Module

Speak to a sales representative for pricing & lead time:


National Instruments PXIe-8238 PXI Ethernet Interface Module

The PXIe-8238 (Part Number: 784976-01) is a 10 Gigabit Ethernet Interface Module. This module is meant for PXI Express and has an Intel 82599 10 Gb Ethernet controller. It incorporates two 10 Gigabit SFP + Ethernet ports on one PXI Express module. One slot is compatible with copper and fiber optic cabling. It can be associated with a PXI Express framework through a P2I Express connection with high transmission capacity and low latency Gen2 x8. With 10 Gb Ethernet, it enables the user to download information from a PXI Express framework to an outside capacity arrangement or server for further analysis. It additionally permits the exchange and aggregation of data in two or more PXI Express frameworks.

The ports of the NI PXIe-8238 Ethernet Interface Module are listed automatically, despite the fact that they may not match the order in every user’s Ethernet connector module. If the user experiences communication errors after arranging their port, they can try changing the cable to the next Ethernet port. Frequently, the enumeration does not match the numbering in the module.

The NI PXIe 8238 incorporates an integrated ATI Radeon E4690 graphic processing unit, which delivers exceptional, realistic 3D graphics with sharp images, quick rendering, smooth movement, and high detail, without the requirement for an extra video card or peripheral. This one of a kind architecture gives an adjusted memory utilization amongst graphics and the framework for ideal execution.

If you are interested in this model and would like to learn more, you can download the manual from www.apexwaves.com.

ModelPXIe-8238
Part Number784976-01
ManufacturerNational Instruments
TypePXI Ethernet Interface Module
Ethernet Ports2
Ethernet Bandwidth10 Gbits/s
Slot Requirement1 peripheral slot
Board Dimensions1-slot 3U PXI Express peripheral module
Weight0.55 lb.
WarrantyOne Year Warranty
PXIe-8238 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PXIe-8238 Frequently Asked Questions



Question: What is the PXI Express Link Configuration for the PXIe-8238?



Answer: The PXI Express Link Configuration for the PXIe-8238 is a Gen2 x8 PCI Express connection.



Question: What type of Ethernet ports does the NI PXIe-8238 have?



Answer: The NI PXIe-8238 has two SFP+ ports.



Question: What do the two front-panel LEDs on the PXIe-8238 indicate?



Answer: The first front-panel LED on the PXIe-8238 is the Link/Activity LED. This LED indicates no link when it is off, no activity but linked when it is green, and activity as well as linked when it is blinking green. The second front-panel LED is the Speed LED, which indicates no link when it is off, linked and no activity when it is yellow (1 GbE) or green (10 GbE), and linked with activity when it is yellow.



Question: What is the total power allowed for the NI PXIe-8238?



Answer: The typical value of total power allowed for the NI PXIe-8238 is 14.28 W, whereas the maximum value of total power allowed is 23.23 A.

PXIe-8238 Technical Specifications:


Manufacturer:National Instruments
Model:PXIe-8238 (784976-01)
Type:PXI Ethernet Interface Module
Repair Evaluation:$150

Why Buy From Apex Waves

Delivery: UPS, FedEX and DHL – Free UPS Ground on all orders
Overnight, Next Day Air or Expedited shipping options available
International delivery available
Same day shipping for in-stock on location
Warranty: All parts new, new surplus, used or reconditioned are covered by Apex Waves 1 Year Warranty
Returns: No hassle return policy.
Dedicated customer service team.
Payment:
Quick Quotes: Receive Price & Availability Today!
Calibration: Ask About Our Tiered Calibration Levels
Option & Modules: Confirm Your Requirements or Versions
Repair: Cost & Lead Time Available Upon Request for Service
Share this page:

PXIe-8238

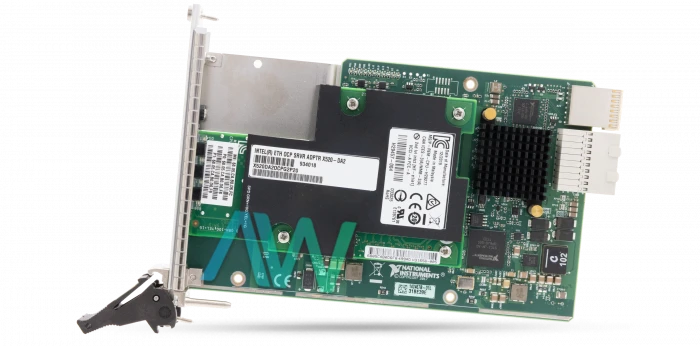

PXIe-8238 National Instruments PXI Ethernet Interface Module | Apex Waves | Image

Main Image

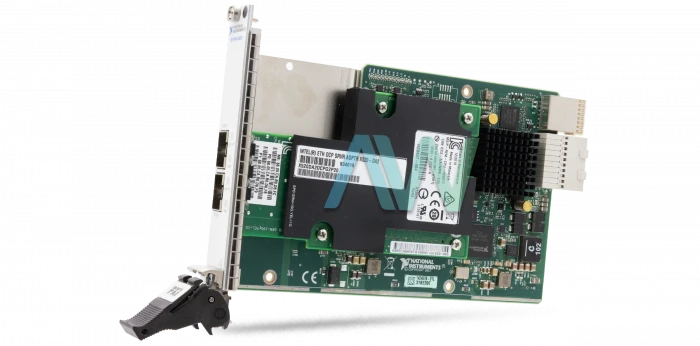

PXIe-8238 National Instruments PXI Ethernet Interface Module | Apex Waves | Image
