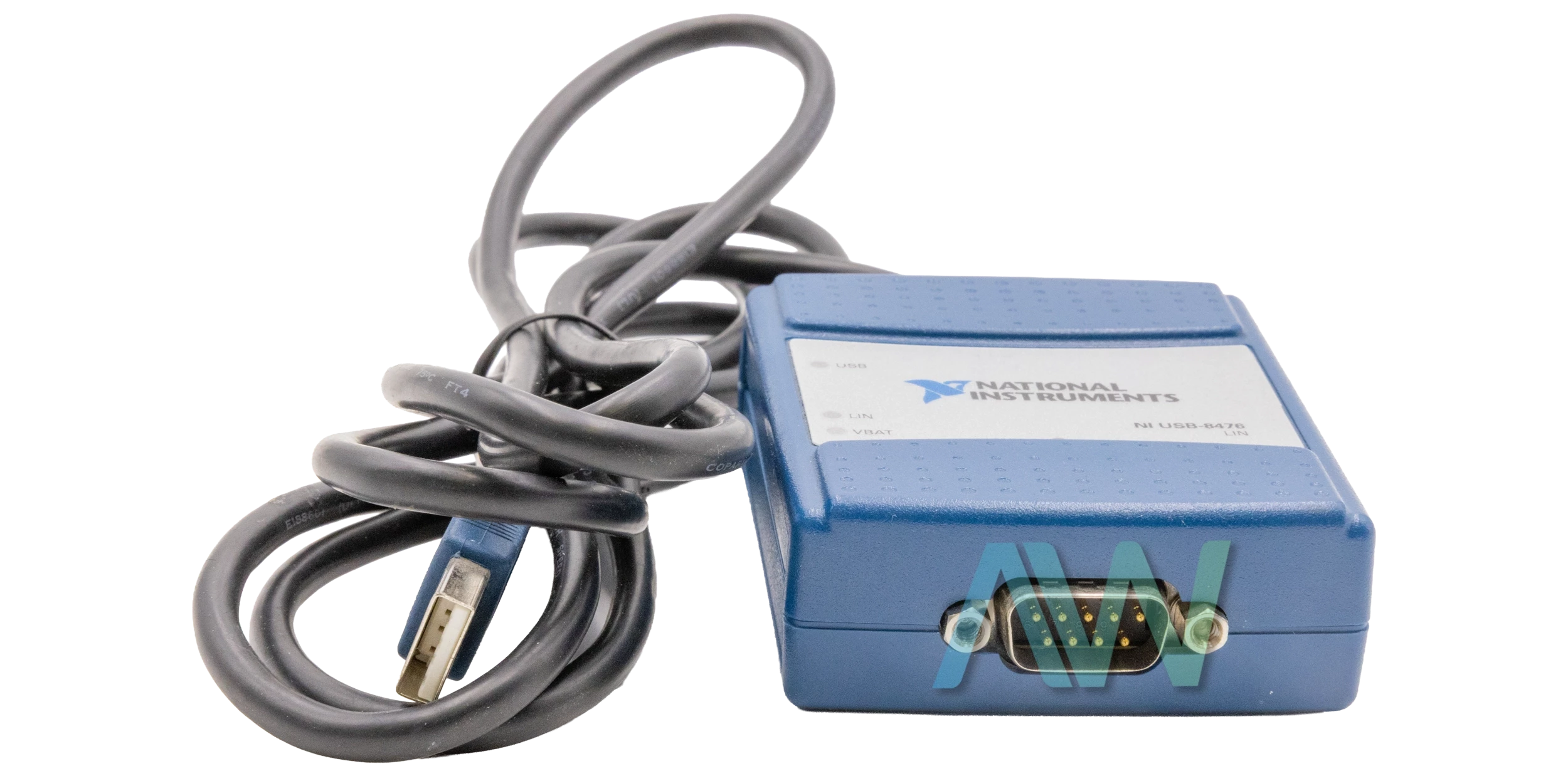

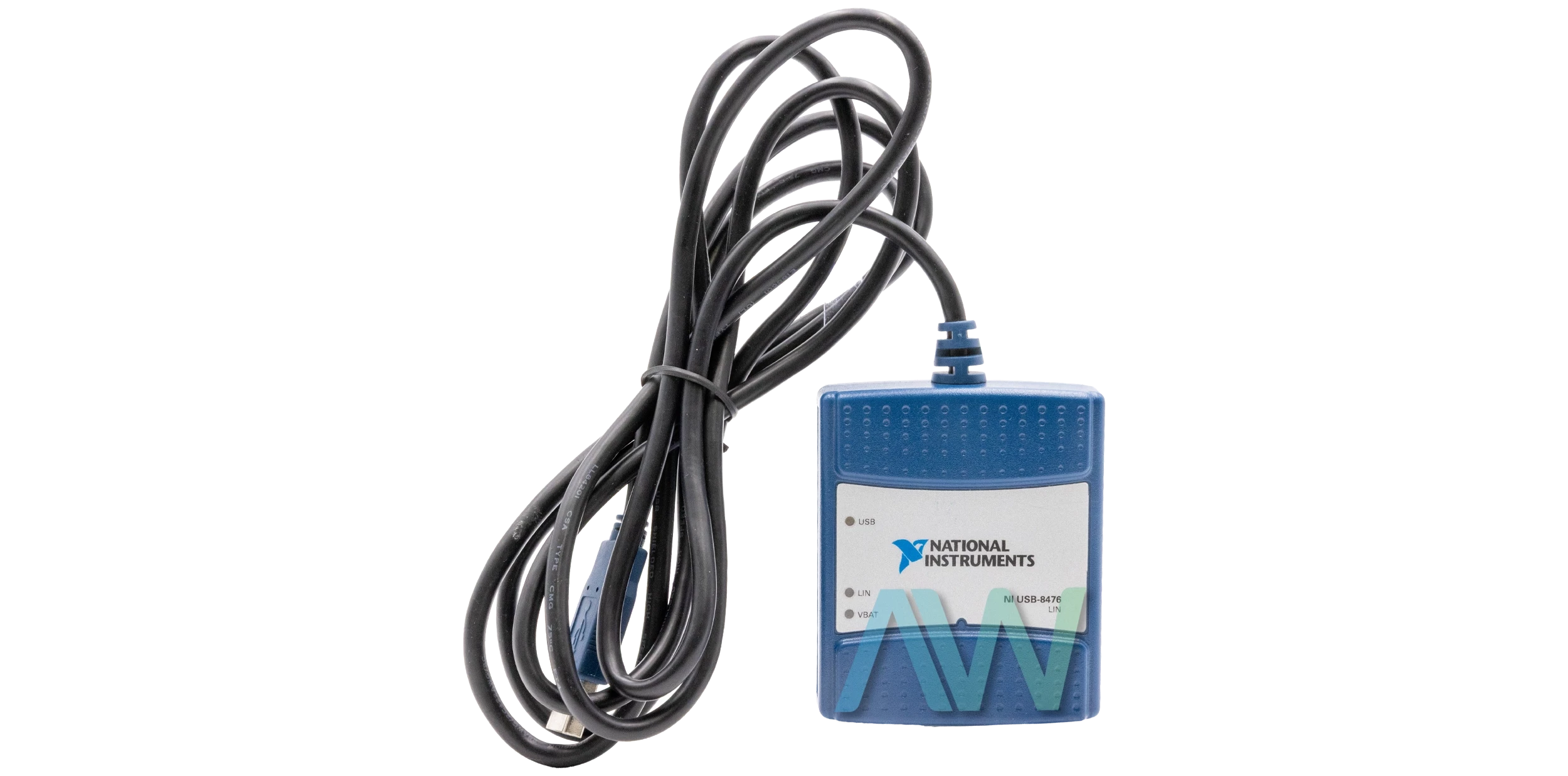

USB-8476S National Instruments LIN Interface Device | Apex Waves | Image USB-8476S National Instruments LIN Interface Device | Apex Waves | ImageUSB-8476SUSB-8476S | Legacy, Refurbished and New Surplus

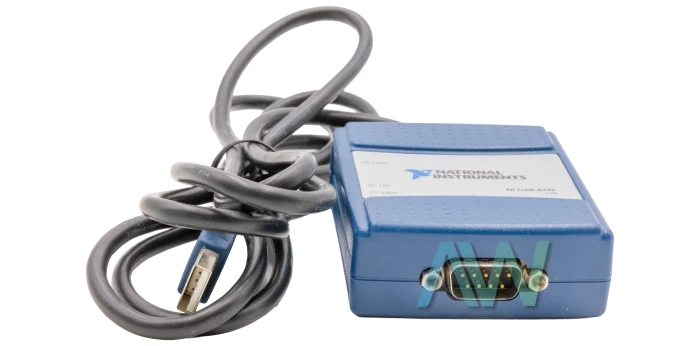

USB-8476S National Instruments LIN Interface Device | Apex Waves | Image

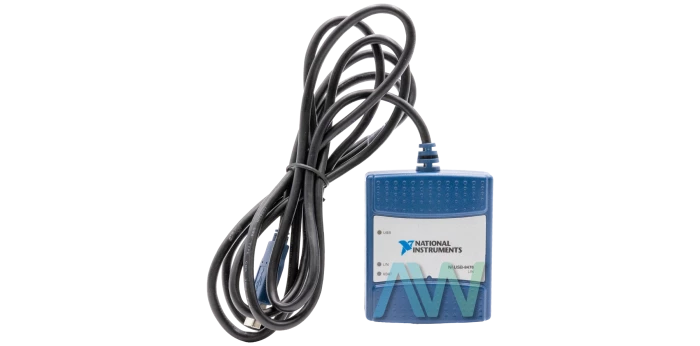

USB-8476S National Instruments LIN Interface Device | Apex Waves | Image
USB-8476S New
USB-8476S | Legacy, Refurbished and New Surplus

USB-8476S

4.5/5 | 9 ratings

Modular Systems > National Instruments > Serial Interface Devices

Part Number USB-8476S
Manufacturer/Brand National Instruments
Description: USB-8476S, 1-Port, Synchronized, LIN Interface Device
Lowest Price Guarantee
Fast Quote
Quoted Price
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing
2 year warrantyRefurbished
*What is Refurbished?
Quoted Price
Fully tested
2yr warranty
  Get Pricing

Need an Official Quote?


*Most customers receive their price in about 15 minutes.

Or speak to a sales representative for pricing & lead time:


National Instruments USB-8476S LIN Interface Device

Featured with synchronization capabilities, the National Instruments USB-8476S (Part Number: 779795-01) is a LIN Interface Device. This USB based model is designed for logging, monitoring, and testing your LIN network. The USB-8476S features master/slave termination with a provision of software selection and has one port. This LIN Interface Device comes equipped with a powerful, integrated LIN transceiver, i.e. Atmel ATA6620. The ATA6620 is a powerful transceiver designed to comply with the requirements as defined in the ISO-9141 standard. The NI USB-8476S is known for its power synchronization capabilities because it has all the required resources to fulfill tight integration demands of LIN, CAN, digital, and analog measurements that are often found in various automotive applications.

This LIN Interface Device can share triggering and timing signals with a broad range of vision devices, USB interfaces, as well as motion and data acquisition devices. With hardware-controlled triggering and timing signals, optimal determinism remains maintained between the trigger signal and the required response. With the USB-8476S, you can synchronize different parameters through software to correlate data according to your requirements.

The fully integrated LIN transceiver incorporated in this LIN Interface Device has a built-in 5V/50 mA low-drop voltage regulator. Thus, the ATA6620 offers a powerful combination of bus transceiver and voltage regulator to develop powerful yet simple slave nodes. This LIN controller is designed to work with low-speed data communication often found in vehicles. To guarantee minimized power consumption, the ATA6620 can operate in Sleep mode and Silent mode. In addition to a 9-pin D-Sub connector, the NI USB-8476S has a 3-pin COMBICON connector that is used for synchronization.

USB-8476S Mature Status has been announced by National Instruments, but the LIN Interface Device will still be available for purchase and repairs by Apex Waves.

ModelUSB-8476S
ManufacturerNational Instruments
Part Number779795-01
TypeLIN Interface Device
Ports1
USB Power Requirements200 mA, 5 VDC
Supported Baud Rates2,400 to 20,000 baud
I/O Connector9-pin male D-Sub, optional 3-pin
COMBICON for synchronization
Cable Length2 m
WarrantyOne Year Warranty
USB-8476S ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Why Buy From Apex Waves:

Apex Waves Youtube Video


Delivery:
UPS, FedEX and DHL – Free Fedex Ground on all orders
Overnight, Next Day Air or Expedited shipping options available
International delivery available
Same day shipping for in-stock on location
Warranty: All of our products are covered by our Apex Waves Warranty.
3 Year Warranty - New Surplus Parts
2 Year Warranty - Refurbished Parts
Returns: No hassle return policy.
Dedicated customer service team.
Payment:
Quick Quotes: Receive Price & Availability Today!
Calibration: Ask About Our Tiered Calibration Levels
Option & Modules: Confirm Your Requirements or Versions
Repair: Cost & Lead Time Available Upon Request for Service
Repair Evaluation: $150
Share this page:
Common Typos: HSB-8476S, UQB-8476S, USV-8476S, USN-8476S, USB-U476S

USB-8476S


USB-8476S

USB-8476S, 1-Port, Synchronized, LIN Interface Device

Lowest Price Guarantee
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing













Call now for best pricing
1-800-915-6216

National Instruments USB-8476S LIN Interface Device

Featured with synchronization capabilities, the National Instruments USB-8476S (Part Number: 779795-01) is a LIN Interface Device. This USB based model is designed for logging, monitoring, and testing your LIN network. The USB-8476S features master/slave termination with a provision of software selection and has one port. This LIN Interface Device comes equipped with a powerful, integrated LIN transceiver, i.e. Atmel ATA6620. The ATA6620 is a powerful transceiver designed to comply with the requirements as defined in the ISO-9141 standard. The NI USB-8476S is known for its power synchronization capabilities because it has all the required resources to fulfill tight integration demands of LIN, CAN, digital, and analog measurements that are often found in various automotive applications.

This LIN Interface Device can share triggering and timing signals with a broad range of vision devices, USB interfaces, as well as motion and data acquisition devices. With hardware-controlled triggering and timing signals, optimal determinism remains maintained between the trigger signal and the required response. With the USB-8476S, you can synchronize different parameters through software to correlate data according to your requirements.

The fully integrated LIN transceiver incorporated in this LIN Interface Device has a built-in 5V/50 mA low-drop voltage regulator. Thus, the ATA6620 offers a powerful combination of bus transceiver and voltage regulator to develop powerful yet simple slave nodes. This LIN controller is designed to work with low-speed data communication often found in vehicles. To guarantee minimized power consumption, the ATA6620 can operate in Sleep mode and Silent mode. In addition to a 9-pin D-Sub connector, the NI USB-8476S has a 3-pin COMBICON connector that is used for synchronization.

USB-8476S Mature Status has been announced by National Instruments, but the LIN Interface Device will still be available for purchase and repairs by Apex Waves.

ModelUSB-8476S
ManufacturerNational Instruments
Part Number779795-01
TypeLIN Interface Device
Ports1
USB Power Requirements200 mA, 5 VDC
Supported Baud Rates2,400 to 20,000 baud
I/O Connector9-pin male D-Sub, optional 3-pin
COMBICON for synchronization
Cable Length2 m
WarrantyOne Year Warranty
USB-8476S ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.
