PPC-2115
Modular Systems > National Instruments > Touch Panel Computers
| Description: | PPC-2115, 15 Inch TFT Color LCD, XGA Resolution, Industrial Panel PC |
(expedited shipping options available)
Need an Official Quote?
Or speak to a sales representative for additional information:
Phone:1-800-915-6216
Email:sales@apexwaves.com

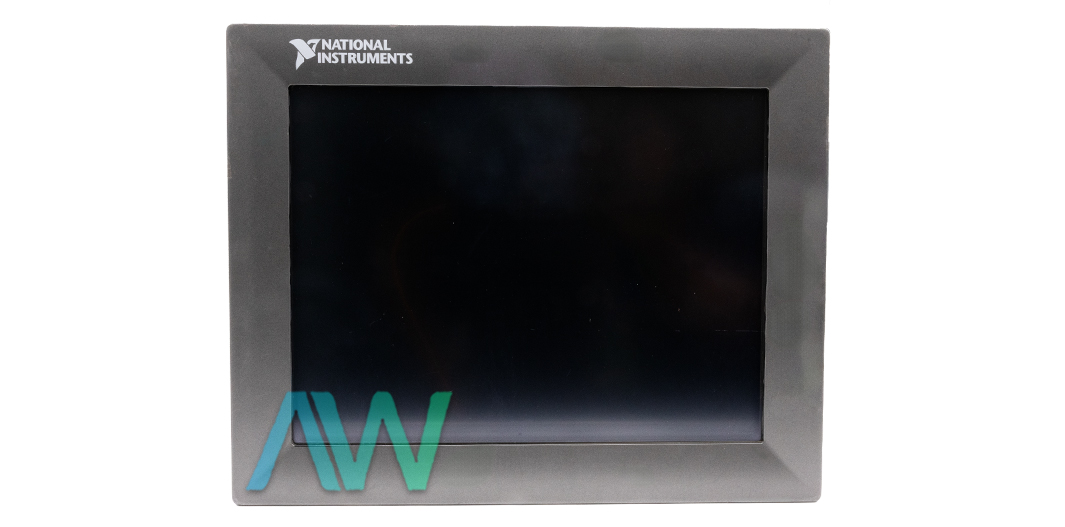

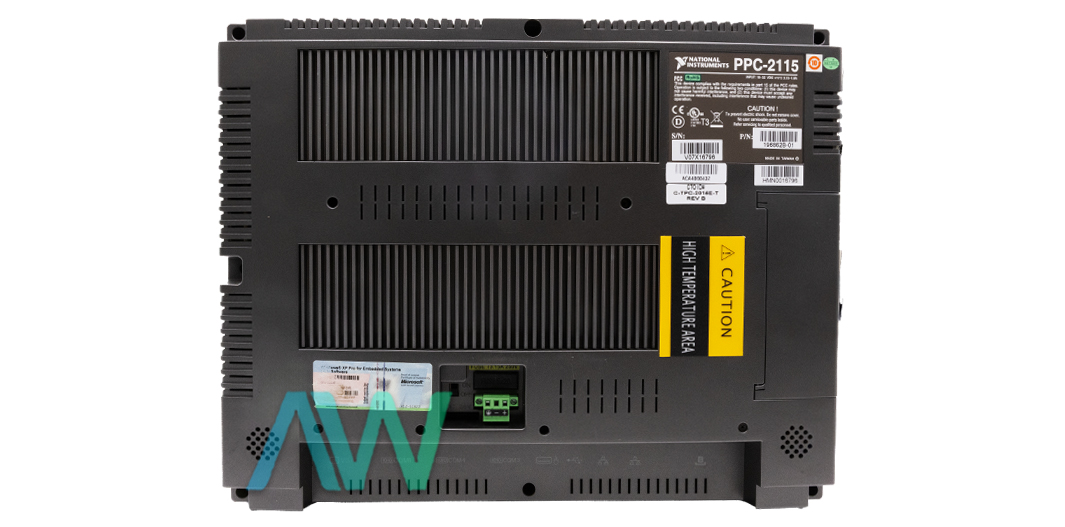

National Instruments PPC-2115 Industrial Panel PC
The National Instruments PPC-2115 (Part Number: 779862-01) is an Industrial Panel PC (PPC). The NI PPC-2115 is fanless, has a 1 GHz Intel Celeron M processor, along with a rugged 15-inch LCD display used for larger HMI (human machine interfaces). In order to save panel space, the PPC-2115 also has a 2.5-inch display. The 15-inch display is a TFT (thin film transistor) color display. It is a high-quality display available with a touch screen. The contrast ratio of the 15-inch XGA TFT LCD display is 500:1. The LCD also has 120 degree viewing angle, two CCFL backlights with a lifetime of 50,000 hours, a power rating of 3.3 to 5 V, and a durability of up to 100 million touches. In order to utilize LabVIEW front panels, the user can combine the National Instruments LabVIEW Datalogging and Supervisory Control (DSC) Module with the PPC-2115. The 512 MB RAM device has a storage space of 40 GB HDD.
A large range of connection options are also provided with the NI PPC-2115. The PPC 2115 PC connectivity options include one RS485 port, two RS232 ports, two high speed Universal Serial Bus ports (for USB DAQ and NI Compact DAQ), one GB Ethernet port (for CompactRIO, Compact FieldPoint, PXI/CompactPCI), one fast Ethernet port, one VGS port, and a parallel output port. The parallel output port can be used for printers (NI hardware). For keyboard and mouse connections, the NI PPC 2115 has a port known as PS2. The PPC-2115 also has a CompactFlash port; this port is used for the storage of removable data logging. Additionally, the device has three audio ports: one for line in, one for line out, and one for a microphone, along with a PCMCIA slot. The device weighs 5.5 kg (without HDD), and measures 373.5 x 297.5 mm in physical dimensions. It has a recommended operating temperature range of 0 to 50 °C, and a storage temperature range of –20 to 60 °C.
PPC-2115 Obsolete Status has been announced by National Instruments, but the Industrial Panel PC will still be available for purchase and repairs by Apex Waves.
| Model | PPC-2115 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 779862-01 |
| Type | Industrial Panel PC |
| CPU | 1 GHz Intel Celeron M |
| Display | 15 in. XGA TFT color LCD with touch screen |
| Storage | 40 GB HDD |
| Memory | 512 MB RAM |
| Dimensions | 14.7 in. x 11.7 in. |
| Weight | 12.12 lb. |
| Warranty | Three Year Warranty |
| PPC-2115 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for the PPC-2115:
196862A-01, 196862B-01, 779862-01
National Instruments PPC-2115 Frequently Asked Questions
Question: How can I calibrate the touchscreen of the PPC-2115?
Answer: To enter the PenMount Control Panel, click the pm symbol in the lower right area of the screen. The panel has five functions: Calibrate, Draw, Option, Multiple Monitors, and About. The PPC-2115 only has one touchscreen display.
Question: What are the operating and storage temperature ranges for the PPC-2115?
Answer: The operating temp range for the PPC-2115 is 0 to 50 °C (32 to 122 °F), while the storage temp range –20 to 60 °C (–4 to 140 °F).
Question: How can I use a seconday / dual screen with the PPC-2115?
Answer: You can use the CRT port on the PPC-2115 to connect an auxiliary CRT display. To customize the CRT display settings, follow these steps:
1. On the PPC-2115 LCD monitor, click the Intel symbol in the toolbar after turning on the machine.
2. Select Graphics Options > Output Device from the drop-down menu.
3. A window with display choices will appear, indicating the presently active display device. Alternate display devices can be selected and configured using this window.
Question: Can the PPC-2115 be mounted on a panel?
Answer: Yes, though it should be noted that the thickness of the mounting panel should be less than 6 mm (0.236 in.).
