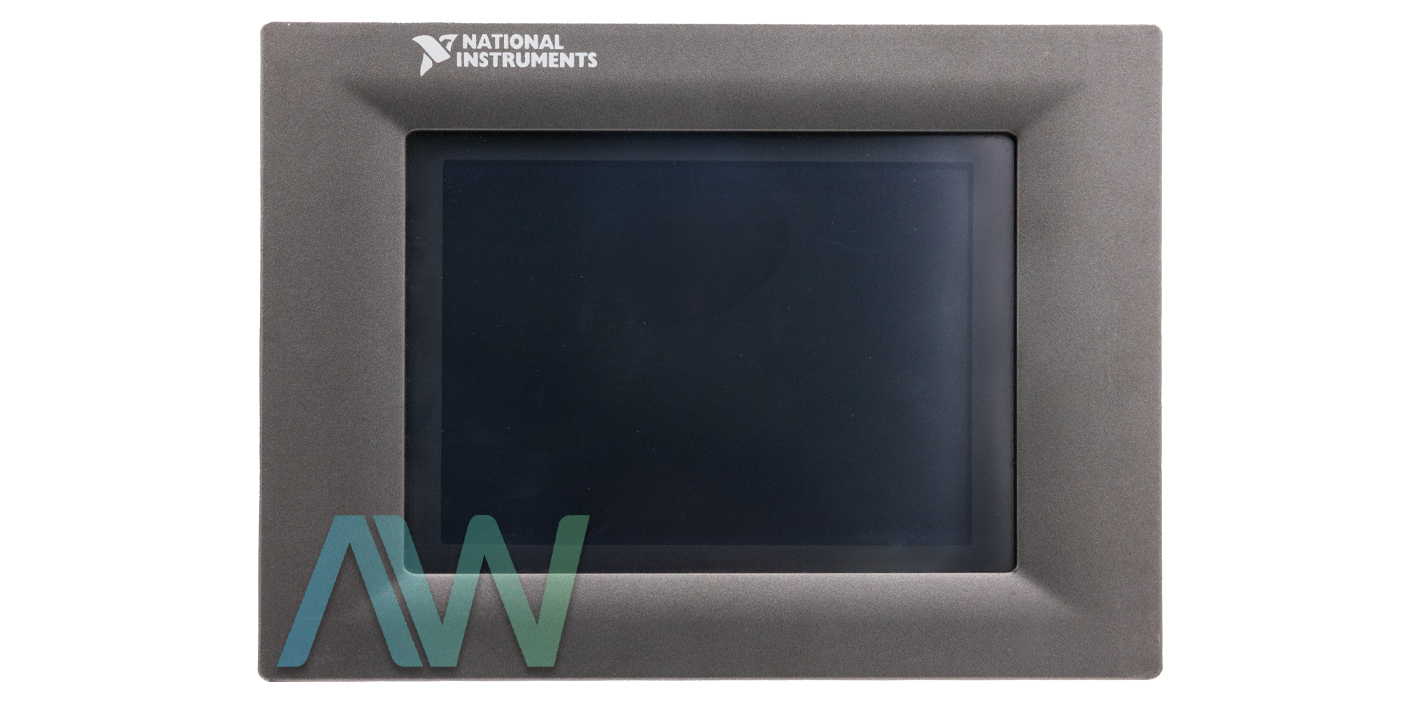

National Instruments TPC-2106 Touch Panel Computer
The TPC-2106 is a Touch Panel Computer. The TPC-2106 is produced by National Instruments. The NI TPC-2106 is a member of the touch panel computer series by National Instruments. The TPC-2106 is available with part number 780028-01. The TPC-2106 is designed with Windows CE OS preloaded in the onboard flash memory.
This Touch Panel Computer works with a PS-5 power supply. The TPC-2106 is built with a 5.7 in. STN LCD display. The display resolution is 320 by 240. The NI TPC-2106 has an LCD luminance of 400cd/m2 and a contrast ratio of 55 to 1. The TPC-2106 can be used with the NI LabVIEW Touch Panel Module. Then, this Touch Panel Computer will show up as targets in the LabVIEW 8.5 project.

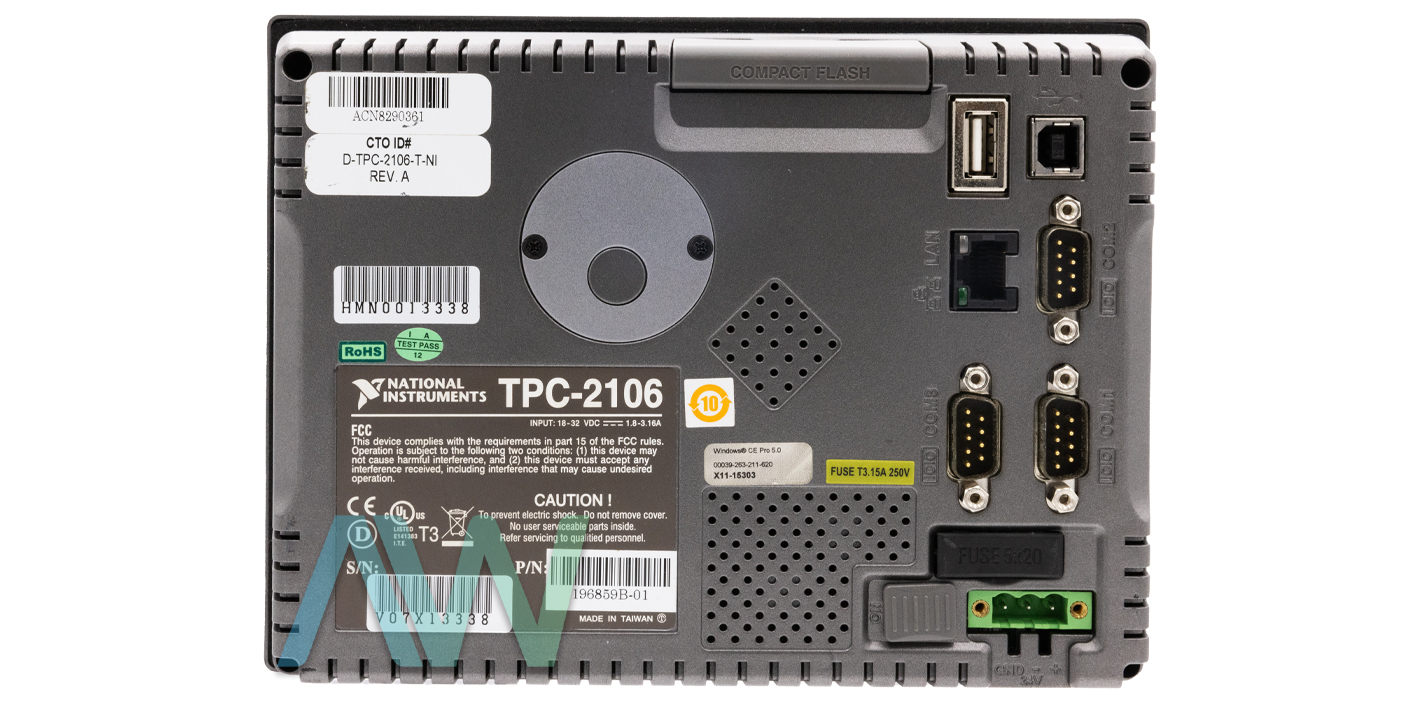

This durable, compact Touch Panel Computer is ideal for applications with minimal space. The TPC-2106 comes with remote display software. When a host program is installed, you can connect to the hardware. The NI TPC-2106 is featured with a 416 MHz XScale processor. This Touch Panel Computer has 64 MB SDRAM and 64 MB flash. The TPC-2106 is equipped with a 10/100BaseT Ethernet port, one USB 1.0 port, and three serial ports (two RS232 and one RS485). The NI TPC-2106 Touch Panel Computer features a NEMA4 and IP65 rating. This rating means the TPC-2106 can withstand dust and water jets and will not be damaged.
TPC-2106 Obsolete Status has been announced by National Instruments, but the touch panel computer will still be available for purchase and repairs by Apex Waves.
| Model | TPC-2106 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 780028-01 |
| Type | Touch Panel Computer |
| Display | STN color LCD |
| Processor | 416 MHz Intel XScale |
| Memory | 64 MB SDRAM |
| Maximum Power Consumption | 20 W |
| Dimensions | 5.83 by 7.68 by 1.75 in. |
| Weight | 1.76 lb. |
| Warranty | 2-3 Year Warranty |
| TPC-2106 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for the TPC-2106:
196859A-01, 196859B-01, 196859C-01, 197736B-01, 197736B-02, 197736C-01, 197736C-02, 780028-01
TPC-2106 PDF Manuals
ARCHIVED GETTING STARTED WITH THE LABVIEW TOUCH PANEL MODULE.PDF
NI TPC-2106 2106T FIRMWARE AND SOFTWARE UPDATES.PDF
TPC-2106 2106T USER MANUAL.PDF
Why Buy From Apex Waves:
"The business transaction was super easy and friendly."
"Hand carrying parts to fedex directly to make sure I get them overnight. Great service"
"They were very helpful to get me the test equipment that I need."
TPC-2106
Modular Systems > National Instruments > Touch Panel Computers
TPC-2106, 416 MHz Intel XScale Processor, Touch Panel Computer
1-800-915-6216
- Description
- Technical Specifications
- Manuals & PDFs

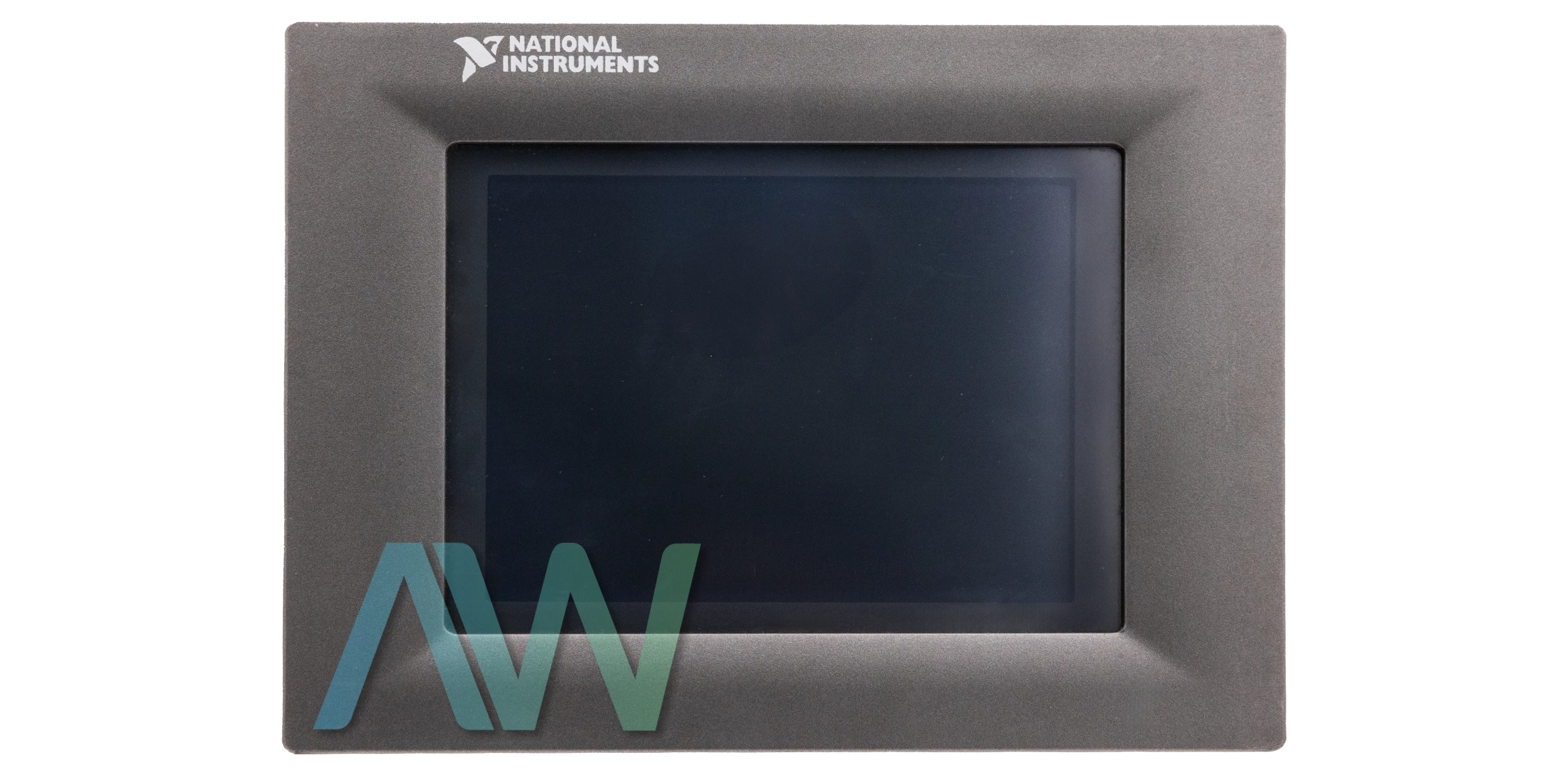

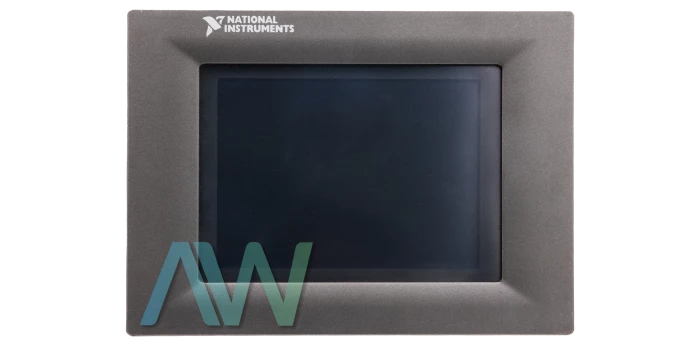

National Instruments TPC-2106 Touch Panel Computer
The TPC-2106 is a Touch Panel Computer. The TPC-2106 is produced by National Instruments. The NI TPC-2106 is a member of the touch panel computer series by National Instruments. The TPC-2106 is available with part number 780028-01. The TPC-2106 is designed with Windows CE OS preloaded in the onboard flash memory.
This Touch Panel Computer works with a PS-5 power supply. The TPC-2106 is built with a 5.7 in. STN LCD display. The display resolution is 320 by 240. The NI TPC-2106 has an LCD luminance of 400cd/m2 and a contrast ratio of 55 to 1. The TPC-2106 can be used with the NI LabVIEW Touch Panel Module. Then, this Touch Panel Computer will show up as targets in the LabVIEW 8.5 project.

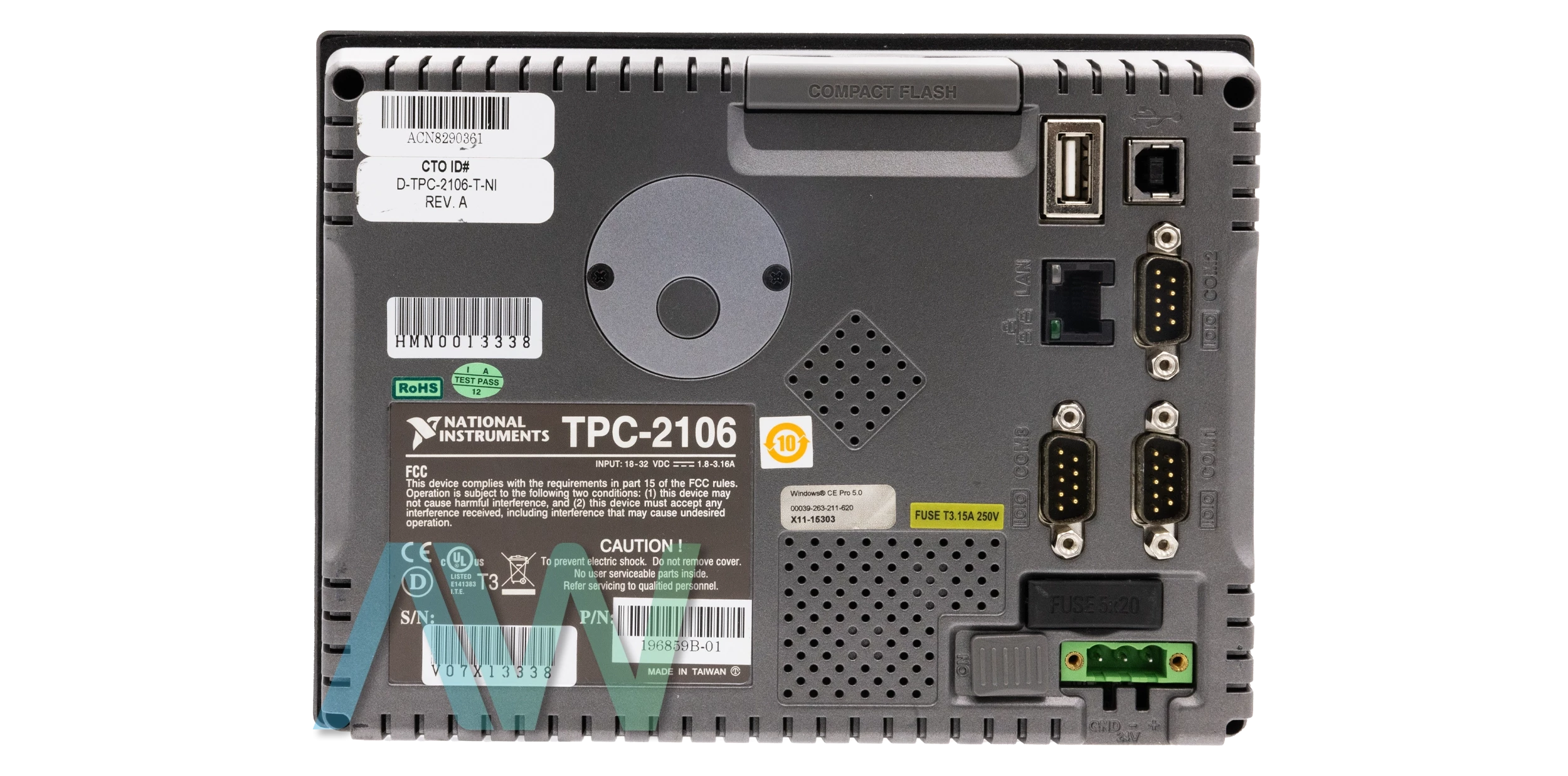

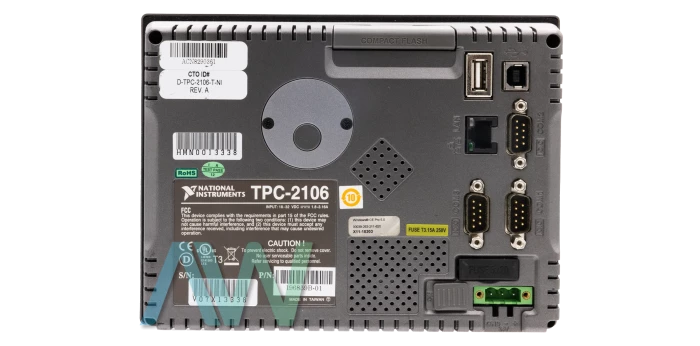

This durable, compact Touch Panel Computer is ideal for applications with minimal space. The TPC-2106 comes with remote display software. When a host program is installed, you can connect to the hardware. The NI TPC-2106 is featured with a 416 MHz XScale processor. This Touch Panel Computer has 64 MB SDRAM and 64 MB flash. The TPC-2106 is equipped with a 10/100BaseT Ethernet port, one USB 1.0 port, and three serial ports (two RS232 and one RS485). The NI TPC-2106 Touch Panel Computer features a NEMA4 and IP65 rating. This rating means the TPC-2106 can withstand dust and water jets and will not be damaged.
