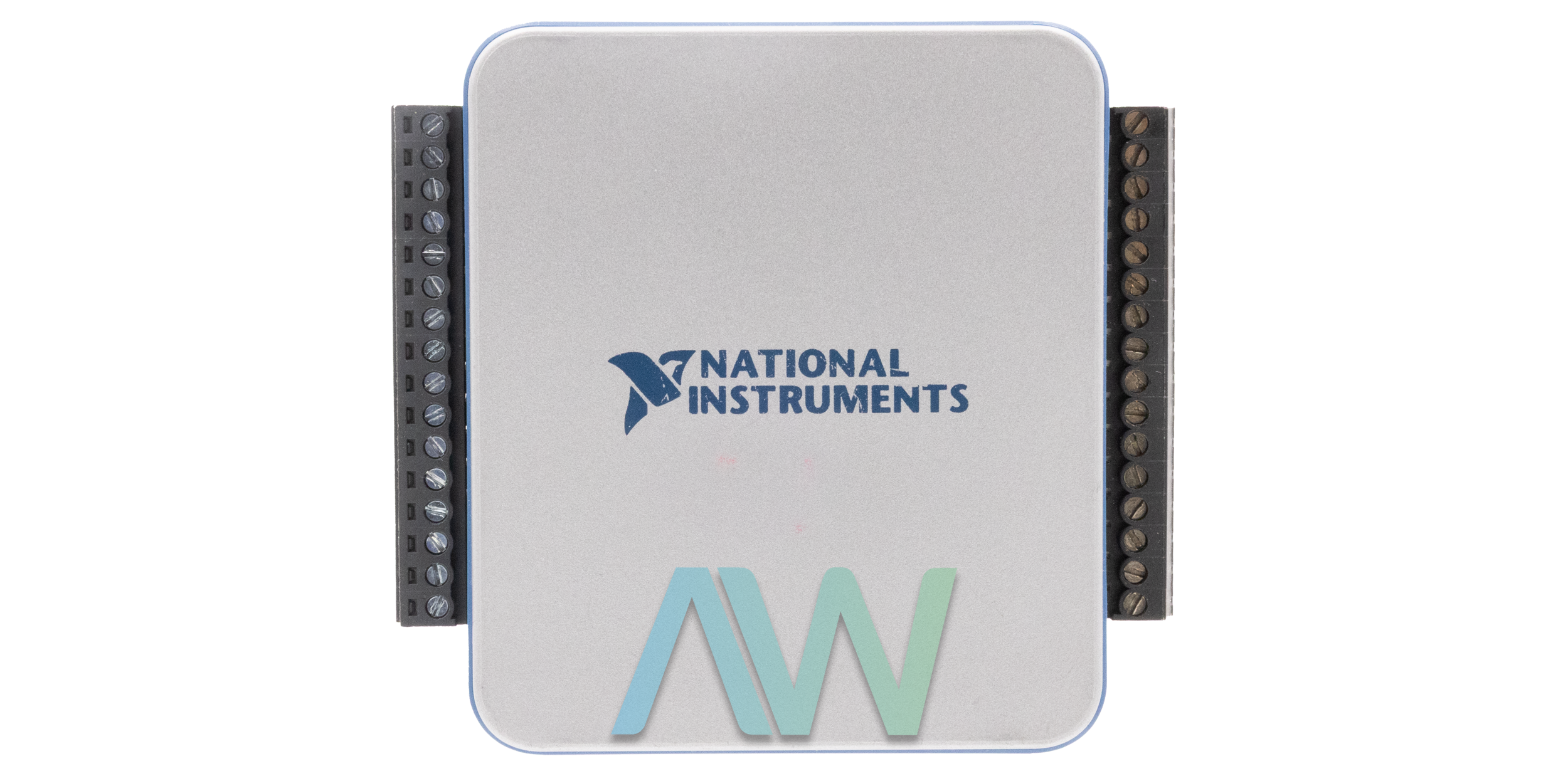

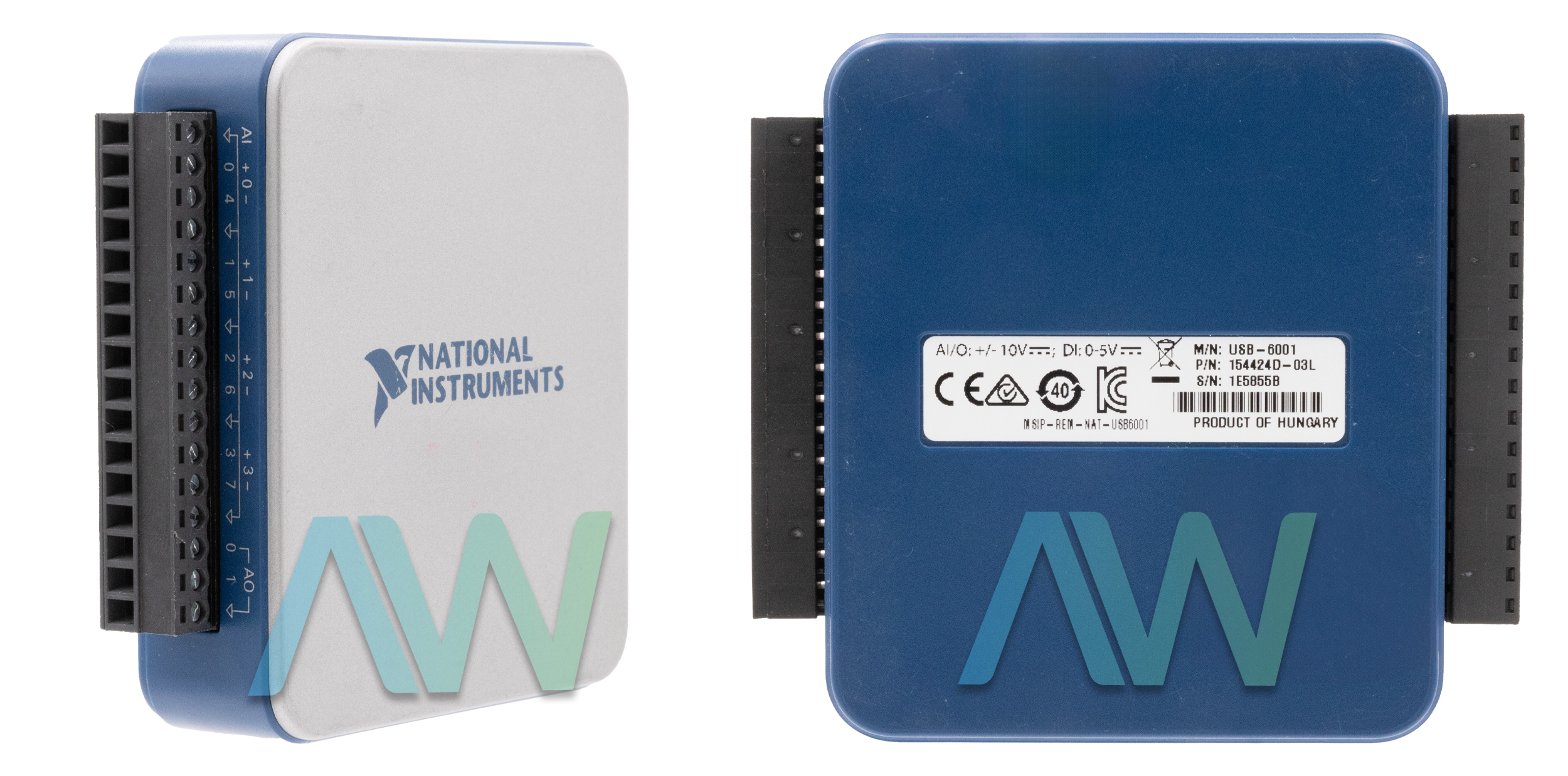

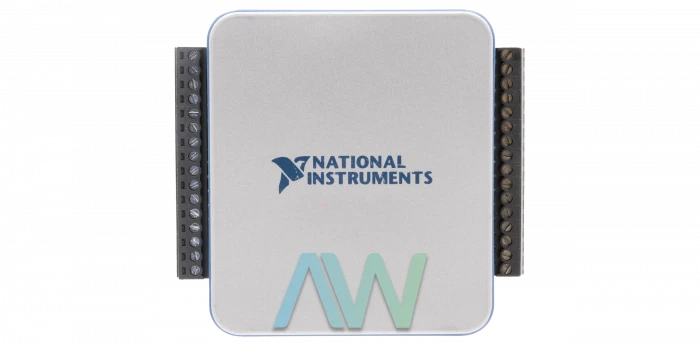

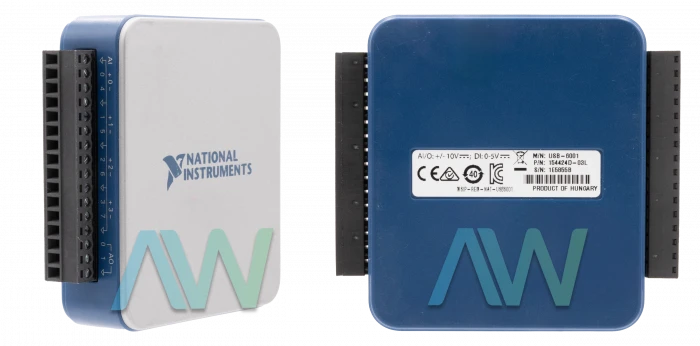

National Instruments 782604-01 Multifunction I/O Module

National Instruments part number 782604-01 is an identifying part number for the USB-6001, a USB Multifunction I/O Device. This device is equipped with 8 analog inputs (14-Bit, 20 kS/s), 2 analog outputs (5 kS/s per channel), and 13 digital I/O lines.

It also includes a 32‑bit counter. This device is compatible with applications such as simple data logging, portable measurements, and academic lab experiments. With screw-terminal connectivity, users can easily connect sensors and signals to this device. The NI‑DAQmx driver and configuration utility simplify configuration and measurements. The bus interface for the 782604-01 complies with the USB Full Speed specification, providing a USB bus speed of 12 Mb/s. This multifunction device comes with two analog outputs with a 14-bit DAC resolution and an output range of ±10 V. The maximum update rate for these outputs is 5 kS/s per channel, timed by hardware. The AO FIFO buffer can hold up to 2,047 samples.

Trigger sources for the analog outputs include software, PFI 0, and PFI 1, and the device can drive an output current of ±5 mA. Furthermore, this device includes 13 digital I/O lines distributed across three ports: Port 0 has 8 lines, Port 1 has 4 lines, and Port 2 has 1 line. This configuration allows for flexible digital input and output operations to meet various application requirements.

The NI 782604-01 can be identified with two part numbers. The only difference between 782604-01 and the other part number is that it comes enclosed in a casing with a screw terminal front connection type while the other comes without a casing and has a Generic (OWM) connection type.
