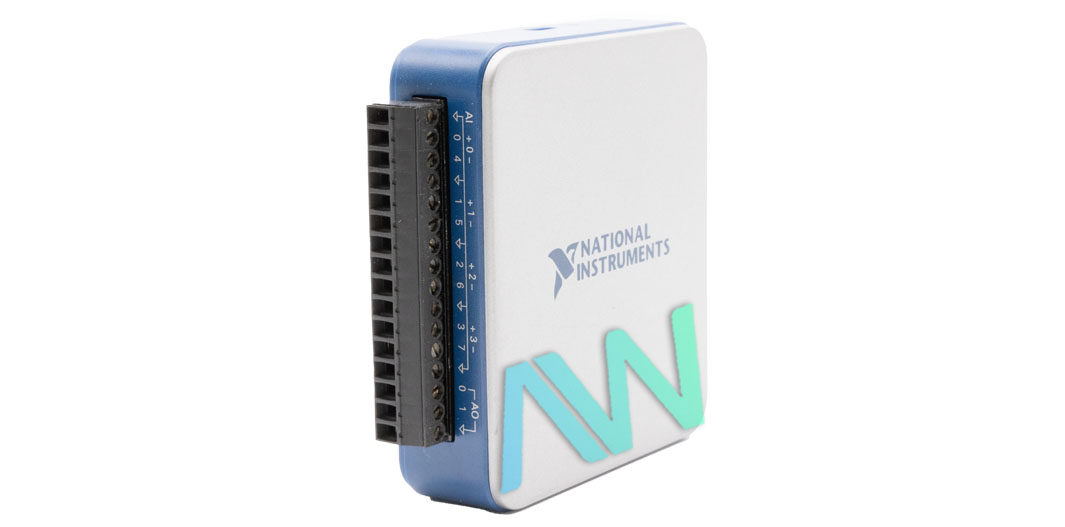

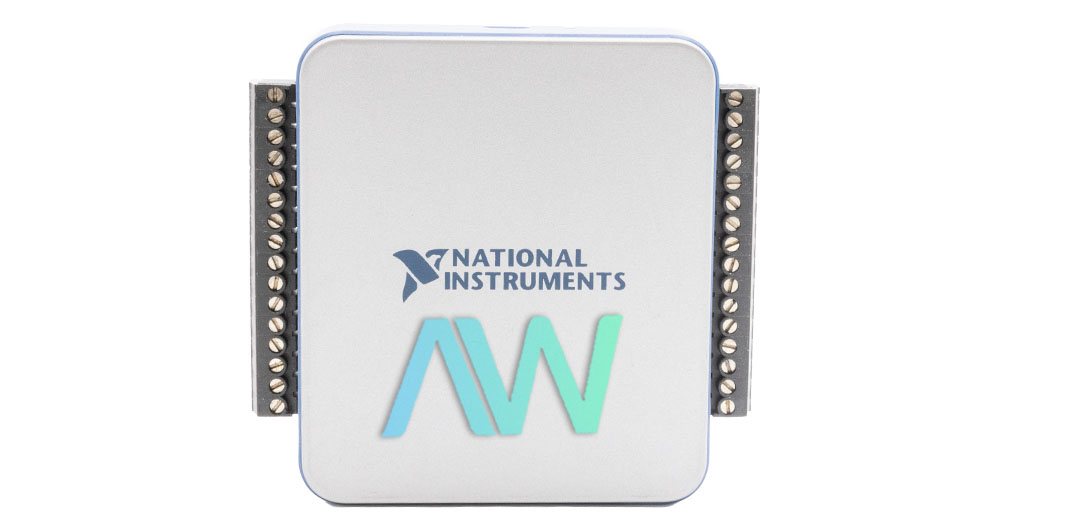

National Instruments 782608-01 Multifunction I/O Device
Part Number 782608-01 is the identifying part number for the National Instruments USB-6003 Multifunction I/O Device. This device features 4 differential or 8 single-ended analog input channels that are connected to a successive approximation-type ADC with a resolution of 16 bits. The maximum sample rate in the channels is 100 kS/s and the FIFO size is 2047 samples. Furthermore, the analog input bandwidth is 300 kHz. On the other hand, there are 2 analog outputs connected to a 16-bit DAC. The output range is ±10 V and the FIFO has the same size as the analog inputs. The maximum update rate in the analog outputs is 5 kS/s simultaneous per channel and hardware-timed.
The 782608-01 has a timebase frequency of 80 MHz, a timebase accuracy of ±100 ppm respectively, and a timing resolution of 12.5 ns. As for the digital I/O, there are 13 digital lines: 8 in Port 0, 4 in Port 1, and a single line in Port 2. Each channel can be individually programmed as input or output and the output driver type can be configured programmatically as open collector or active drive. The absolute maximum voltage range is -0.3 V to 5. 5 V with respect to D GND. The 782608-01 also features a single counter with a resolution of 32 bits. Counter measurements take place through edge counting during rising or falling edge and the counter increases its values as it counts the edges (count up). The maximum input frequency is 5 MHz and the minimum high and low pulse width are both 100 ns.
The 782608-01 also features a +5 V power source with an output voltage of +5 V, ±3%. The maximum current is 150 mA while the short circuit current is 50 mA. Most importantly, the module offers overcurrent protection of 200 mA and an overvoltage protection of ±20 V. Furthermore, it consists of a USB Full Speed bus having a speed of 12 Mb/s. Moreover, the module comes with a USB Micro-B receptacle and 16-position screw terminal plugs for I/O connection.
| Model | 782608-01 |
|---|---|
| Model Name | USB-6003 |
| Part Type | Multifunction I/O Device |
| Analog Input Channels | 8 single-ended or 4 differential |
| Analog Output Channels | 2 |
| Digital I/O Lines | 13 |
| Number of Counters | 1 |
| Timebase Frequency | 80 MHz |
| Bus Interface | USB Full Speed Bus (12 Mb/s) |
| I/O Connector | USB Micro-B receptacle; 16-position screw terminal plugs |
