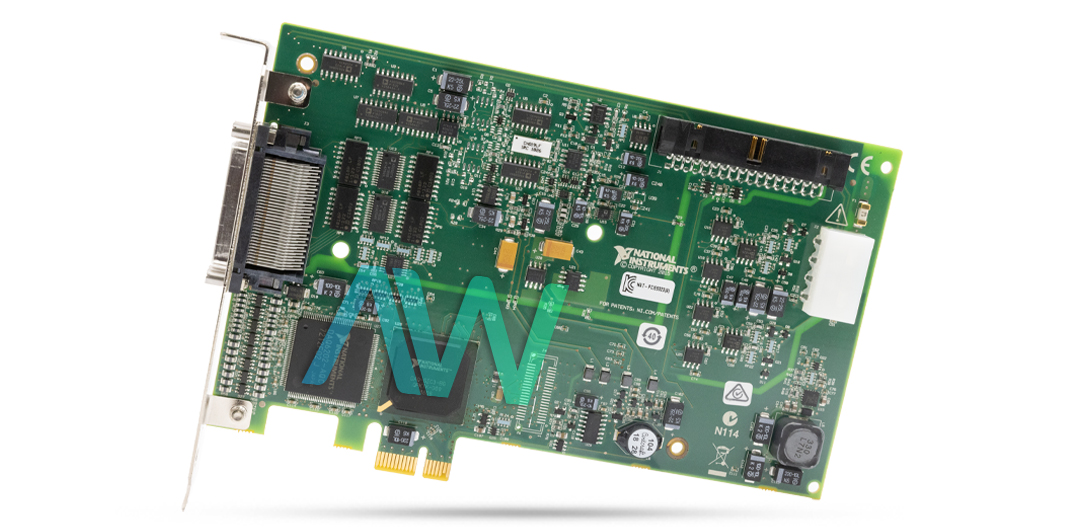

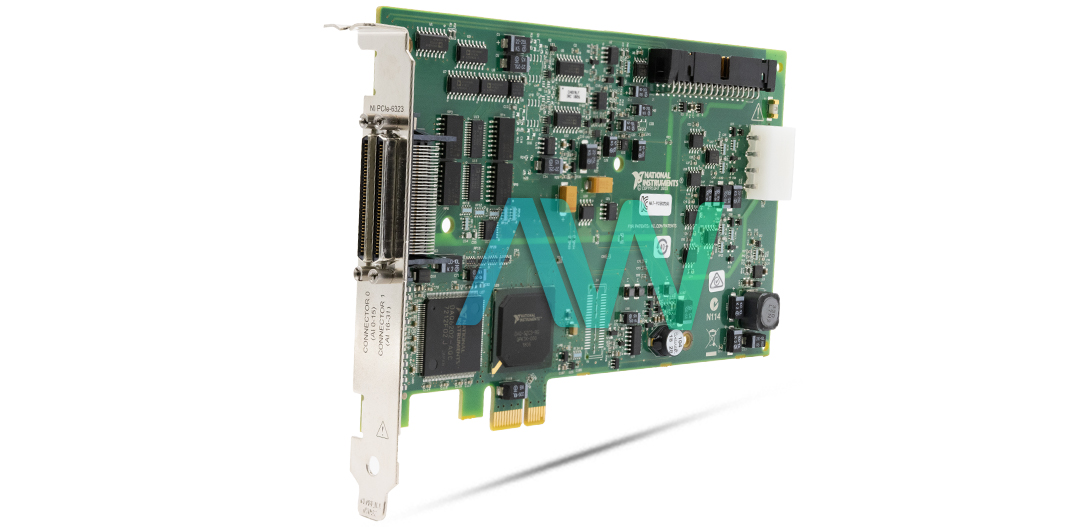

National Instruments 781045-01 Multifunction I/O Device

The National Instruments 781045-01, also known as the PCIe-6323, is a flexible Multifunction I/O Device that can be used for a variety of control and data gathering applications. As a comprehensive solution for a range of industrial and laboratory applications, it has 48 digital I/O lines, 4 analog outputs (900 kS/s), and 32 analog inputs (16-bit, 250 kS/s). The high-throughput PCI Express bus, along with driver and application software tuned for multiple cores, enable this device to function exceptionally well, guaranteeing effective data processing and transfer speeds.

With its sophisticated NI-STC3 timing and synchronization technology, this multifunction I/O device offers retriggerable measurement duties in addition to independent analog and digital timing engines. The 781045-01's capabilities make it appropriate for intricate jobs including PWM, encoder, frequency, and event counting that need for exact timing and synchronization.

The 781045-01's analog inputs include 16 differential or 32 single-ended channels with a 16-bit ADC resolution. High measurement precision and dependability are ensured by the device's promise that no codes will be lost. There are four channels with a 16-bit DAC resolution on the analog output side, which guarantees monotonicity and provides ±1 LSB DNL—both essential for producing accurate signals in control applications.

The 781045-01 has a wide range of digital I/O capabilities; it has 48 channels with independently configurable input or output directions. With D GND as the ground reference, these channels are divided into 32 (P0.<0..31>) and 16 (PFI <0..7>/P1, PFI <8..15>/P2) lines. In order to provide steady logic levels, the device also has pull-down resistors, usually rated at 50 kΩ. With protection against voltages as high as ±20 V on up to two pins, every digital I/O pin offers resilience in a range of electrical conditions.

For timing and counting tasks, the 781045-01 includes four 32-bit general-purpose counters/timers. These counters are very flexible for many timing applications since they offer a wide range of measurements, such as edge counting, pulse, pulse width, semi-period, period, and two-edge separation.

The NI‑DAQmx driver and configuration utility are included with the 781045-01, which makes setup and measurement duties easier. With its extensive programming possibilities and user-friendly configuration tools, this robust software suite improves user experience and is appropriate for both simple data logging and complex test automation.
