Part Number 781046-01
Manufacturer/Brand National Instruments
Description: 781046-01, X Series, 16 Analog Input, PCIe-6341 Multifunctional Data Acquisition Device
Request for Availablility
Fast Quote
Quoted Price
Same Day Calibration Available
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing

Need an Official Quote?



Or speak to a sales representative for additional information:

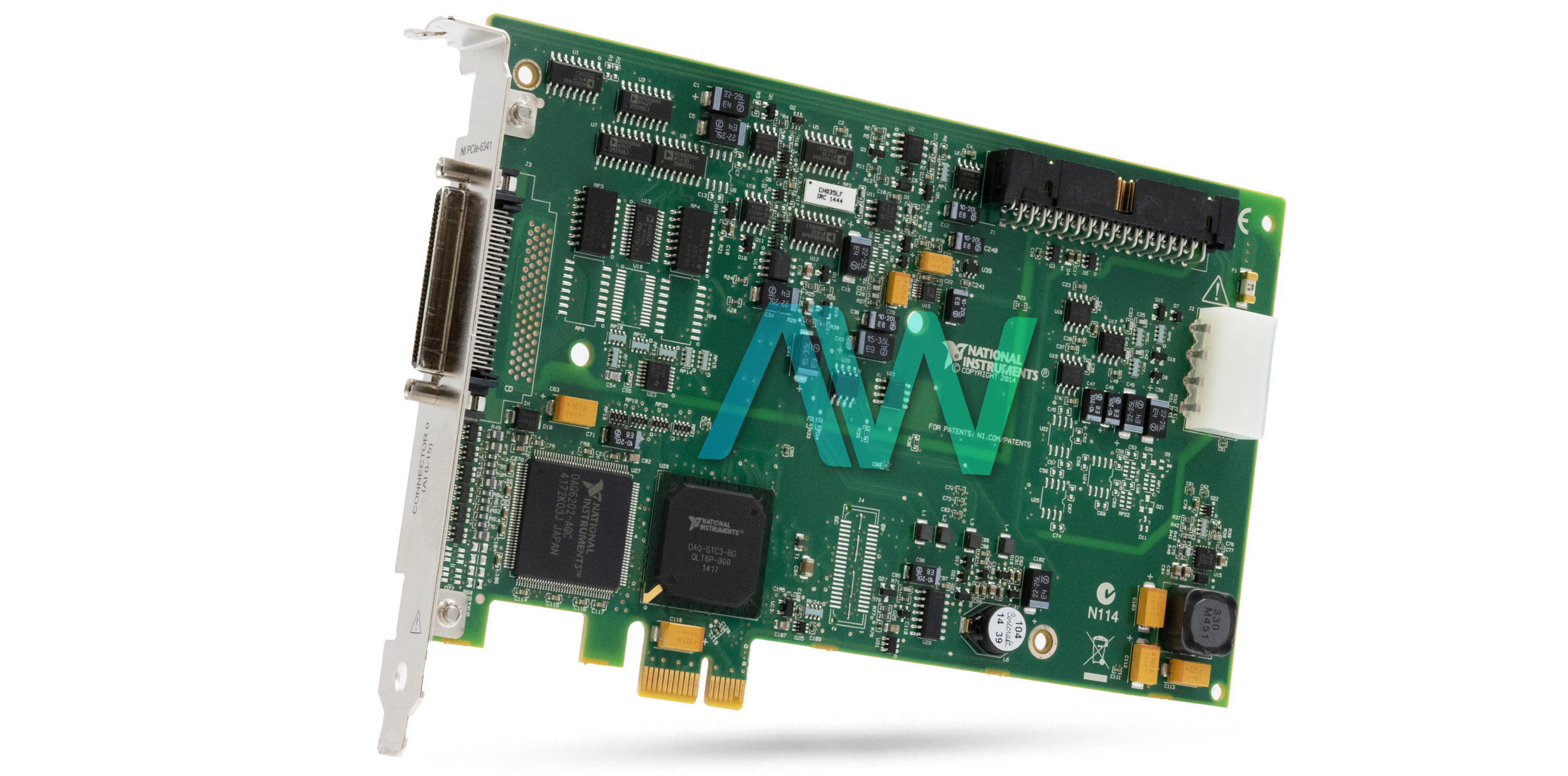

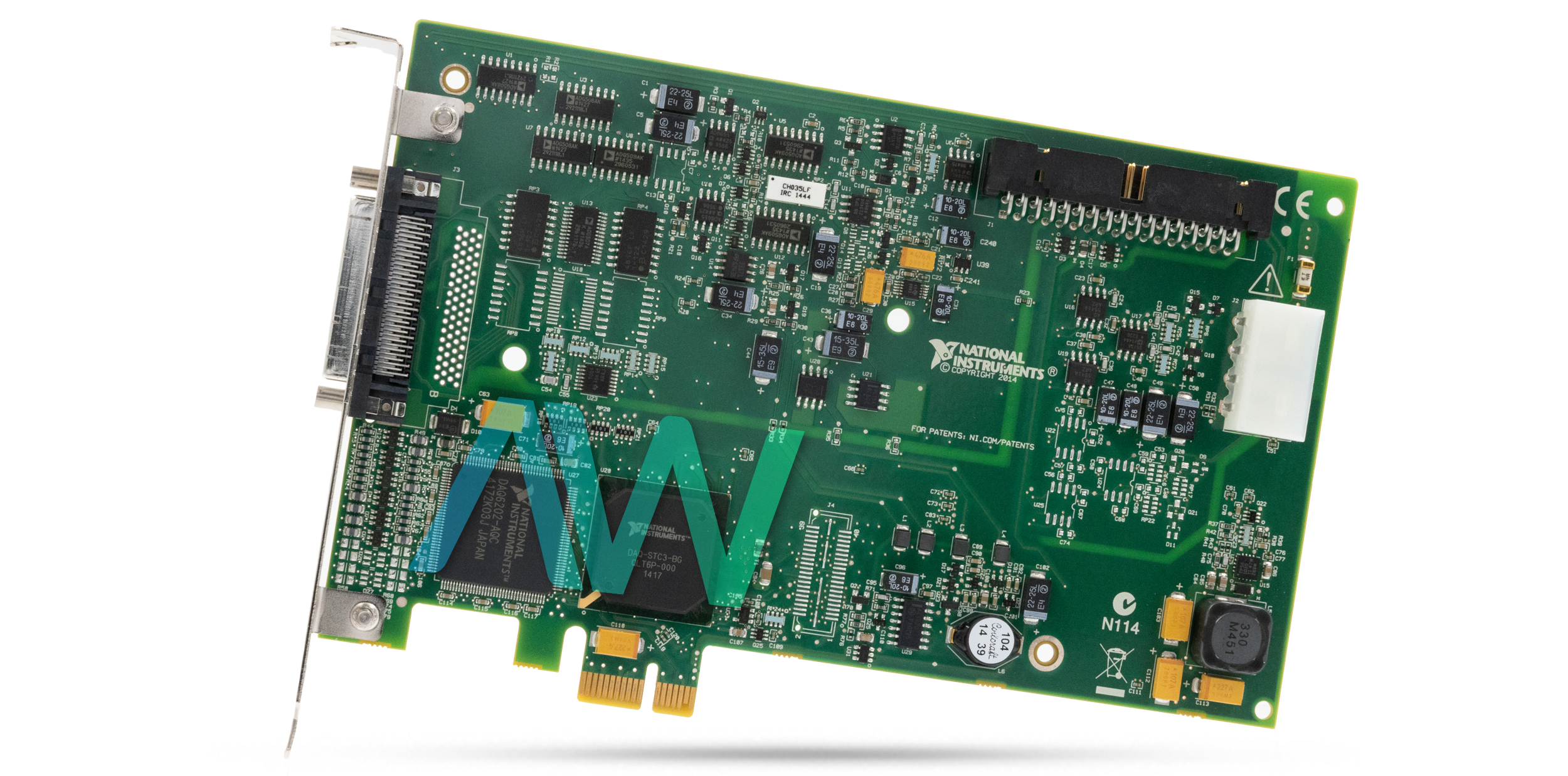

National Instruments 781046-01 PCI Express Multifunction I/O Module

National Instruments part number 781046-01 is an identifying part number for the PCIe-6341, a Multifunction I/O module. This module features 16 Analog Input Channels, 16-bit resolution and a sampling rate of 500kS/s, 2 Analog Output Channels with 900kS/s sampling rate and 24 Digital Inputs and Output Channels.

It provides analog I/O, digital I/O, and four 32-bit counters/timers for various applications, such as PWM, encoder, frequency, and event counting. With the PCI Express bus, multi-core optimized driver, and application software, this device delivers high-performance functionality. It features onboard NI‑STC3 timing and synchronization technology that offers advanced timing functionality, including independent analog and digital timing engines and retriggerable measurement tasks. The 781046-01 includes the NI‑DAQmx driver and configuration utility for simplified configuration and measurements, making it well-suited for a wide range of applications, from basic data logging to control and test automation.

The device offers 16 single-ended or 8 differential analog output channels with an ADC resolution of 16 bits. It boasts a sample rate of up to 500 kSamples per second for single channels, providing fast and accurate data acquisition. This makes it suitable for applications requiring high-speed data collection. Whether used for industrial monitoring, research, or automation tasks, the device's versatile channel configuration and high-resolution ADC ensure precise measurement across various signal types. The input coupling of the device is set to DC, ensuring direct current signal measurements. It offers multiple input ranges, including ±0.2 V, ±1 V, ±5 V, and ±10 V, providing flexibility for different voltage levels.

Additionally, this NI device has a specified maximum working voltage for analog inputs, considering both the signal and common mode voltages. This parameter is crucial for ensuring the safety and integrity of the measurement system, particularly in environments where high voltages may be present.

Part Number781046-01
Model NamePCIe-6341
Part TypeMultifunction I/O Device
Number of Input Channels16
Number of Output Channels2
Resolution16
Sampling Rate500kSPS
Input Range±0.2 V, ±1 V, ±5 V, ±10 V
Input CouplingDC
Data TransfersDMA (scatter-gather), programmed I/O


Why Buy From Apex Waves:

Apex Waves Youtube Video

"The business transaction was super easy and friendly."


"Hand carrying parts to fedex directly to make sure I get them overnight. Great service"


"They were very helpful to get me the test equipment that I need."



Delivery:
UPS, FedEX and DHL – Free Ground on all orders
Overnight, Next Day Air or Expedited shipping options available
International delivery available
Same day shipping for in-stock on location
Warranty: All of our products are covered by our Apex Waves Warranty.
3 Year Warranty - New Surplus Parts
2 Year Warranty - Refurbished Parts
Returns: No hassle return policy.
Dedicated customer service team.
Payment: Authorize.net Visa Master Card American Express BB&T Better Business Bureau Dun & Bradstreet
Quick Quotes: Receive Price & Availability Today!
Calibration: Ask About Our Tiered Calibration Levels
Option & Modules: Confirm Your Requirements or Versions
Repair: Cost & Lead Time Available Upon Request for Service
Repair Evaluation: $150
Share this page: Facebook Icon Twitter Icon LinkedIn Icon
Common Typos: 7O1046-01, 7810E6-01, 7810T6-01, 781046-0Q, 781046-0W

781046-01



Modular Systems > National Instruments > DAQCards

781046-01
5/5 | 12 ratings

781046-01, X Series, 16 Analog Input, PCIe-6341 Multifunctional Data Acquisition Device

Request for Availablility
Same Day Calibration Available
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing

Call now for best pricing
1-800-915-6216

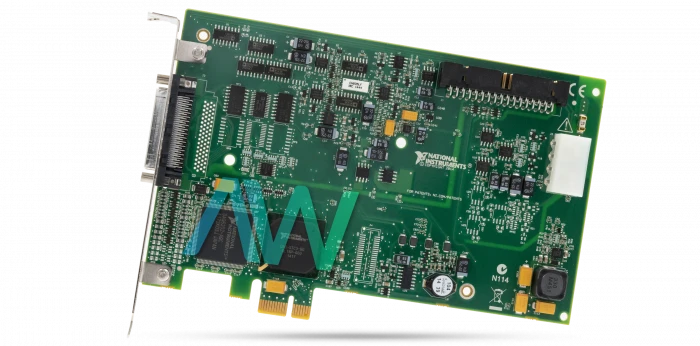

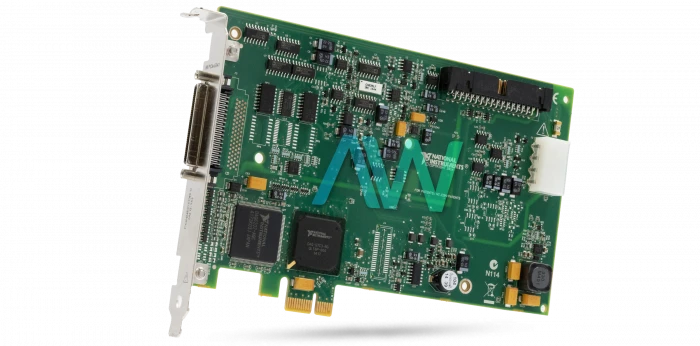

National Instruments 781046-01 PCI Express Multifunction I/O Module
