LAN-3320A
Modular Systems > Spirent > SmartBits
Description: | LAN-3320A, 2-Port, Dual Media, SmartBits TeraMetrics Module |
Need an Official Quote?
Or speak to a sales representative for additional information:

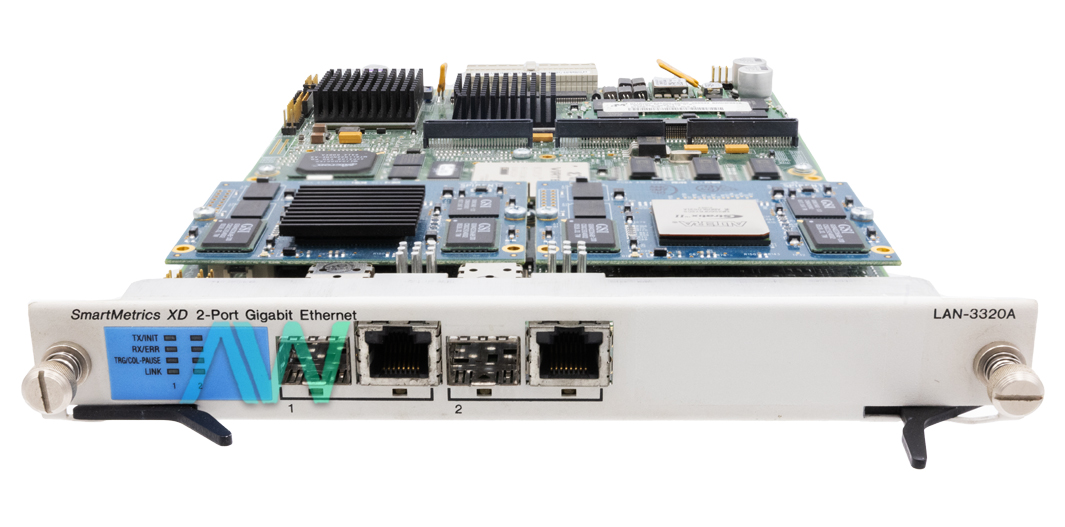

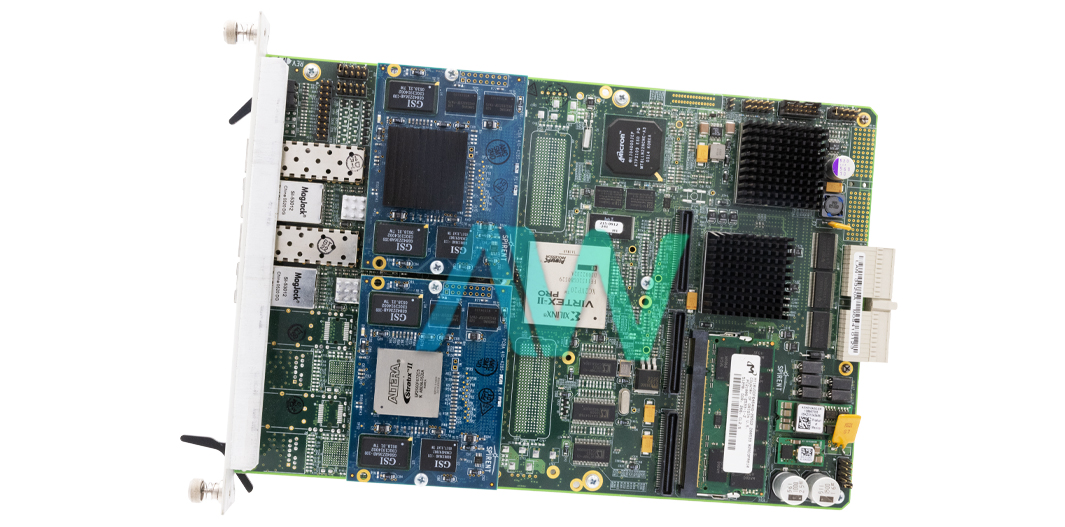

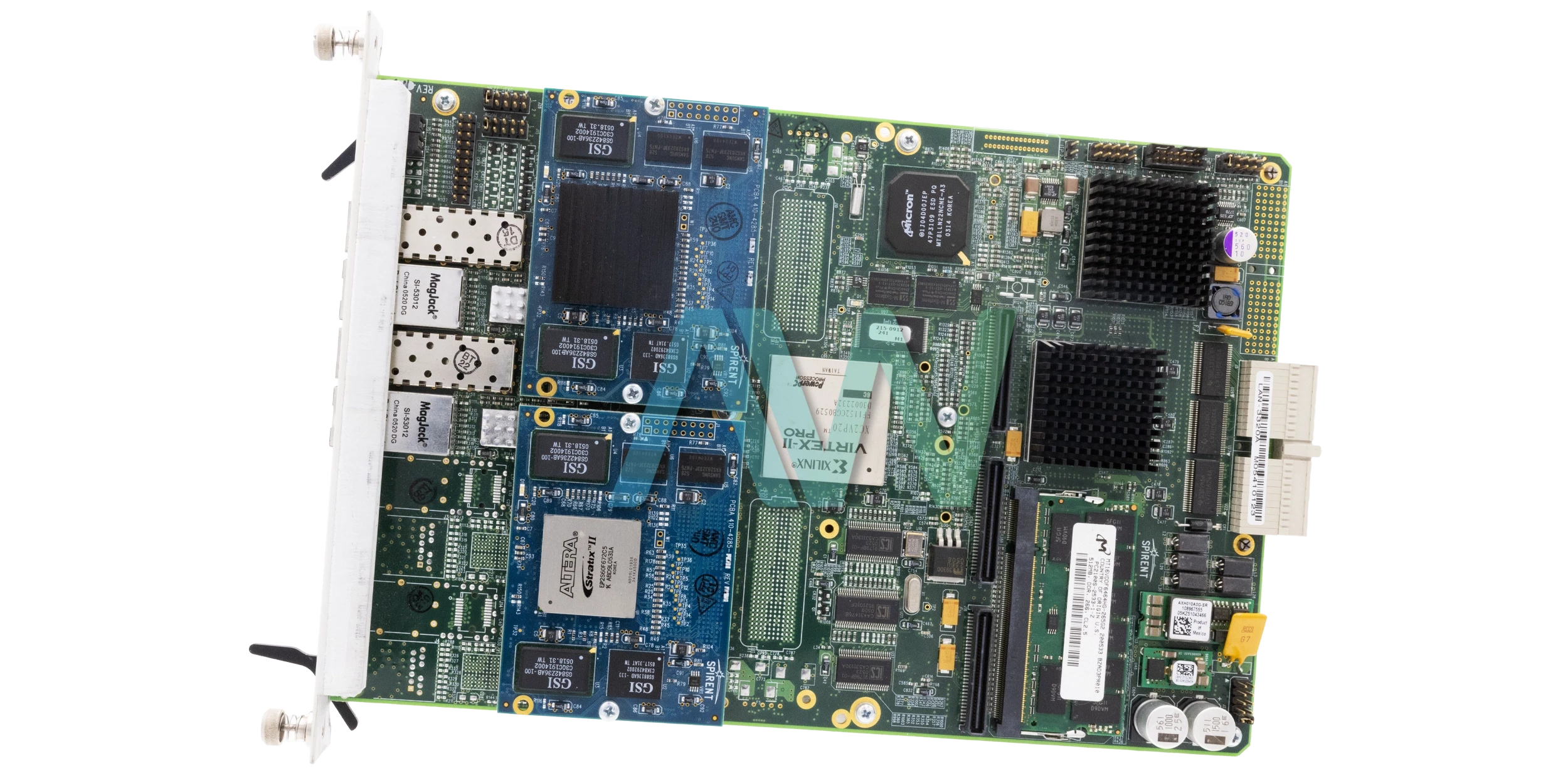

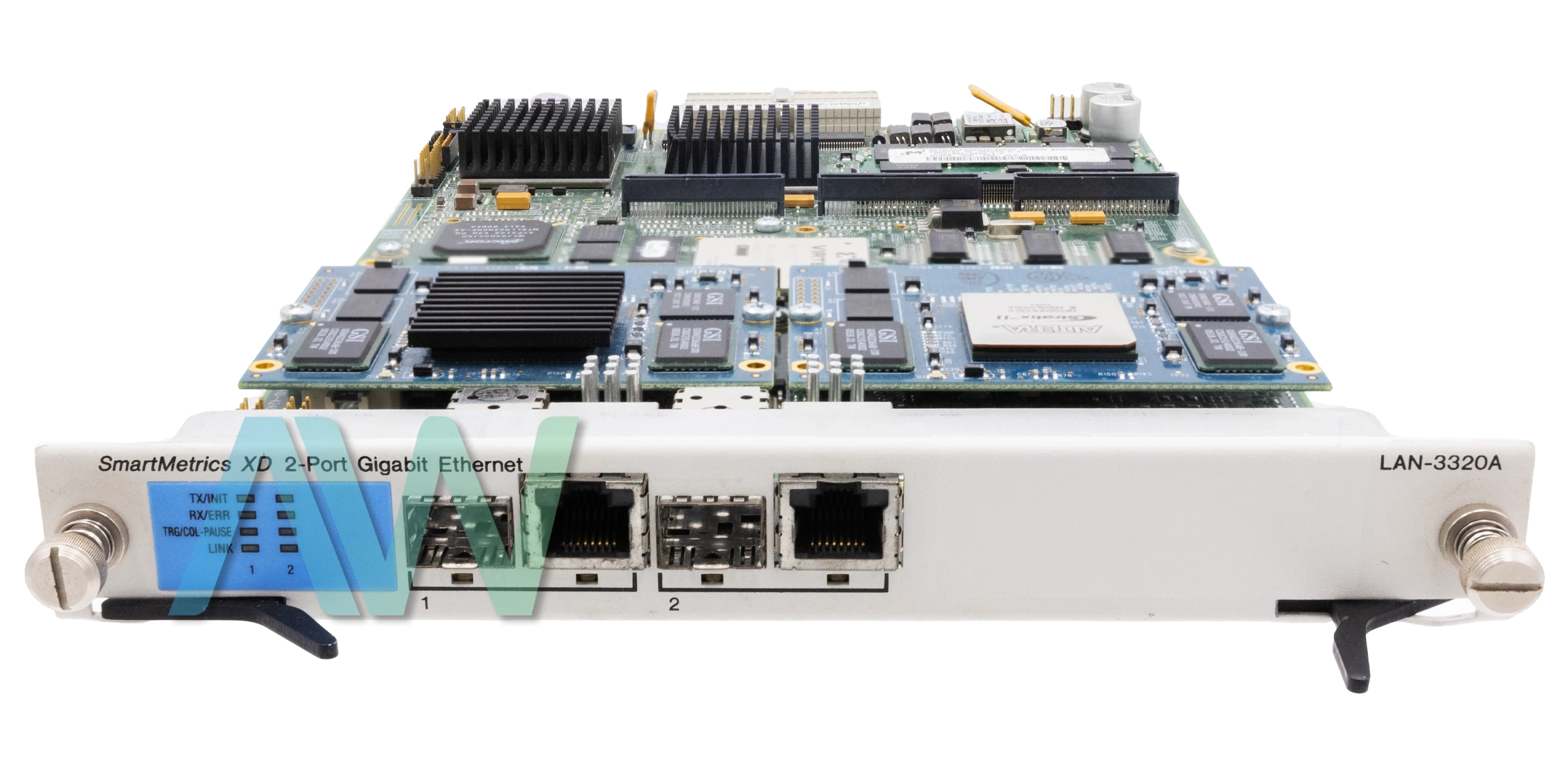

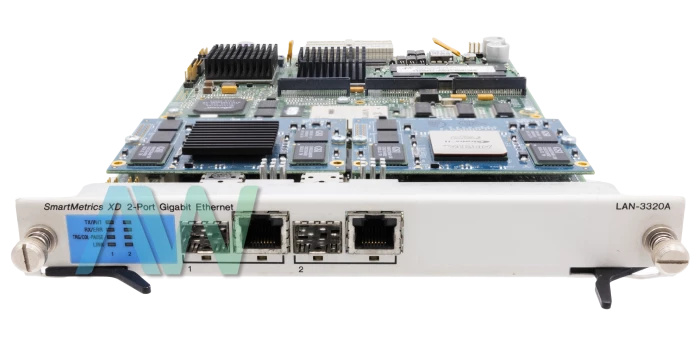

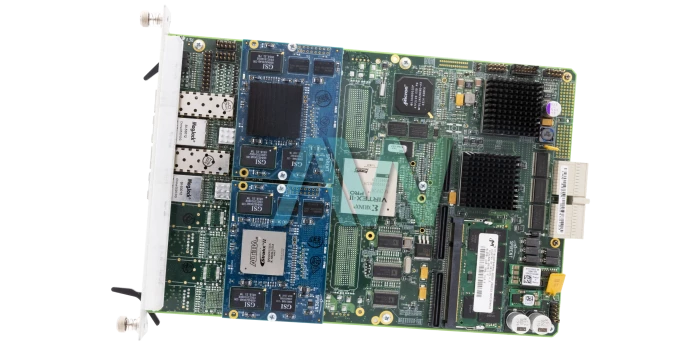

Spirent SmartBits LAN-3320A Dual Media SmartMetrics XD Module
The SmartBits LAN-3320A is a dual-media SmartMetrics Module. Spirent Communications designs the SmartBits LAN-3320A SmartMetrics Module. The Spirent SmartBits SMB-600, SmartBits SMB-600B, SmartBits SMB-6000B, and SmartBits SMB-6000C Chassis are used to house the Spirent SmartBits LAN-3320A SmartMetrics Module. The number of the SmartBits LAN-3320A modules accommodated by the abovementioned chassis is 2, 6, and 12, respectively. The Spirent SmartMetrics Modules can be connected to make a multiport system for high-scale applications. The SmartBits LAN-3320A modules can be stacked together to form an extended high-density multiport system consisting of 2 to 768 ports for industrial applications.
The SmartBits LAN-3320A module comes with 2 ports with dual media functionality. You can use each port independently as an Ethernet Gigabit Fiber port or as a conventional Ethernet port supporting 10/100/1000 Mbps line speed connection. Several protocols can be simulated simultaneously on each port of the SmartBits LAN-3320A module. This feature helps in the most realistic realization of complex routed network systems. In accordance with the IEEE standard specifications 802.3, the SmartBits LAN-3320A module supports the generation and evaluation of Ethernet traffic at full-scale line speed in Layer 2 and Layer 3 testing. Multiple transmission modes are supported by the SmartBits LAN-3320A module in both Layer 2 and 3 testing.
The SmartBits LAN-3320A module can transmit 40 to 16,384 bytes frames (fixed or user-defined) and 2,048 streams in the testing of Layer 2 and Layer 3 devices, respectively. Each port of the SmartBits LAN-3320A module is equipped with a 32 MB capture memory enabling the LAN-3320A SmartMetrics Module to perform data recording and exporting in an easy and efficient way.
Model | LAN-3320A |
---|---|
Manufacturer | Spirent Communications |
Type | Dual Media SmartMetrics Module |
Number of Ports | 2 |
Compatible Chassis | SMB-600, SMB-600B, SMB-6000B, SMB-6000C |
Duplex Operation | Half/Full |
Line Rate | 10/100/1000 Mbps |
Interface Type | 10/100/1000 Mbps or Gigabit Ethernet Fiber |
Layer 2 Transmission | 40 – 16,384 bytes Frames |
Layer 3 Transmission | 2,048 Streams |
Capture Buffer Size | 32 MB per port |
Warranty | 2-3 Year Warranty |
LAN-3320A User Manual | User Manual and Maintenance Manual Available for Download |
Price | Contact a sales representative for a quote. |
