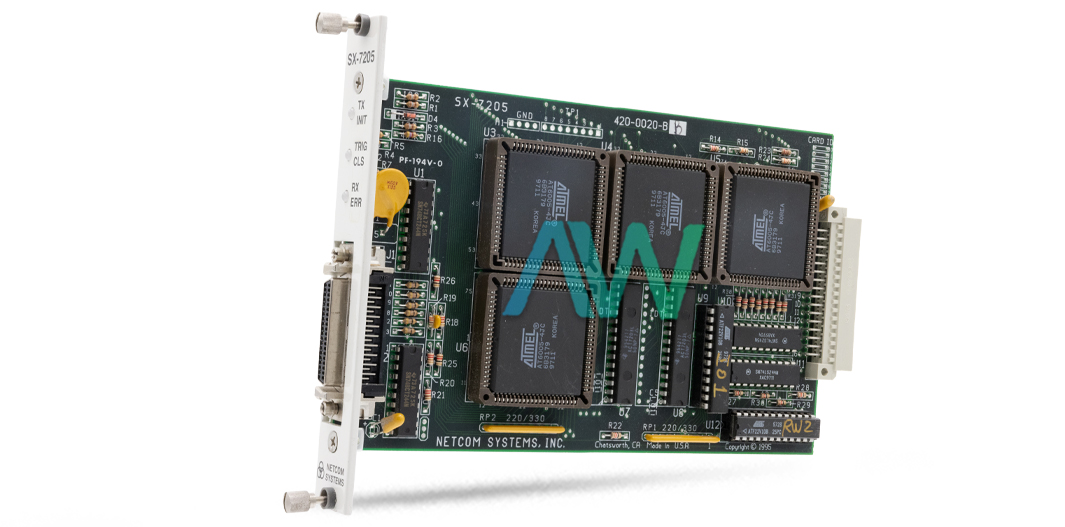

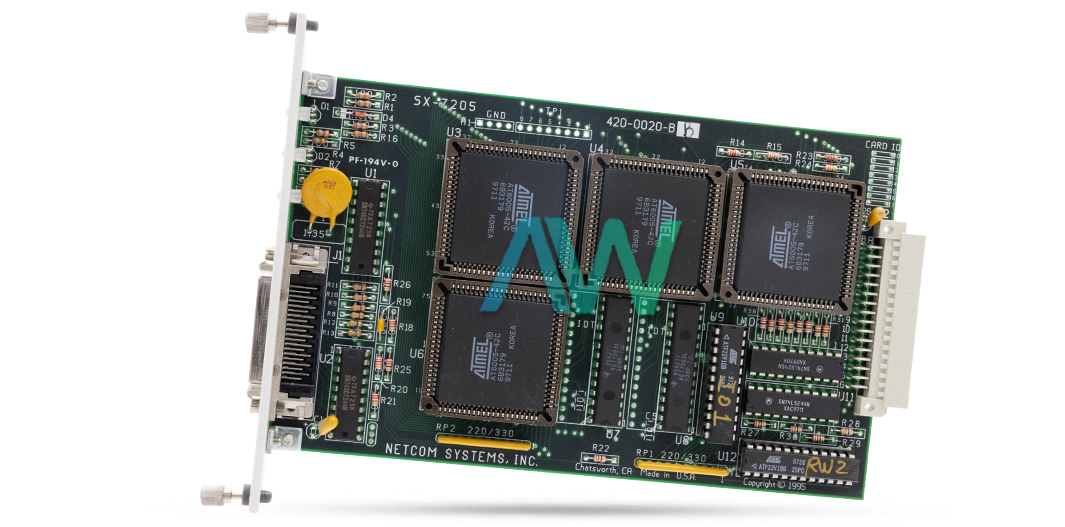

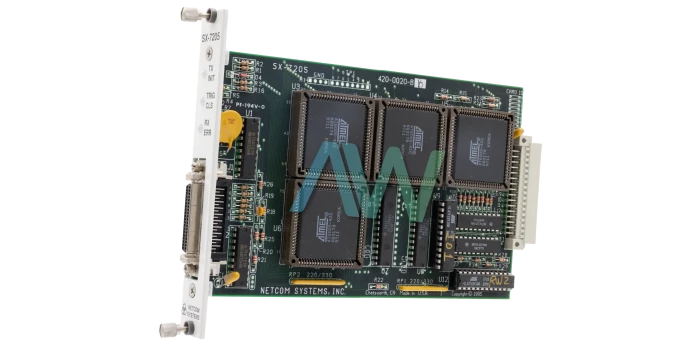

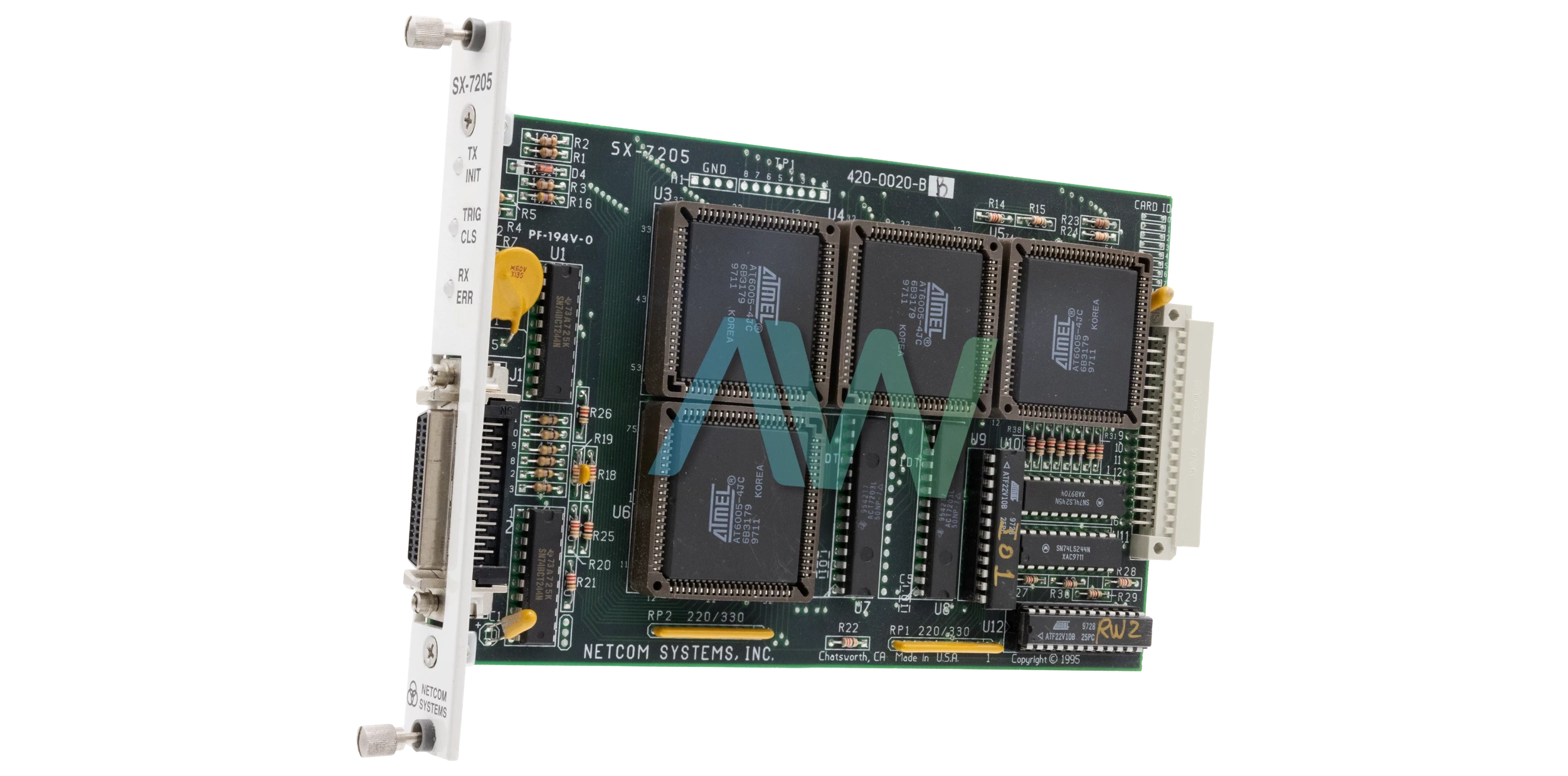

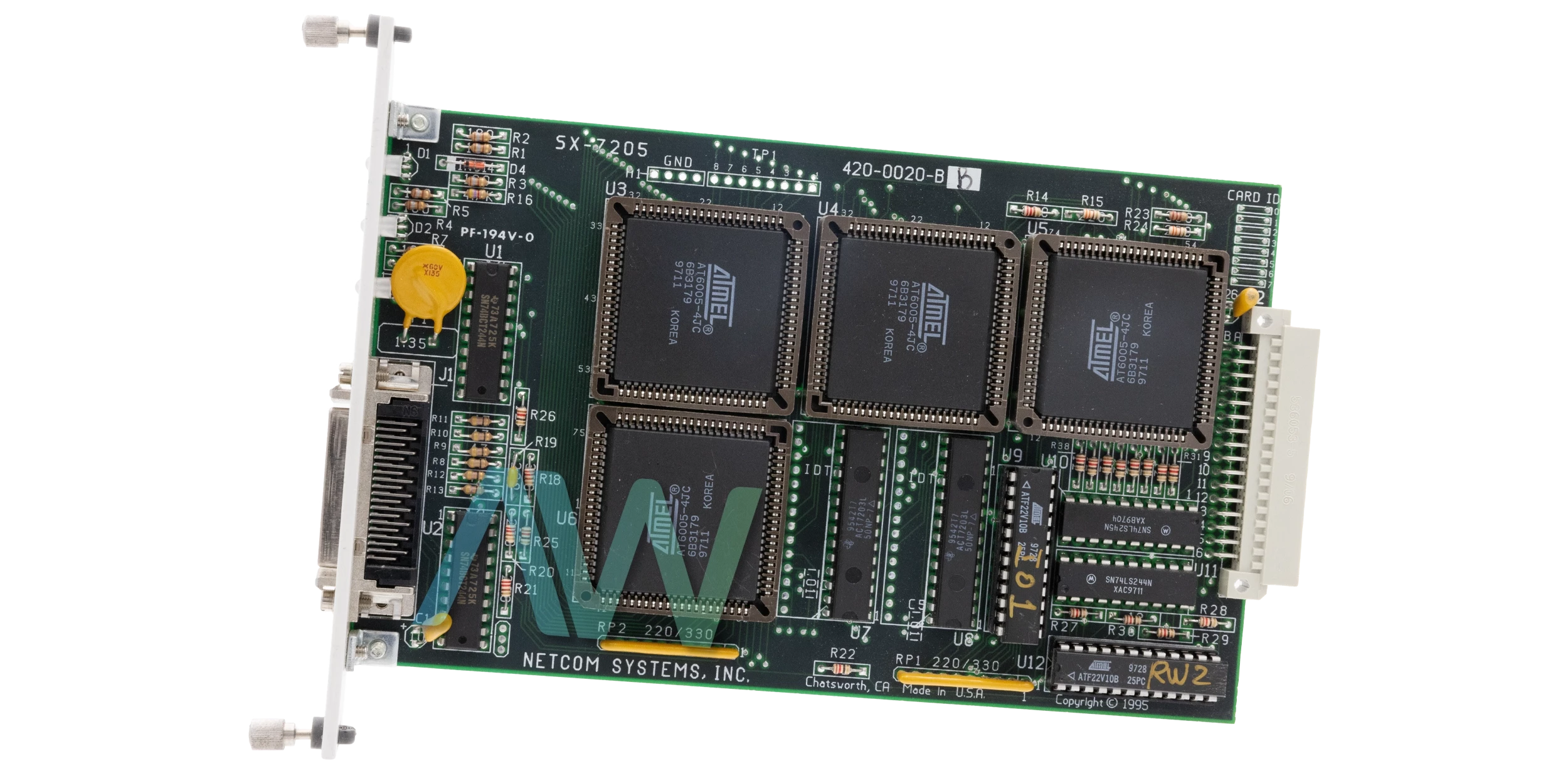

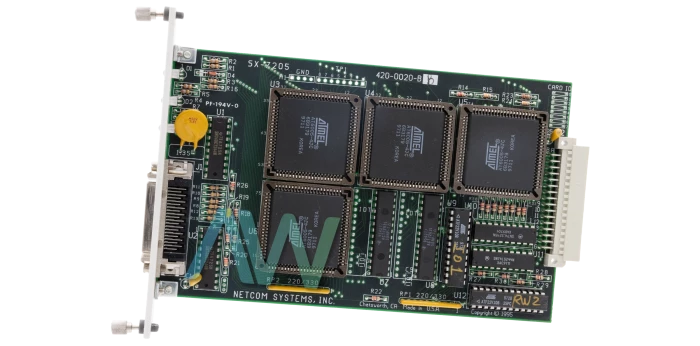

Spirent SX-7205 100Base-T MII SmartCard
The Spirent SX-7205 100Base-T MII SmartCard is a single-port Ethernet SmartCard operating at 100 Mbps, designed for use in the SMB-200 and SMB-2000 chassis. With industrial automation, networking, and telecommunications in mind, the SX-7205 gives high-accuracy testing and analysis of network deployments and configurations. The SX-7205 is well-suited for packet-based performance testing, which enables throughput and latency measurements with high accuracy, which is important for benchmarking Ethernet devices and network backbones.
The SX-7205 is fitted with a 100Base-T MII (Media Independent Interface) port and supports a number of key testing applications, including SmartWindow, SmartLib, SmartApplications, and AST. These applications support the SX-7205 in performance, conformance, and interoperability testing, ensuring that network components perform to-or exceed-rigorous industry standards. The SX-7205 SmartCard also enables packet generation to simulate traffic, whereby thorough testing of network infrastructure behavior under a variety of load conditions can be achieved.
The SX-7205 belongs to the SX-7000 series, which is highly noted for its multiple SmartCard types that fit into it for scalable operations across a wide range of test needs. It also has an MII port for standard 100Base-T operations, but the SX-7205 operates with an external transceiver coupled with the SX-7210 module. This makes this interface option truly versatile, offering adaptability in complex network configurations. That makes the SX-7205 fit perfectly within varied testing situations, which call for operation in advanced network conditions.
The SX-7205 occupies one slot in an SMB chassis and links applications with up to 128,000 bytes of packet data capture for in-depth network performance and bottleneck analysis. In fact, data capture capability lies at the very heart of the SX-7205 and plays a very important role in improving network reliability and efficiency in industrial and commercial applications.
With high specification, the SX-7205 provides high-powered performance metrics in a modular design and is a trusted staple of network engineers and technicians alike. With continuing interface and dedicated functionality, the SX-7205 supports accurate, repeatable testing to ensure solid, efficient network systems. The SX-7205 is very important in developing, deploying, and maintaining security or reliability in network systems, considering it is modular and has high testing accuracy.
| Model | SX-7205 |
|---|---|
| Type | 100Base-T MII SmartCard |
| Port Configuration | Single MII port |
| Supported Speed | 100 Mbps |
| Compatibility | SMB-200 & SMB-2000 chassis |
| Supported Applications | SmartWindow, SmartLib, AST |
| Packet Data Capture | 128KB |
| Traffic Simulation | Packet-based generation |
| Modularity | One slot per card |
| Interface Expansion | External transceiver with SX-7210 |
