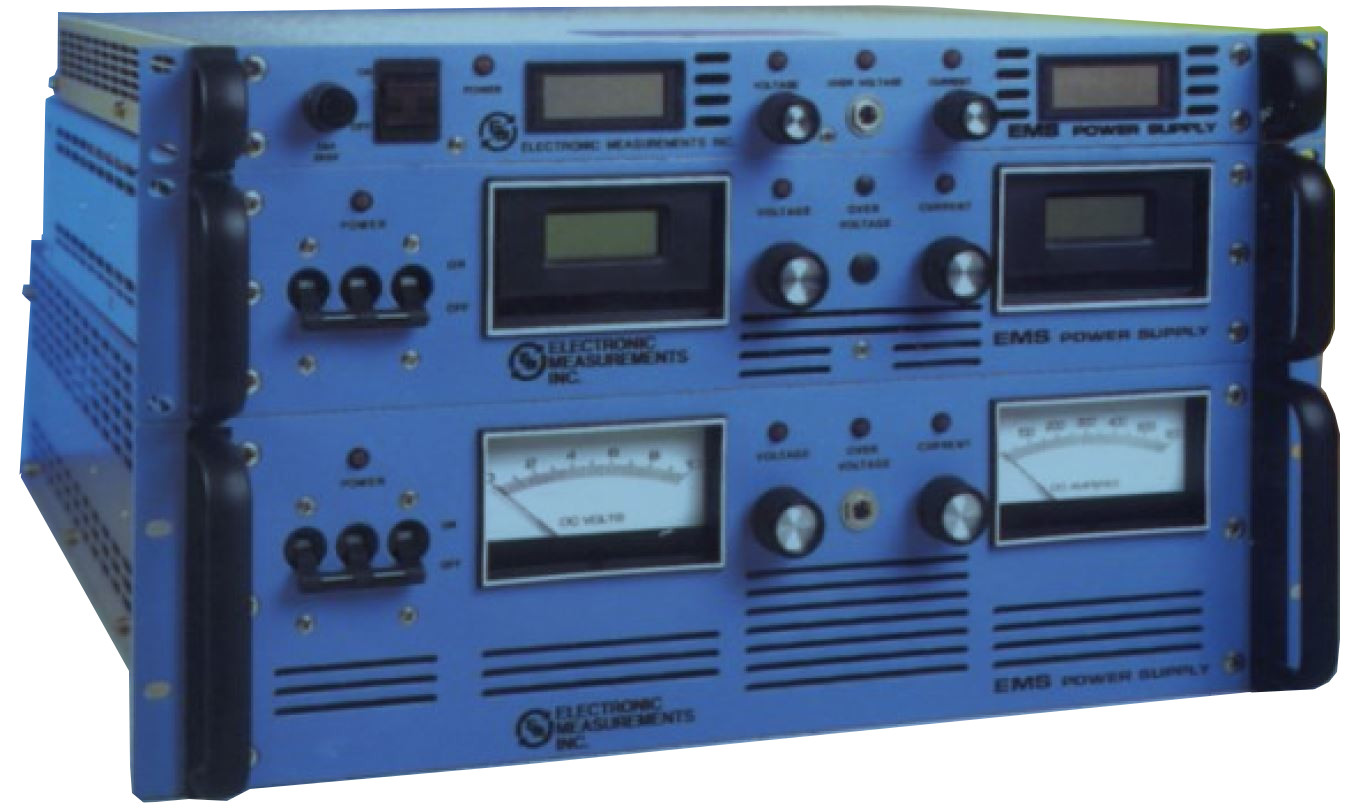

TDK Lambda EMS 30-33 Power Supply
With the TDK Lambda EMS 30-33 Power Supply, the user could provide full rated current and voltage in the nominal ambient air temperature. To reach this maximum rating, the air flow has internal fans, furnished and guided by chassis openings and internal partitions. It is helpful to not block the air openings in the upper part of the supply.
The EMS 30-33 has a rated power of 1000 watts, an output voltage between 0 to 30 V, an output current between 0 to 33, an output ripple of 75 mV, regulation of 0.1%, stability of 0.05%, transient response of 650 microseconds for 30% load change, and an operating temperature between 0 to 50 degrees. This unit incorporates different phases related to the air entry. During phase 3, air enters the unit on the right-hand side at the area of the fans and may be exchanged through the supply through a horizontal direction toward the left. Airflow may be lessened any time there is a negative pressure at the air inlet or positive pressure at the air outlet. On phase 1 of TCR power supplies, air enters the sides of the power supply and is debilitated out the rear. On this model, air enters the unit by means of slots in the front board and along the sides, and exits fundamentally from the rear. The same airflow considerations as previously discussed are still applicable.
If you are interested in this model, and you want to learn more about its features, specifications, and options, you can check its manual, which is available on the ApexWaves.com website.
| Model | EMS 30-33 |
|---|---|
| Manufacturer | TDK Lambda |
| Series | EMS |
| Type | DC Power Supply |
| Output Voltage | 0 to 30 V |
| Output Current | 0 to 33 A |
| Output Power Rating | 1000 Watts |
| EMS 30-33 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
