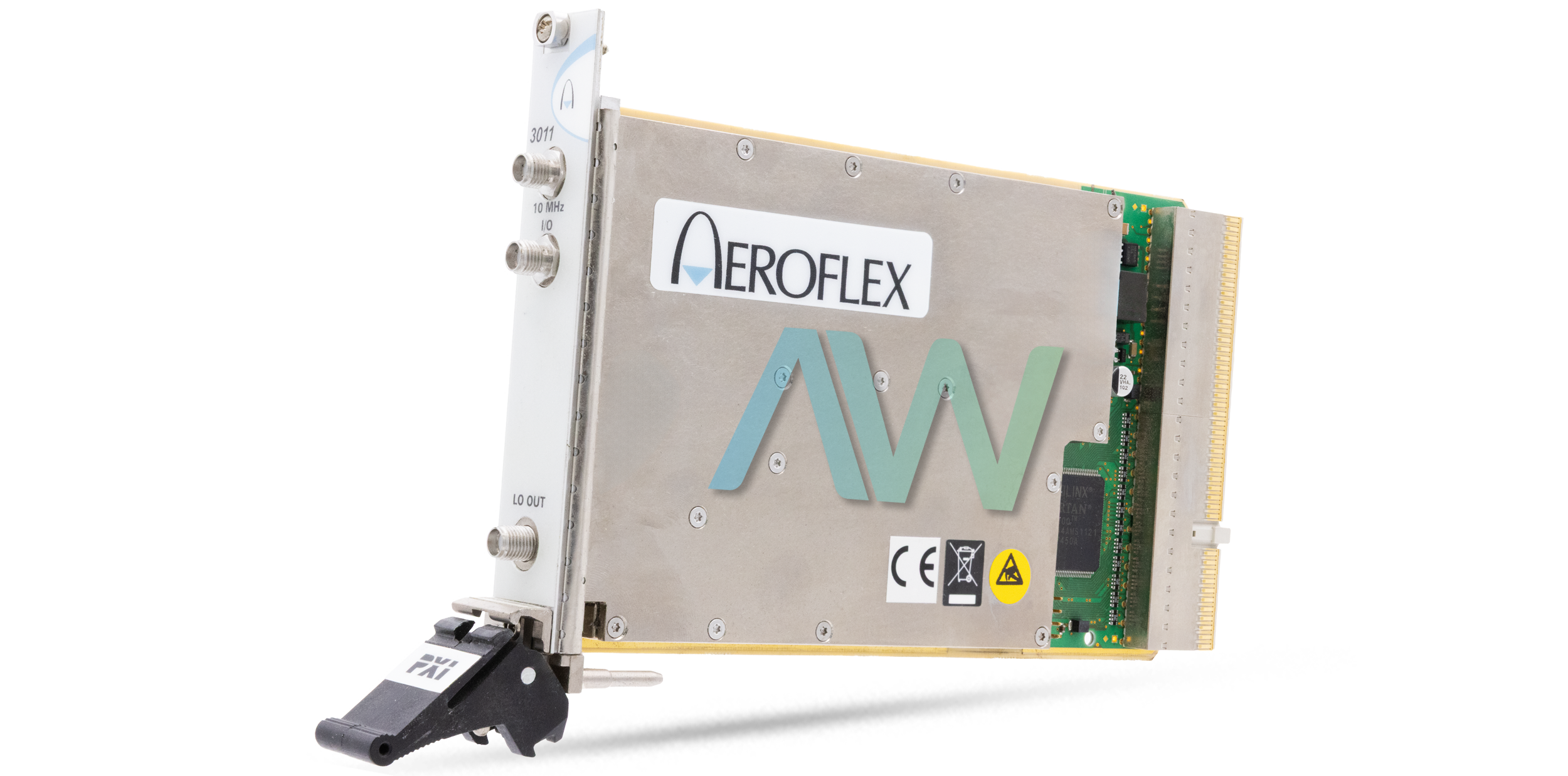

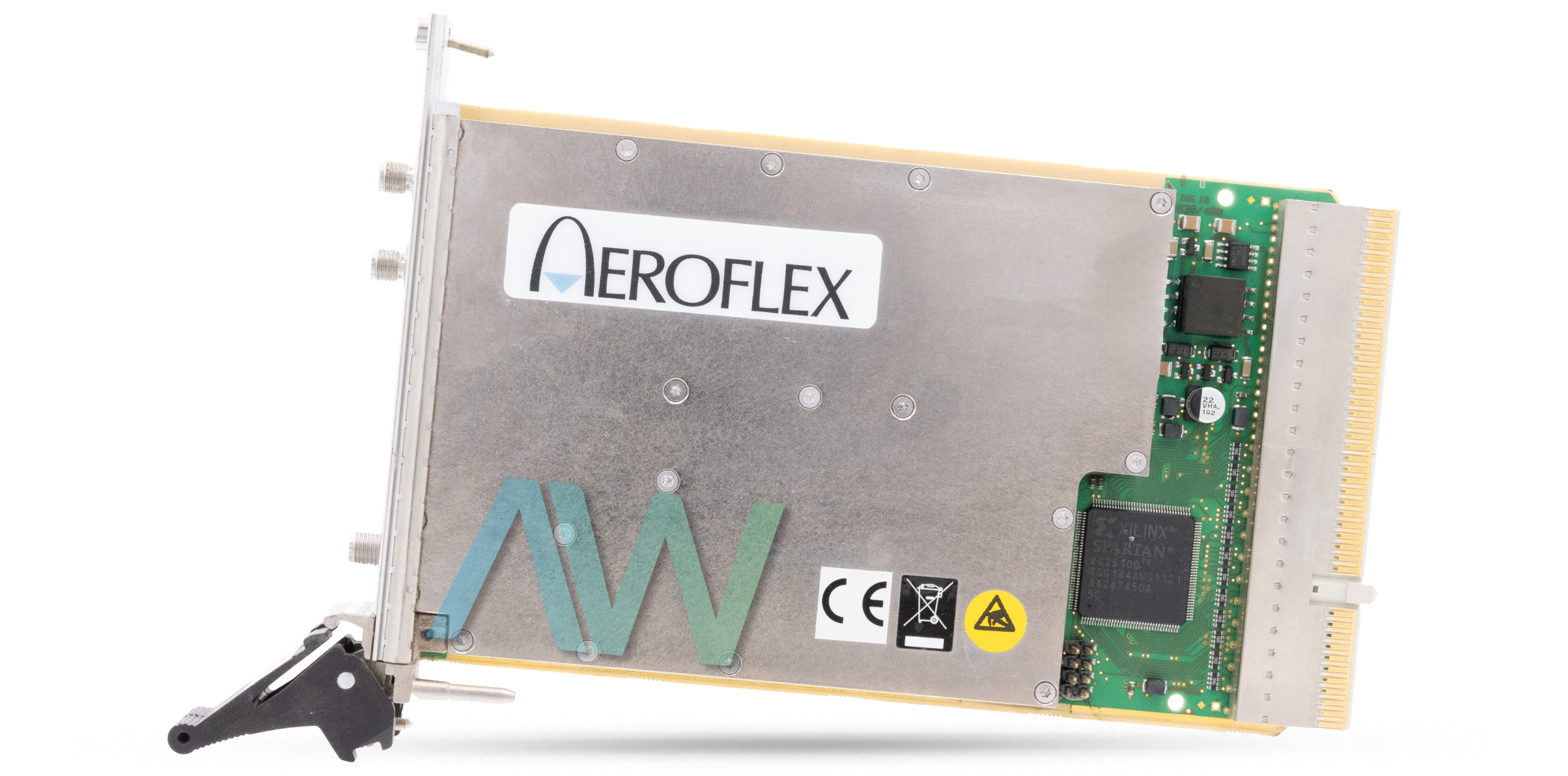

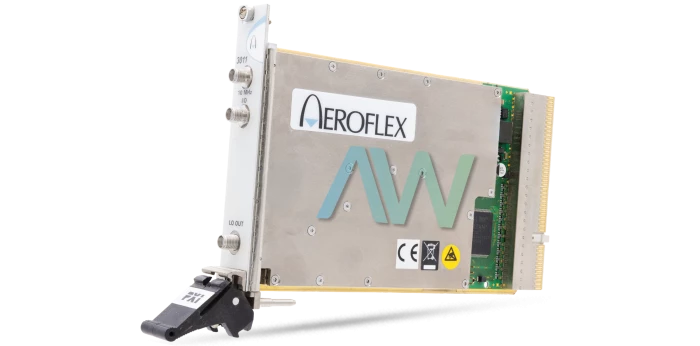

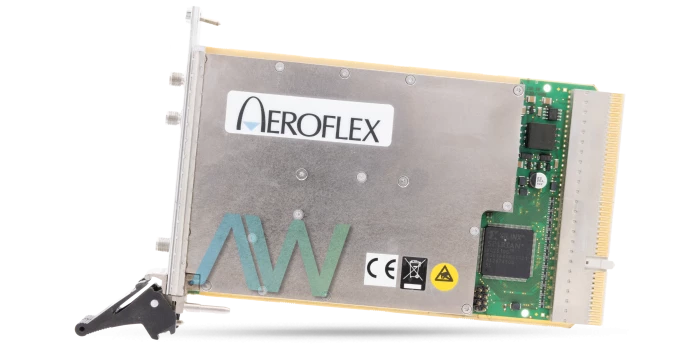

Aeroflex 3011 Synthesized Signal Generator
The Aeroflex 3011 Synthesized Signal Generator is a PXI RF source for automation test environments. It provides a frequency range from 1.5 GHz to 3.0 GHz with 1 Hz resolution steps for precision. This synthesized signal generator provides fixed levels between -4 and +3 dBm. The 50 Ohm output with VSWR below 2 to 1 maintains controlled matching into precision test loads reliably. This signal generator integrates low phase noise architecture for stringent industrial and communications measurements applications. At 2 GHz it achieves typically -116 dB/Hz at 20 kHz offset performance. Its selectable loop bandwidth modes support optimization for low close in phase noise or wider offset performance flexibility requirements and its defined spectral characteristics support deployment as a stable local oscillator within complex modular RF test systems architecture designs.
The Aeroflex 3011 module incorporates an OCXO based 10 MHz reference that secures long term frequency accuracy performance standards. Its typical aging performance is one part in ten to the nine per day supporting repeatable calibrated measurements stability. A dedicated 10 MHz reference output supports distribution to companion PXI instruments requiring coherent system timing alignment capability. External reference capability allows locking the Aeroflex 3011 Synthesized Signal Generator to laboratory 10 MHz standards infrastructure directly. Its reference input accepts 0.4 V signals over 50 Ohms or loop through connections. The permitted frequency offset of 100 Hz preserves phase lock and maintains specified output performance margins.
The Aeroflex 3011 comes with fast frequency settling that enables efficient swept testing and agile frequency hopping profiles within automated manufacturing environments operations consistently. The normal bandwidth operation of this module provides settling of 1.1 ms within 1 kHz of target frequency response. Due to built-in high-speed switching option the settling time of the unit reduces to 255 micro-s for rapid retuning. A narrow bandwidth mode offers superior noise performance while maintaining settling below 10 ms for specialized evaluations tasks. The synthesized signal generator can be installed into a standard modular chassis due to its single width three-unit PXI format. Its front panel SMA connectors provide RF output plus dual 10 MHz reference input and output terminations for synchronization. The unit’s compliance with EN 61326 electromagnetic compatibility and EN 61010 safety standards allows global regulated industrial automation installations. Its mechanical environmental and vibration specifications confirm suitability for reliable long-term operation in critical automated test systems deployments.
| Model | Aeroflex 3011 |
|---|---|
| Model Name | Aeroflex 3011 |
| Manufacturer | Aeroflex |
| Part Type | Synthesized Signal Generator |
| Frequency Range | 1.5 GHz – 3.0 GHz |
| Resolution | 1 Hz |
| Output Impedance | 50 Ω nominal |
| Warm-Up Time | < 5 minutes |
| Storage Humidity | 5–93% non-condensing |
| Shock | 30 g peak, 9 ms half-sine pulse |
| VXI Plug & Play Specs | VPP-2, VPP-3.x, VPP-4.x, VPP-7 |
