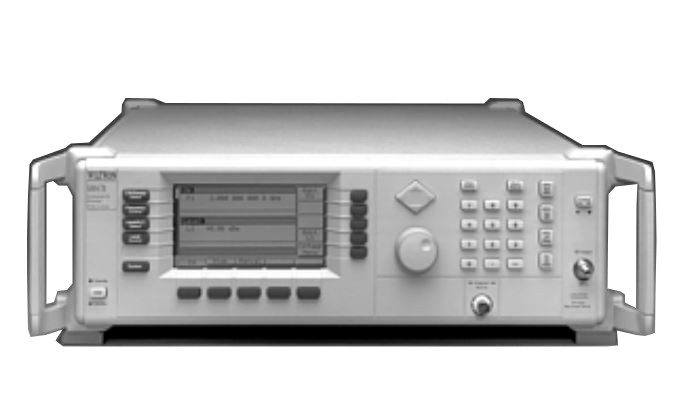

Anritsu 68063B Signal Generator
The 68063B is an electronic Signal Generator designed by Anritsu. The 68063B Signal Generator comes in the frequency range of 2 GHz to 40 GHz. It has the capability to offer different output power at different frequencies. This signal generator is the complete package in terms of features it offers. It is the fundamental measurement instrument for use in laboratory or industry. It provides best measurement options and solution in the communication industry. The user can simulate the simplest and most complex signal with 68063B. It also has vast applications in telecom and defense industry.
The 68063B Signal Generator consists of different subsystems. These subsystems combine to provide digital control and front panel control. It also provides the mechanism for frequency synthesis. The digital control is achieved by the combination of different central processing units. These CPUs are interfaced with one another through PCBs. They provide direct or indirect control of all functions of the instrument. It also has the GPIB interface, which allows the 68063B Signal Generator to communicate with external devices. The subsystem for front panel interfaces the LCD, LEDs, and keys to the menu.
The 68063B also incorporates the internal generator for amplitude modulation. It is capable of generating different types of waveforms, which include sinusoid, square, triangle, positive and negative ramp and user defined waveforms. The frequency rate for the sinusoidal waveform is of the order of 0.1 Hz to 1 megahertz. It is 0.1 Hz to 100 kilohertz for square, triangle and ramp waveforms. It offers the BNC connector at rear panel for the output. These amazing capabilities make it the best choice by engineers for design applications. The user and maintenance manual contains the detailed information about features of the 68063B on the apexwaves.com website.
| Model | 68063B |
|---|---|
| Manufacturer | Anritsu ã‚¢ãƒ³ãƒªãƒ„æ ªå¼ä¼šç¤¾ |
| Series | 680XXB |
| Type | Signal Generator |
| Frequency Range | 2 to 40 GHz |
| Output Power | +9 dBm |
| Dimensions | 5.25 (H) x 16.875 (W) x 23.5 (D) inches |
| Weight | 50 pounds |
| 68063B Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
