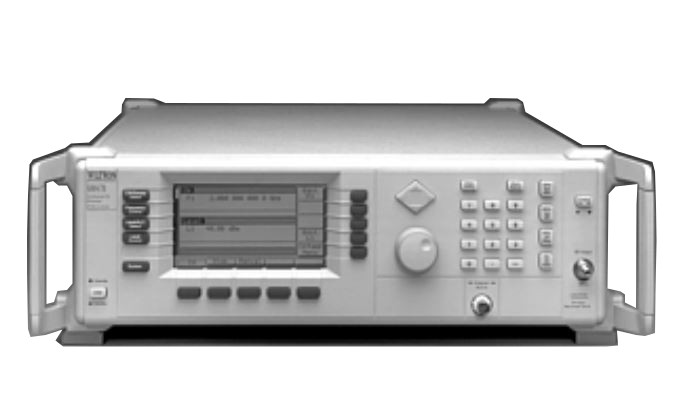

Anritsu Wiltron Synthesized CW Generator weighs 50 lbs.
Actual item may vary if no part number is provided on quote request.
✔ 2 Year Warranty Included
✔ Free Domestic Ground Shipping
✔ NIST Calibration Available
Andrew Gar**** Verified Buyer
" Amazing to work with and had my order within 1 week after purchasing with all NI certs and data that were needed. "
March 2025
Said Sai**** Verified Buyer
" Competent contact for highly specialized components. The support team is very knowledgeable. Many thanks for the help and the fast shipping! "
January 2025
Bob C**** Verified Buyer
" Jason was able to get our emergency situation taken care of quickly and professionally. "
May 2025
Gregg Flecki**** Verified Buyer
" Great service and great products. This is my 2nd time using Apex Waves, truly impressed. "
January 2025
Carol Zimme**** Verified Buyer
" Very responsive and helpful, competitive pricing. Good source! "
July 2025
Andrew Gar**** Verified Buyer
" Amazing to work with and had my order within 1 week after purchasing with all NI certs and data that were needed. "
March 2025
Said Sai**** Verified Buyer
" Competent contact for highly specialized components. The support team is very knowledgeable. Many thanks for the help and the fast shipping! "
January 2025
Bob C**** Verified Buyer
" Jason was able to get our emergency situation taken care of quickly and professionally. "
May 2025
Gregg Flecki**** Verified Buyer
" Great service and great products. This is my 2nd time using Apex Waves, truly impressed. "
January 2025
Anritsu Synthesized Signal Generator 68097B
The 68097B is a signal source that offers outstanding capabilities to the users. It provides a lot of control options and mechanisms. The Anritsu 68097B has a high frequency range of 65 GHz and a low frequency range of 0.01 GHz. It implements the mechanism to generate cost effective signals for R&D requirements. This Anritsu Signal Generator provides the right synthesizers and signal simulation for components analysis.
The Anritsu 68097B Signal Generator offers exceptional features and applications. The device provides phase locked step sweep modes. This step sweep mode provides an independent step sweep selection of 1 KHz to full range. The number of steps varies from 1 to 10000. The switching time for step sweep mode is < 15 ms + 1 ms /GHz or < 40 ms. It enables the phase locked setting of frequency between speed limits. The dwell time per step varies from 1 ms to 99 seconds.
The Anritsu 68097B provides high power output and high stability time base. It also comes with the easy to upgrade features. This helps to accommodate higher frequency and enhanced product performance. The Anritsu 68097B Signal Generator also offers different markers. It has video and intensity markers. The video markers give + 5V 0r -5V selectable marker output. It has AUX I/O connector and rear panel. It also offers the operation in secure mode. The 68097B output power varies with the frequency range. It provides the variable power range between –2.0 dBm to +12.0 dBm.
| Model | 68097B |
|---|---|
| Manufacturer | Anritsu ã‚¢ãƒ³ãƒªãƒ„æ ªå¼ä¼šç¤¾ |
| Series | 680XXB |
| Type | Signal Generator |
| Frequency Range | 0.01 to 65 GHz |
| Output Power | +12 dBm |
| Dimensions | 5.25 (H) x 16.875 (W) x 23.5 (D) inches |
| Weight | 50 pounds |
| 68097B Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
