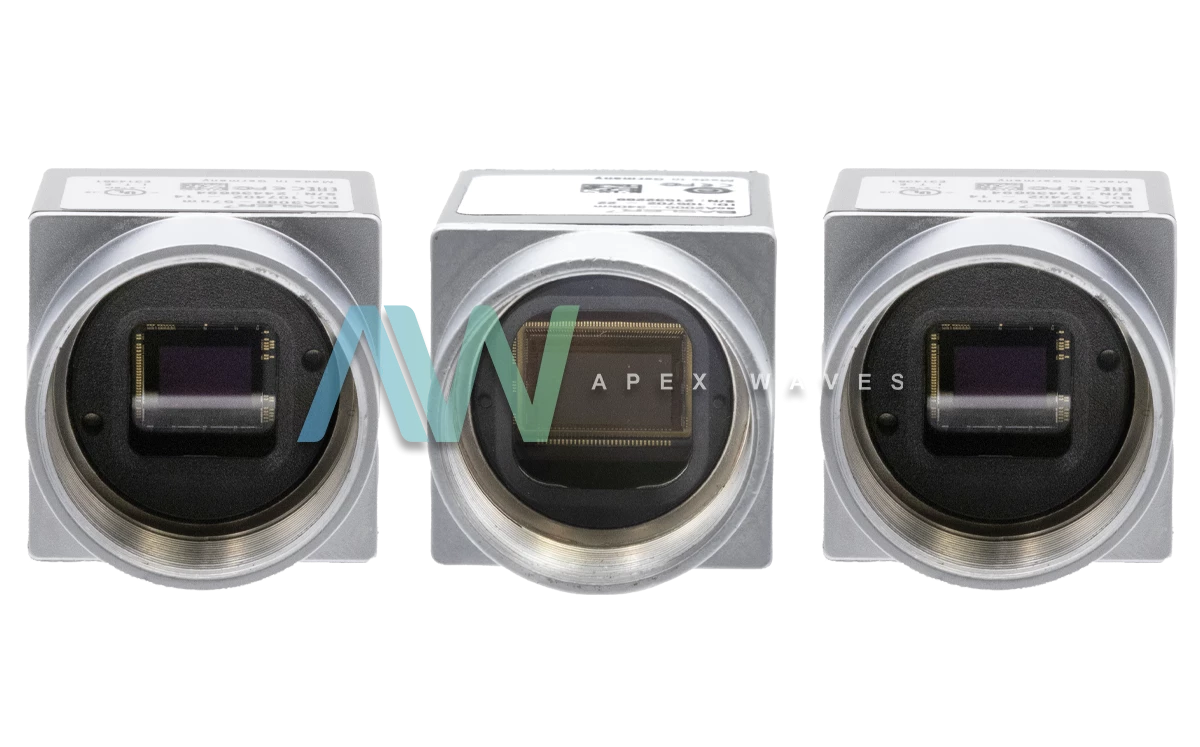

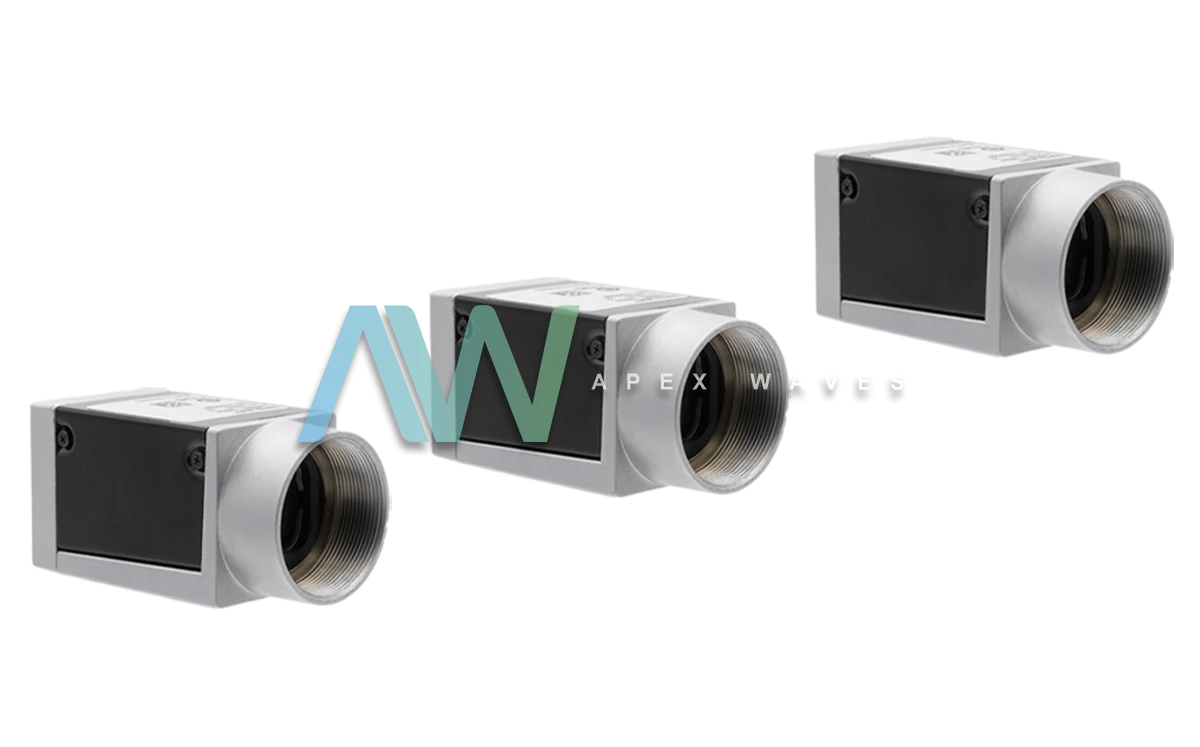

NI acA1920-150um Area Scan Camera
The acA1920-150um, an Area Scan Camera developed by NI, is an efficient device for scanning applications. The customers can get the acA1920-150um camera with the NI part number 784554-01. In addition to the necessary basic scanning functions, the key features of the acA1920-150um camera are easy interfacing, fast speed, promising results, and reliable performance. The National Instruments acA1920-150um high-performance Area Scan Camera is capable of capturing first-class pictures with no dependency on any extra processor load.
The National Instruments acA1920-150um Area Scan Camera belongs to the Basler Ace USB products group. Due to the fast and easy interface, small housing, low weight, and flexibility of method of synchronization, (free-run, hardware or software controlled), the NI acA1920-150um Basler Ace Camera stands out as a competent device in the area of vision applications. The acA1920-150um Area Scan Camera features robust hardware, containing a state-of-the-art 2/3” size PYTHON 2000 optical sensor for eye-catching image results. With the power consumption as low as 4.2 W, the acA1920-150um Area Scan Camera develops high resolution 2.3 MP images with the pixel resolution of 1920 x 1200. The frame rate of the acA1920-150um is 150 fps.
The NI acA1920-150um Area Scan Camera is a monochromatic camera featuring a USB3 Vision camera interface. Moreover, 1 digital input, 1 digital output, and 2 GPIO ports are provided in the interface of the acA1920-150um Area Scan Camera. The GPIO ports are flexible to be configured as either input or output ports. Windows, Linux, and MacOS are compatible with the National Instruments acA1920-150um Area Scan Camera.
| Model | acA1920-150um |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 784554-01 |
| Type | Area Scan Camera |
| Camera Interface Type | USB3 Vision |
| Camera Sensor | PYTHON 2000 |
| Image Sensor Color | Monochrome |
| Shutter Type | Global |
| Resolution | 2.3 MP |
| Pixel Size | 4.8 |
| Weight | 1 lb. |
| acA1440-73gc Manual | User Manual and Maintenance Manual Available for Download |
| Pricing | Contact a Sales Representative for a quote. |
