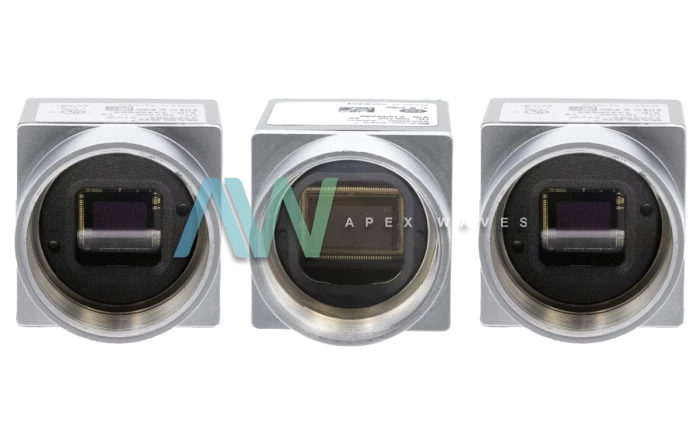

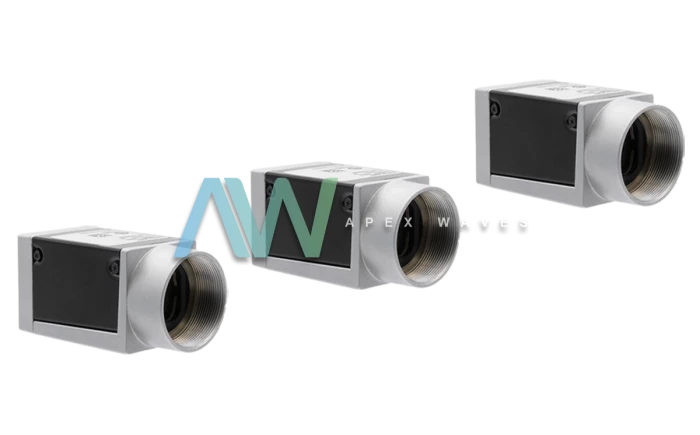

NI acA1920-40gm Area Scan Camera
The acA1920-40gm is a Basler Area Scan Camera. The acA1920-40gm is created by National Instruments. The NI acA1920-40gm can be ordered with the part number 785902-01. The acA1920-40gm is a family member of the Basler Area Scan Camera series. The acA1920-40gm is linked with computers through the Pylon Software Suite. Operating systems such as Windows, Linux, and Mac are compatible with the NI acA1920-40gm Area Scan Camera. The National Instruments acA1920-40gm is a high-performance Area Scan Camera in a compact size, weighing less than 1 lb.
The NI acA1920-40gm Area Scan Camera has the same features as the acA1920-40gc, except for the color capability in the image sensor. The acA1920-40gm features a monochrome image sensor rather than a colored one. The NI acA1920-40gm has the capability to take a two-dimensional image in a single exposure cycle. The acA1920-40gm Area Scan Camera is equipped with an IMX249 camera sensor. The NI acA1920-40gm also utilizes a GigE Vision camera interface. The acA1920-40gm Area Scan Camera provides high-class images using high resolution. The NI acA1920-40gm Basler Area Scan Camera comes with 1920 x 1200 resolution.
The National Instruments acA1920-40gm is mounted with a C lens. The acA1920-40gm is built with a pixel size of 5.86 μm2. The NI acA1920-40gm Area Scan Camera has a power consumption of 3.4/3.1 Watt. The acA1920-40gm includes a single opto-isolated input and a single opto-isolated output. The NI acA1920-40gm additionally features a single GPIO. The NI acA1920-40gm Area Scan Camera is built with a global shutter.
| Model | acA1920-40gm |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 785902-01 |
| Type | Area Scan Camera |
| Camera Interface Type | GigE Vision |
| Camera Sensor | IMX249 |
| Image Sensor Color | Monochrome |
| Shutter Type | Global |
| Resolution | 2.3 MP |
| Pixel Size | 5.86 |
| Weight | 1 lb. |
| Warranty | 2-3 Year Warranty |
| acA1920-40gm Manual | User Manual and Maintenance Manual Available for Download |
| Pricing | Contact a Sales Representative for a quote. |
