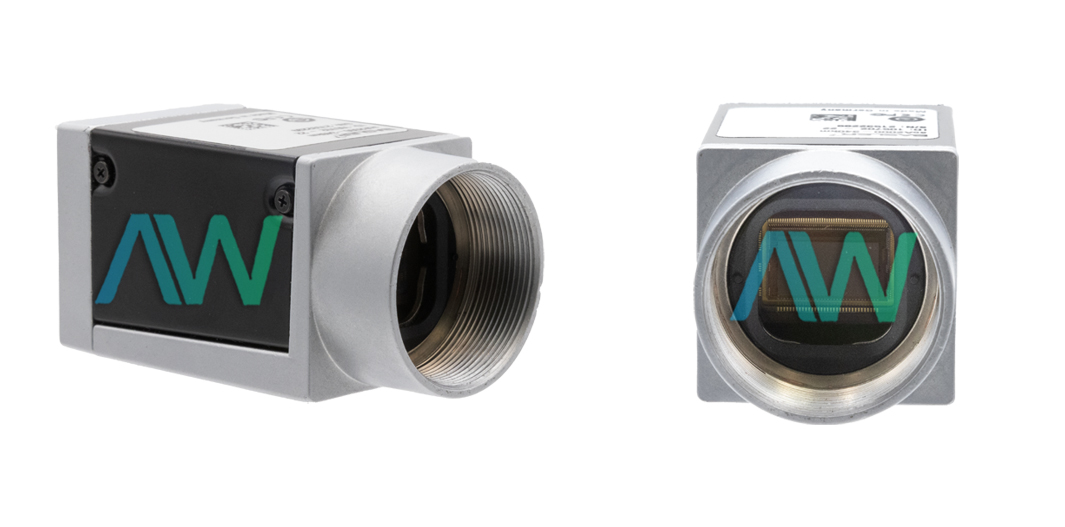

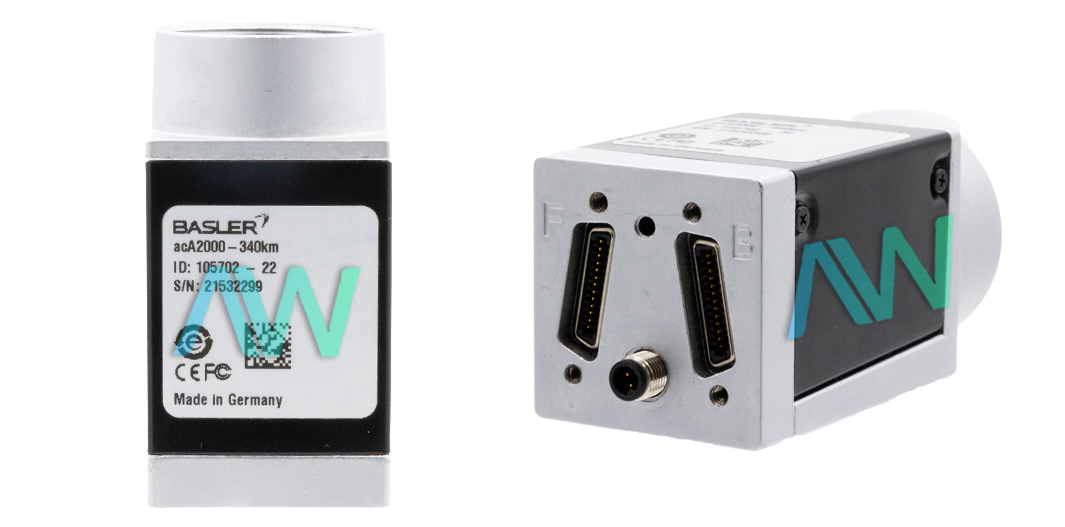

NI acA2000-340km Area Scan Camera
The acA2000-340km is an Area Scan Camera. The acA2000-340km is launched by National Instruments. The Basler Area Scan Cameras family includes the acA2000-340km. The NI acA2000-340km has the part number 782142-01. The acA2000-340km Area Scan Camera functions with Basler Pylon Camera Software Suite and can also be used with 3rd party Camera Link Software. The National Instruments acA2000-340km supports different operating systems including Linux, Mac, and Windows. This Area Scan Camera can capture an exposure cycle for a single image.
The NI acA2000-340km Area Scan Camera is designed with a monochrome image sensor. NI offers the acA2000-340km with a CMV2000 camera sensor. The NI acA2000-340km delivers high-quality performance based on a maximum frame rate of 340 fps. The acA2000-340km is equipped with a global shutter. The NI acA2000-340km Area Scan Camera has a Camera Link camera interface. The National Instruments acA2000-340km offers a pixel size of 5.5 x 5.5 μm2. The NI acA2000-340km has a camera resolution of 2048 x 1088.
The NI acA2000-340km Area Scan Camera is mounted with a C lens. The acA2000-340km features a single opto-isolated channel. This channel can be used as an input or output as the user’s application requires. The NI acA2000-340km Area Scan Camera is featured with 3.0 W of power consumption. The National Instruments acA2000-340km Area Scan Camera enhances vision capabilities. Synchronization for this Area Scan Camera is possible through software trigger, hardware trigger, or free-run. The acA2000-340km has a typical weight of less than 1 lb.
| Model | acA2000-340km |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 782142-01 |
| Type | Area Scan Camera |
| Camera Interface Type | Camera Link |
| Camera Sensor | CMV2000 |
| Image Sensor Color | Monochrome |
| Shutter Type | Global |
| Resolution | 2 MP |
| Pixel Size | 5.5 |
| Weight | 1 lb. |
| Warranty | 2-3 Year Warranty |
| acA2000-340km Manual | User Manual and Maintenance Manual Available for Download |
| Pricing | Contact a Sales Representative for a quote. |
Associated part numbers for acA2000-340km:
782142-01
