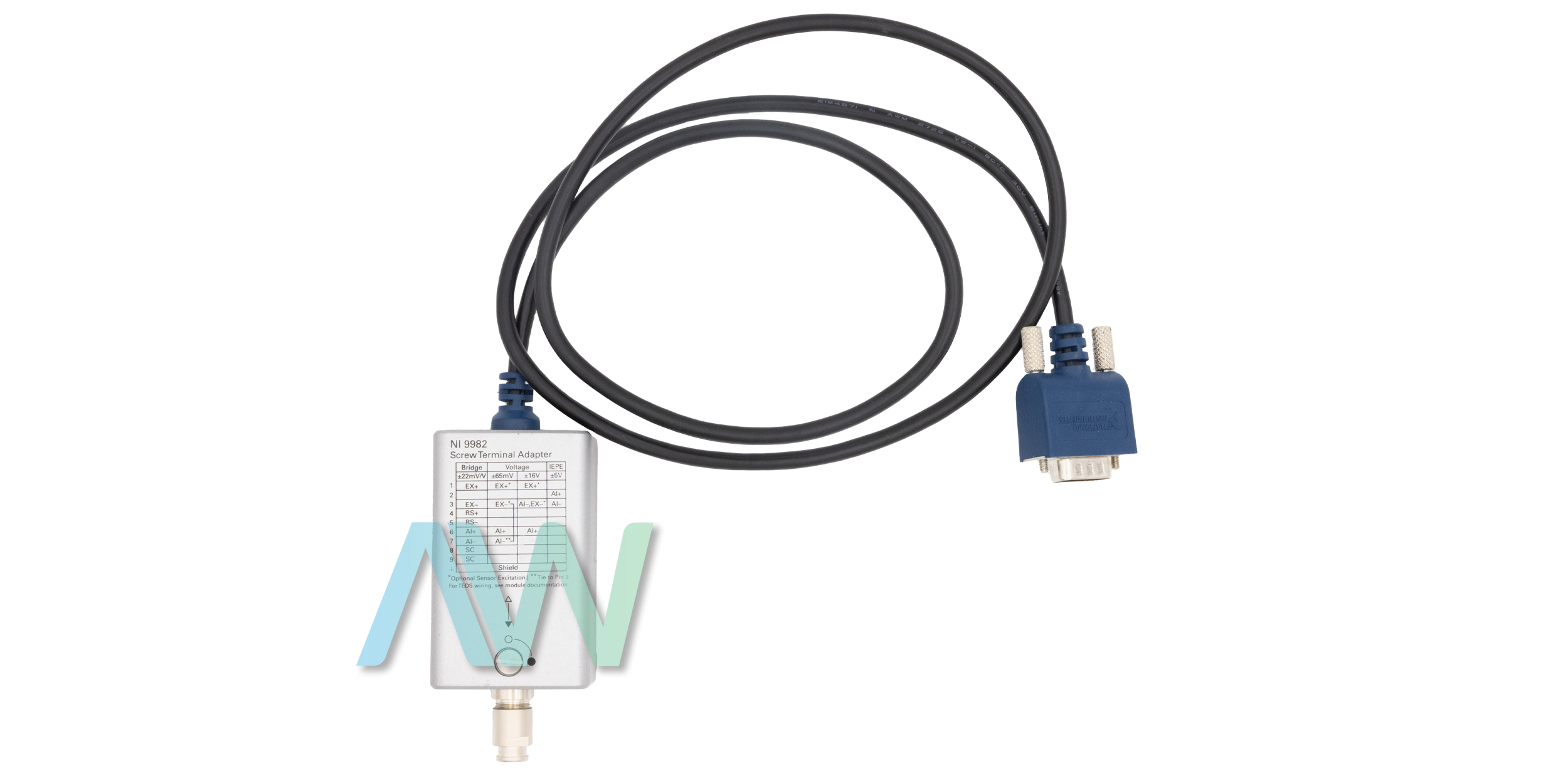

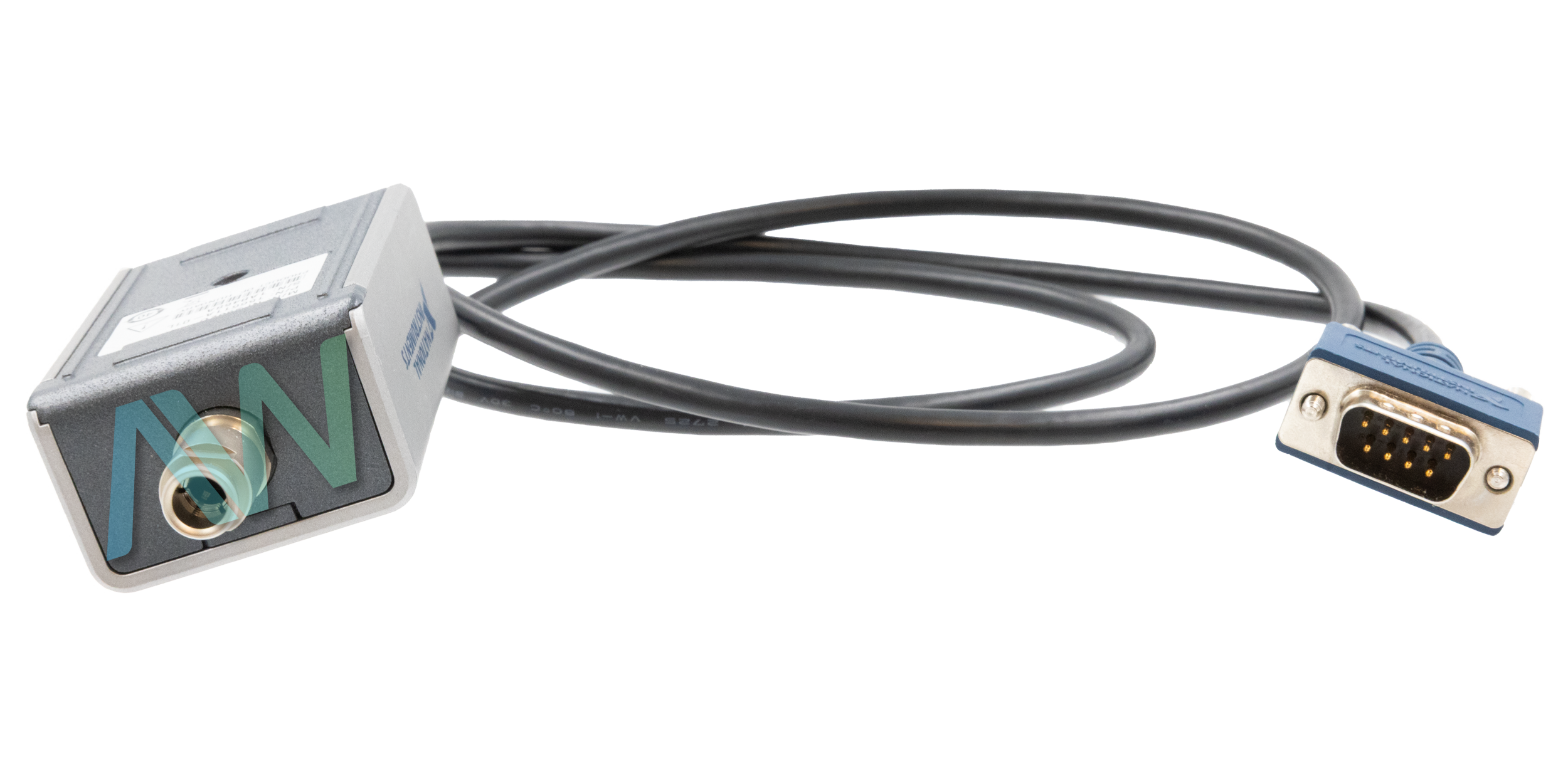

National Instruments NI-9982 Terminal Block
The National Instruments NI-9982 (Part Numbers: 783411-01, 783410-01, 784137-01) Terminal Block is a 13-pin female screw terminal designed to interface seamlessly with the NI-9218 C Series Universal Analog Input Module. It offers dependable connectivity, guaranteeing the efficient operation of your analog input module in a range of industrial settings. With two options for back-end connections—a 9-pin male LEMO or a 9-pin male D-SUB—the NI-9982 gives you flexibility to select the connection type that best meets the requirements of your system.
Because this terminal block supports Transducer Electronic Data Sheet (TEDS) Class 1 sensors, sensor data can be sent automatically. When combined with the NI-9218 module, the NI-9982 enhances your system's ability to communicate with TEDS Class 1 sensors in both LEMO and D-SUB topologies. Its support for further versions, such as the NI-9982L, NI-9982D, and NI-9982F, further increases its compatibility and utility in complex testing scenarios. Alternative modules such as the NI-9983L, NI-9984L, NI-9985L, and NI-9986L should be taken into consideration for settings that need TEDS Class 2 sensors.
The NI-9982 is designed to endure severe industrial settings. It can be stored safely in temperatures as low as -40 °C to 85 °C and functions dependably in a temperature range of -40 °C to 70 °C. Although it is not waterproof, its IP40 ingress protection certification suggests a sturdy design that is appropriate for areas where dust and other particles may be present. The terminal block is noncondensing and can function in relative humidity ranges of 10% to 90%. It can also be kept in circumstances up to 95% relative humidity. It may be used in a variety of industrial applications because it is rated for Pollution Degree 2 conditions.
High levels of mechanical stress, such as shock impacts up to 50 g and vibrations up to 5 g at frequencies ranging from 10 Hz to 500 Hz, are designed to be withstood by the NI-9982. Its durability is increased by its ability to operate at heights of up to 5,000 meters.
| Model | NI-9982 |
|---|---|
| Model Name | NI-9982 |
| Part Number(s) | 783411-01, 783410-01, 784137-01 |
| Part Type | Terminal Block |
| Number of Pins | 13-Pin Female Screw Terminal |
| Compatible Modules | NI-9218 C Series Universal Analog Input |
| Back-End Connection | 9-Pin Male LEMO, 9-Pin Male D-SUB |
| TEDS Support | TEDS Class 1 Sensors |
| Operating Temperature | -40 °C to 70 °C |
| Ingress Protection | IP40 |
| Vibration Resistance | Up to 5 g, 10 Hz to 500 Hz |
