TB-2621
Test & Measurement Misc > National Instruments > Terminal Blocks
| Description: | TB-2621, 40 Screw Terminal, High-Voltage, Terminal Block |
Need an Official Quote?
Or speak to a sales representative for additional information:
Phone:1-800-915-6216
Email:sales@apexwaves.com

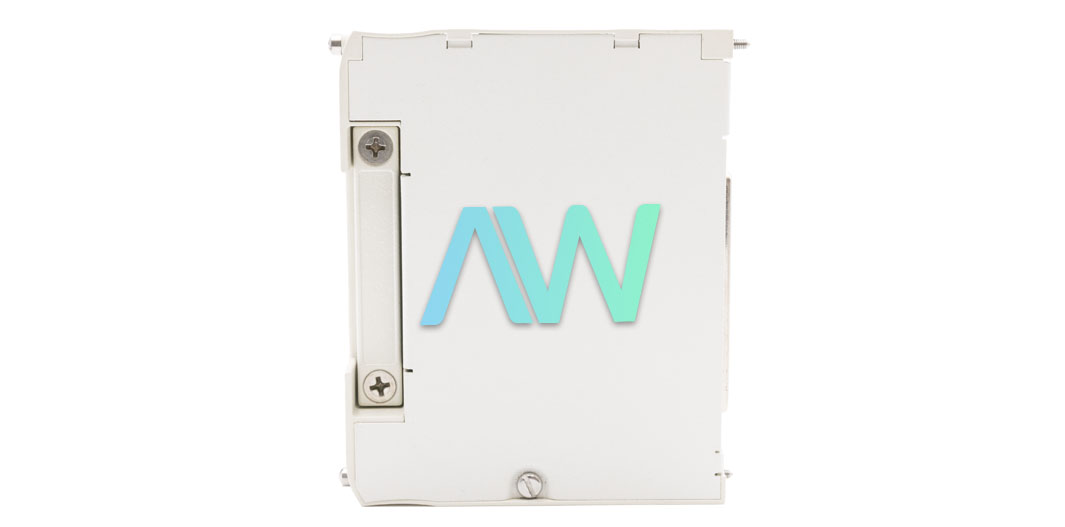

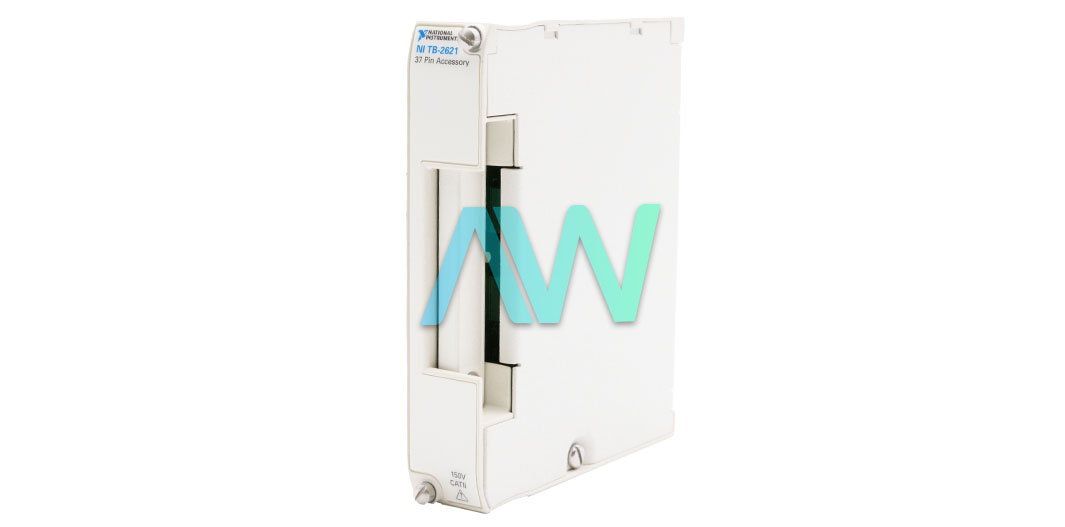

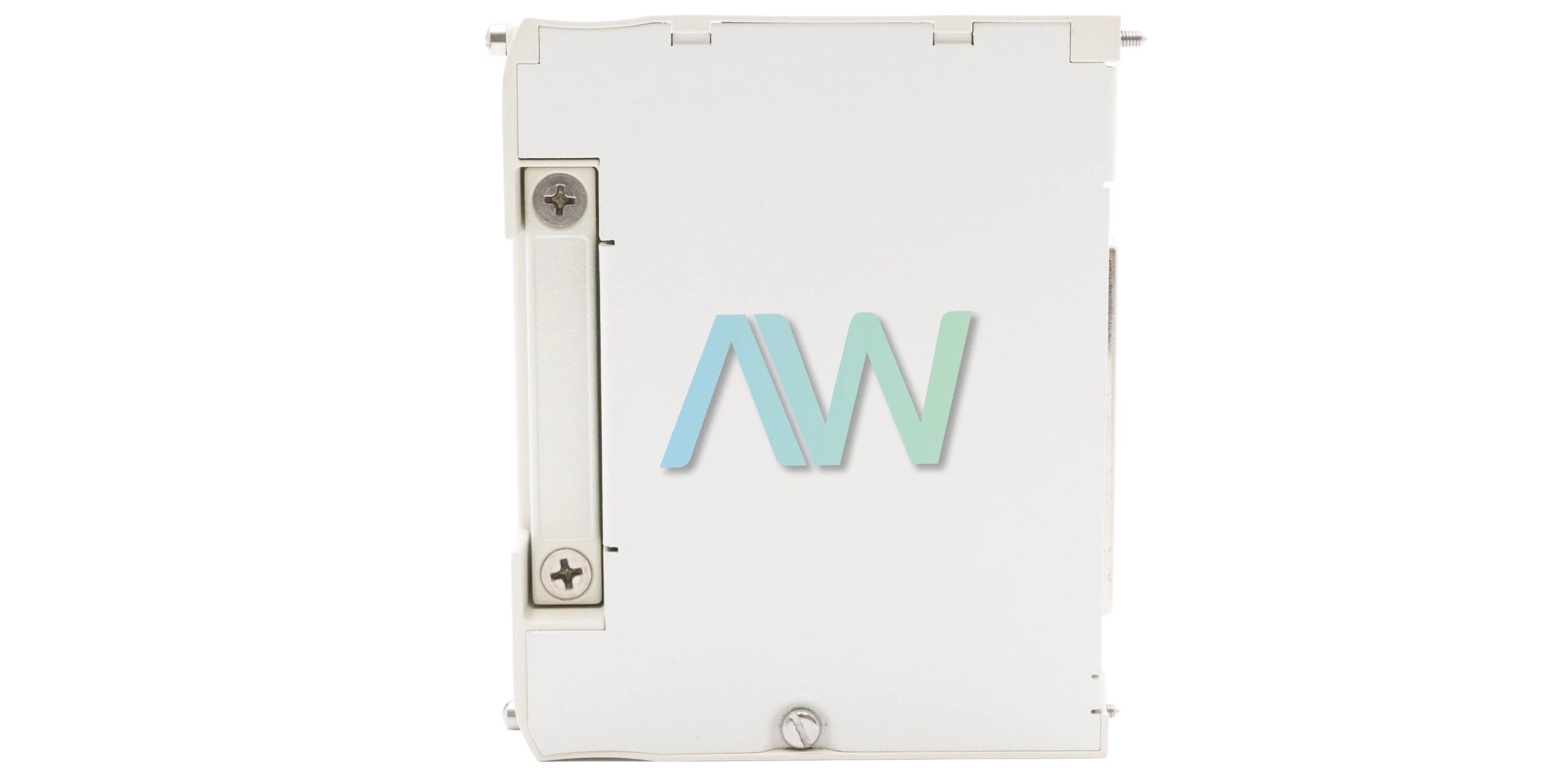

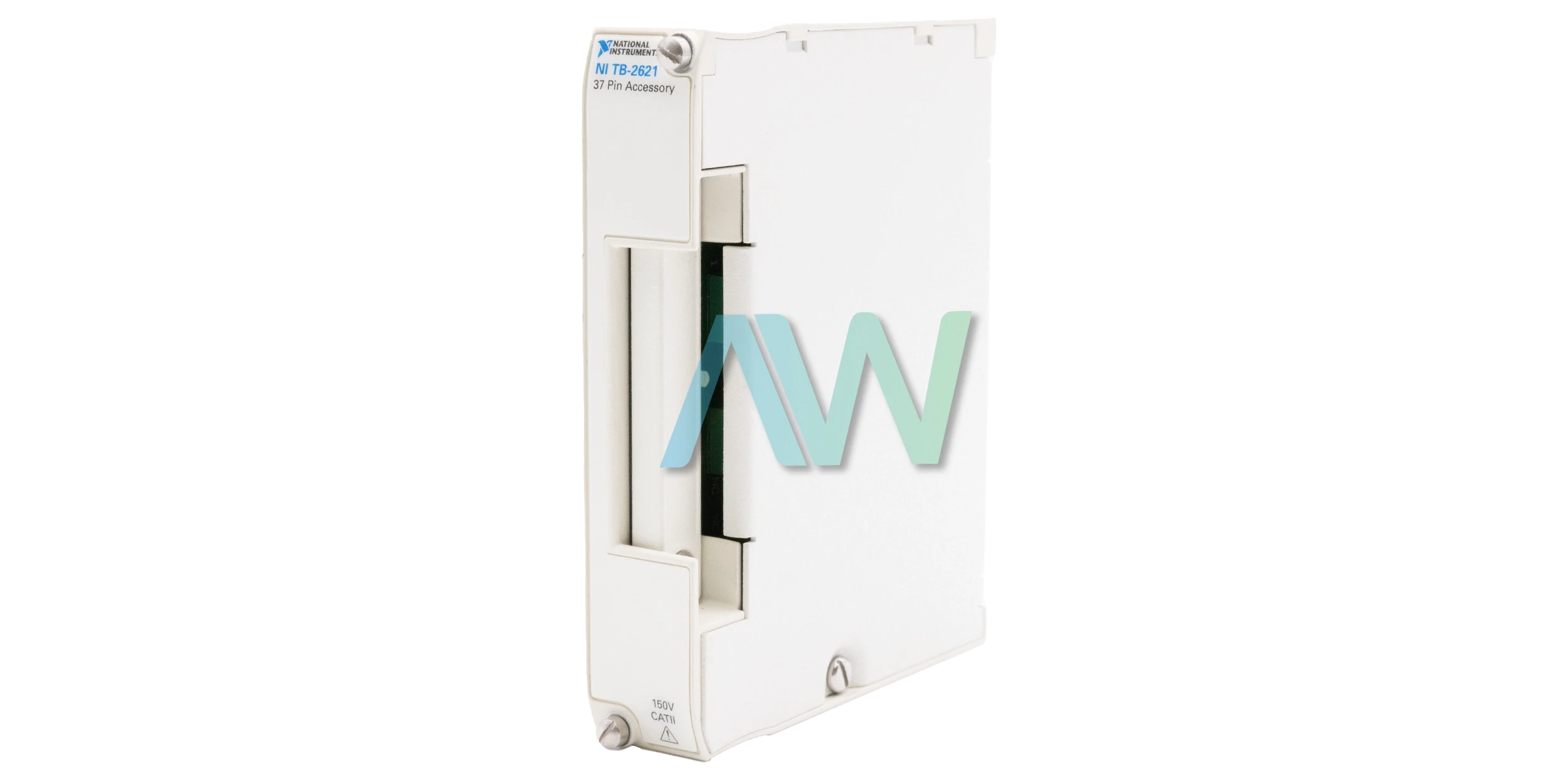

National Instruments TB-2621 Terminal Block
The TB-2621 is a Terminal Block. National Instruments developed the NI TB-2621 Terminal Block with the part number 779444-01. The TB-2621 is designed to provide connections to multiple types of 37-pin D-SUB devices by National Instruments. The NI TB-2621 Terminal Block is categorized as a CAT II device. The TB-2621 Terminal Block is equipped with a D-SUB connector, as well as screw terminals.
The National Instruments TB-2621 Terminal Block can be utilized with both high-voltage and low-voltage devices. The NI TB-2621 Terminal Block is fully compatible with 37-pin PXI devices, such as the NI-6521, NI-6510, NI-6520, NI-6516, NI-6519, NI-6517, and NI-6518. The TB-2621 provides connections for 37 input/output signals with a total of 40 screw terminals. The terminal connections require 16-30 AWG wire for the NI TB-2621 Terminal Block. A 37-pin high-voltage accessory keying kit can also be purchased for use with this Terminal Block, but the kit is an optional accessory.
The NI TB-2621 Terminal Block can be connected to the front panel of the industrial PXI device it is being used with. The National Instruments TB-2621 Terminal Block is UL-listed for CAT II with a voltage of 150 VDC/VAC. The NI TB-2621 Terminal Block features the maximum current rating of 2 A per conductor. The TB-2621 contains a strain-relief bar. The NI TB-2621 Terminal Block is designed with DC coupling.
TB-2621 Obsolete Status has been announced by National Instruments, but the Terminal Block will still be available for purchase and repairs by Apex Waves.
| Model | TB-2621 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 779444-01 |
| Type | Terminal Block |
| Compatible Devices | 37-pin D-SUB |
| Screw Terminals | 40 |
| Coupling | DC |
| Maximum Current | 2 A per conductor |
| Dimensions | 4.1 in. × 3.5 in. × 0.7 in. |
| Weight | 10 oz. |
| Warranty | 2-3 Year Warranty |
| TB-2621 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for the TB-2621:
192669A-01, 192669B-01, 192669C-01L, 192669D-01L, 779444-01
Why Buy From Apex Waves:
"The business transaction was super easy and friendly."
"Hand carrying parts to fedex directly to make sure I get them overnight. Great service"
"They were very helpful to get me the test equipment that I need."
TB-2621
Test & Measurement Misc > National Instruments > Terminal Blocks
TB-2621, 40 Screw Terminal, High-Voltage, Terminal Block
1-800-915-6216
- Description
- Technical Specifications
- Manuals & PDFs

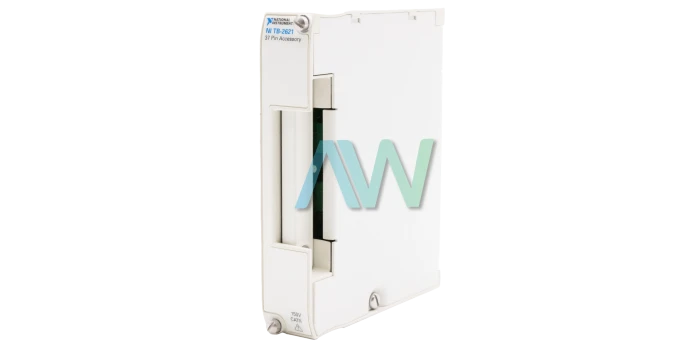

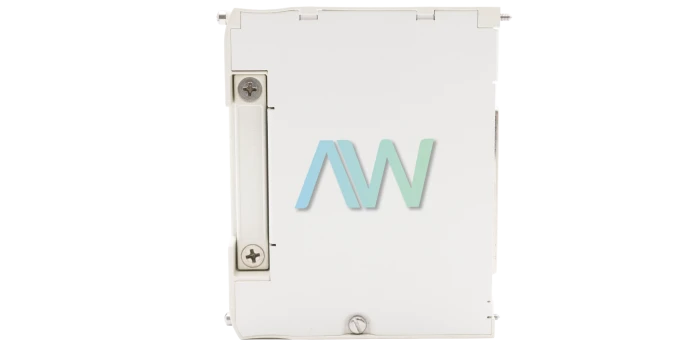

National Instruments TB-2621 Terminal Block
