National Instruments TC-4353 PXI Module Terminal Block

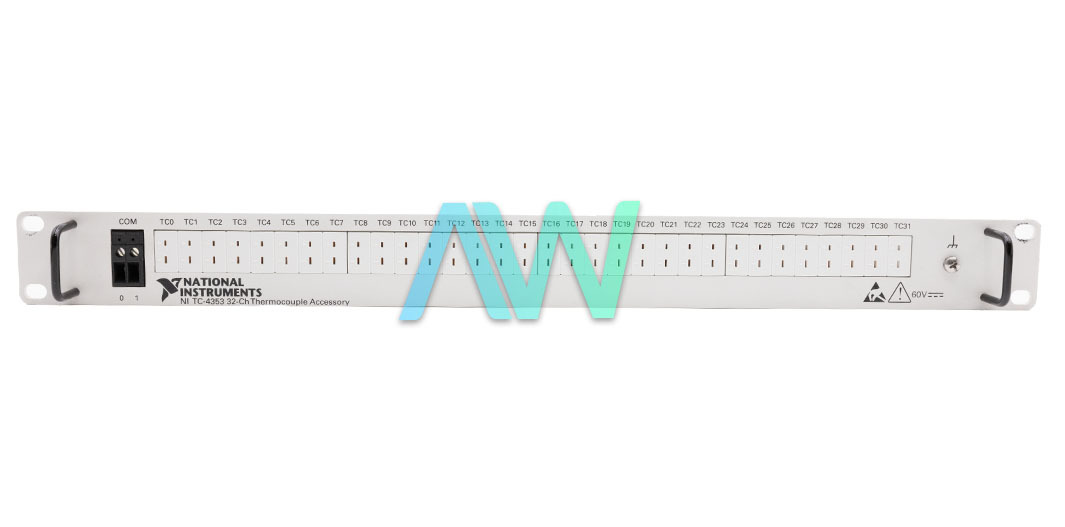

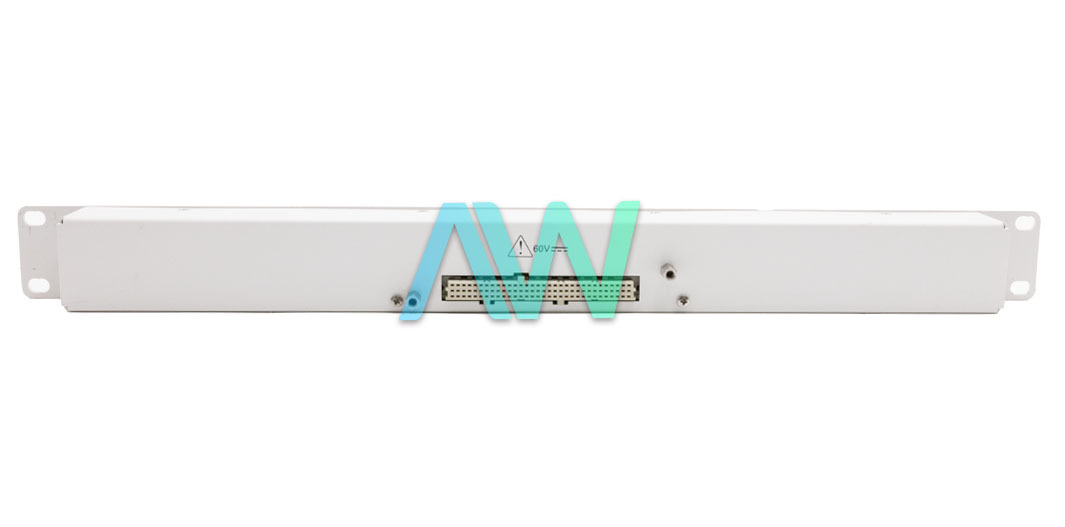

The TC-4353 (Part Number: 782403-01) from National Instruments is a front-mounting PXI Module Terminal Block that is specifically designed to be used with the PXIe-4353 PXI Temperature Input Module. The NI PXIe-4353 is a highly accurate thermocouple input module that supports up to 32 thermocouple inputs, making it an ideal choice for a wide range of temperature measurement applications. It also features 8 cold-junction compensation (CJC) channels that provide improved accuracy for CJC, which is an essential component of thermocouple temperature measurement.
The TC-4353 terminal block is equipped with eight thermistors that provide CJC for thermocouples. This means that it measures the temperature of the junction for the thermocouple and applies a compensating voltage to the voltage measured by the thermocouple channel. This process helps to improve the accuracy of the overall thermocouple temperature measurement.
To ensure that the TC-4353 provides the highest accuracy possible, it is designed to measure the temperature of the adjacent thermocouple junctions for the CJC. This is performed using the CJC channels on the NI PXIe-4353 module. The thermistors on the TC-4353 are used to measure the CJC temperature for a subset of associated thermocouple channels. When you use the Thermocouple Channel-Type and select built-in for the CJC source, NI-DAQmx automatically associates the correct thermistor with the thermocouple measurements.
Installing the TC-4353 is a straightforward process. To mount it in the rack, simply install and tighten the four rack-mounting screws in the desired position. If the chassis is not already installed in the rack, you will need to attach the PXIe chassis rack-mount hardware to the NI PXIe chassis according to the rack-mount hardware instructions. Once this is complete, you can mount the PXIe chassis in the rack in the desired position.
The TC-4353 is available to be calibrated. While the recommended calibration period for individual parts varies, most parts should be calibrated either annually or every two years to ensure accuracy. If you need the TC-4353 calibrated, Apex Waves provides options. We offer high-quality NIST-accredited calibrations through a 3rd party, with an average turnaround time of 1 to 2 weeks. When you order the TC-4353 with us, you can request basic (unaccredited) in-house calibration that will calibrate the part to the manufacturer's specifications prior to being shipped. Call or email us today for more information about calibrating the TC-4353!
Associated part numbers for the TC-4353:
190621B-01L, 190621C-01L, 200592A-01, 782403-01
National Instruments TC-4353 Frequently Asked Questions
Question: What type of cold-junction sensors does the TC-4353 have?
Answer: The TC-4353 uses 10 kΩ nominal NTC thermistor sensors.
Question: What is the screw terminal wire gauge of the TC-4353?
Answer: The TC-4353 uses a 10 AWG to 24 AWG screw terminal wire gauge.
Question: What is the ambient temperature range of the TC-4353?
Answer: The TC-4353 should be operated in temperatures between 0 °C to 55 °C.
Question: What is the channel-to-earth ground safety voltage for the TC-4353?
Answer: The channel-to-earth ground safety voltage is 60 VDC.
TC-4353 PDF Manuals
TC-4353_DIMENSIONAL_DRAWING.PDF
TC-4353_INSTALLATION_GUIDE_AND_SPECIFICATIONS.PDF
TC-4353_PRODUCT_CERTIFICATIONS.PDF
