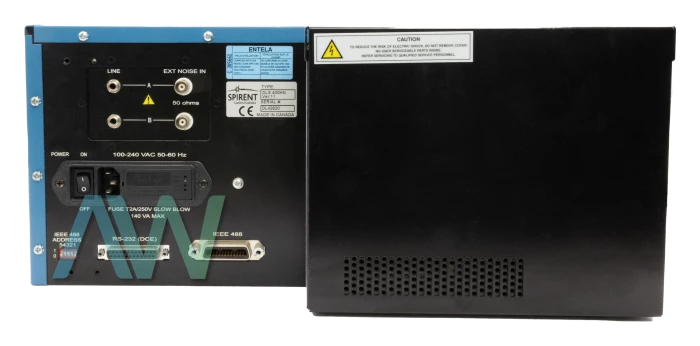

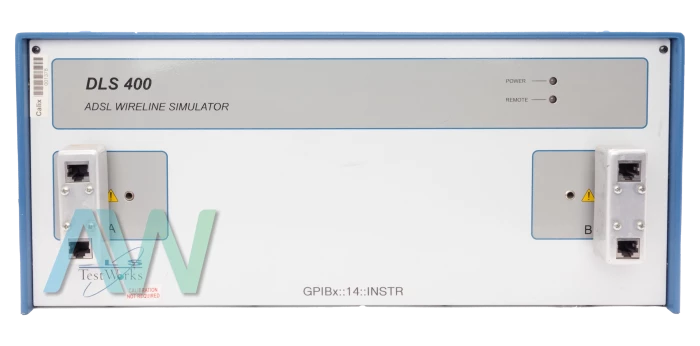

Spirent DLS-400HN ADSL Wireline Simulator
The Spirent DLS-400HN is an ADSL Wireline Simulator designed to emulate various local loop conditions for testing Asymmetrical Digital Subscriber Line (ADSL) and other high-speed digital subscriber line technologies. It reproduces the characteristics of real telephony cables using networks of passive components (inductors, resistors, capacitors), accurately simulating both AC and DC properties of the line. This allows for comprehensive evaluation of ADSL transmission products under controlled and repeatable conditions.
The DLS-400HN includes an IEEE-488 (GPIB) interface that conforms to Standard Commands for Programmable Instruments (SCPI) specifications, facilitating integration into automated test systems. It offers multiple preset test loops for ADSL testing and allows users to create custom configurations, providing flexibility in simulating different line lengths and impairments. The DLS-400 simulates various local loops for testing Asymmetrical Digital Subscriber Line (ADSL) transmission products and other high-speed digital subscriber line technologies. It reproduces the characteristics of real telephony cables using networks of passive discrete components (inductors, resistors, capacitors), accurately replicating both AC and DC characteristics of the line.
The device contains numerous segments of cable simulation that can be configured into various line lengths and configurations. It accurately reproduces cable characteristics up to 1.5 MHz and, in some configurations, up to 2.0 MHz. This simulator is particularly useful for manufacturers and developers of ADSL equipment, enabling them to assess product performance, troubleshoot issues, and ensure compliance with industry standards by replicating a wide range of line conditions encountered in real-world deployments.
| Model | DLS-400HN |
|---|---|
| Part Number | DLS-400HN |
| Part Type | ADSL Wireline Simulator |
| Functionality | Simulates local loops for ADSL and high-speed DSL technologies |
| Simulation Components | Networks of passive components (L, R, C) |
| Frequency Range | Up to 1.5 MHz, up to 2.0 MHz in some configurations |
| Preset Test Loops | 28 preset loops; user can create custom configurations |
| Interface | IEEE-488 (GPIB), SCPI compliant |
| Applications | ADSL product performance evaluation and testing |
| Manufacturer | Spirent |
