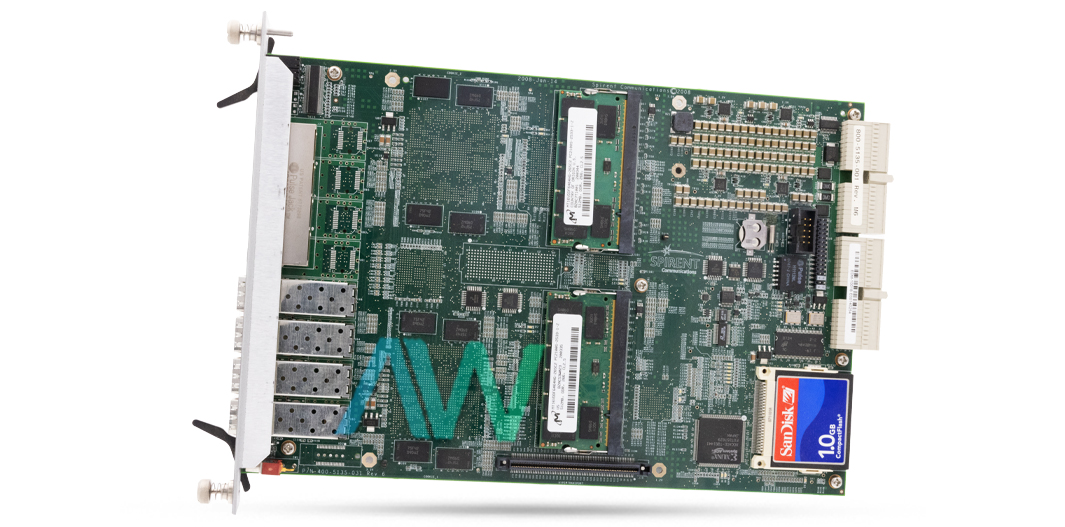

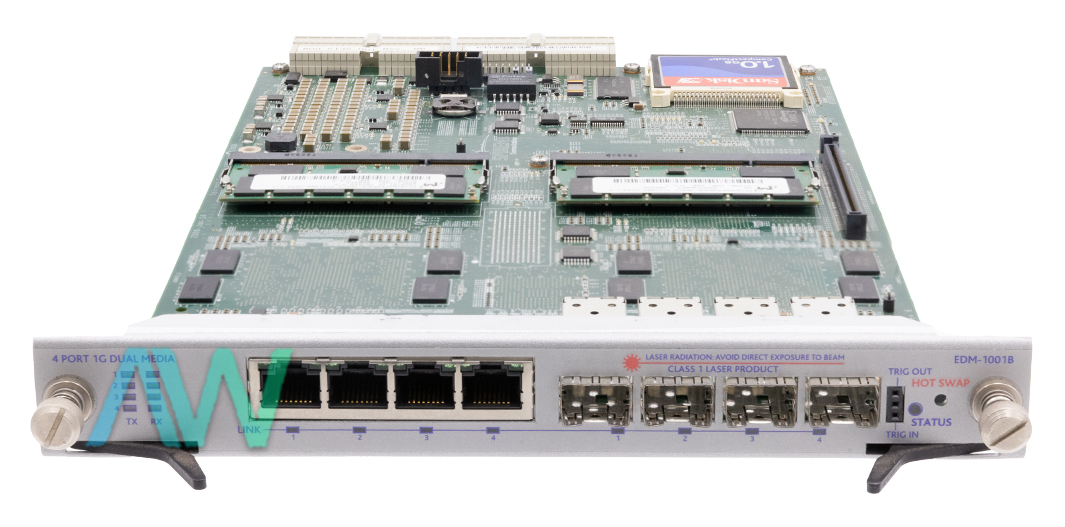

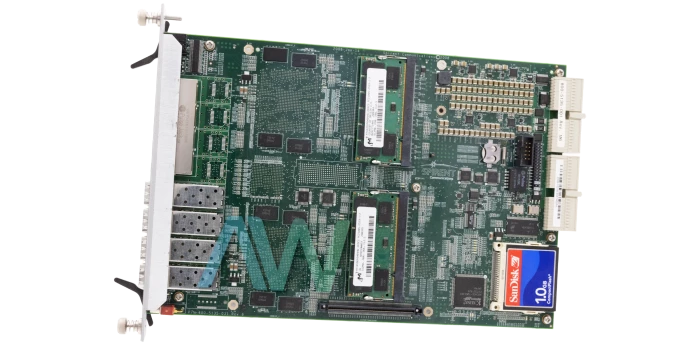

Spirent EDM-1001B Gigabit Ethernet Test Module
The Spirent EDM-1001B is a high-performance Gigabit Ethernet test module, integral to Spirent's TestCenter Series 1000. The EDM-1001B, designed to offer exact and versatile network testing, supports 10/100/1000 Mbps RJ-45 copper connections, as well as 1 Gbps SFP fiber, in a highly adaptable format suitable for most environments. With four ports operating at Gigabit Ethernet speeds, the EDM-1001B makes for strong testing and reliable validation of network devices, while it's scalable and flexible for both lab and field applications.
The EDM-1001B is designed to support as many as 16,384 customizable transmit streams per port and up to 65,535 receive streams in tracking, thus allowing comprehensive testing of high-density network systems. Specifically tailored for Layer 2 and Layer 3 functional testing, EDM-1001B allows the emulation of routing protocols and testing for conformance to promote accuracy and efficiency in benchmarking and device validation. Equipped with 512 MB of dedicated memory per port pair, the EDM-1001B will be able to run complex test cases and manage high-volume traffic loads with ease, making the product ideal for R&D and production environments.
With the EDM-1001B as a Gigabit Ethernet test module, it outclasses other test modules in performance benchmarking, scalability validation, and fault tolerance analysis. Equipped with dual-media capabilities, the EDM-1001B easily switches over to both copper and fiber interfaces to accommodate different network infrastructures. On the front of value-added features, real-time traffic analysis, error injection, and stream customization ensure that the EDM-1001B provides the depth required for critical metrics such as latency, jitter, packet loss, and sequence validation with unparalleled precision in the assessment of network performance.
The EDM-1001B works with Spirent's range of chassis systems, like the SPT-2000A, for flexibility in both portable and high-density test setups. The EDM-1001B is designed to be hot-swappable, reducing system downtime and making maintenance as smooth as possible. Compatibility with Spirent's automation tools makes test configuration and execution straightforward. Generating a large-scale network of traffic, the EDM-1001B emulates real-world conditions in testing device performance—an essential tool in advanced network emulation.
The Spirent EDM-1001B Gigabit Ethernet test module gives enterprises and service providers unparalleled versatility in network performance optimization with its advanced capabilities. The EDM-1001B brings a cost-reducing, time-to-market accelerating, and reliability-assuring comprehensive testing solution to modern network infrastructure.
| Model | EDM-1001B |
|---|---|
| Part Type | Gigabit Ethernet Test Module |
| Connector Type | Dual-media: RJ-45 for 10/100/1000 Mbps copper and 1 Gbps SFP fiber |
| Port Configuration | Four ports per module |
| Maximum Transmit Streams | Up to 16,384 customizable streams per port |
| Maximum Receive Streams | Capable of tracking up to 65,535 incoming streams per port |
| Supported Signal Rates | 10/100/1000 Mbps and 1 Gbps |
| Memory Per Port Pair | 512 MB |
| Frame Size Range | Minimum: 44 bytes; Maximum: 16 Kbytes |
| Supported Chassis | Compatible with Spirent SPT-2000A, SPT-5000A, and SPT-9000A systems |
Associated part numbers for EDM-1001B:
