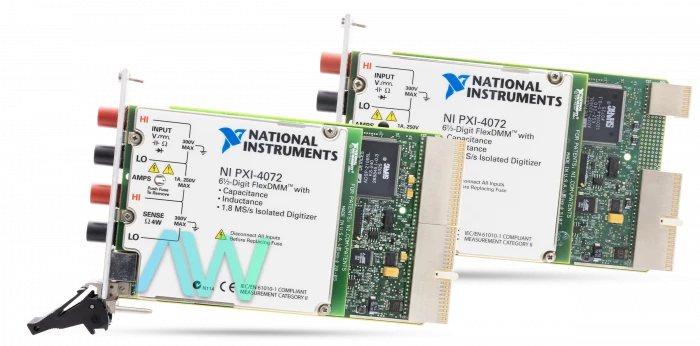

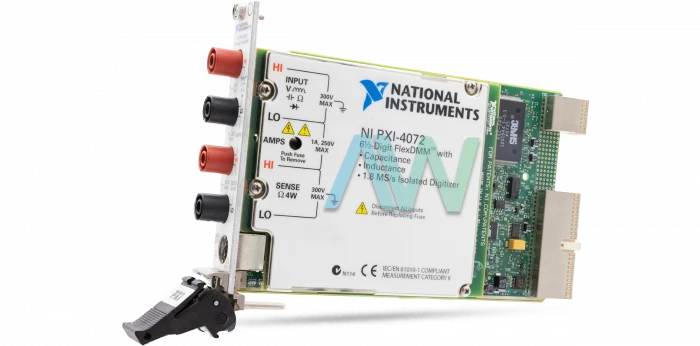

PXI-4072 National Instruments Digital Multimeter | Apex Waves | Image PXI-4072 National Instruments Digital Multimeter | Apex Waves | ImagePXI-4072 NewPXI-4072 | Legacy, Refurbished and New Surplus
PXI-4072 National Instruments Digital Multimeter | Apex Waves | Image
PXI-4072 National Instruments Digital Multimeter | Apex Waves | Image
PXI-4072 New
PXI-4072 | Legacy, Refurbished and New Surplus

PXI-4072

4.9/5 | 10 ratings

Meters > National Instruments > NI-407x Series

Part Number PXI-4072
Manufacturer/Brand National Instruments
Description: PXI-4072, 6.5 Digit, ±300 V, PXI Digital Multimeter
In Stock | Ships Today
Fast Quote
Quoted Price
Same Day Calibration Available
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing

Need an Official Quote?



Or speak to a sales representative for additional information:

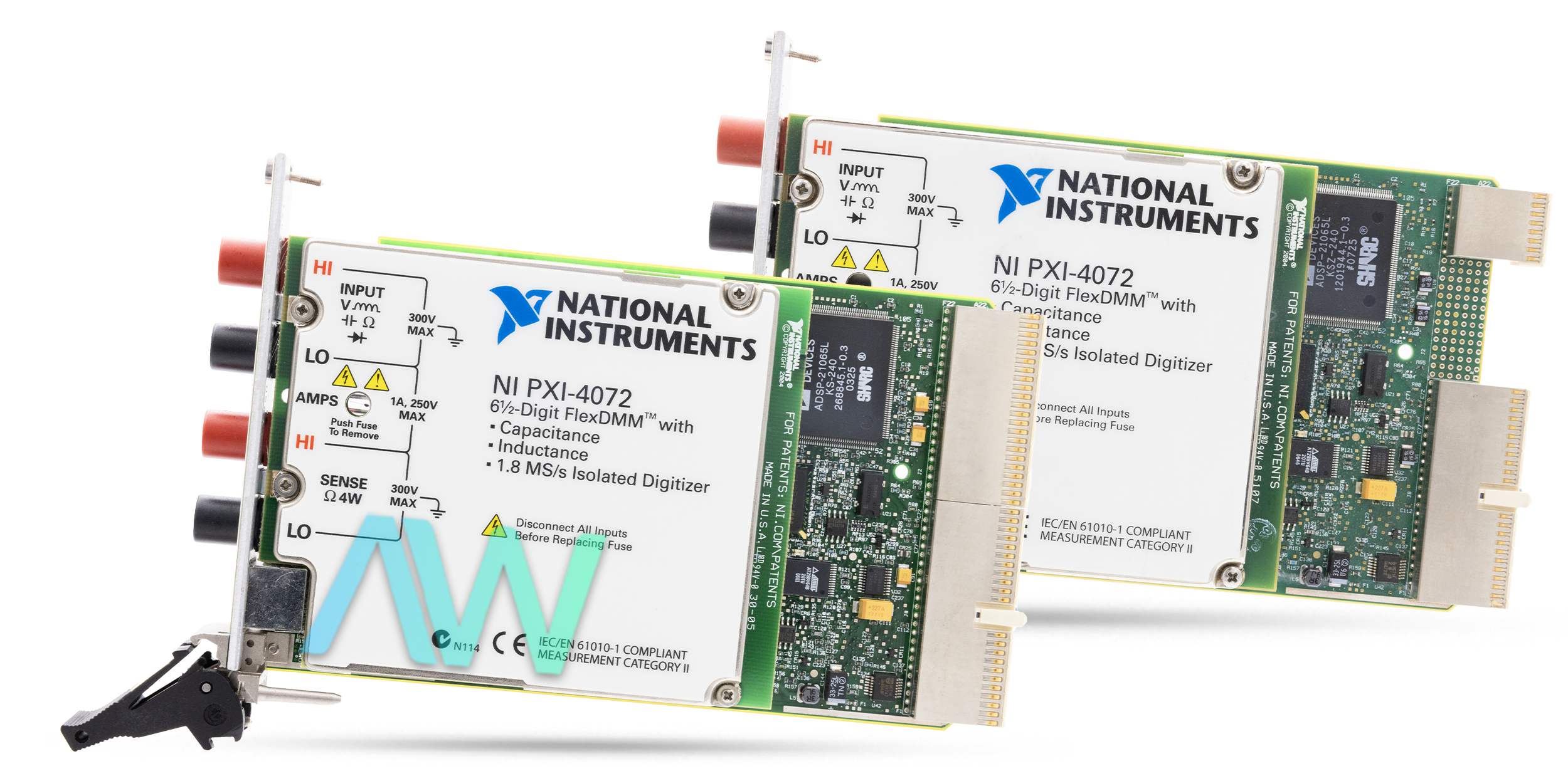

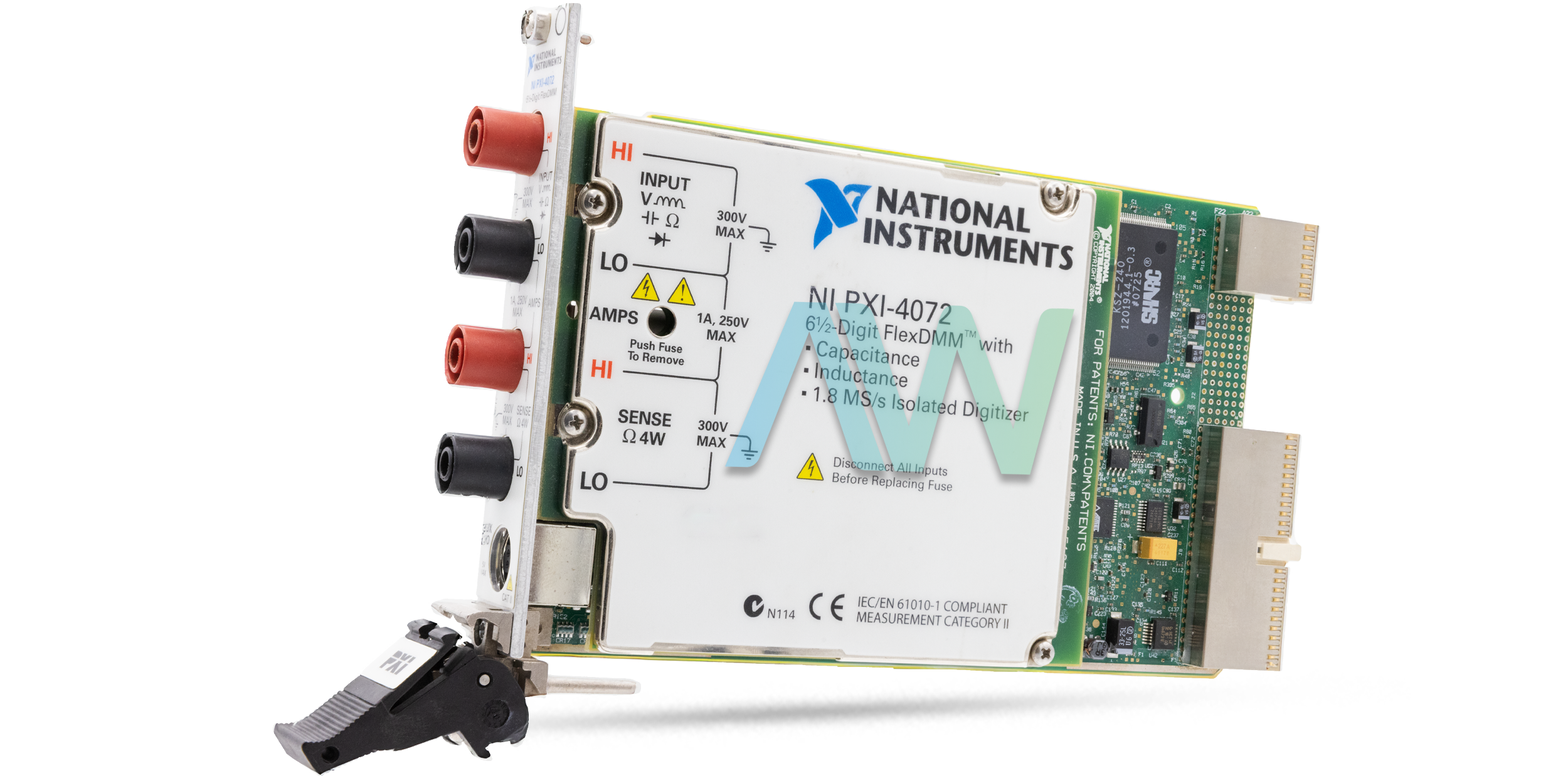

National Instruments PXI-4072 PXI Digital Multimeter

The National Instruments PXI-4072 (Part Number: 778270-01) FlexDMM gives the user the usefulness of three normal instruments in a solitary slot 3U PXI module: a 6½-digit multimeter, an LCR meter, and disengaged digitizer which has a maximum sample rate of 1.8 MS per second. The NI PXI-4072 FlexDMM brings computerized multimeters closer to providing universal estimation ability by offering the user the 20 most basic ATE estimations, including voltage, current, capacitance, inductance, temperature, and resistance. By coordinating these estimations into one PXI module, the user can diminish test framework size and cost, increment throughput, and abbreviate test development time. This model can likewise be utilized with PXI switches to frame a multichannel information obtaining framework.

These National Instruments PC-based advanced multimeters and LCR meters are upgraded for computerized test. Accessible on buses from USB to PXI, these DMMs consolidate offer more than 150 NI switch topology alternatives to make high-channel-count test frameworks. The device has a DC voltage range of -300 V to 300 V; and a DC current range of -1 A to 1 A. It is equipped with a 6.5 digit resolution. The PXI-4072 has a DC range/function change of 100/s, and an AC range/function change of 10/s. Additionally, the device has an operating ambient temperature range of 0 °C to 55 °C.

The device operates on the NI-DMM driver software. National Instruments NI PXI-4072 FlexDMM and LCR Meter drivers are minor programs that empower the Digital Multimeter to communicate with the working framework software. Keeping the NI PXI-4072 FlexDMM and LCR Meter software updated prevents crashes and amplifies equipment and framework execution. Utilizing obsolete or degenerate National Instruments PXI-4072 FlexDMM and LCR Meter drivers can cause framework blunders, crashes, and make your PC or equipment fail. Besides, introducing the wrong National Instruments drivers can aggravate these issues even more. Also, your computer should have one of the following configurations: a PCI slot, a x1, x4, x8, x16 PCI Express slot, a USB 2.0 or 1.1 slot, a PXI, PXI/CompactPCI, or PXI/SCXI combination chassis, chassis documentation, and a controller.

PXI-4072 Maintenance Status has been announced by National Instruments, but the multimeter will still be available for purchase and repairs by Apex Waves.

The PXI-4072 is available to be calibrated. While the recommended calibration period for individual parts varies, most parts should be calibrated either annually or every two years to ensure accuracy. If you need the PXI-4072 calibrated, Apex Waves provides options. We offer high-quality NIST accredited calibrations through a 3rd party, with an average turnaround time of 1 to 2 weeks. When you order the PXI-4072 with us, you can request basic (unaccredited) in-house calibration that will calibrate the part to the manufacturer specifications prior to being shipped. Call or email us today for more information about calibrating the PXI-4072!

Associated Part Numbers: 191485-03, 191485-03L, 191485A-03, 191485B-03, 191485C-03, 191485D-03, 191485E-03, 191485G-03L, 191485H-03L, 191485J-03L, 191485M-03L, 778270-01

ModelPXI-4072
ManufacturerNational Instruments
Part Number778270-01
HTS Code8471804000
TypePXI Digital Multimeter
Maximum Sample Rate1.8 MS/s
DC Voltage Range-300 V to 300 V
DC Current Range-1 A to 1 A
Digits of Resoution6.5
WarrantyThree Year Warranty
PXI-4072 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PXI-4072 Frequently Asked Questions



Question: Can I use the PXI-4072 DMM to perform an overall impedance measurement of a circuit comprised of inductive, capacitive, and resistive elements?



Answer: No, the PXI-4072 DMM is not able to measure impedance. You can, however, calculate impedance by measuring resistance, capacitance, and inductance independently.



Question: What is the flexible resolution of the NI PXI-4072?



Answer: The NI PXI-4072 has a 10 to 23-bit flexible resolution.



Question: Can the National Instruments NI PXI-4072 acquire waveform rates?



Answer: Yes, the National Instruments NI PXI-4072 can acquire waveforms at sample rates up to 1.8 MS/s.
