PCI-6010 In Stock | Ships Today
PCI-6010, 16 AI, 2 AO, 6 DI, 4 DO, Multifunction I/O Device
Need an Official Quote?

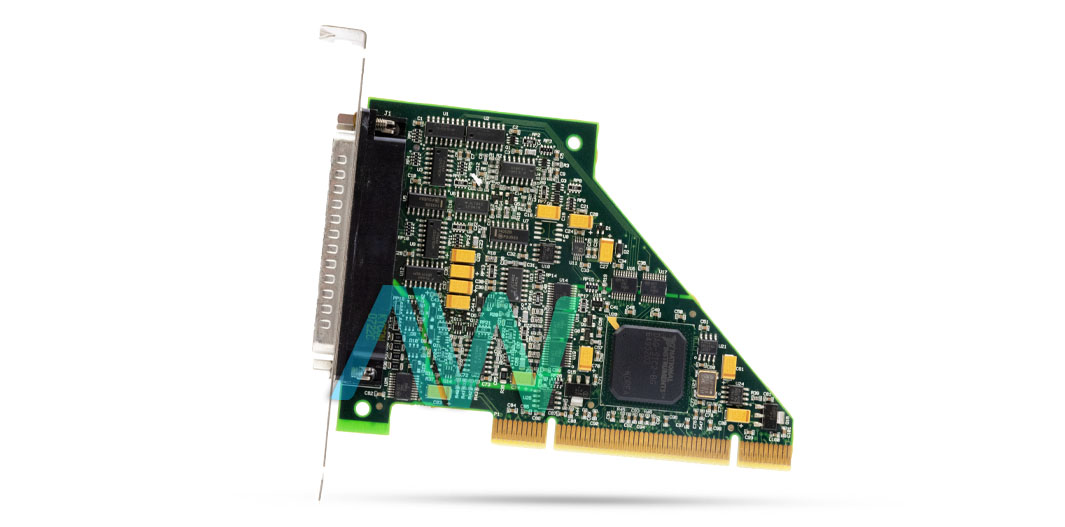

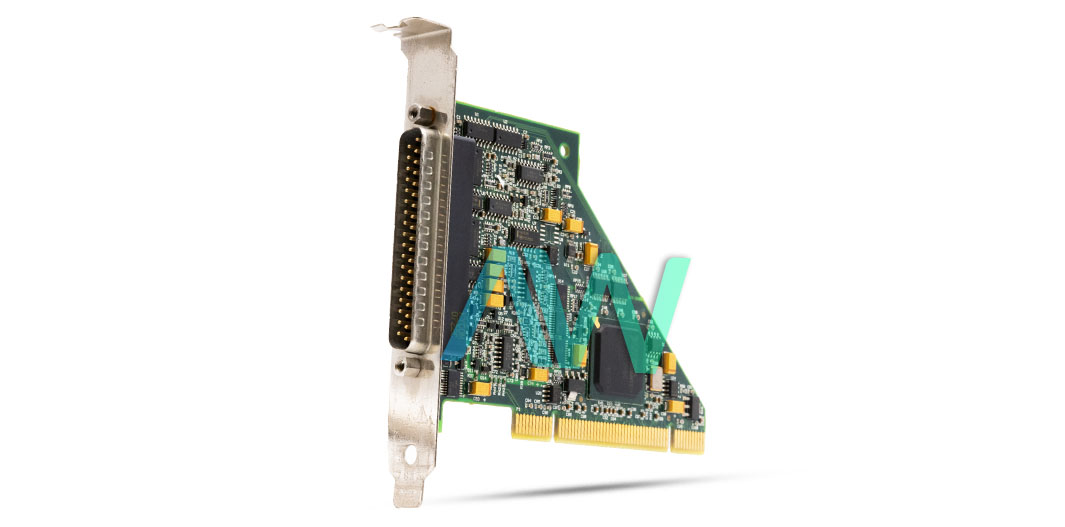

National Instruments PCI-6010 Multifunction I/O Device
Featured with 2 Analog Outputs, 6 Digital Inputs, and 4 Digital Outputs, the National Instruments PCI-6010 (Part Number: 779348-01) is a Multifunction I/O Device. This model can be utilized for counter/timer I/O; thus, it is an ideal solution for a broad range of OEM products or applications in manufacturing test, design verification, automation, laboratory, research, etc. The PCI-6010 comes equipped with a D-SUB type 37-pin connector and can be connected to various available D-SUB components.
Two 32-bit counters/timers provided on the PCI-6010 support many types of counter measurements, including: pulse, edge counting, period, semi-period, two-edge separation, etc. Moreover, the output applications possible with the integrated counters are: pulse, frequency division, and equivalent time sampling. The NI PCI-6010 is a PCI based I/O device with 3 DMA channels (analog input, counter/timer 0, and counter/timer 1). This device can be deployed in 3.3 V or 5 V signal environment.
For external digital triggers, any PFI line provided on this Multifunction I/O Device can be used as a source. For most signals, it can select polarity through software-selection. The National Instruments NI PCI 6010 comes with 8 differential or 16 single ended analog input channels and 16 bits ADC. These channels support DC input coupling and can acquire samples at 200 kS/s (in single channel mode) and 33.3 kS/s (while scanning). The input range of these analog input channels is ±5 V, ±1 V, ±0.2 V. This device has one frequency generator, as well as 10 MHz, 100 KHz base clocks.
The PCI 6010 is run using the NIDAQmx driver software which is compatible with software packages/application development environments (ADEs) such as LabVIEW or LabWindows/CVI.
The NI device measures 4.7 x 3.4 in. in physical dimensions. It has a recommended operating temperature range of 0 to 55 °C, a storage temperature range of –20 to 70 °C, and a non-condensing relative humidity range of 10 to 90%. The multifunction I/O device is designed to comply with the following electrical safety standards: IEC 61010-1, EN 61010-1, UL 61010-1, and CAN/CSA-C22.2 No. 61010-1.
PCI-6010 End of Life Status has been announced by National Instruments, but will still be available for purchase and repairs by Apex Waves.
| Model | PCI-6010 |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 779348-01 |
| Type | Multifunction I/O Device |
| Channels | 16 Analog Inputs (16-Bit, 200 KS/s) or 8 differential 2 Analog Outputs 6 Digital Input 4 Digital Outputs 2 Counter/Timer I/O 32 bits |
| Power Requirements | +5 V, +12 V, –12 V 0.3 A, 0.13 A, 0.08 A |
| Dimensions | 4.7 × 3.4 in |
| Driver Software | National Instruments PCI-6010 DAQ Device |
| Warranty | Three Year Warranty |
| PCI-6010 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for the PCI-6010:
192230A-01, 192230B-01, 192230C-01, 192230D-01L, 779348-01, 779348-10, 779348-50
National Instruments PCI-6010 Frequently Asked Questions
Question: Can the PCI 6010 be used with Windows 7 OS?
Answer: Yes, the PCI 6010 will work with Windows 7 32-bit or 64-bit versions.
Question: What is the output rate of the NI PCI-6010?
Answer: The output rate of the NI PCI-6010 is static.
Question: Why are there two part numbers for the NI PCI 6010?
Answer: The NI PCI 6010 can be purchased as a single board (Part Number: 779348-01) or as a 50-Board Package (Part Number: 779348-50).
Question: Which types of measurement services software are needed for the PCI 6010 NI?
Answer: The PCI 6010 NI can be used with the following types of measurement services software: VI Logger Lite data-logging software, NI-DAQmx driver software, and Measurement & Automation Explorer configuration utility.
PCI-6010 PDF Manuals
DAQ GETTING STARTED GUIDE FOR PCI PCI EXPRESS.PDF
DAQ GETTING STARTED READ ME FIRST NI DAQMX AND DAQ DEVICE INSTALLATION GUIDE.PDF
Driver Downloads for PCI-6010
OS Compatibility:
Win XP 32-bit, Win 7 32-bit, Win 10 32-bit
