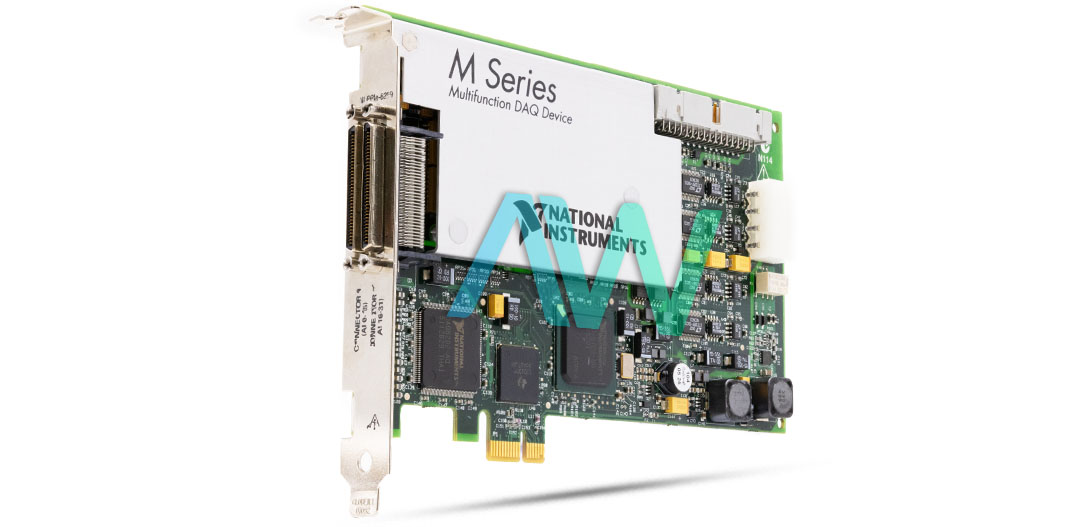

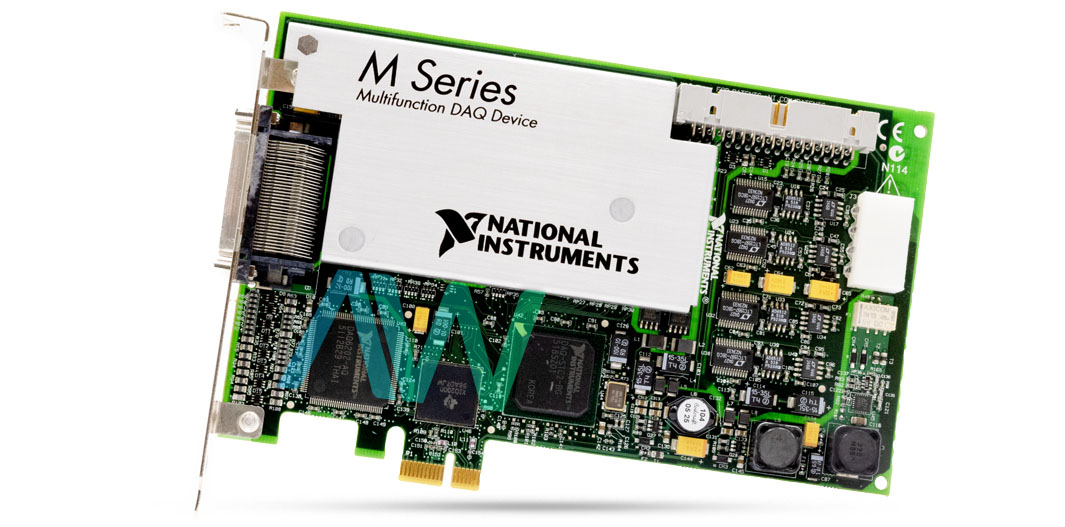

National Instruments PCIe-6259 Multifunction DAQ
The NI PCIe-6259 (Part number: 779513-01) is an M Series Multifunction DAQ developed by National Instruments for PCI Express. As it is part of DAQmx API, the hardware clocks cannot be directly set. The clock can be set indirectly through the functions. These functions include time base blocks. The NI PCIe-6259 has 32 single-ended analog input channels. They have a resolution range from 1 to 16-bit. The device also has 16 differential analog inputs with the same resolution. Each channel can operate at 1.25 MS/s peak sample rate. The DAQ also produces multi-channel samples at the highest speed of 1 MS/s.
The PCIe 6259 National Instruments has four analog output channels. Each channel can perform at 2.86 MS/s/channel. It also can perform at the highest sample rate of 1.25 MS/s with multi-channel operation. The resolution of the analog output channels is also 16-bit. The NI PCIe-6259 has 48 digital inputs and outputs. This model also provides support to 2 quadrature encoder inputs with 32-bit resolution. It is also structured with two 32-bit PWM outputs. These PWM outputs practice a counter time base, which can operate at the rate of 80 MHz.
The National Instruments PCIe-6259 has one analog trigger, which can perform in many modes like analog edge triggering. This model can also operate in analog window triggering mode. This analog trigger is used to execute and discontinue the triggering. It is also used as a reference trigger and a sample clock. It has a resolution of 10-bit with -3 dB bandwidth.
Model | PCIe-6259 |
---|---|
Manufacturer | National Instruments |
Part Number | 779513-01 |
Series | M Series |
Type | Multifunction DAQ |
Analog Input Channels | 32 (16-Bit, 1.25 MS/s) or 16 differential |
Analog Output Channels | 4 (16-Bit, 2.86 MS/s) |
Digital Inputs | 16 |
Digital Outputs | 32 |
Timing I/O | 2 Counter/Timer I/O (32 bits, 80 MHz) |
Frequency Generator Channels | 1 |
Phase-Locked Loop (PLL) | 1 |
I/O Connectors | 2 68-pin VHDCI |
Power Requirements | +3.3 V, +12 V -- 0.925 A, 0.35 A |
Dimensions | 3.9 in. × 6.6 in. |
Weight | 0.39 lb. |
Driver Software | NI-DAQmx, NI-DAQmx Base |
Warranty | One Year Warranty |
PCIe-6259 Manual | User Manual and Maintenance Manual Available for Download |
Price | Contact a sales representative for a quote. |
National Instruments PCIe-6259 Frequently Asked Questions
Question: Will my PCIe 6259 work in a different PCI slot?
Answer: Yes, the PCIe 6259 can fit in a PCI Express slot or a longer PCIe slot.
Question: Can you add sensor and high-voltage measurement capability to the NI PCIe-6259?
Answer: Yes, you can add sensor and high-voltage measurement capability to the NI PCIe-6259 by using SCC or SCXI signal conditioning modules.
Question: What is the maximum sampling rate of the PCIe 6259 National Instruments Multifunction DAQ?
Answer: The maximum sampling rate of the PCIe 6259 National Instruments is 1.25MS/s single channel and 1Ms/s multichannel aggregate.
PCIe-6259 PDF Manuals
DAQ GETTING STARTED GUIDE FOR PCI PCI EXPRESS.PDF
DAQ GETTING STARTED READ ME FIRST NI DAQMX AND DAQ DEVICE INSTALLATION GUIDE.PDF
NI 6259 DEVICE SPECIFICATIONS.PDF
NI 62XX 63XX PINOUT LABELS FOR THE SCB 68 NOTE TO USERS.PDF
NI 62XX 63XX PINOUT LABELS FOR THE SCB 68A NOTE TO USERS.PDF
PCI PXI 625X LETTER OF VOLATILITY.PDF
