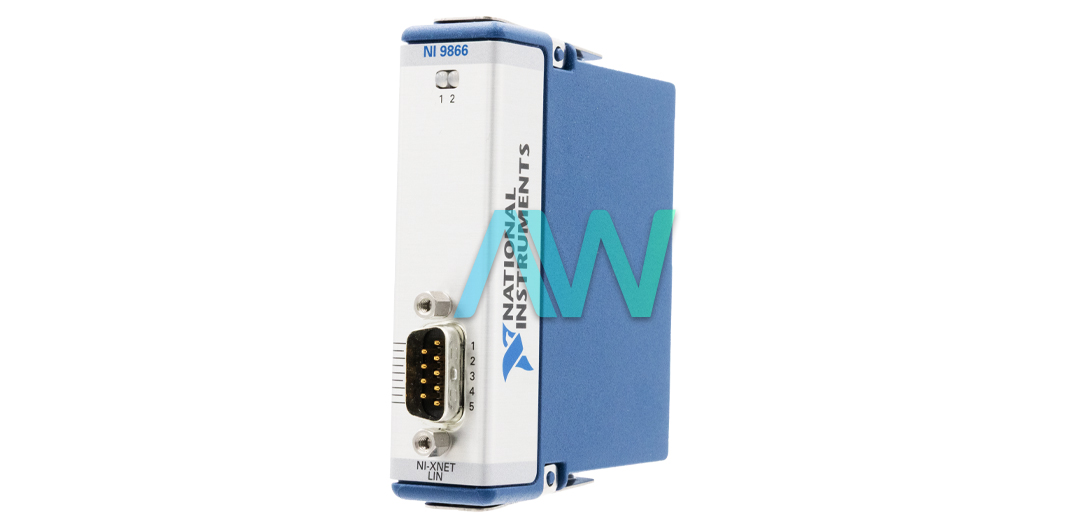

National Instruments NI-9866 C Series LIN Interface Module
The NI-9866 (Part Number: 781963-01) has one 9-stick male D-Sub connector that gives associations with a LIN bus. The port has two basic pins (COM) that are inside associated with the module's separated reference and fill in as the reference ground for LIN signal. Users can associate the LIN bus reference ground to one or both COM pins. The port also has a discretionary shield stick–SHLD–that users can associate with a protected LIN link. Interfacing SHLD may enhance signal respectability and EMC execution in an uproarious situation. LIN links should meet the physical medium prerequisite of a RC transport time steady of 5 μs. For point by point recipes for figuring this esteem, allude to the Line Characteristics area of the LIN resolution. Belden link (3084A) and other unterminated CAN/Serial quality links meet these necessities and ought to be appropriate for generally applications.
The NI-9866 LIN Interface Module has one LIN port that is disconnected from alternate modules in the framework. The port has a LIN controller that is completely agreeable with the LIN 1.3/2.0/2.1/2.2 Specification. The port also has an NXP TJA1028 LIN handset that is compatible with the LIN 1.3/2.0/2.1/2.2 and SAE J2602 standard and backings baud rates up to 20 kbps. With local help in NI VeriStand continuous test advancement programming, the new modules are perfect for ongoing automotive testing applications, incorporating equipment on the up and up reproduction and test cell applications. The two modules bolster synchronization and triggering with other CompactRIO and NI CompactDAQ modules. NI CompactDAQ offers a stage for convenient in-automotive arrange communication, in-automotive logging, and essential automotive gadgets communicate in a USB, Wi-Fi, or Ethernet frame factor. The NI-9866 has a power consumption value of up to 1 W when active.
The NI device weighs 5.0 oz. It has a recommended operating temperature range of –40 °C to 70 °C, a storage temperature range of –40 °C to 85 °C, operating and storage humidity ranges of 10 to 90% RH and 5 to 95% RH respectively, random and sinusoidal operating vibrations of 5 grms and 5 g respectively – all at a frequency range of 10 Hz to 500 Hz.
| Model | NI-9866 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 781963-01 |
| Type | C Series LIN Interface Module |
| Ports | 1 |
| Maximum Baud Rate | 20 kbps |
| Transceiver | NXP TJA1028 |
| LIN Bus Lines Voltage | -40 to +40 VDC |
| Weight | 5.0 oz. |
| NI-9866 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for NI-9866:
National Instruments NI-9866 Frequently Asked Questions
Question: Which specification is the LIN port on the NI 9866 compatible with?
Answer: The LIN port on the NI 9866 is compatible with the LIN 1.3/2.0/2.1/2.2 Specification.
Question: Which type of external power supply is required for the NI-9866 module?
Answer: The NI-9866 module requires a +8 to +18 V external power supply.
Question: What is the LIN bus lines voltage on the NI 9866?
Answer: The LIN bus lines voltage on the NI 9866 is -40 to +40 VDC.
Question: Which accessories are required for the NI-9866?
Answer: The NI-9866 requires a NI CAN Cable, No Term, High-Speed/FD/Low-Speed, D-Sub 9-Pin F with a length of either 1 or 2 m.
